Description
DN | I.D | O.D | Pitch distance | Wall Thickness | |
(mm) | in | (mm) | (mm) | (mm) | (mm) |
6 | 1/4 | 6 | 8.8 | 2 | 0.2 |
8 | 5/16 | 7.80 | 11.3 | 3 | 0.2 |
10 | 3/8 | 11.00 | 15.7 | 3 | 0.2 |
12 | 1/2 | 11.6 | 18 | 3 | 0.2 |
15 | 5/8 | 14.4 | 21.5 | 3.5 | 0.3 |
20 | 3/4 | 19.4 | 27 | 4.5 | 0.3 |
25 | 1 | 24.4 | 32.5 | 5 | 0.3 |
32 | 1 1/4 | 31.4 | 40 | 5.5 | 0.3 |
40 | 1 1/2 | 39.4 | 5o | 6 | 0.3 |
50 | 2 | 49.4 | 63 | 7.5 | 0.3 |
65 | 2 1/2 | 64.4 | 81 | 9 | 0.3 |
80 | 3 | 79.2 | 98 | 10.5 | 0.4 |
100 | 4 | 99.2 | 120 | 13 | 0.4 |
125 | 5 | 124 | 150 | 14.5 | 0.5 |
150 | 6 | 149 | 180 | 17.5 | 0.5 |
200 | 8 | 198.8 | 240 | 24 | 0.6 |
250 | 10 | 248.4 | 300 | 28 | 0.8 |
300 | 12 | 298 | 355 | 33.5 | 1 |
Note: This is only a reference parameter, if you need other parameters of metal bellows, please contact us!

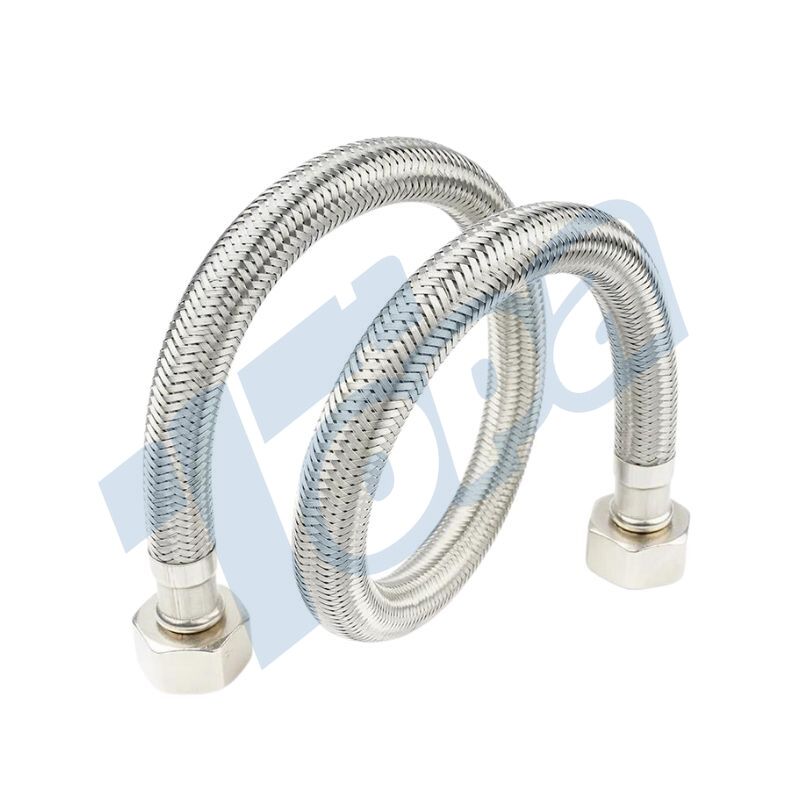

Flexible Metal Water Hose Video
This video shows information about the flexible metal water hose.

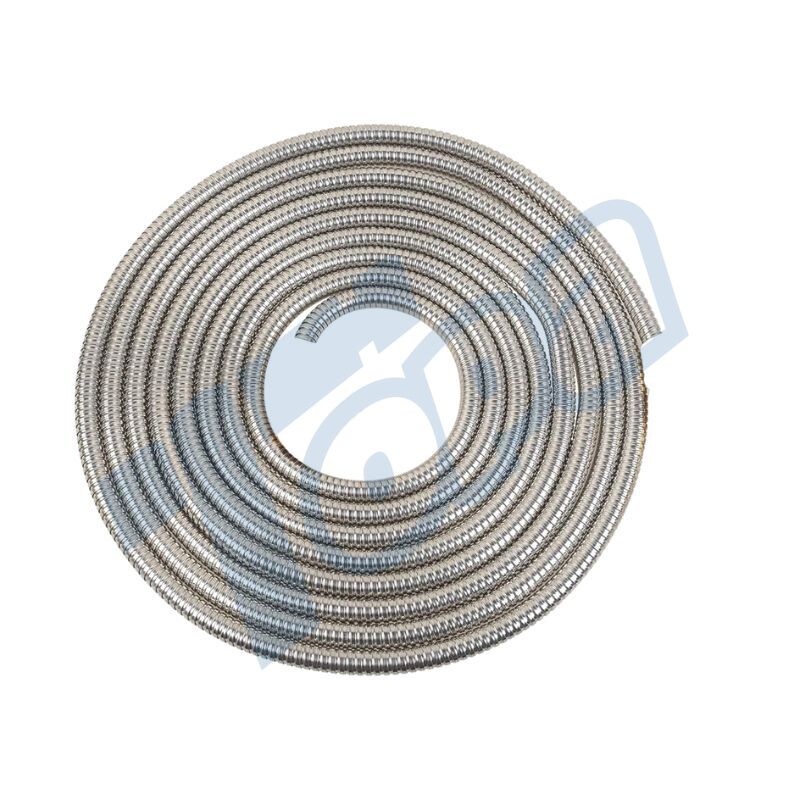

Topa can produce all types and sizes of metal flexible water pipes. Our corrugated metal pipes are subjected to strict quality control to ensure that all pipes meet your standards of use!
If you have any questions about the metal braided flexible hose, please contact us!
