Description

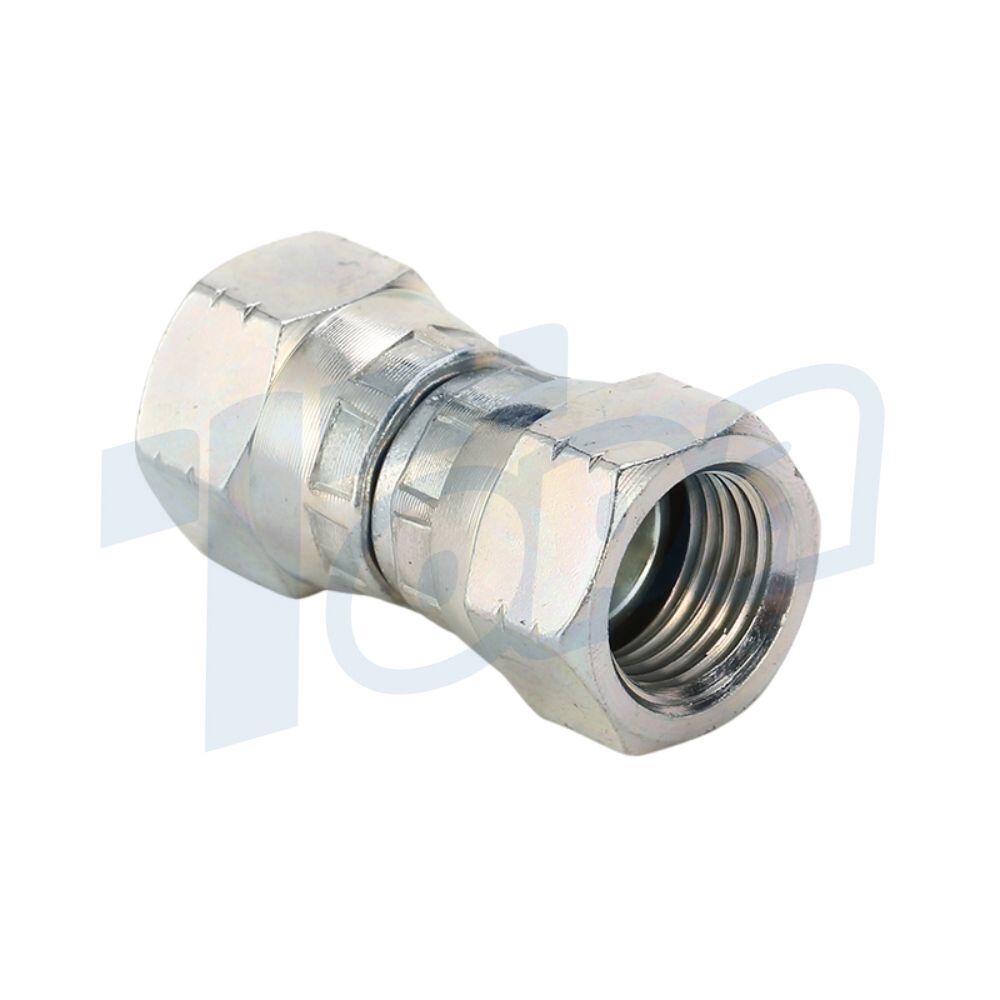

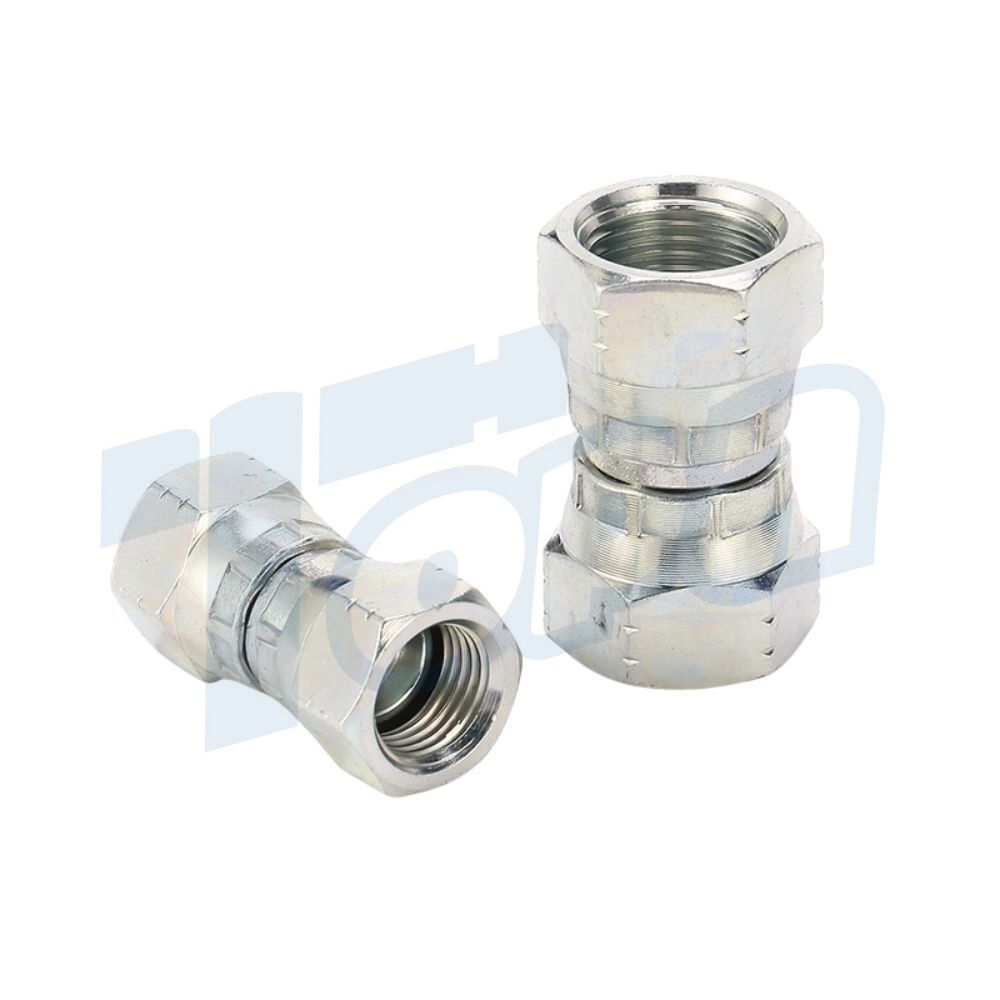

JIC Swivel Female Hydraulic Fittings
6565 female JIC thread swivel hydraulic fittings are straight female hydraulic adapters. These types of fitting are made of best-quality carbon steel, steel, and stainless steel, strength, and reliability. If you need more information about JIC female swivel fittings, please contact us!

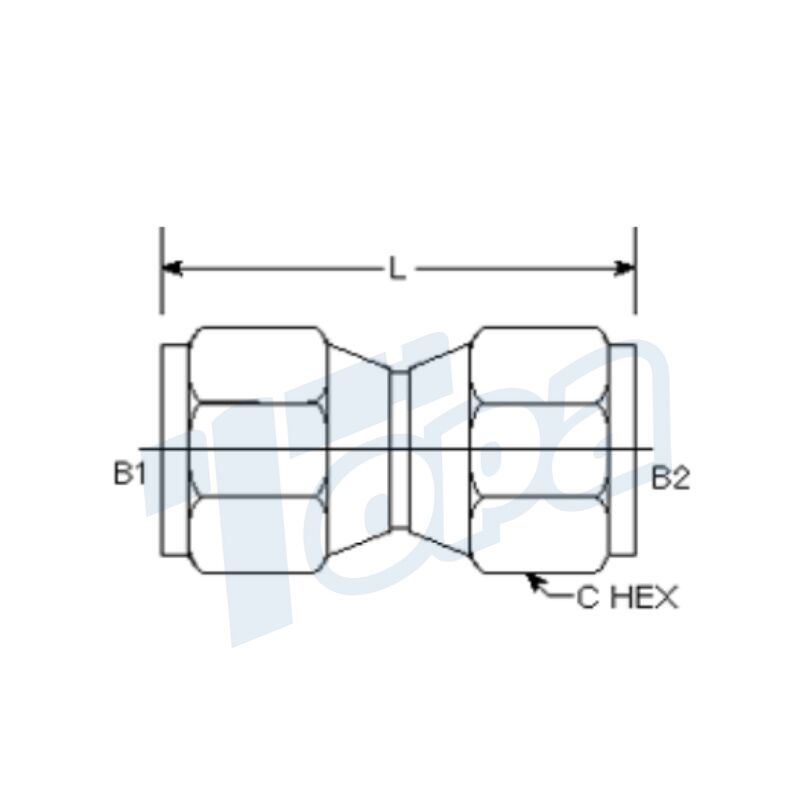

Dimensional Drawings:
Part# | TUBE O.D. | B1 | B2 | LLGTH | M.M. | C HEX | C HEX | M.M. |
6565-04-04 | 1/4 | 7/16-20 | 7/16-20 | 1.260 | 32.00 | 9/16 | 0.562 | 14.28 |
6565-06-06 | 3/8 | 9/16-18 | 9/16-18 | 1.330 | 33.78 | 11/16 | 0.688 | 17.46 |
6565-08-08 | 1/2 | 3/4-16 | 3/4-16 | 1.660 | 42.16 | 7/8 | 0.875 | 22.22 |
6565-10-10 | 5/8 | 7/8-14 | 7/8-14 | 1.900 | 48.26 | 1 | 1.000 | 25.40 |
6565-12-12 | 3/8 | 11/16-12 | 11/16-12 | 2.330 | 59.18 | 1 1/4 | 1.250 | 31.75 |
6565-16-16 | 1 | 1 5/16-12 | 15/16-12 | 2.630 | 66.80 | 1 1/2 | 1.500 | 38.10 |
6565-20-20 | 1 1/4 | 1 5/8-12 | 1 5/8-12 | 2.660 | 67.56 | 2 | 2.000 | 50.80 |
6565-24-24 | 1 1/2 | 1 7/8-12 | 1 7/8-12 | 2.880 | 73.15 | 21/4 | 2.250 | 57.15 |
6565 JIC Swivel Female Hydraulic Fitting Video
As a hydraulic adapters factory, Topa can supply female hydraulic fittings in various sizes. Our products can be used in multiple hydraulic fluid environments, and are resistant to high pressure and temperature.
Topa’s factory has several CNC machines to produce fittings strictly according to your data. Our JIC hydraulic swivel female fittings will undergo strict quality inspection to ensure the product meets your usage requirements.
If you want more information about female pipe swivel hydraulic fittings, please contact us!
