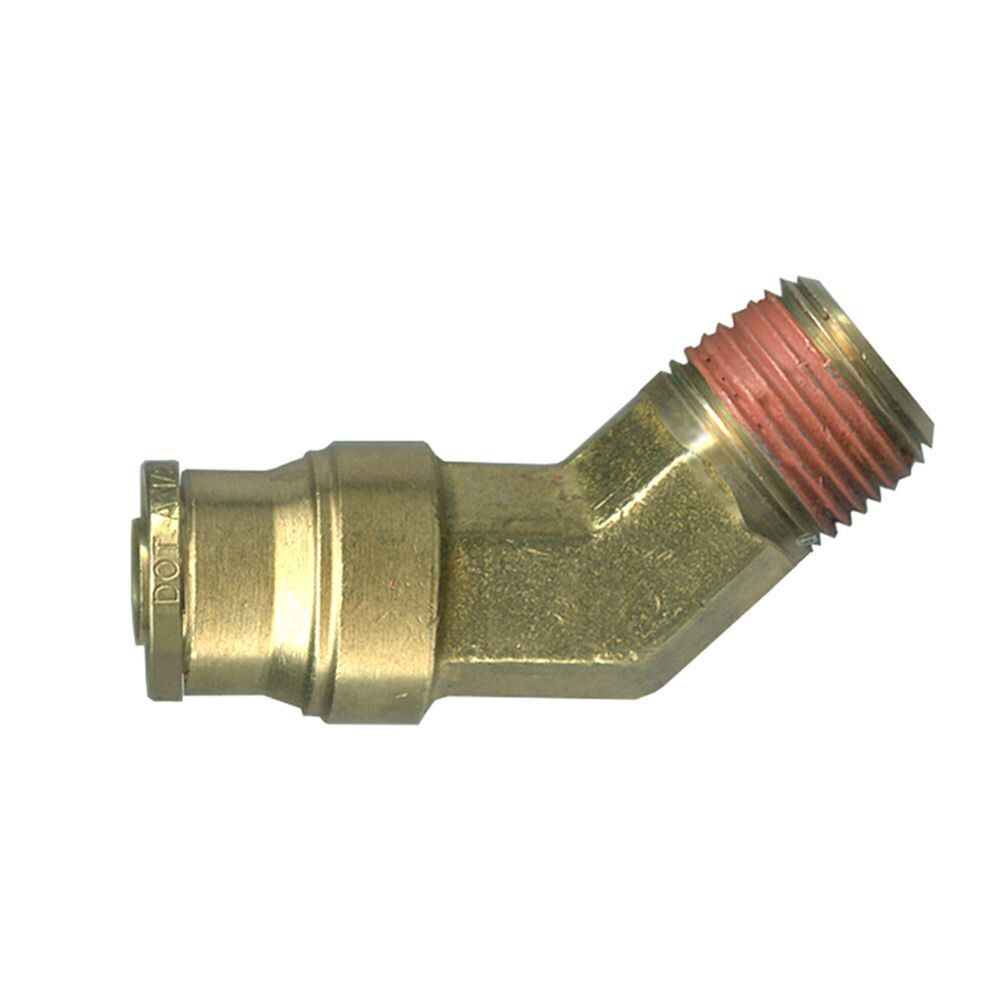

male 45degree elbow

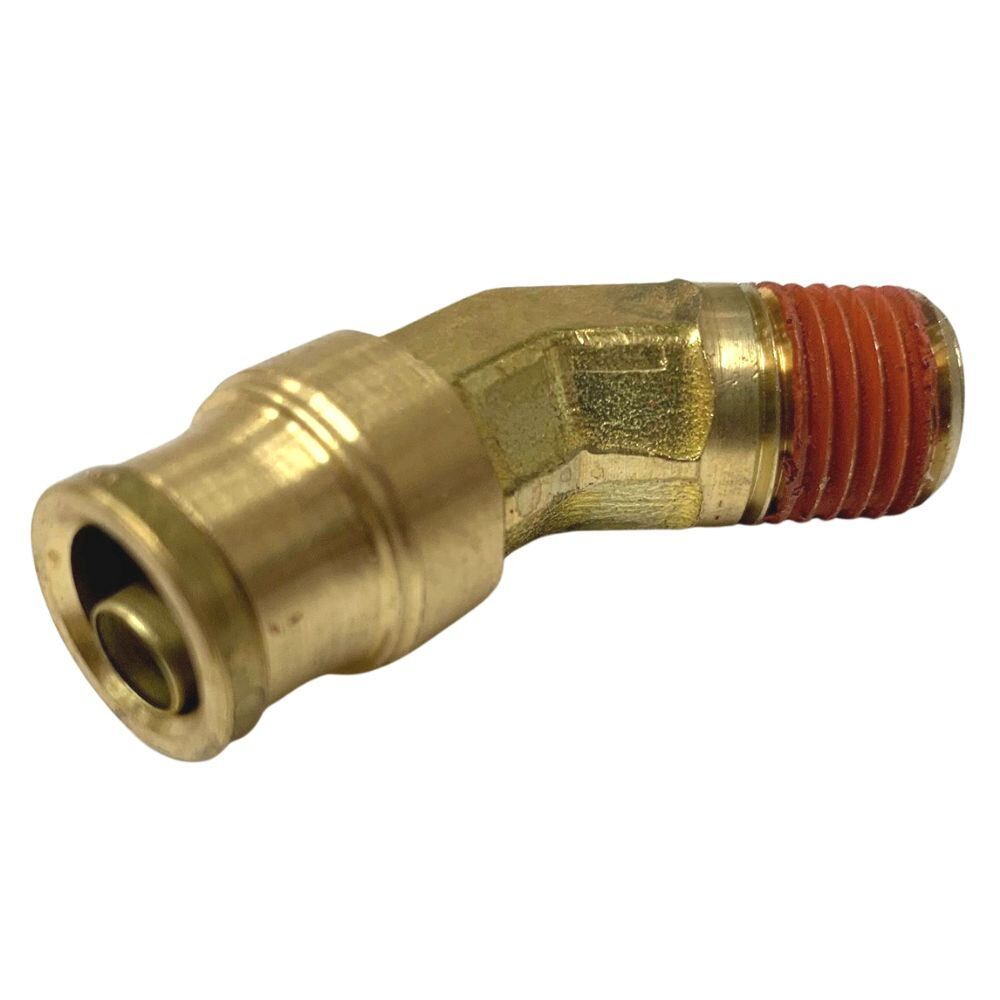

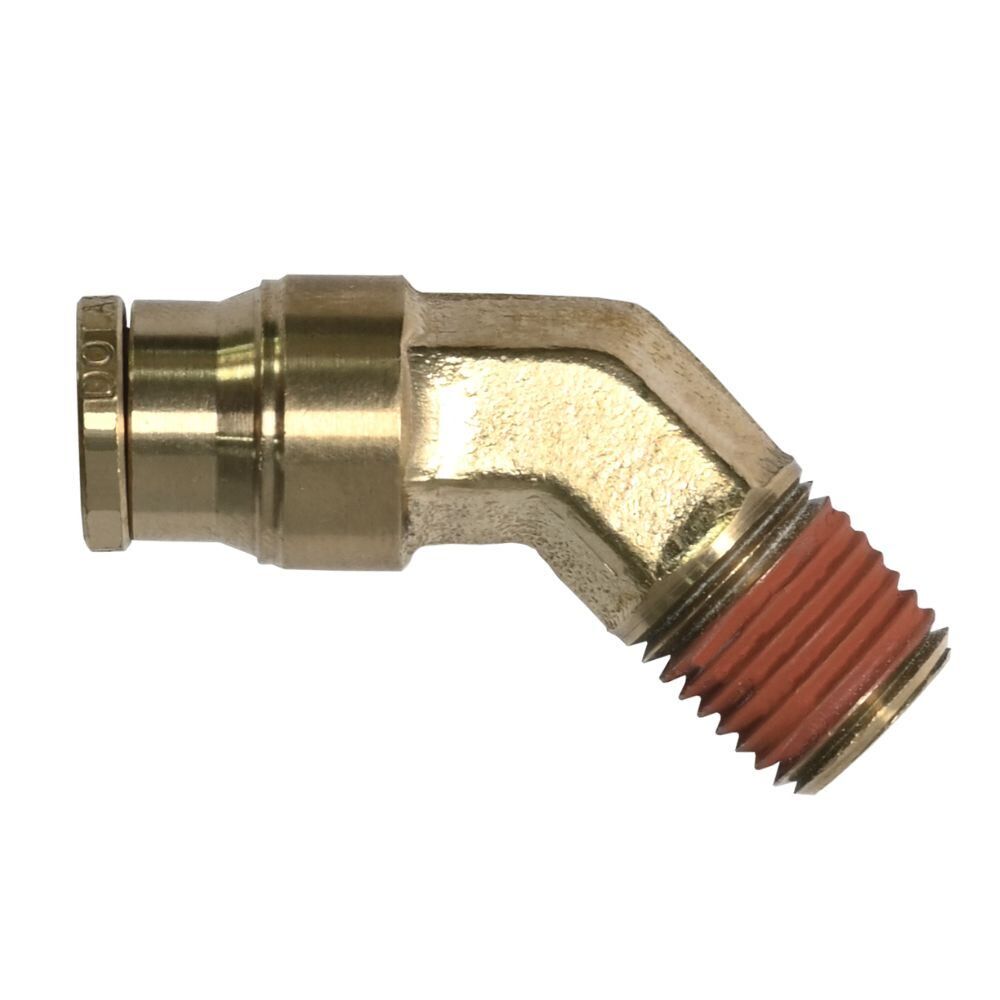

Brass Male 45° Elbow Fitting

DOT Air Brake Line Fitting

Brass Male 45° Elbow Fitting

DOT Air Brake Line Fitting

Description:

A DOT brass 45-degree elbow push-in fitting is a type of plumbing fitting used to change the direction of a piping system by 45 degrees.

The “DOT” in the name refers to the Department of Transportation, which specifies standards for use in certain applications.

If you have any further questions about the push to connect dot air line fittings, feel free to ask.

Features and Benefits:

• Easy to operate
• Durability
• Strength
• Safety

Categories: Brass, Elbow 45° , NPT, Products Tags: Brass, DOT, Elbow 45°, NPT

Description

Description

Part#	Tube O.D* Male NPTF	Approx Wt.Lbs
2708-4C	1/4*1/8	0.06
2708-4D	1/4*1/4	0.06
2708-6C	3/8*1/8	0.08
2708-6D	3/8*1/4	0.09
2708-6E	3/8*3/8	0.11
2708-6F	3/8*1/2	0.15
2708-8D	1/2*1/4	0.13
2708-8E	1/2*3/8	0.16
2708-8F	1/2*1/2	0.18
2708-10E	5/8*3/8	0.22
2708-10F	5/8*1/2	0.21
2708-12F	3/4*1/2	0.28
2708-12G	3/4*3/4	0.32

DOT Air Brake Line Fitting - Brass Male 45° Elbow Fitting Video

This video shows the information on the brass DOT air brake line fitting.

Additionally, brass male 45° elbow push in fittings have many sizes and dimensions, and they can play an important role in air brake systems.

Please contact us if you have any questions about the brass push-to-pull dot fittings.
