Composite PTC Connector

Male Y Shape Composite PTC Connector

Shape: Y connector

Connection 1: Push-to-connect

Connection 2: Male NPT Thread

Connection 3: Push-to-connect

Collet Material: Brass

Body Material: Composite

Product Style: Tube to Pipe

Minimum Operating Temperature: -40°F, -40°C

Maximum Operating Temperature: 200°F, 93°C

Maximum Operating Pressure: 250 psi, 17 bar

O-Ring Material: Buna N

Connection Type: NPTF

Specifications: DOT FMVSS 571.106, SAE J1131, SAE J2494-3

Note: Topa offers a wide range of composite dot air line fittings, Please contact us!

Description

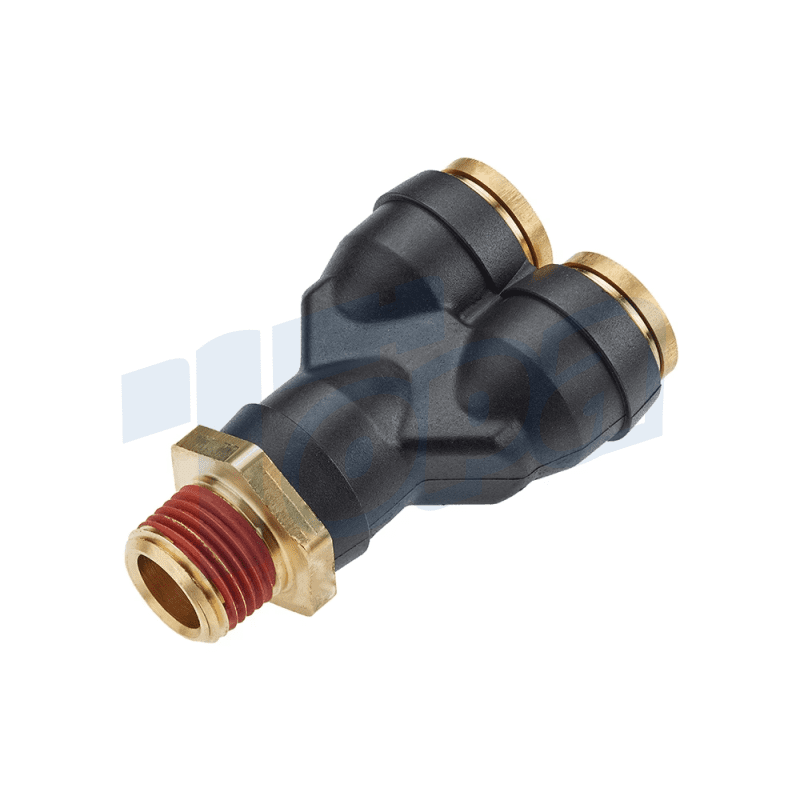

Male Y Shape Composite PTC Connector

This is a composite DOT PTC connector fitting, it is a Y shape push-to-connect adapter with a male NPTF thread. This DOT push-in fitting is the epitome of convenience, allowing for fast and efficient work. The DOTcoupler is made of strong, lightweight composite materials that are impact-resistant and strictly conform to SAE and D.O.T. specifications.

Applications:

• Heavy duty truck
• Cab controls
• Sliders

If you need more information, or to place an order, please contact us!  Topa will make sure you get the quality and efficiency you deserve.

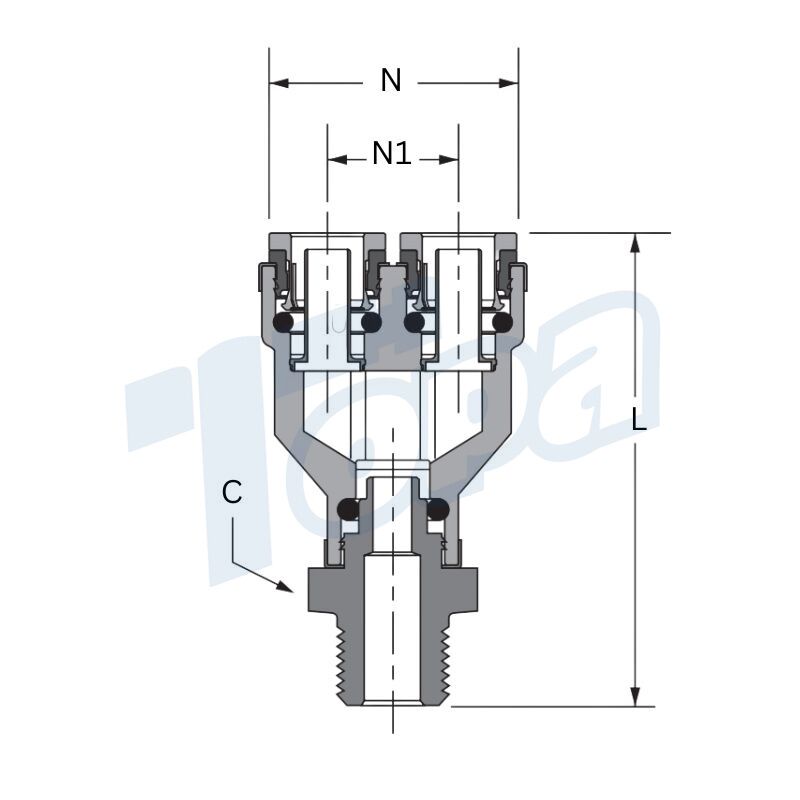

Dimensional Drawings:

Male Y Shape Composite PTC Connector Topa

Part#

Tube Size*Male NPTF

L

C Hex

N1

N1

Description

359PTC-04-02

1/4*1/8

1.96

9/16

1.03

0.50

Union Y male Connector

359PTC-04-04

1/4*1/4

2.12

9/16

1.03

0.50

359PTC-06-04

3/8*1/4

2.56

3/4

1.41

0.68

Male Y Shape Composite PTC Connector Video

This video is about the Y-shaped DOT push-in fitting. All of our fittings are CNC machined, and each one is heavily tested to meet your needs for use.

These DOT air brake hose fittings meet SAE as well as DOT international standards and are ideal for all your air brake and airline needs. We also offer custom configurations and sizes to meet your unique needs.

If you need DOT push to connect air fittings or have doubts, welcome to contact us!
