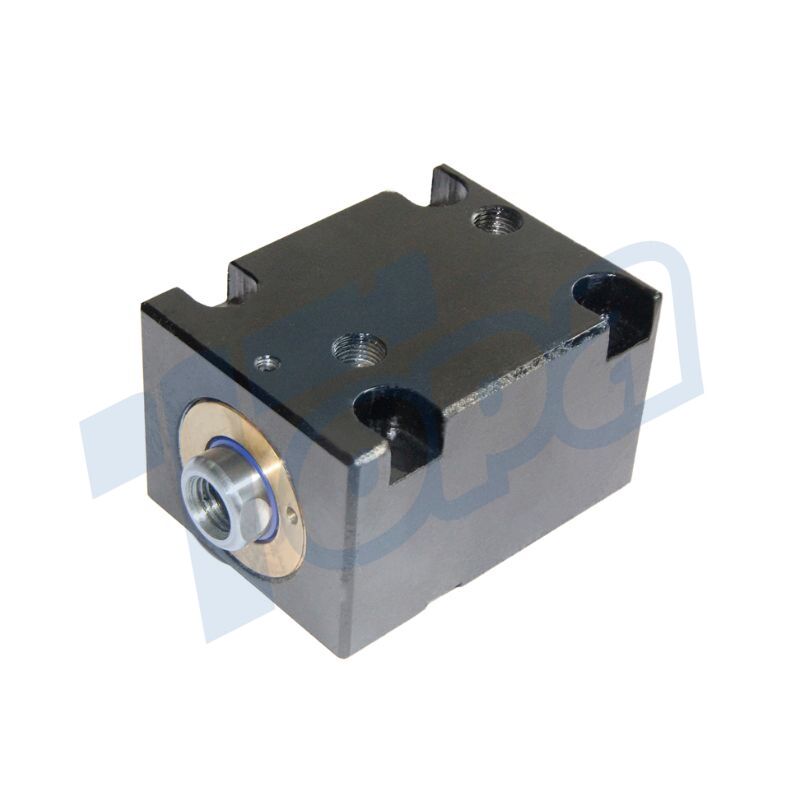

Heavy Duty Compact Hydraulic Cylinder

Barrels: Cylinder barrels are made of high grade steel to withstand high pressures and severe operating conditions.

Piston Rods: Piston rods are typically made of hardened steel and can be chrome plated for added strength and corrosion resistance.

Pistons: Designed for high pressure, the pistons are rugged to ensure efficient energy transfer from hydraulic to mechanical power.

End caps: These end caps are designed to withstand high pressures and are securely fastened to the hydraulic cylinder barrel.

Seals: High-quality seals are used to prevent leakage and maintain internal pressure even under high-pressure conditions.

Bearings: These surfaces are designed to withstand greater load capacity and reduce long-term wear.

Ports: Hydraulic ports are reinforced to withstand high-pressure oil flow, ensuring safe and reliable operation.


As a heavy duty compact hydraulic cylinder supplier in China, Topa can supply all types of hydraulic compact cylinders. If you need special compact hydraulic cylinder, contact Topa now!


Heavy-duty compact hydraulic cylinders are designed for simple operation, powerful performance and exacting standards. They operate via hydraulic power, utilizing pressurized fluid to move a piston rod within the cylinder. This action converts hydraulic energy into mechanical force, making them ideal for heavy lifting or precision movement in industrial environments.

These hydraulic cylinders can withstand a wide range of pressures and can typically operate at pressures up to 3000 PSI or higher. And with variable stroke lengths, they can be customized for versatility in different operating environments.


High Force Capability: They are capable of generating significant force, ideal for heavy lifting and high-pressure tasks.

Durability: Built with robust materials, these cylinders are designed to withstand harsh environments and heavy usage.

Compact Design: Despite their power, they have a compact footprint, making them suitable for applications with space constraints.

Precision Control: They offer precise movement control, which is essential in operations requiring accuracy.

Low Maintenance: Engineered for reliability, these cylinders typically require less maintenance, thereby reducing downtime and operational costs.


Construction Machinery: Used in excavators, bulldozers, and other heavy construction equipment for lifting and moving heavy materials.

Manufacturing and Industrial: Essential in presses, forging machines, and other industrial machinery requiring high force.

Mining Equipment: Applied in mining machinery for drilling and material handling in tough, rugged environments.

Transportation and Logistics: Utilized in loading equipment, such as forklifts and dock levelers, to handle heavy loads.

Agriculture Machinery: Applied in tractors and other agricultural machinery for various heavy-duty tasks.

Heavy Duty Compact Hydraulic Cylinder

The manufacturing process for heavy-duty compact hydraulic cylinders incorporates precision design and quality control to ensure that each cylinder meets the highest standards. We begin by selecting quality materials. These materials are then used to machine the core components of the cylinder.

Once the components are machined, they are carefully assembled. The assembled cylinders are then subjected to a series of rigorous tests, including pressure and leakage tests, to ensure they meet the required performance specifications.

For durable and reliable hydraulic solutions, consider our heavy-duty compact hydraulic cylinders. Contact us and let us help you find the perfect hydraulic solution for your needs.

Topa's Customized Services

At our company, customizing heavy-duty compact hydraulic cylinders is a detailed, customer-focused process:

Understanding customer needs: We begin by discussing your specific requirements, including the intended application, dimensions, pressure ranges, and any special environmental conditions the hydraulic cylinder will face.

Design and Engineering: Based on your specifications, our engineering team creates a customized solution to ensure the design meets your needs and industry standards.

Material Selection: We select high-grade materials for your specific application. This often includes choosing steel or alloys known for their strength and durability.

Precision Manufacturing: Our skilled technicians use state-of-the-art machinery to manufacture cylinder components. This ensures that each component meets the exact dimensions and tolerances needed for optimal performance.

Assembly and Customization: Cylinders are then assembled with close attention to your specifications. Customized seals and fittings are added as needed to improve performance and durability.

Quality Testing: Finished cylinders undergo rigorous testing. This includes pressure testing to ensure that it can withstand the specified loads, and operational testing to confirm its functionality and reliability.

If you’re looking for a heavy-duty compact hydraulic cylinder to fit your specific needs, contact us. Our team is dedicated to providing high-quality, customized hydraulic solutions.
