Description:
A brass male swivel adapter is a type of fitting that is used to connect two pipes or hoses together in a way that allows for movement and flexibility.
The push-on design allows for quick and easy installation, and the brass construction makes it suitable for use in a variety of applications, including plumbing, heating, and air conditioning systems.
If you need more information about brass fittings or want to know more about other fittings, please contact us.
Features and Benefits:
• Leak resistance
• Durability
• Easy to install
• Strength
Categories: Adapter, Brass, Straight, Hose barb, NPTF

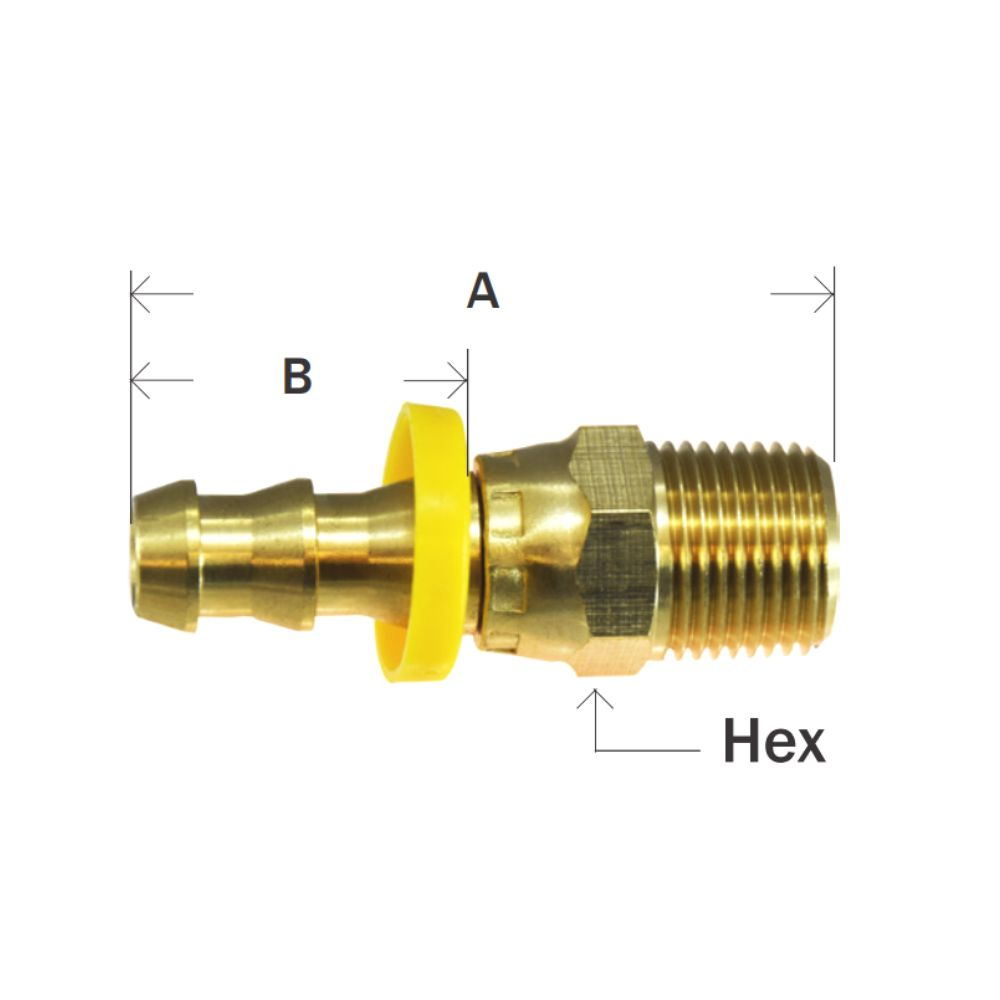

Part # | Hose I.D. x Male NPTF | A | B | Hex | Approx. Wt. Lbs. |
30-422 | 1/4″ x 1/8″ | 2.07 | 0.87 | 0.56 | 0.06 |
30-385 | 1/4” x 1/4” | 2.02 | 0.87 | 0.56 | 0.06 |
30-423 | 3/8″ x 1/8″ | 2.12 | 0.97 | 0.56 | 0.07 |
30-386 | 3/8” x 1/4” | 2.12 | 0.97 | 0.56 | 0.08 |
30-387 | 3/8” x 3/8” | 2.12 | 0.97 | 0.68 | 0.08 |
30-388 | 1/2” x 3/8” | 2.12 | 0.97 | 0.68 | 0.10 |
30-389 | 1/2” x 1/2” | 2.33 | 0.97 | 0.87 | 0.14 |
30-424 | 5/8″ x 1/2 | 2.80 | 1.45 | 0.88 | 0.18 |
30-390 | 3/4” x 3/4” | 2.80 | 1.45 | 1.06 | 0.24 |
This video shows the information on the brass swivel fitting male swivel adapter.
Additionally, brass swivel fitting male swivel adapters are appropriate for use in a variety of hydraulic fluid systems since they are offered in a broad range of applications, sizes, and specifications.
Please contact us if you have any questions about the brass fittings.
