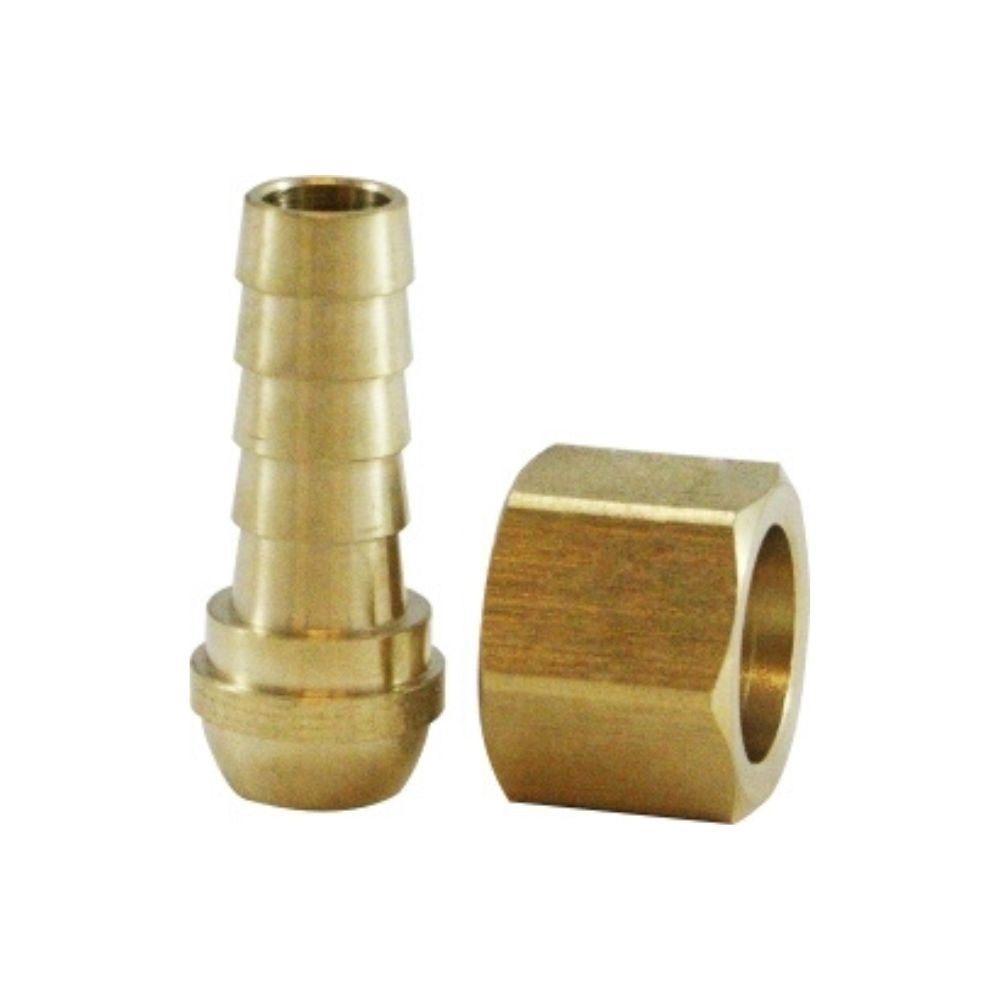

Brass Swivel Fitting Ball End Swivel Adapter

Description:

A brass ball end swivel is a type of mechanical joint that allows for rotational movement in multiple planes.

It is typically used to connect two parts that need to move independently of one another, such as in a suspension system or a mounting mechanism.

If you need more information about brass fittings or want to know more about other fittings, please contact us.

Features and Benefits:

• Corrosion resistance
• Durability
• Easy to install
• Strength

Categories:  Adapter, Brass, Hose barb, Straight, NPSM

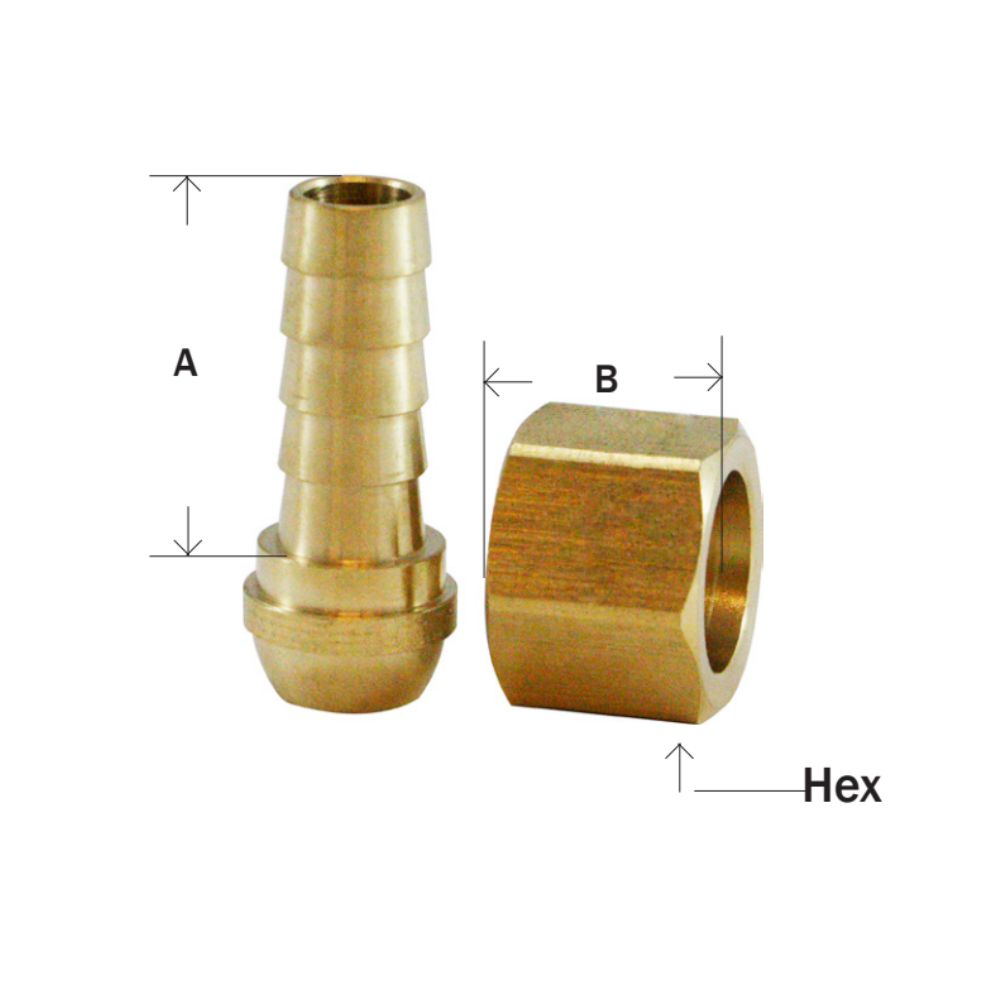

Part #

Hose I.D. x NPSM

A

B

Hex

Approx. Wt. Lbs.

32-066

1/8” x 1/8”

0.46

0.44

0.50

0.03

32-067

3/16” x 1/8”

0.75

0.44

0.50

0.03

32-068

3/16” x 1/4”

0.75

0.52

0.62

0.04

32-069

1/4” x 1/8”

0.97

0.44

0.50

0.04

32-070

1/4” x 1/4”

0.97

0.53

0.62

0.06

32-078

1/4” x 3/8”

0.97

0.63

0.75

0.06

32-071

5/16” x 1/4”

0.97

0.52

0.62

0.05

32-389

5/16″ x 3/8″

0.97

0.63

0.75

0.07

32-072

3/8” x 1/4”

0.97

0.53

0.62

0.06

32-073

3/8” x 3/8”

0.97

0.59

0.75

0.08

32-074

3/8” x 1/2”

0.97

0.69

0.94

0.14

32-075

1/2” x 3/8”

0.97

0.59

0.75

0.08

32-076

1/2” x 1/2”

0.97

0.69

0.94

0.10

32-077

3/4” x 3/4”

0.97

0.70

1.12

0.14

Brass Swivel Fitting Ball End Swivel Adapter Video

This video shows the information on the brass swivel fitting ball end swivel.

Additionally, brass swivel fitting ball end swivels are appropriate for use in a variety of hydraulic fluid systems since they are offered in a broad range of applications, sizes, and specifications.

Please contact us if you have any questions about the brass ferrule fittings.
