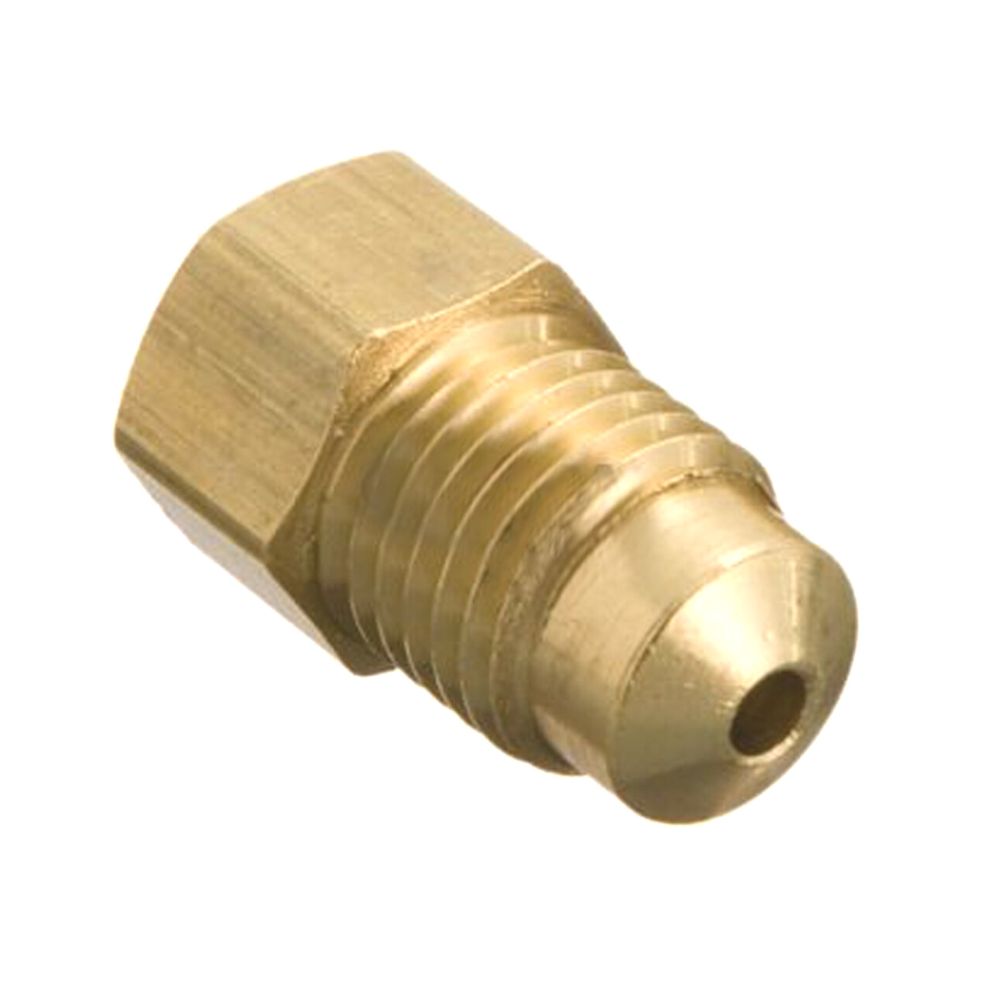

Brass Inverted Metric Adapter

Description:

A brass inverted flare adapter standard to metric bubble is a type of fitting that connects a component with a standard inverted flare end to a component with a metric bubble flare end.

This particular adapter is also designed to be used with a dual master cylinder setup, which allows separate control of the front and rear brakes on a vehicle.

If you have any questions about the inverted flare angle fittings, feel free to ask.

Features and Benefits:

• Low cost
• Reusable
• Vibration resistant
• Strong seal



Description

Part #

Female Inv. Flare Seat

Male Metric Bubble Flare

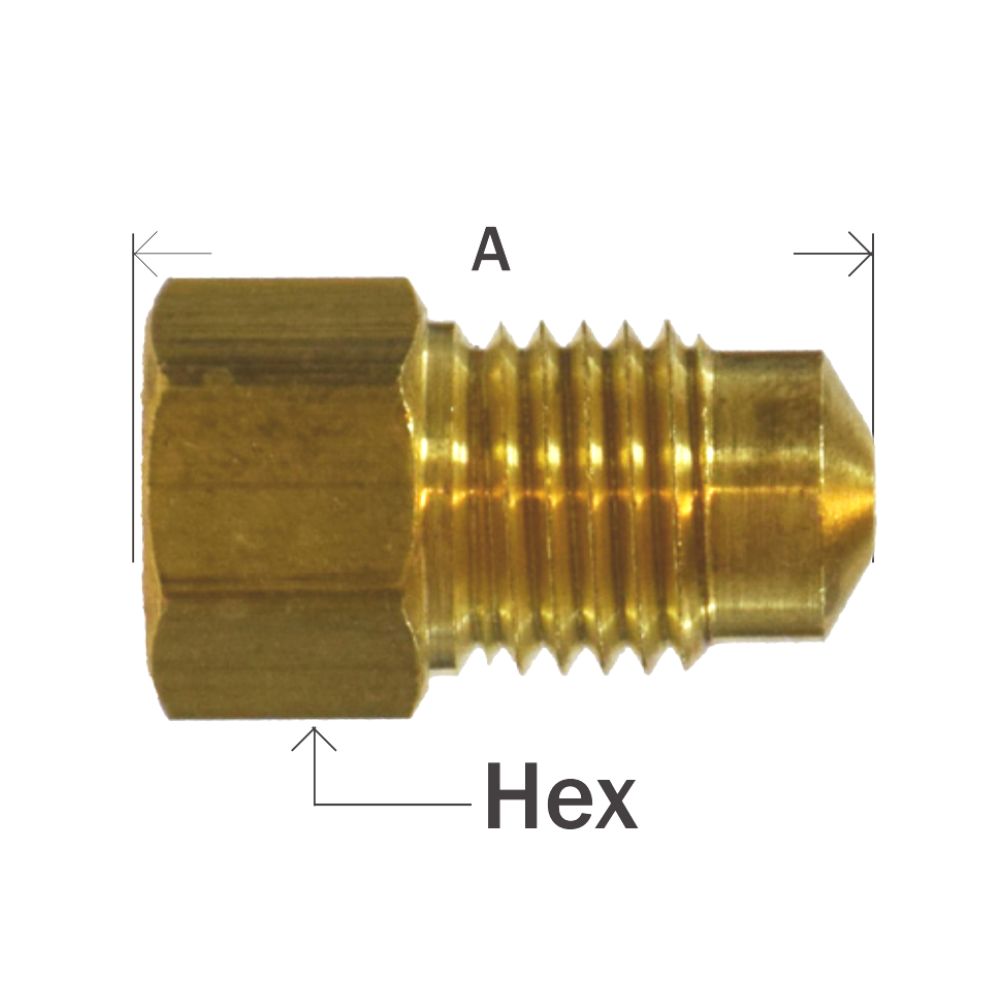

A

Hex

Ref #

Approx. Wt. Lbs.

12-336

3/16” (3/8-24)

11×1.5





7973



12-337

3/16” (3/8-24)

(3/16”) (10×1.25)

1.00

0.50

7970

0.02

12-339

3/16” (3/8-24)

13×1.5

1.03

0.56

7972

0.04

12-341

3/16” (3/8-24)

12×1.0

1.02

0.53

7974

0.04

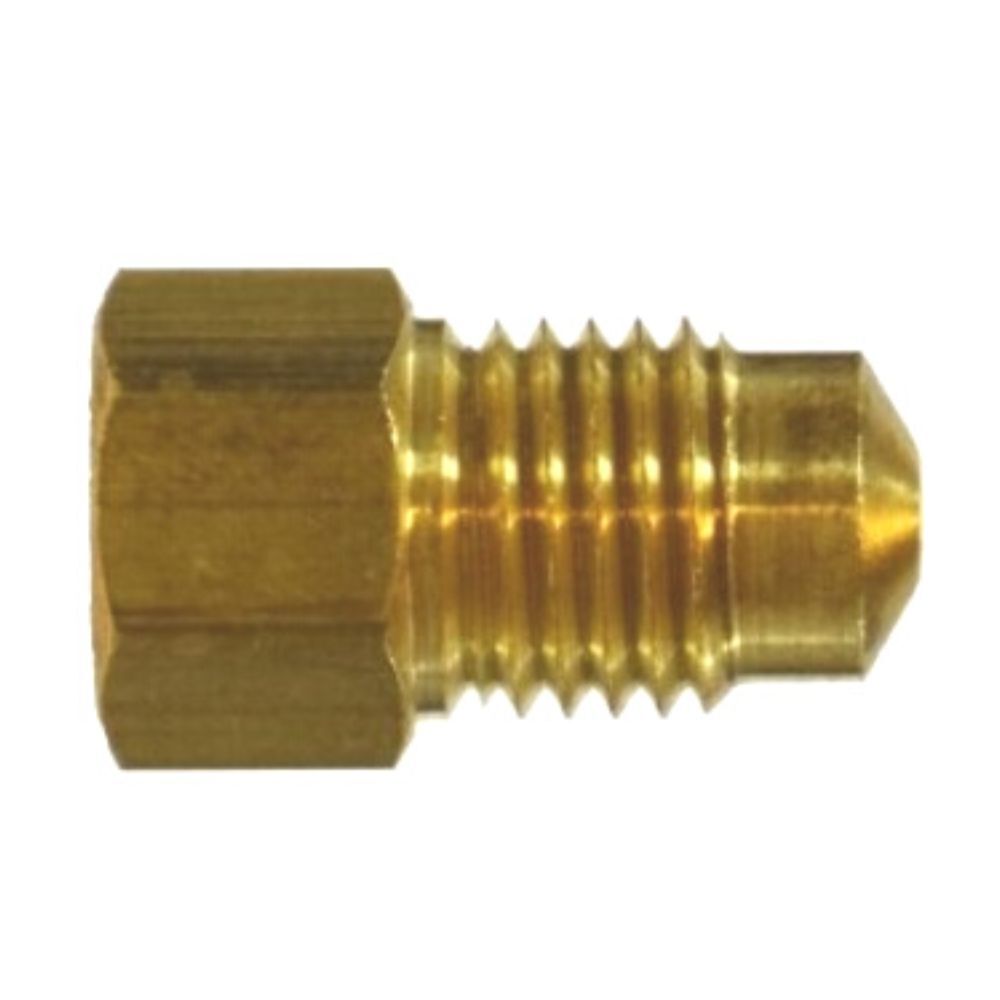

Inverted Metric Adapter-Adapter Standard to Metric Bubble Video

This video shows information about inverted flare brass inverted metric adapter- standard to metric bubble adapter.

We can offer different sizes and types of the brass standard to metric bubble adapter, such as 1/2, 1/4, 3/8, etc. These adapters play an essential role in the fuel line, brake line, and natural gas systems.

If you have any questions about inverted flare fittings, please contact us.
