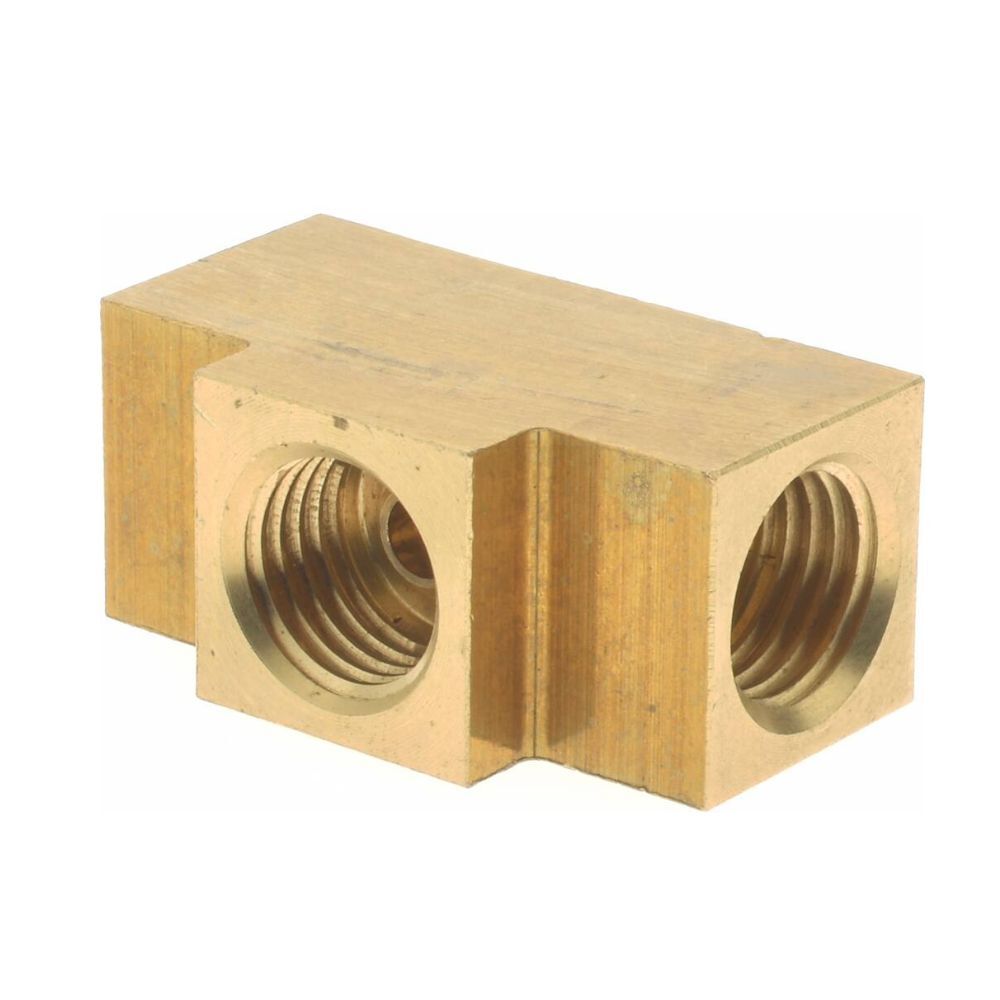

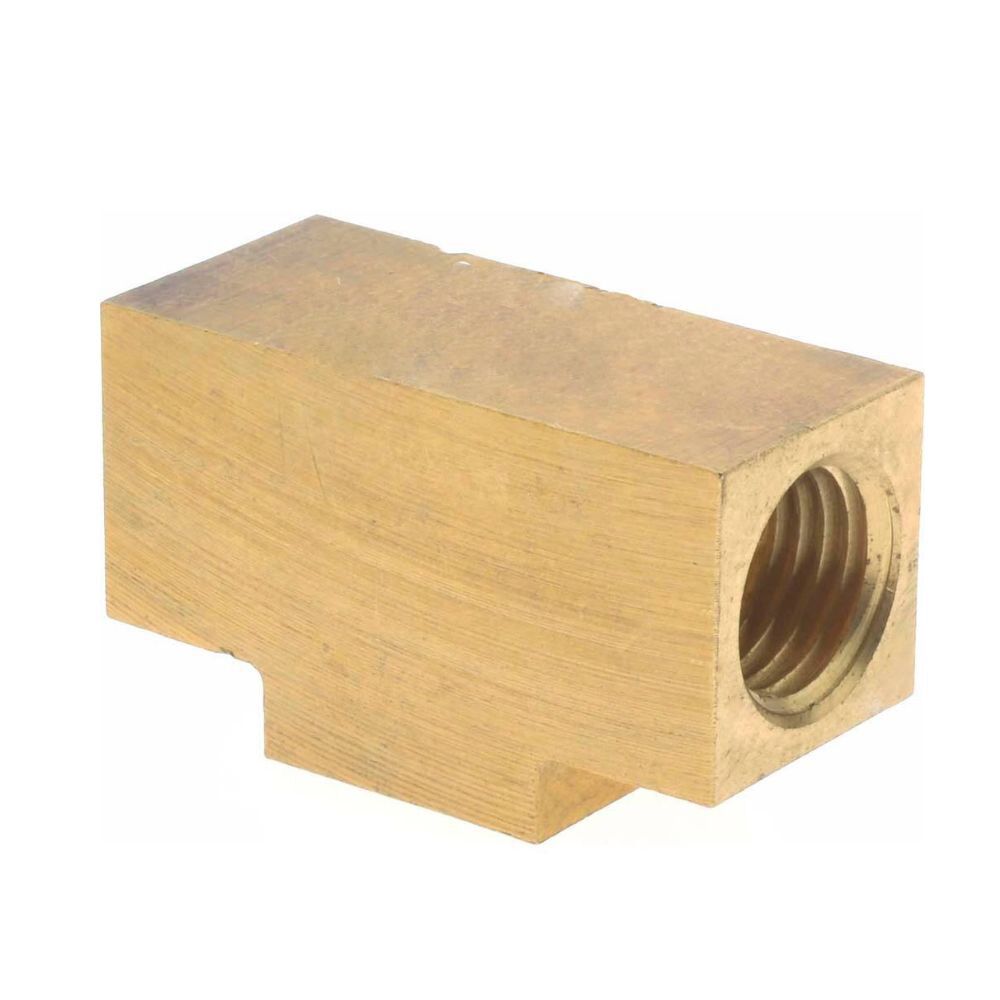

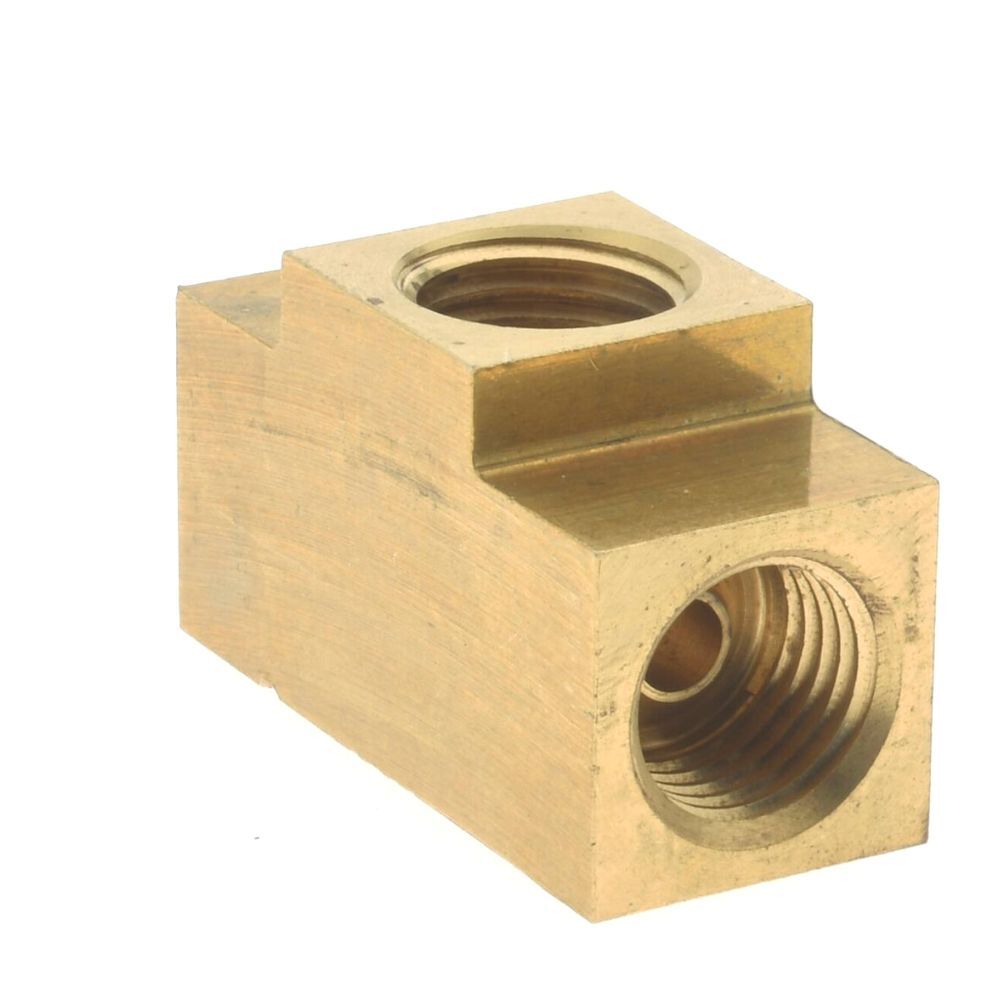

Brass Inverted Flare Tee

Description:

A brass inverted flare tee is an inverted tee fitting with three female inverted flares that are used in plumbing or hydraulic systems.

The “inverted flare” aspect of the fitting refers to the way the end of the pipe is flared out in a conical shape that allows it to be inserted into the fitting and secured with a nut.

If you have any questions about the inverted flare brass tee, feel free to ask.

Features and Benefits:

• Low cost
• Reusable
• Vibration resistant
• Strong seal

Description

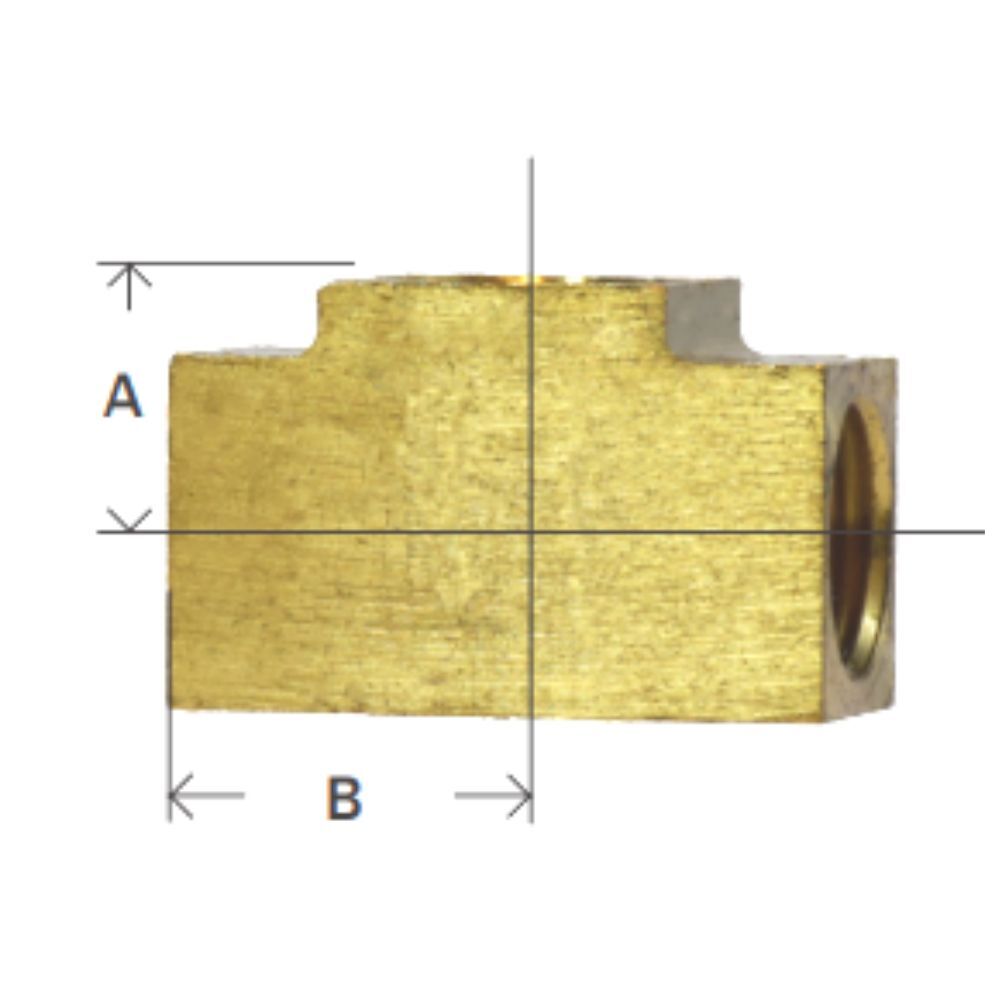

Part #	Size	A	B	Approx. Wt. Lbs.
12-085	1/8”	0.33	0.47	0.04
12-086	3/16”	0.39	0.55	0.04
12-087	1/4”	0.42	0.56	0.08
12-088	5/16”	0.45	0.63	0.09
12-089	3/8”	0.56	0.74	0.17
12-090	1/2”	0.67	0.88	0.24

Brass Inverted Flare Tee - Union Tee Video

This video shows information about brass inverted flare tee.

We can offer different sizes and types of the brass union tee, such as 1/2, 1/4, 3/8, etc. These tees play an essential role in the fuel line, brake line, and natural gas systems.

If you have any questions about brass fittings inverted flare tee, please contact us.
