Brass Inverted Flare Elbow

Description:

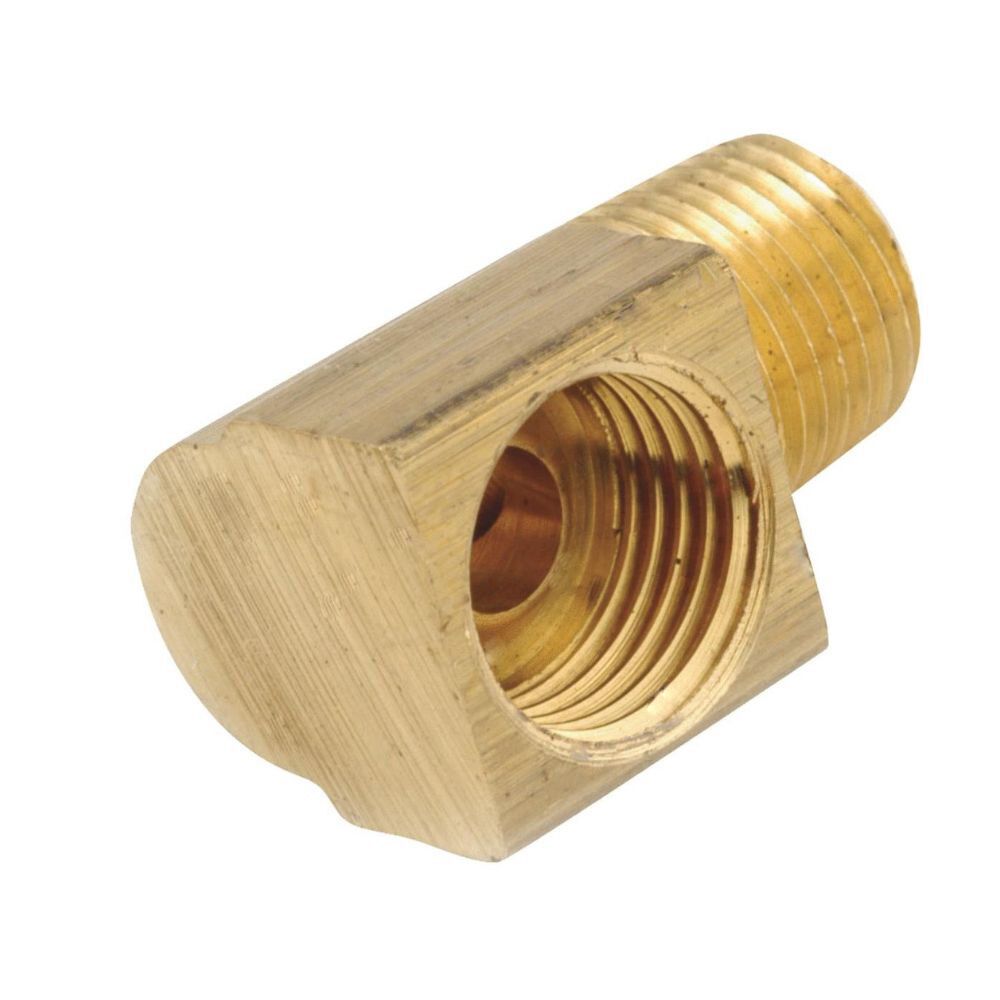

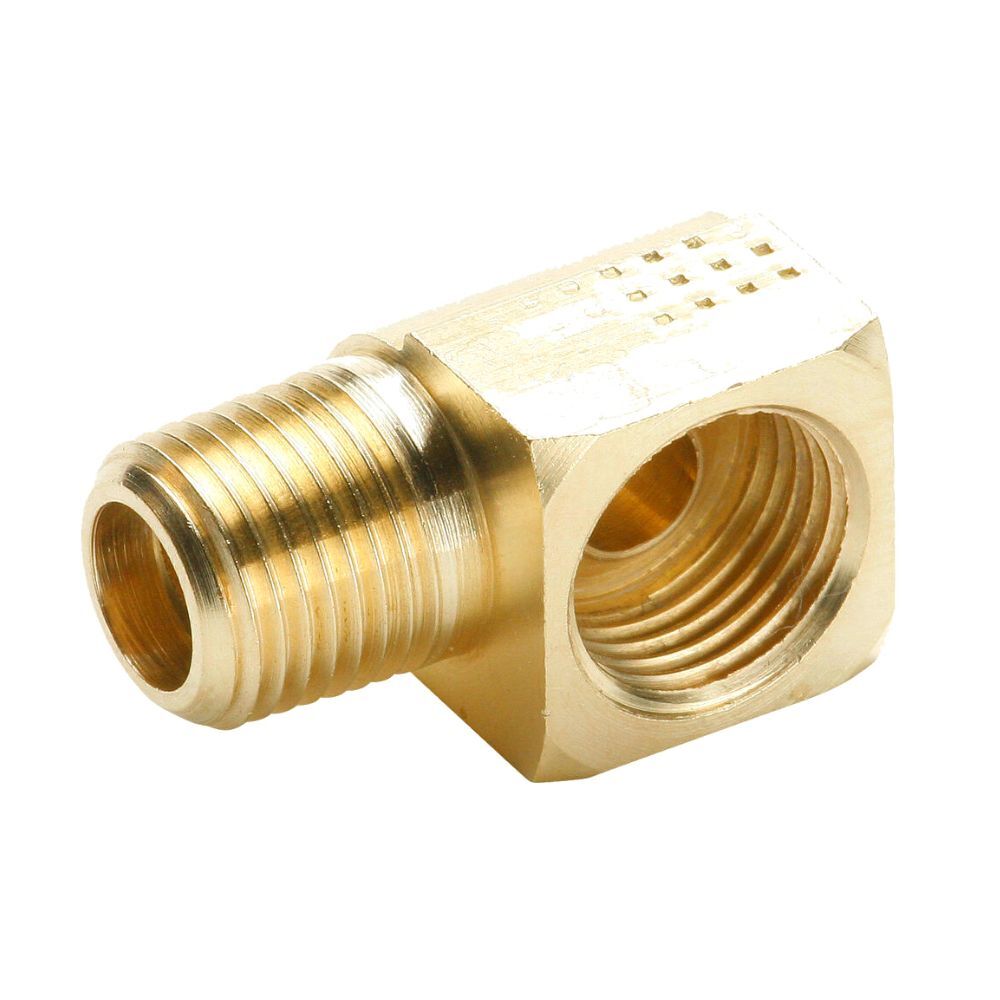

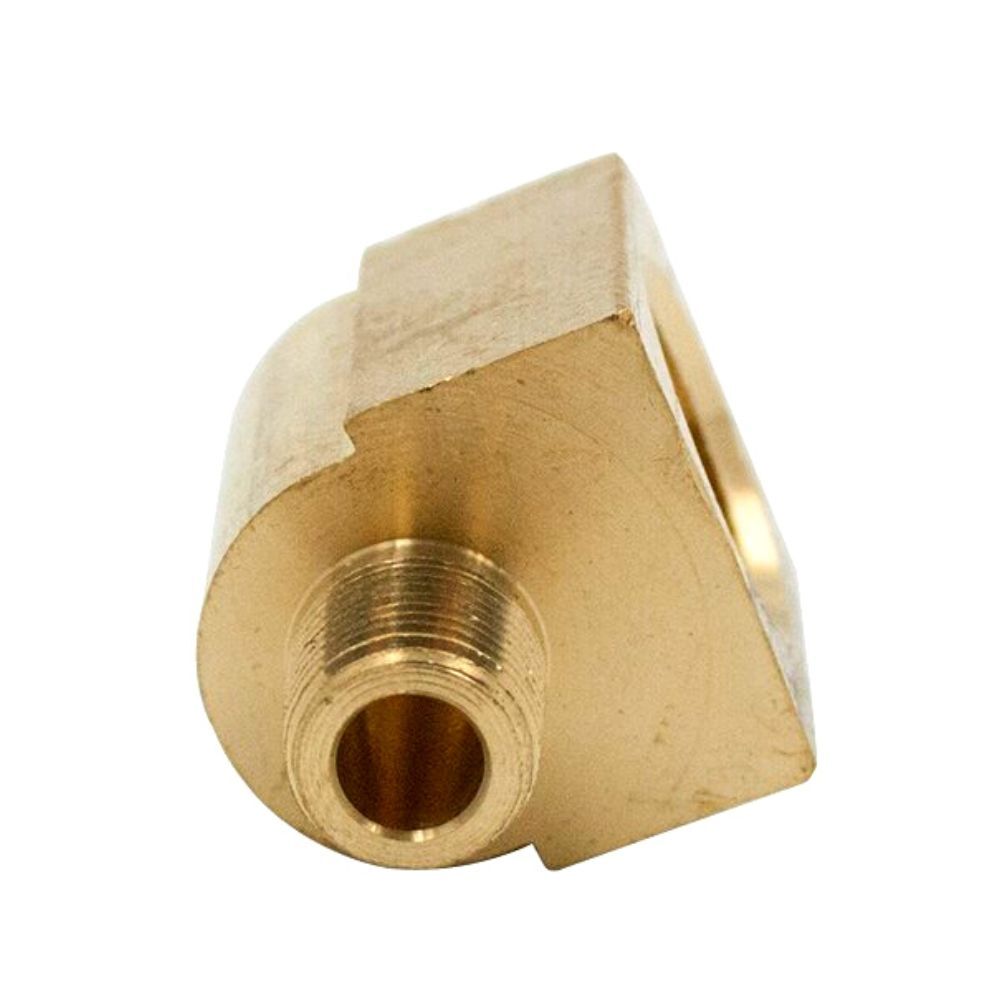

A brass inverted flare elbow is a 90-degree inverted fitting with a male NPTF thread that is used in plumbing or hydraulic systems.

The inverted flare connection allows for a secure and leak-proof joint, and the 90-degree bend provides flexibility in routing the fluid lines around obstacles or tight spaces.

If you have any questions about the inverted flare brass 90 degree fitting, feel free to ask.

Features and Benefits:

• Low cost
• Reusable
• Vibration resistant
• Strong seal

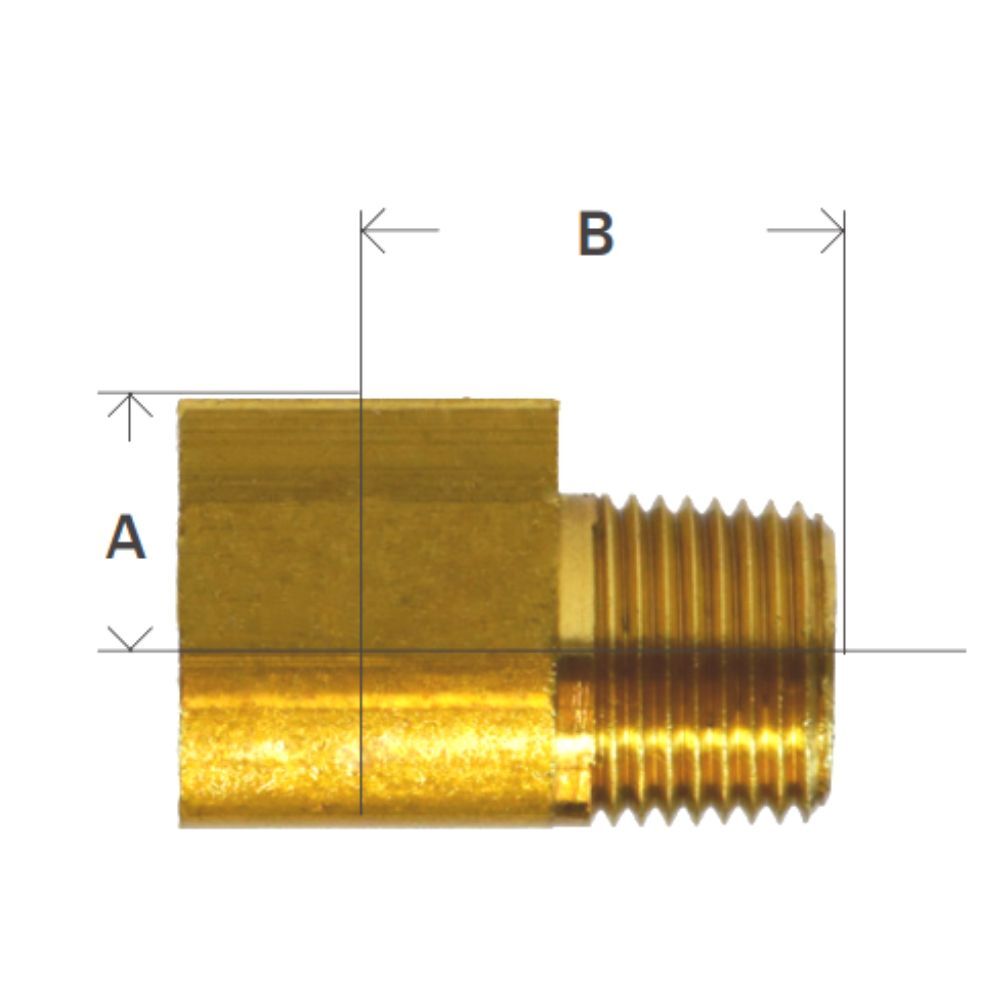

Description

Part #

Inv. Flare X Male NPTF

A

B

Approx. Wt. Lbs.

12-057

1/8” x 1/8”

0.26

0.59

0.03

12-058

3/16” x 1/8”

0.26

0.61

0.03

12-059

1/4” x 1/8”

0.33

0.65

0.04

12-054*

1/4” x 1/8”

0.33

0.65

0.04

12-060

1/4” x 1/4”

0.28

0.82

0.06

12-061

5/16” x 1/8”

0.47

0.68

0.05

12-062

5/16” x 1/4”

0.45

0.85

0.08

12-063

3/8” x 1/8”

0.54

0.76

0.14

12-064

3/8” x 1/4”

0.53

0.92

0.14

12-065

3/8” x 3/8”

0.50

0.94

0.12

12-066

1/2” x 3/8”

0.59

1.03

0.16

12-067

1/2” x 1/2”

0.66

1.22

0.25

12-056

5/8” x 3/8”

0.67

1.09

0.20

12-068

5/8” x 1/2”

0.67

1.29

0.18

12-069

3/4” x 1/2”

0.80

1.39

0.42

12-080

7/8” x 3/4”

0.94

1.43

0.48

12-081

1” x 1”

1.02

1.69

0.60

Brass Inverted Flare Elbow Video

This video shows information about brass inverted flare elbow.

We can offer different sizes and types of the brass inverted flare elbow, such as 1/2, 1/4, 3/8, etc. These 90-degree elbows play an essential role in the fuel line, brake line, and natural gas systems.

If you have any questions about inverted flare 90 degree fitting, please contact us.
