Description:
A brass long rod nut is a type of nut that is made of brass and be used with a long rod or stud. It is typically used in situations where a standard-size nut is not long enough to properly engage the threads on the rod or stud, or where a longer nut is required for a specific purpose.
Long rod nuts are often used in automotive and mechanical applications, as well as in other industries where precise fittings are required.
If you have any further questions about brass SAE fittings or their applications, feel free to ask.
Features and Benefits:
• Leak resistance
• Durability
• Easy to install
• Strength
Categories: Nut, Brass, SAE, UNF

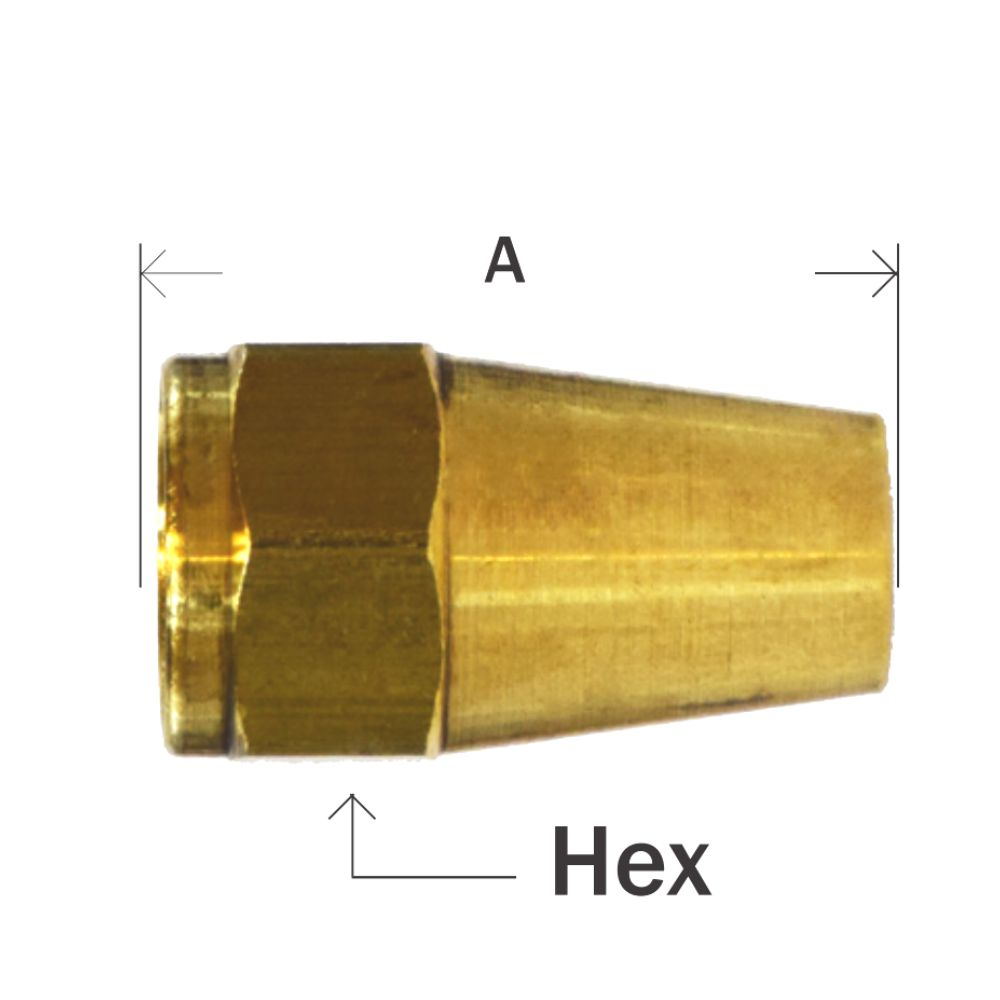

Part # | Thread Size UNF | A | Hex | Approx. Wt. Lbs. |
10-001 | 1/8” | 0.75 | 0.37 | 0.01 |
10-002 | 3/16” | 0.81 | 0.43 | 0.02 |
10-003L | 1/4″ | 0.98 | 0.55 | 0.03 |
10-003 | 1/4” | 0.94 | 0.56 | 0.03 |
10-004 | 5/16” | 1.12 | 0.62 | 0.04 |
10-005 | 3/8” | 1.31 | 0.75 | 0.06 |
10-006 | 1/2” | 1.62 | 0.87 | 0.12 |
10-007 | 5/8” | 1.88 | 1.06 | 0.20 |
10-008 | 3/4” | 2.19 | 1.25 | 0.34 |

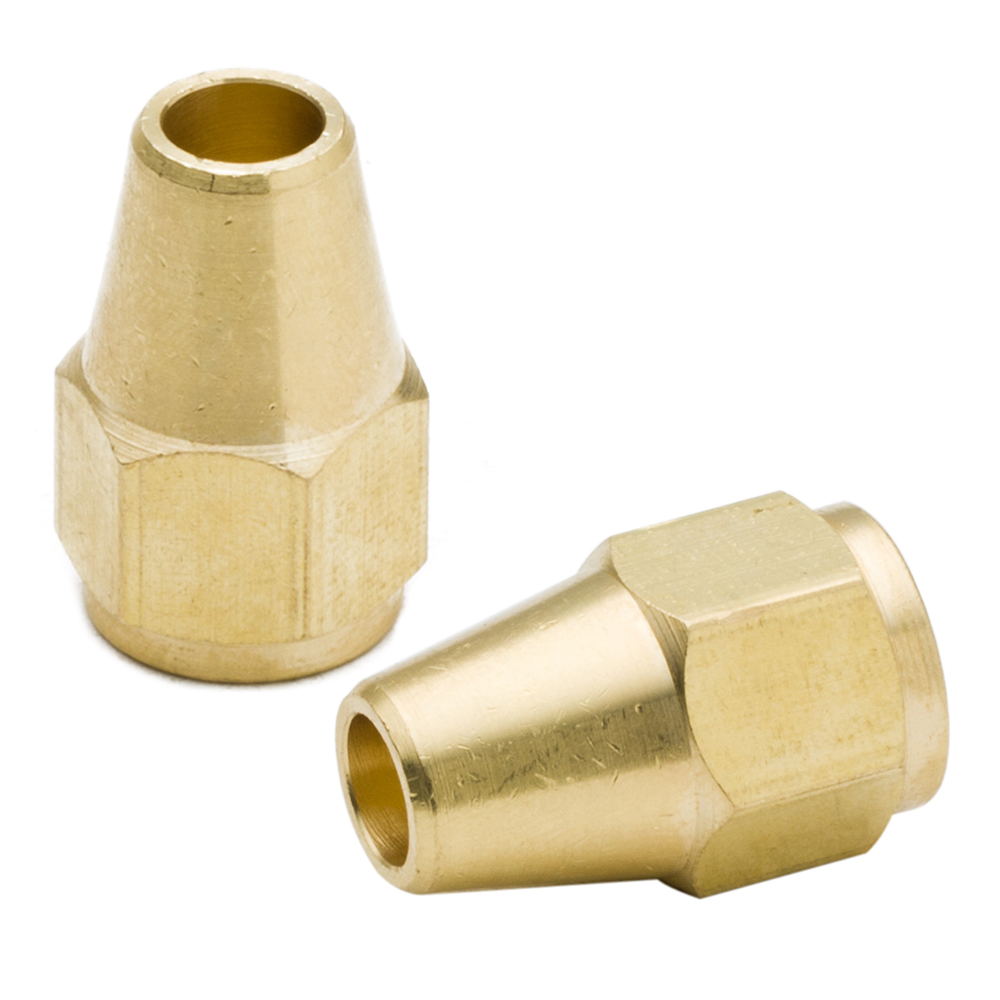

This video shows the information on the long rod nut brass hose fittings.
Additionally, long rod nut brass hose fittings are appropriate for use in a variety of hydraulic fluid systems since they are offered in a broad range of applications, sizes, and specifications.
Please contact us if you have any questions about the brass fittings.
