Description:

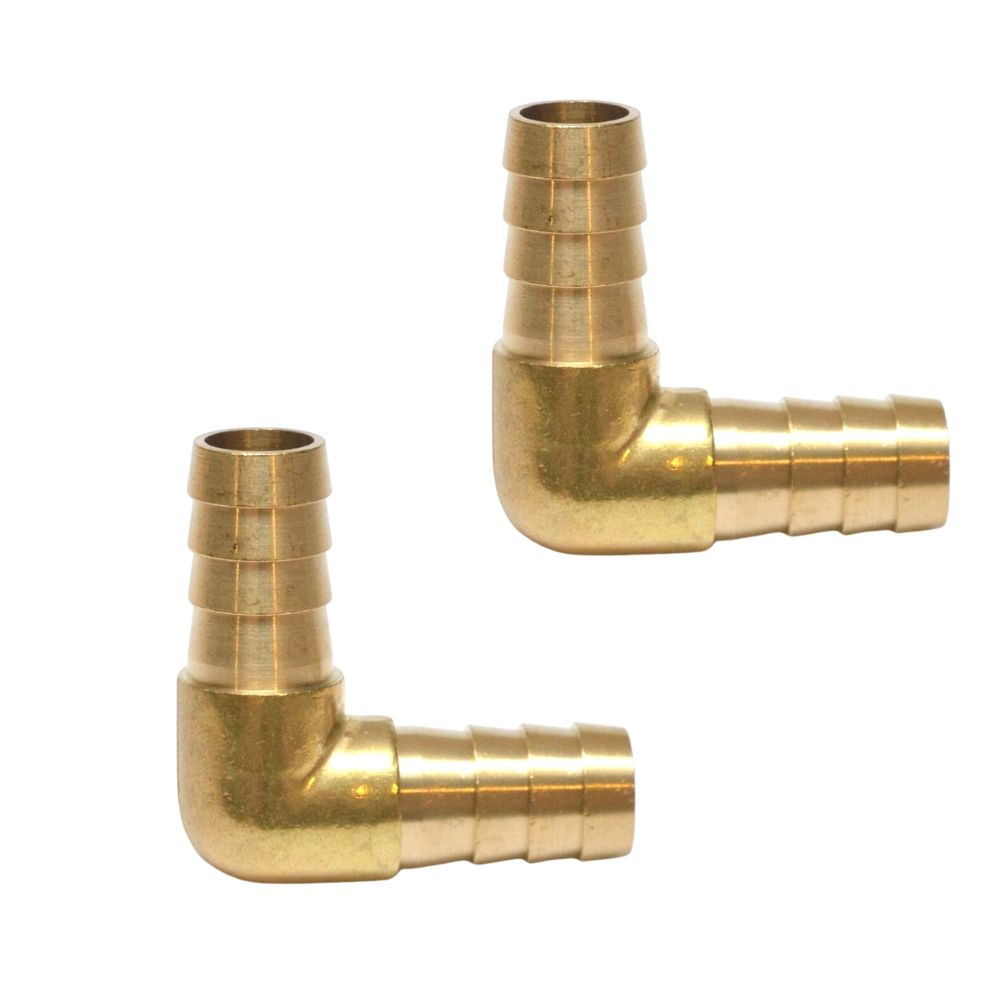

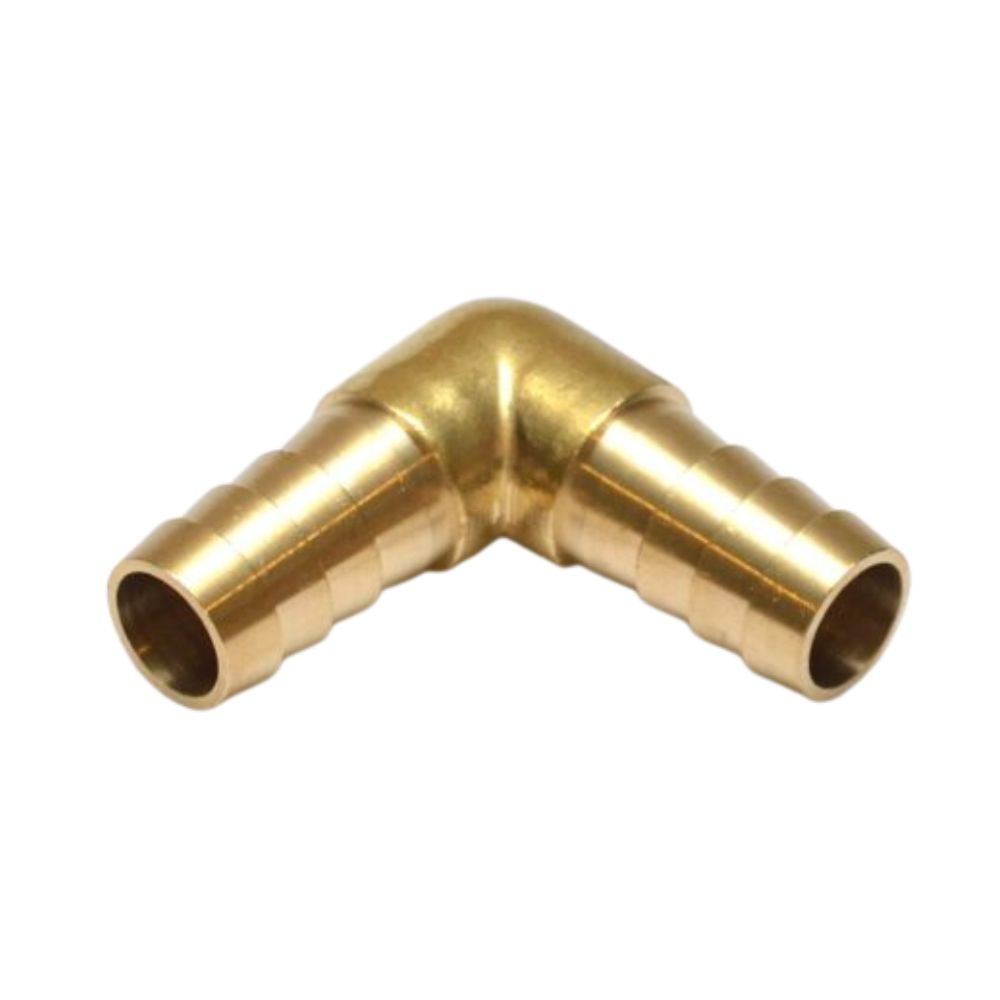

The brass hose elbow 90° hose barb is a type of fitting used to connect a hose to a pipe or another hose.
The 90° angle of the elbow allows the hose to be connected to a pipe or another hose at a right angle, which can be useful in certain configurations.
If you need more information about brass fittings or want to know more about other fittings, please ask our staff.
Features and Benefits:
• Corrosion resistance
• Durability
• Multiple usages
• Strength
Categories: Adapter, Brass, Hose barb, Elbow 90°

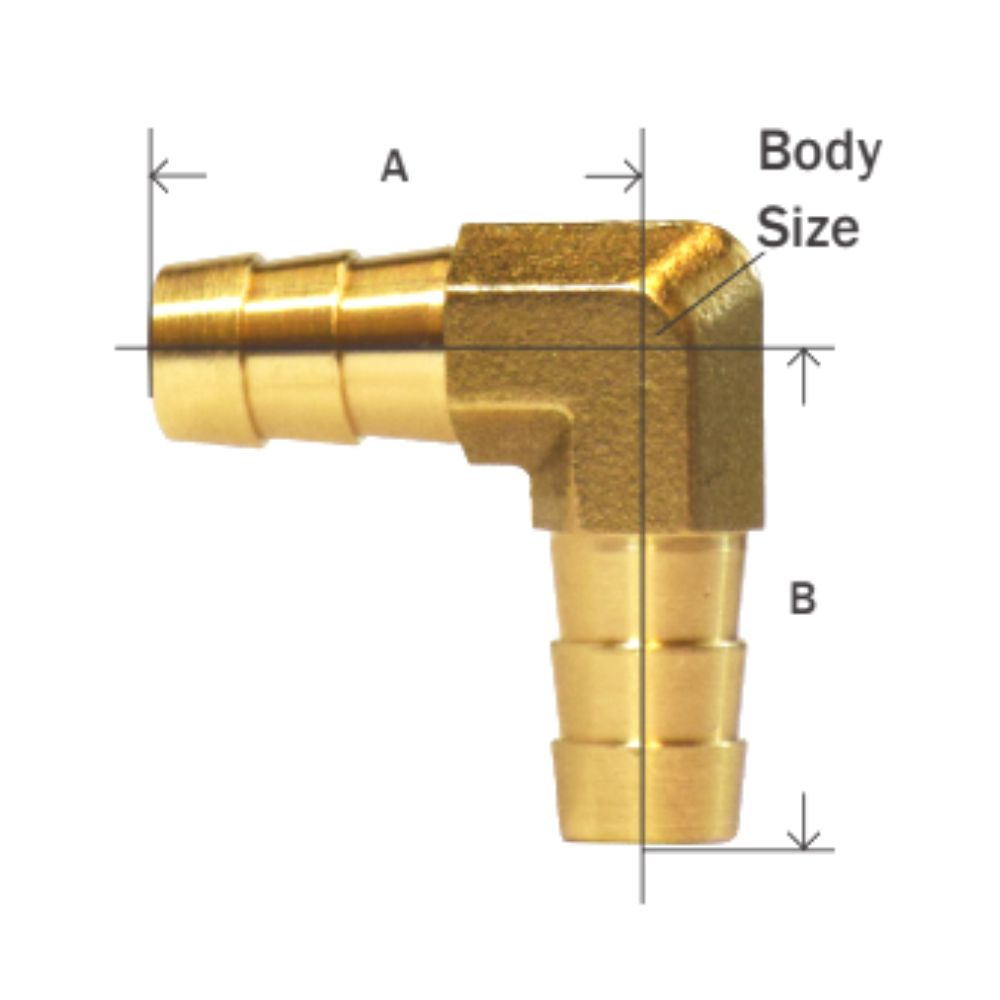

Part # | Hose I.D. X Hose I.D. | A | B | Body Size | Approx. Wt. Lbs. |
32-429 | 1/8″ x 1/8″ | 0.55 | 0.55 | 0.37 | 0.03 |
32-433 | 3/16″ x 3/16″ | 0.90 | 0.90 | 0.37 | 0.03 |
32-412 | 1/4” x 1/8” | 1.02 | 1.02 | 0.44 | 0.04 |
32-413 * | 1/4” x 1/4” | 1.01 | 1.01 | 0.44 | 0.04 |
32-425 | 5/16″ x 5/16″ | 1.15 | 1.15 | 0.48 | 0.05 |
32-414 | 3/8” x 1/8” | 1.01 | 1.01 | 0.44 | 0.04 |
32-415 | 3/8” x 1/4” | 1.00 | 1.00 | 0.44 | 0.04 |
32-416 * | 3/8” x 3/8” | 1.02 | 1.02 | 0.44 | 0.04 |
32-417 | 3/8” x 1/2” | 1.24 | 1.10 | 0.50 | 0.06 |
32-418 | 1/2” x 1/4” | 1.24 | 1.08 | 0.50 | 0.06 |
32-419 | 1/2” x 3/8” | 1.22 | 1.09 | 0.50 | 0.06 |
32-420 * | 1/2” x 1/2” | 1.24 | 1.24 | 0.50 | 0.06 |
32-434 | 5/8″ x 5/8″ | 1.20 | 1.20 | 0.75 | 0.16 |
32-435 | 3/4″ x 1/2″ | 1.41 | 1.41 | 0.88 | 0.21 |
32-436 | 3/4″ x 3/4″ | 1.41 | 1.41 | 0.88 | 0.21 |
This video shows the information on the brass hose elbow 90° hose barb.
Additionally, brass hose elbow 90° hose barbs are appropriate for use in a variety of hydraulic fluid systems since they are offered in a broad range of applications, sizes, and specifications.
Please contact us if you have any questions about the brass hose connector.
