Description:

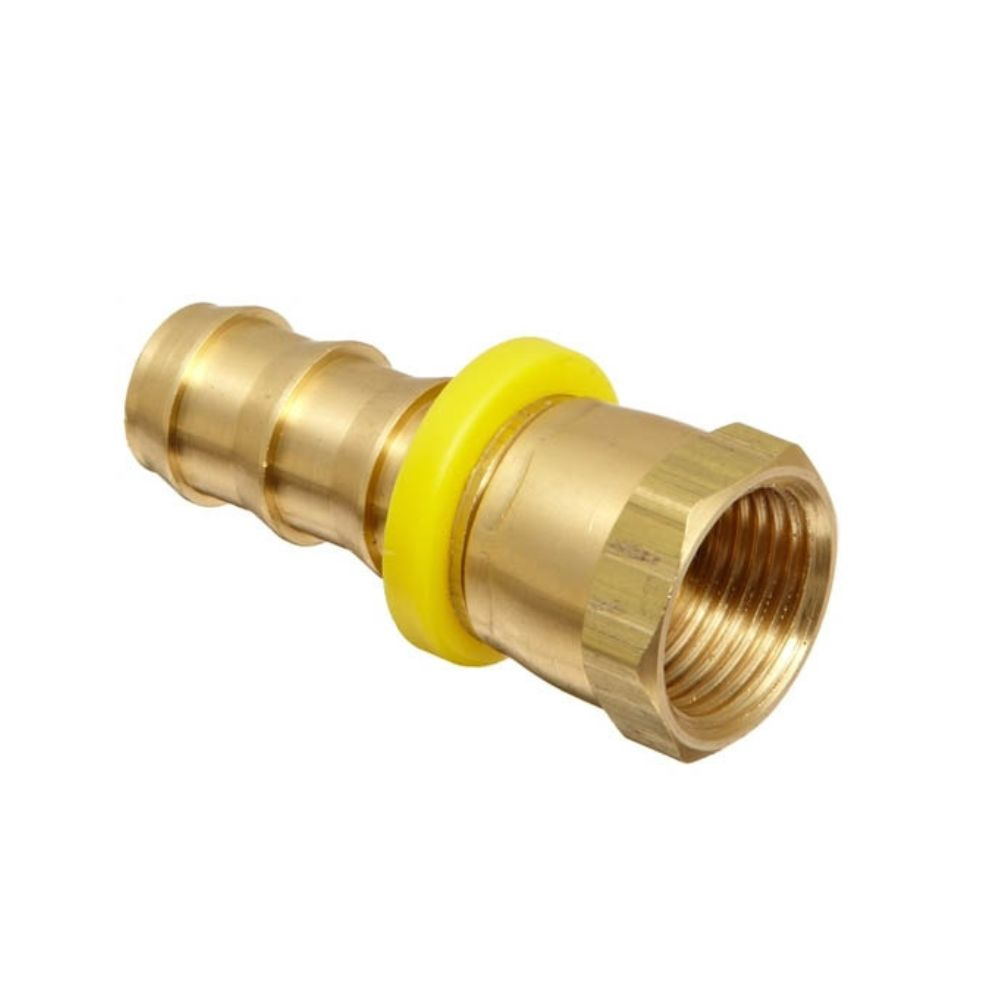

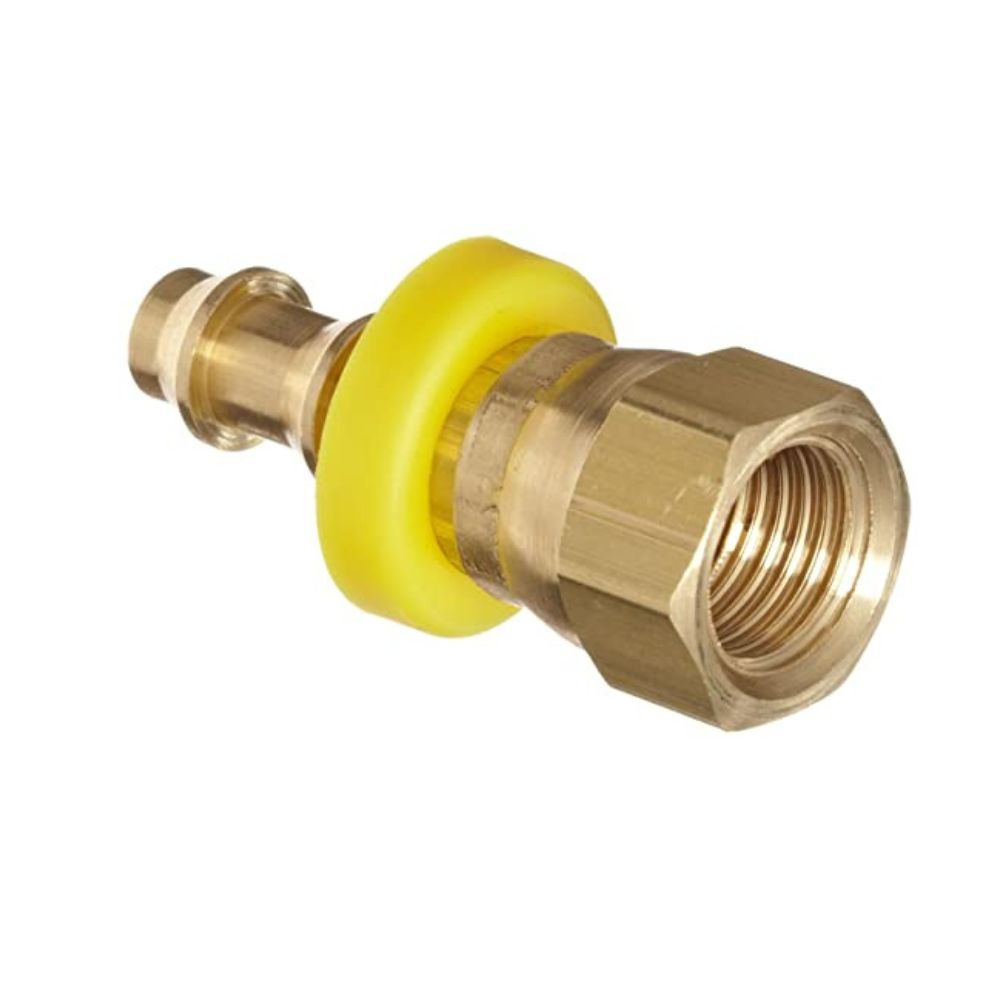

A brass fitting dual 45°/ 37° flare fitting is a type of hose barb fitting that is used to connect pipes or hoses with SAE and JIC thread fittings.
brass fitting dual 45°/ 37° flare fittings are typically used in automotive and other mechanical systems and are available in a range of sizes to accommodate different pipe or hose diameters.
If you need more information about brass fittings or want to know more about other fittings, please contact us.
Features and Benefits:
• Corrosion resistance
• Durability
• Easy to install
• Strength
Categories: Adapter, Brass, Hose barb, Straight, SAE, JIC

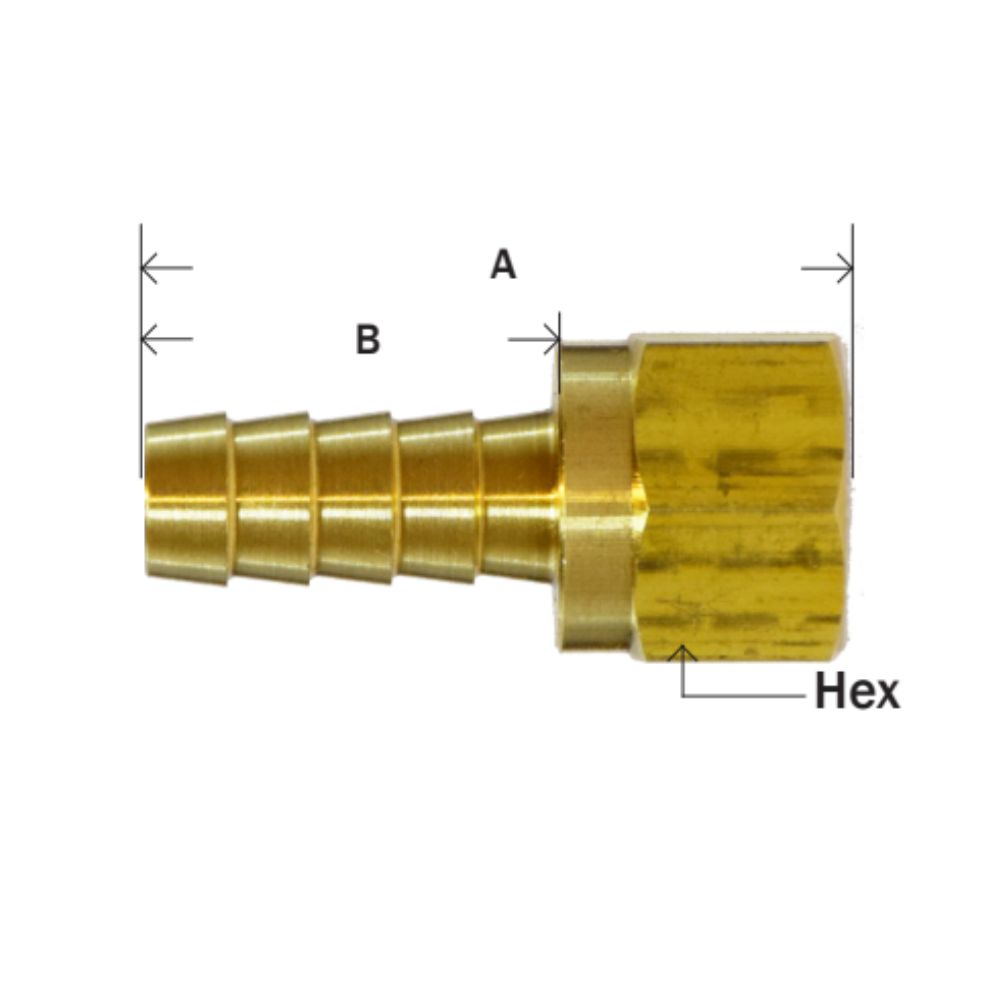

Part # | Hose ID x Dual Seat | Thread | A | B | Hex | Approx. Wt. Lbs. |
32-107 | 3/16” x 1/4” | 7/16-20 | 1.34 | 0.75 | 0.56 | 0.04 |
32-107C** | 3/16 X 1/4 | 7/16-20 | 1.42 | 0.78 | 0.56 | 0.04 |
32-337 | 1/4” x 1/4” | 7/16-20 | 1.56 | 0.97 | 0.56 | 0.04 |
32-337C** | 1/4″ X 1/4″ | 7/16-20 | 1.60 | 0.97 | 0.56 | 0.04 |
32-102 | 1/4” x 5/16” | 1/2-20 | 1.61 | 0.97 | 0.62 | 0.06 |
32-339 | 5/16” x 5/16” | 1/2-20 | 1.60 | 0.97 | 0.62 | 0.06 |
32-340 | 3/8” x 1/2” | 3/4-16 | 1.68 | 0.97 | 0.87 | 0.10 |
32-341 | 1/2” x 1/2” | 3/4-16 | 1.68 | 0.97 | 0.87 | 0.10 |
32-341C** | 1/2″ X 1/2″ | 3/4-16 | 1.75 | 0.97 | 0.87 | 0.09 |
32-342 | 1/2” x 5/8” | 7/8-14 | 1.76 | 0.97 | 1.00 | 0.12 |
32-394** | 5/8″ x 5/8″ | 7/8-14 | 1.83 | 0.97 | 1.00 | 0.14 |
This video shows the information on the brass fitting dual 45°/ 37° flare fitting.
Additionally, brass fitting dual 45°/ 37° flare fittings are appropriate for use in a variety of hydraulic fluid systems since they are offered in a broad range of applications, sizes, and specifications.
Please contact us if you have any questions about the brass fitting.
