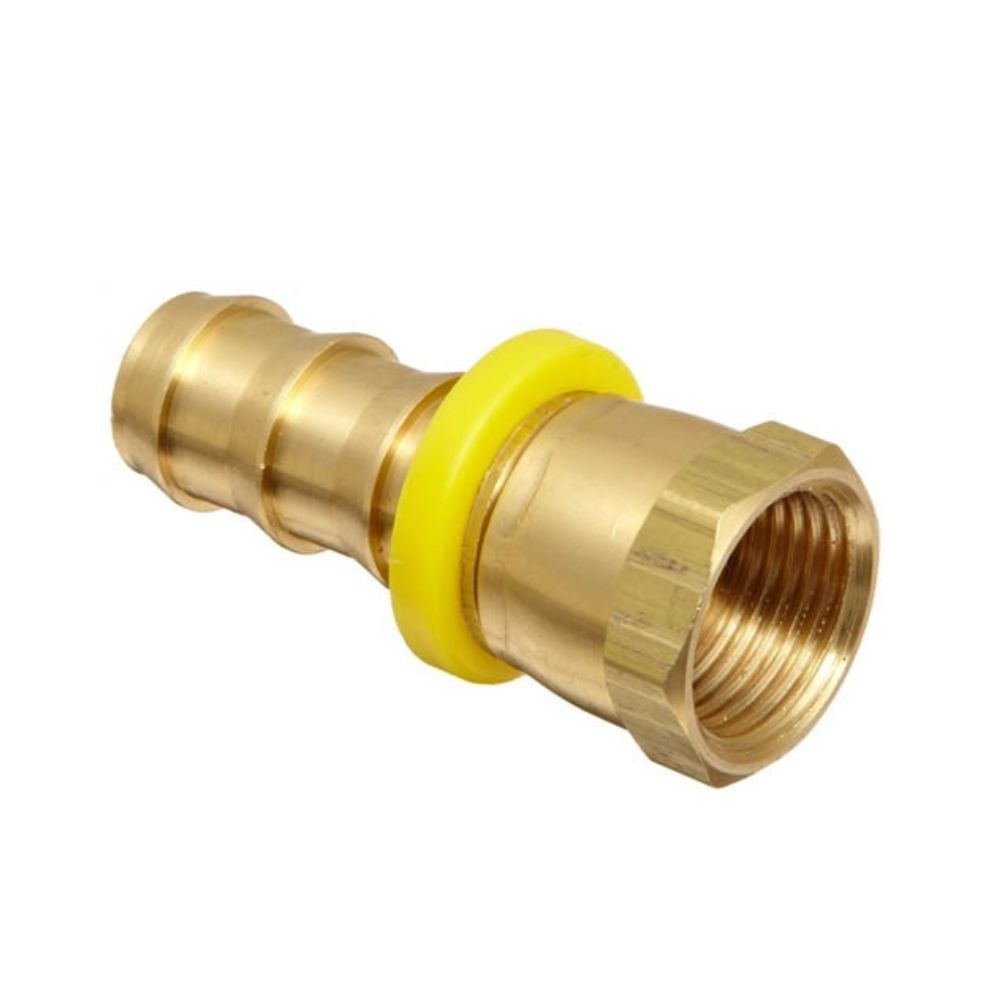

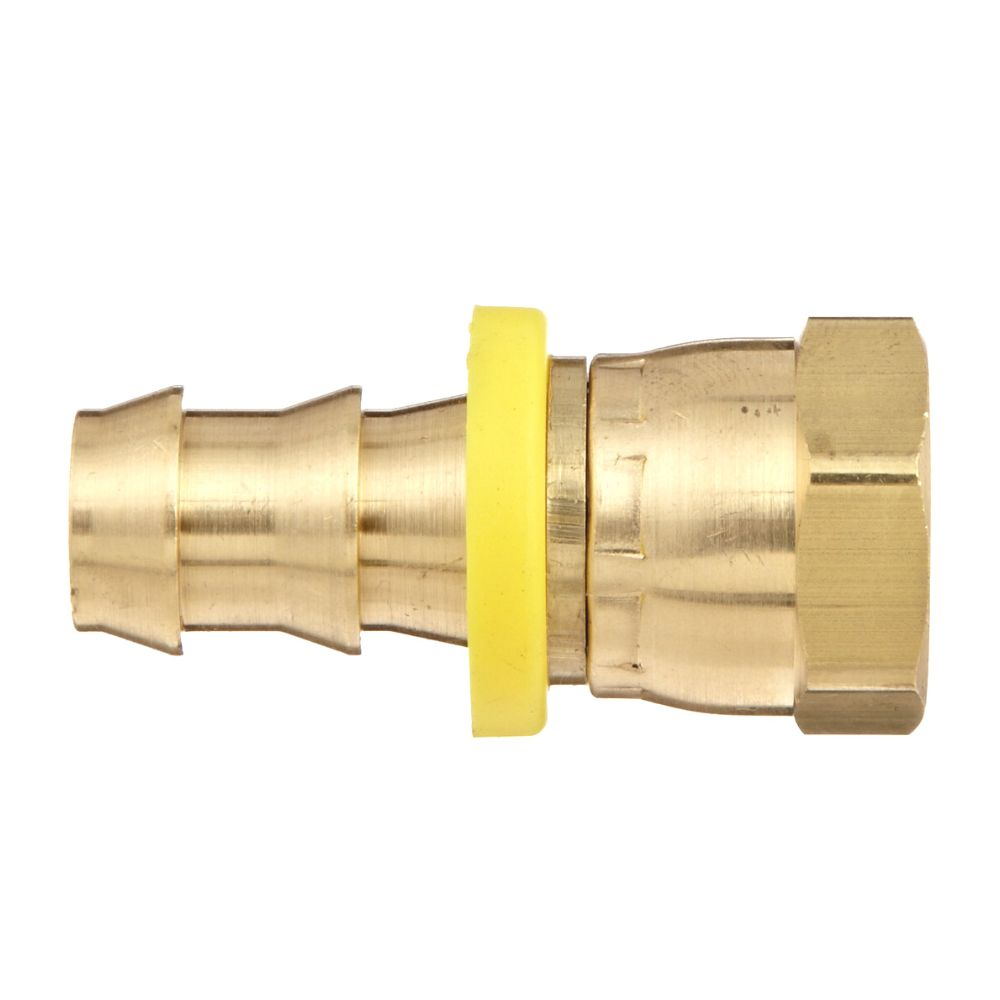

Brass Fitting Dual 45°/37° Female Swivel Adapter

Description:

A brass fitting with a dual 45°/37° female swivel adapter is a type of push-on hose barb fitting that is used to connect two pipes at a 45° or 37° angle.

The fitting has a female swivel adapter on each end, which allows it to be connected to male fittings with a simple twisting motion.

If you need more information about brass fittings or want to know more about other fittings, please contact us.

Features and Benefits:

• Leak resistance
• Durability
• Easy to install
• Strength

Categories:  Adapter, Brass, Straight, Hose barb, SAE, JIC

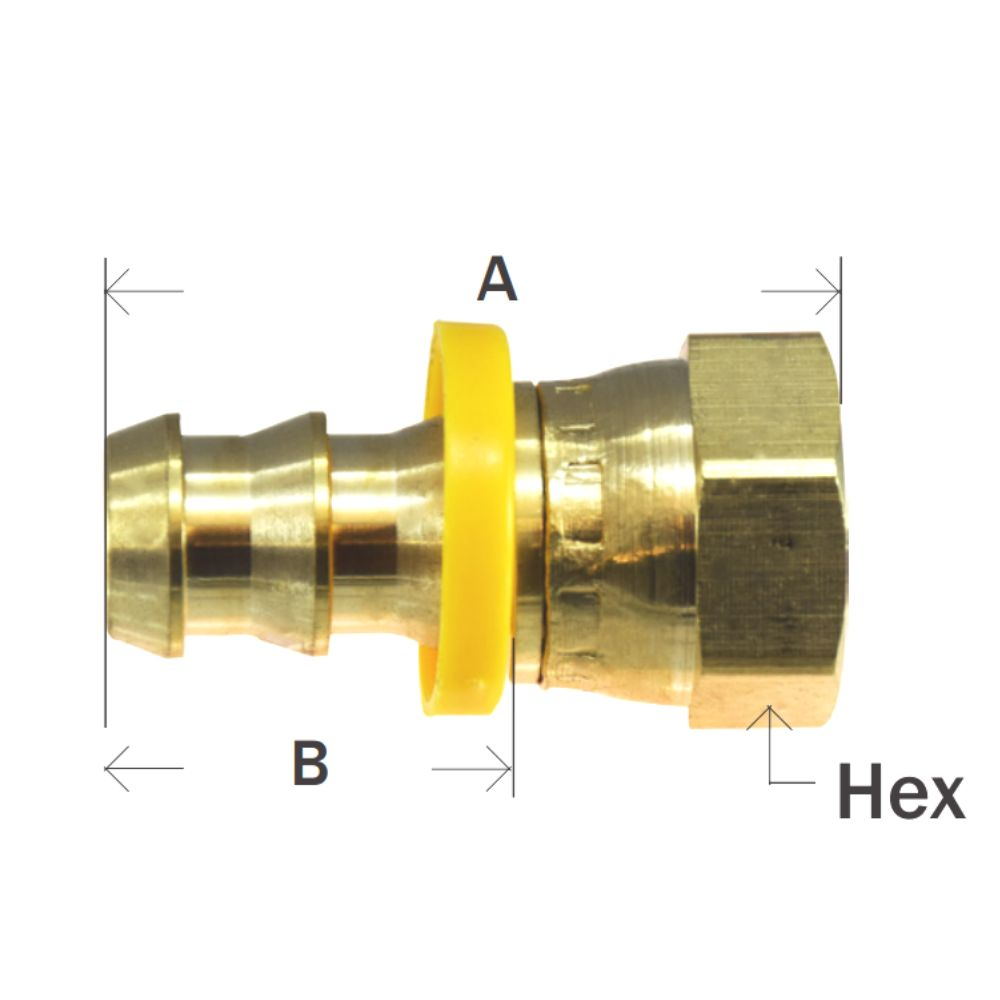

Part #

Hose I.D. x

Dual Seat

UNF

Thread

A

B

Hex

Approx.

Wt. Lbs.

30-230 *

1/4″ x 1/4″

7/16-20

1.53

0.87

0.56

0.06

30-231

1/4″ x 5/16″

1/2-20

1.53

0.87

0.62

0.04

30-232

5/16″ x 5/16″

1/2-20

1.56

0.87

0.62

0.04

30-427

3/8″ x 5/16″

1/2-20

1.74

0.87

0.62

0.06

30-233

3/8″ x 1/2″

3/4-16

1.79

0.97

0.87

0.10

30-234 *

1/2″ x 1/2″

3/4-16

1.77

0.97

0.87

0.10

30-235

1/2″ x 5/8″

7/8-14

1.84

0.97

1.00

0.12

30-236

5/8″ x 1/2″

3/4-16

2.27

1.45

0.87

0.18

30-237

5/8″ x 5/8″

7/8-14

2.33

1.45

1.00

0.14

30-428

3/4″ x 5/8″

7/8-14

2.33

1.45

1.00

0.20

Brass Fitting Dual 45°/37° Female Swivel Adapter Video

This video shows the information on the brass fitting dual SAE/JIC push-on adapter.

Additionally, brass fitting dual SAE/JIC push-on adapters are appropriate for use in a variety of hydraulic fluid systems since they are offered in a broad range of applications, sizes, and specifications.

Please contact us if you have any questions about the brass hydraulic fittings.
