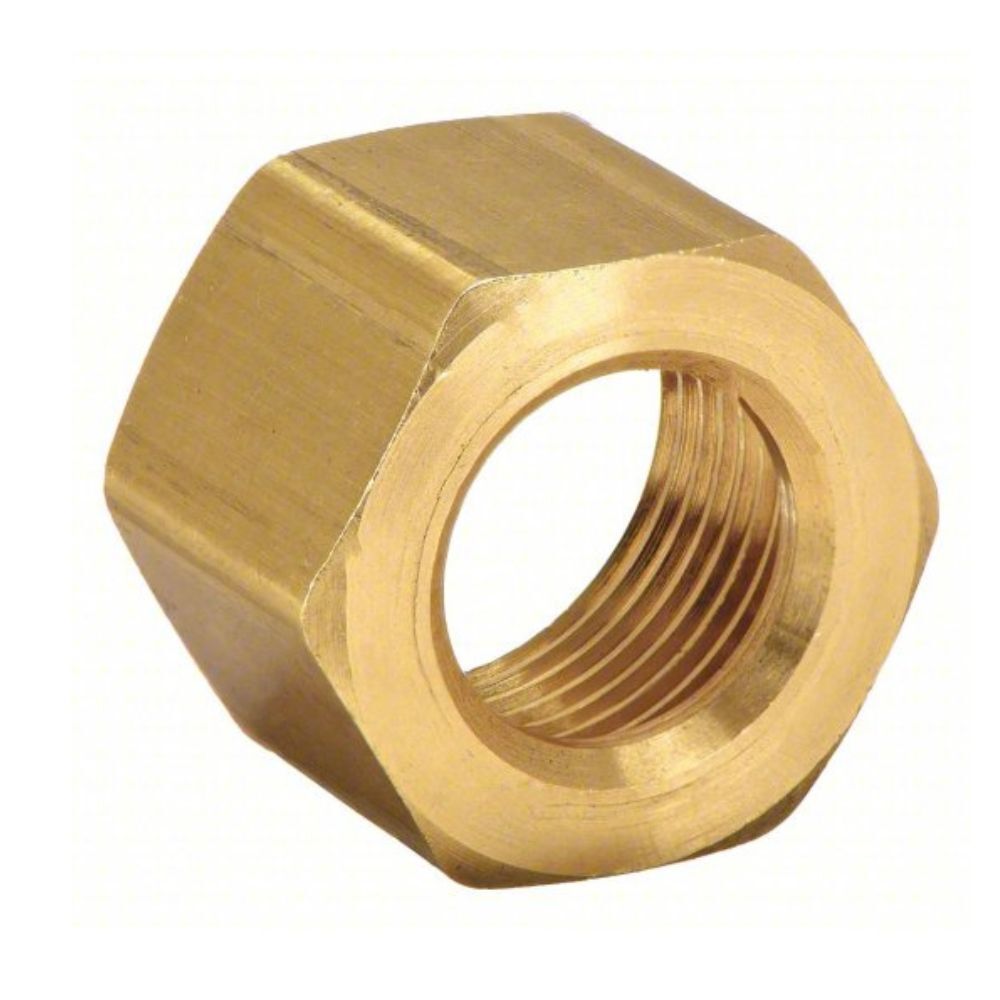

Brass Compression Nut

Description:

A brass compression nut is a type of fastener fitting that is used to create a strong seal between two pipes or tubes.

The primary application of a brass compression nut is in plumbing and fuel line systems.

If you have any questions about the brass compression fittings, feel free to ask.

Features and Benefits:

• Lead-free
• Reusable
• Easy to assemble
• Strong seal



Categories: , , Tags: , ,

Description

Part #

Size

Thread

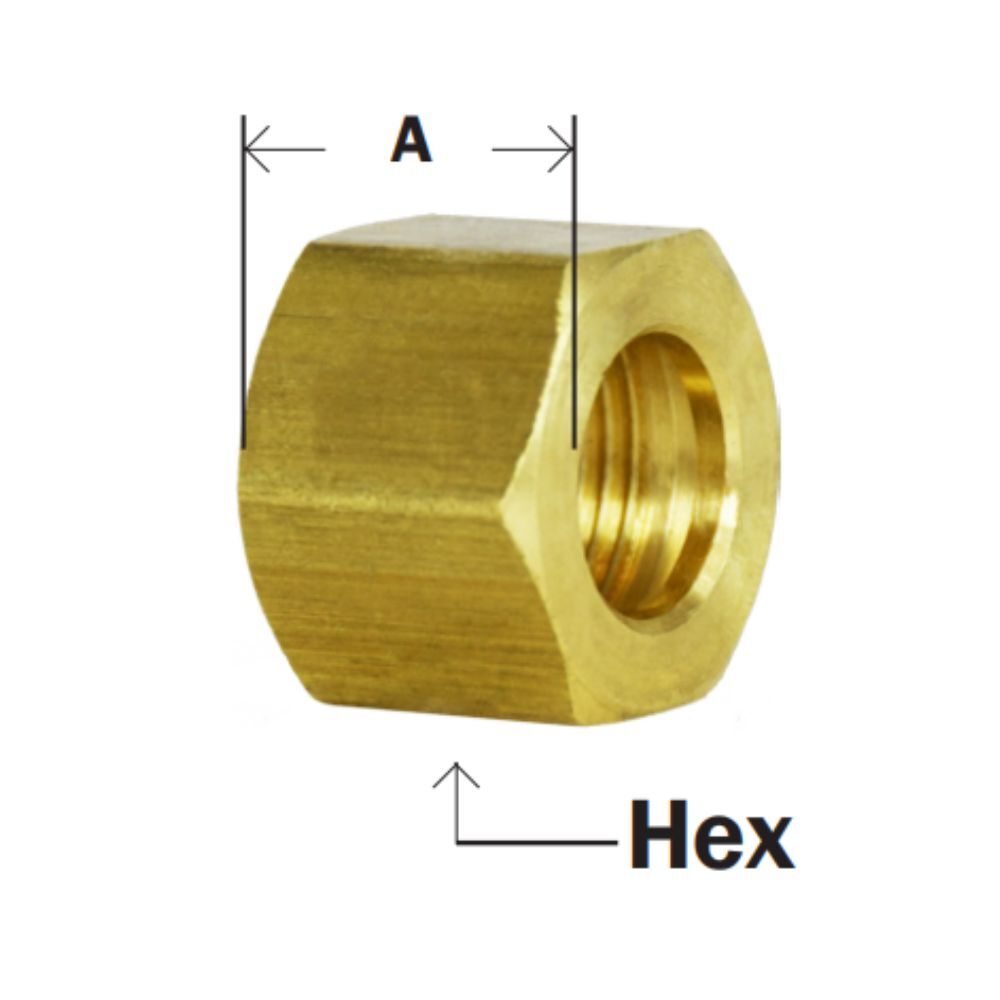

A

Hex

Approx.

Wt. Lbs.

18-033

1/8”

5/16-24

0.38

0.37

0.01

18-034

3/16”

3/8-24

0.41

0.43

0.01

18-035L

1/4”

7/16-24

0.44

0.50

0.02

18-035

1/4”

7/16-24

0.44

0.50

0.02

18-036

5/16”

1/2-24

0.44

0.56

0.02

18-037L

3/8”

9/16-24

0.47

0.62

0.04

18-037

3/8”

9/16-24

0.47

0.62

0.04

18-038

7/16”

5/8-24

0.50

0.68

0.04

18-039L

1/2”

11/16-20

0.56

0.75

0.04

18-039

1/2”

11/16-20

0.62

0.81

0.04

18-040L

5/8”

13/16-18

0.56

0.87

0.06

18-040

5/8”

13/16-18

0.62

0.94

0.06

18-041

3/4”

1-18

0.68

1.12

0.08

18-042

7/8”

1-1/8 – 18

0.62

1.25

0.10

Brass Compression Nut Video

This video shows information about brass compression nut.

Brass compression nuts are available in a variety of sizes to accommodate different pipe or tube diameters. They are also used in automotive and industrial applications such as connecting brake and air ducts.

If you have any questions about compression brass fittings, please contact us.
