swivel brass dot air fitting

Push-in Male Swivel Elbow

Brass Air Brake DOT Fittings - Push-in Male Swivel Elbow

Brass Air Brake DOT Fittings

Air Brake DOT Fittings

Description:

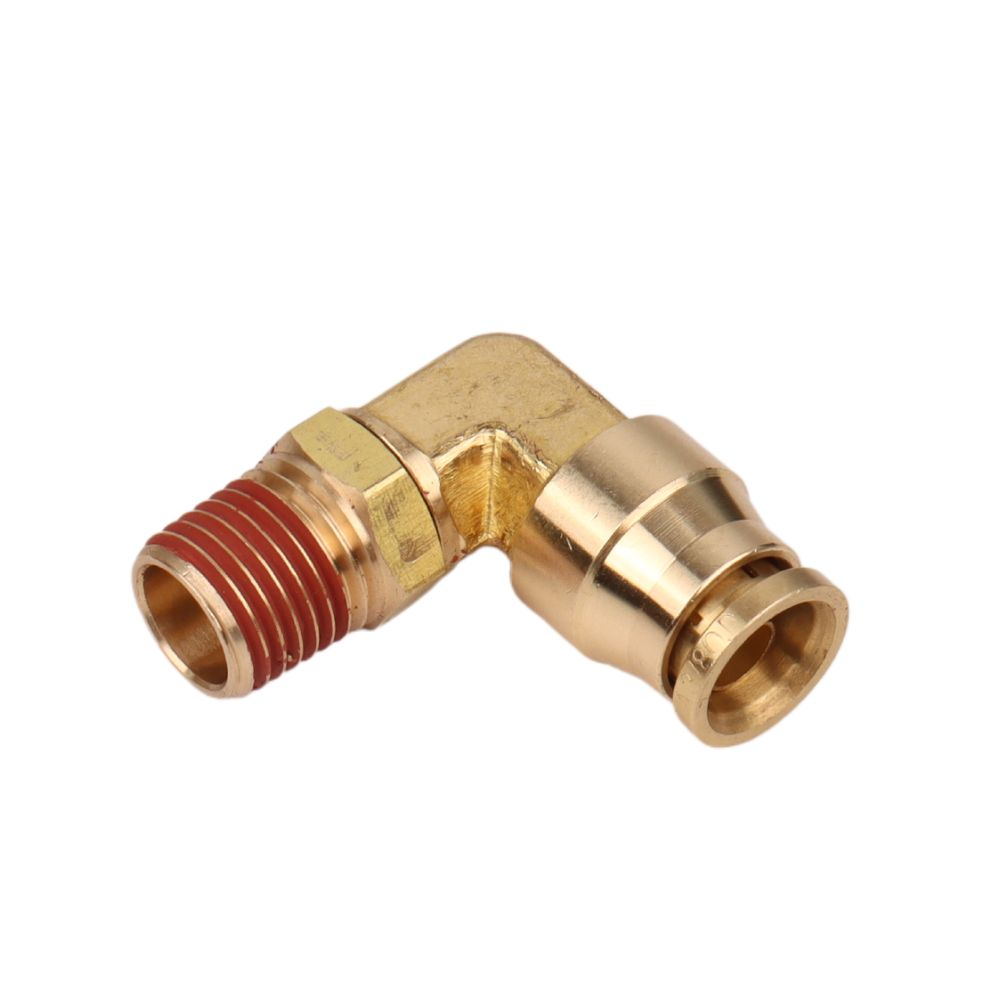

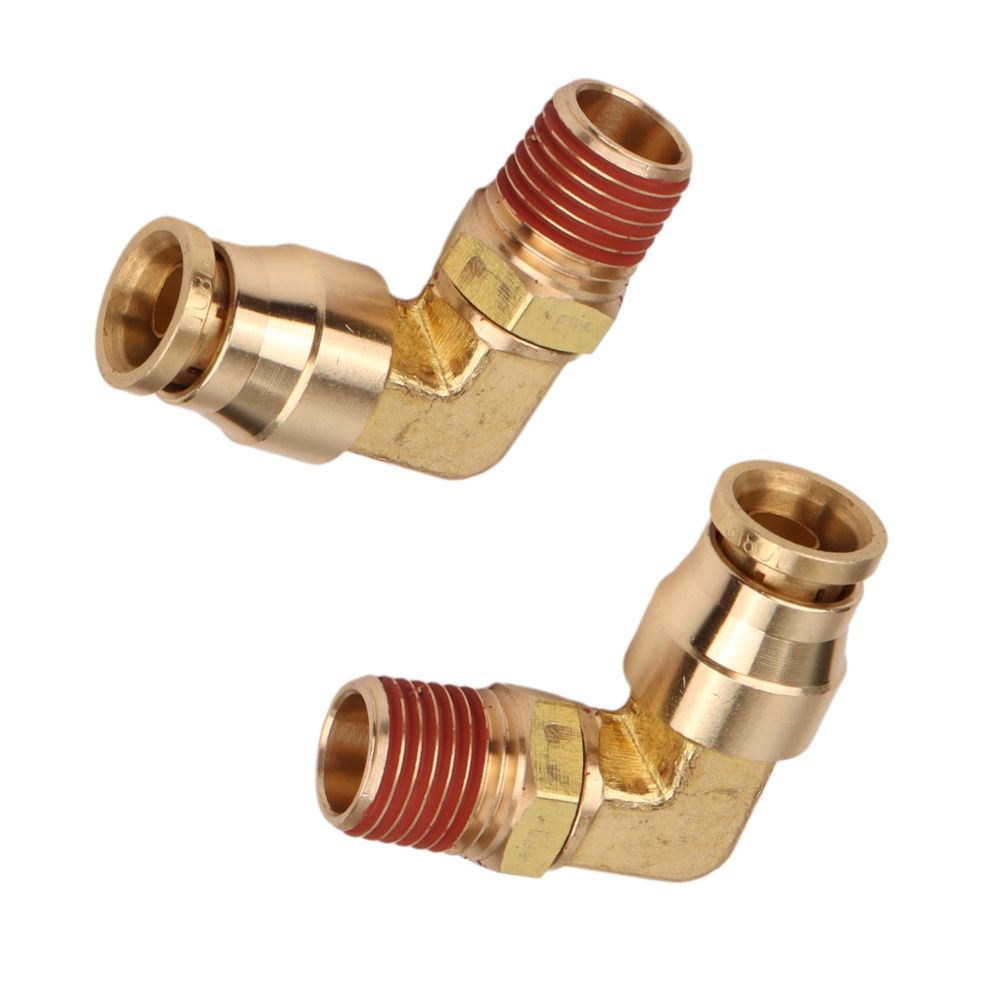

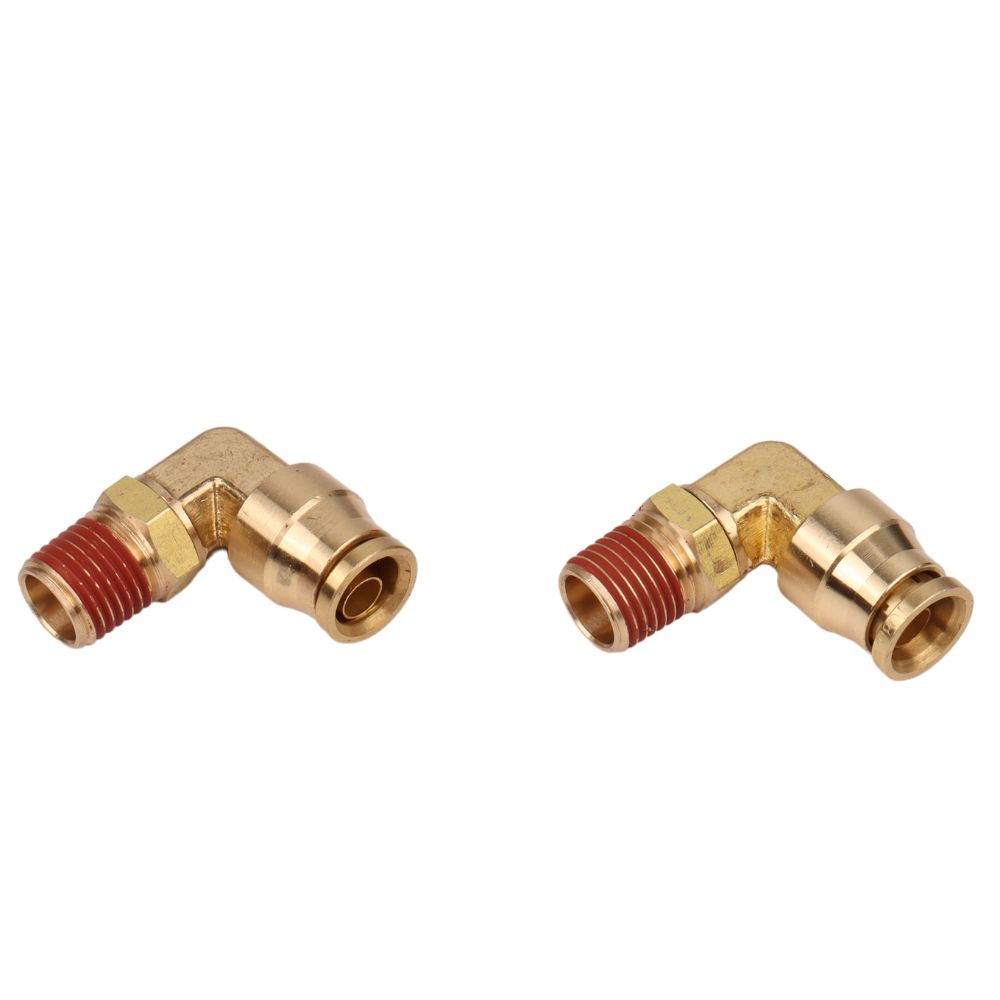

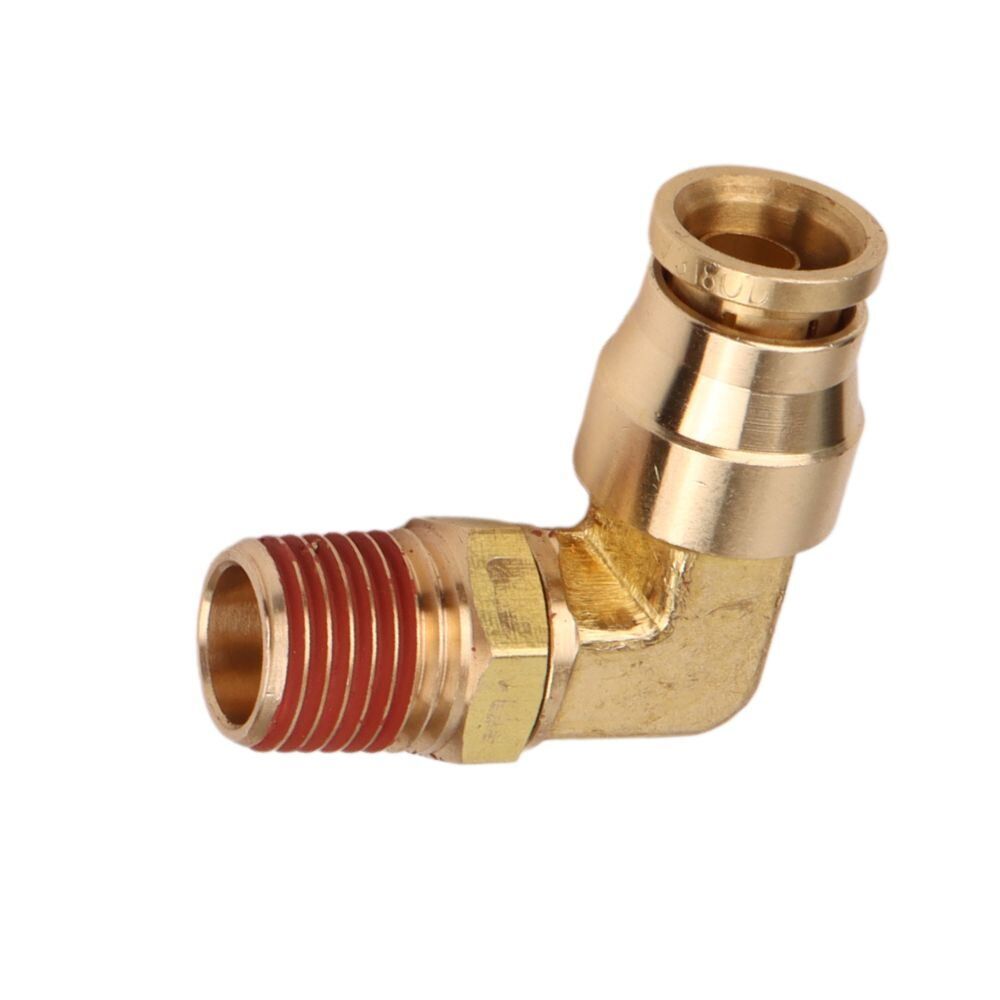

A DOT brass push-in male swivel elbow fitting is a type of air brake fitting used in air brake systems.

The push-in design allows for easy installation, while the male swivel elbow provides flexibility for making connections at different angles.

If you have any further questions about the brass dot air line push fittings, feel free to ask.

Features and Benefits:

• Easy to operate
• Durability
• Corrosion-resistance
• Safety

Categories: Brass, Elbow 90° , NPT, Products Tags: Brass, DOT, Elbow 90°, hose fitting, Male, NPT, Swivel fitting

Description

Description

Part#	Tube O.D* Male NPTF	Approx Wt.Lbs
2698-13C	5/32*1/8	0.07
2698-4C	1/4*1/8	0.06
2698-4D	1/4*1/4	0.10
2698-4E	1/4*3/8	0.10
2698-6C	3/8*1/8	0.10
2698-6D	3/8*1/4	0.11
2698-6E	3/8*3/8	0.12
2698-6F	3/8*1/2	0.20
2698-8D	1/2*1/4	0.16
2698-8E	1/2*3/8	0.18
2698-8F	1/2*1/2	0.26
2698-10E	5/8*3/8	0.28
2698-10F	5/8*1/2	0.30
2698-12F	3/4*1/2	0.50
2698-12G	3/4*3/4	0.56

Brass Air Brake DOT Fittings - Push-in Male Swivel Elbow Video

This video shows the information on the brass air brake DOT fitting.

Additionally, brass male swivel elbow push in fitting has many sizes and dimensions, and it can play an important role in air brake systems.

Please contact us if you have any questions about the dot approved push to connect fittings.
