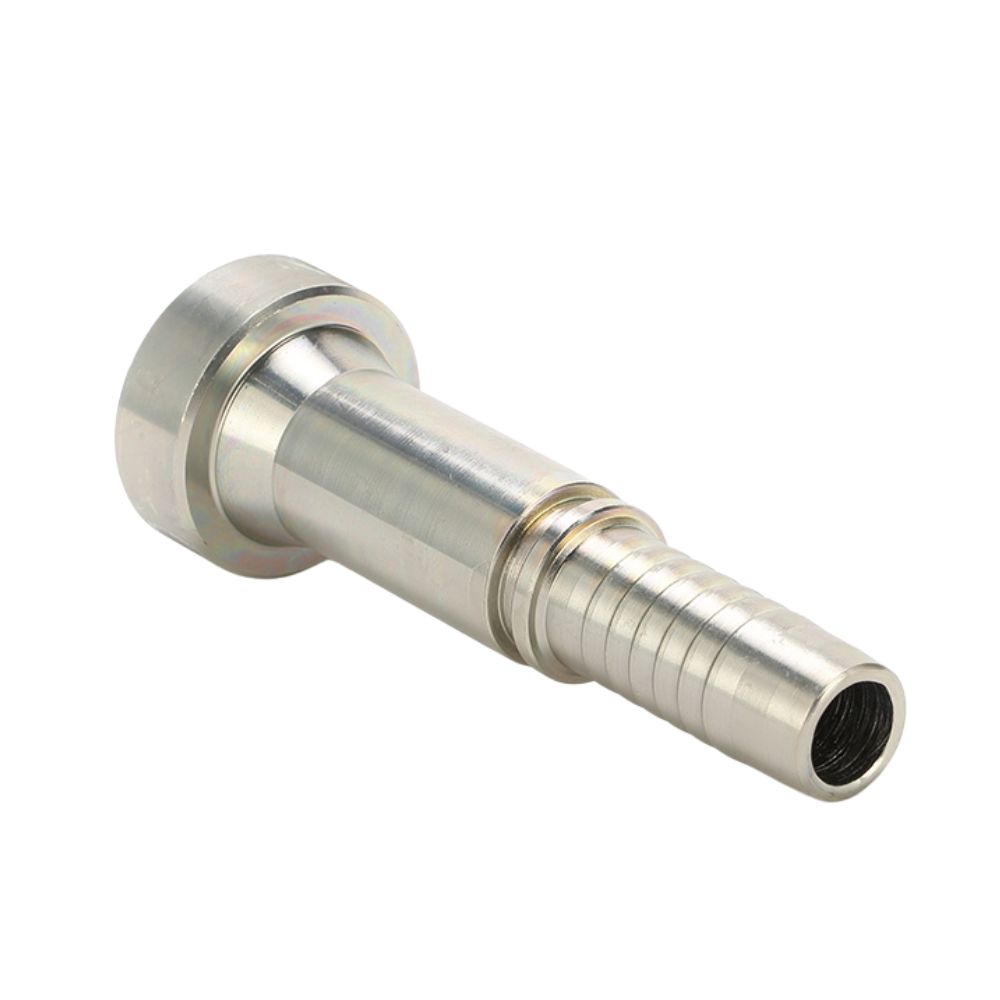

87911 Hydraulic SAE 9000PSI Flange Fitting
Description:

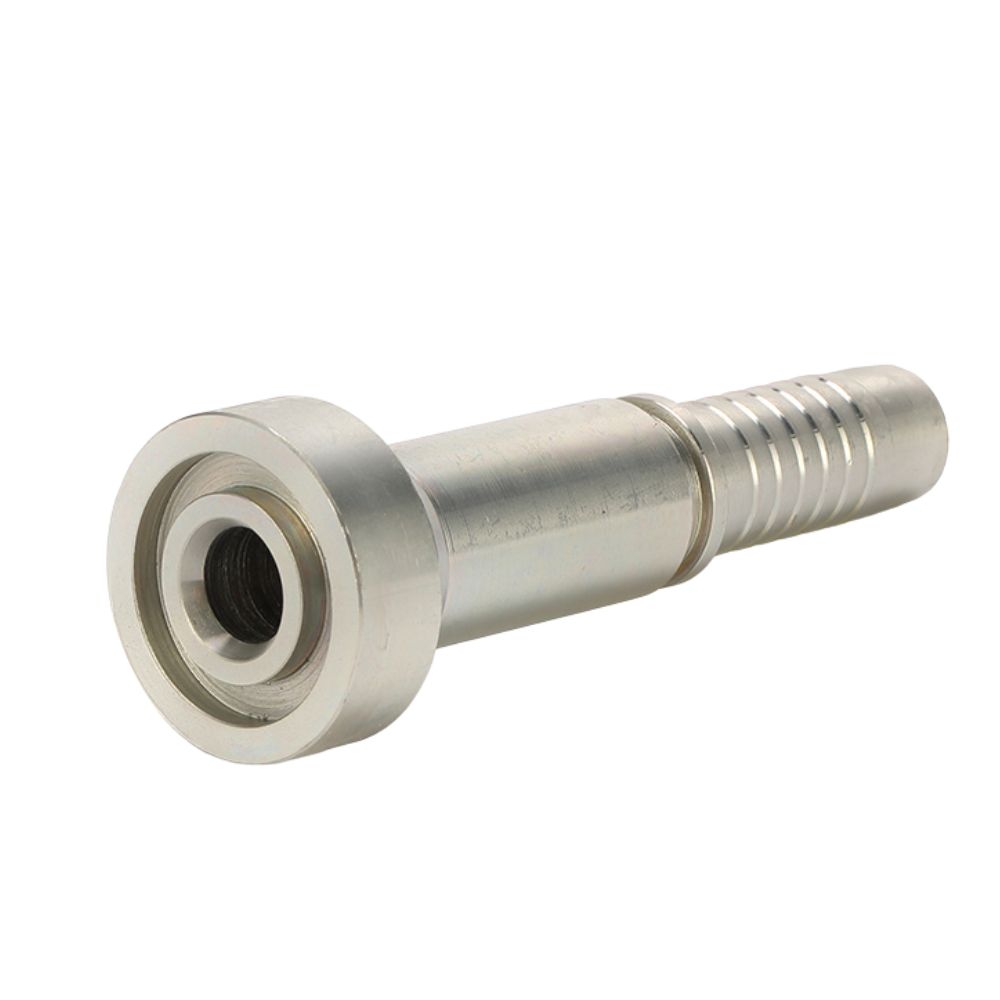

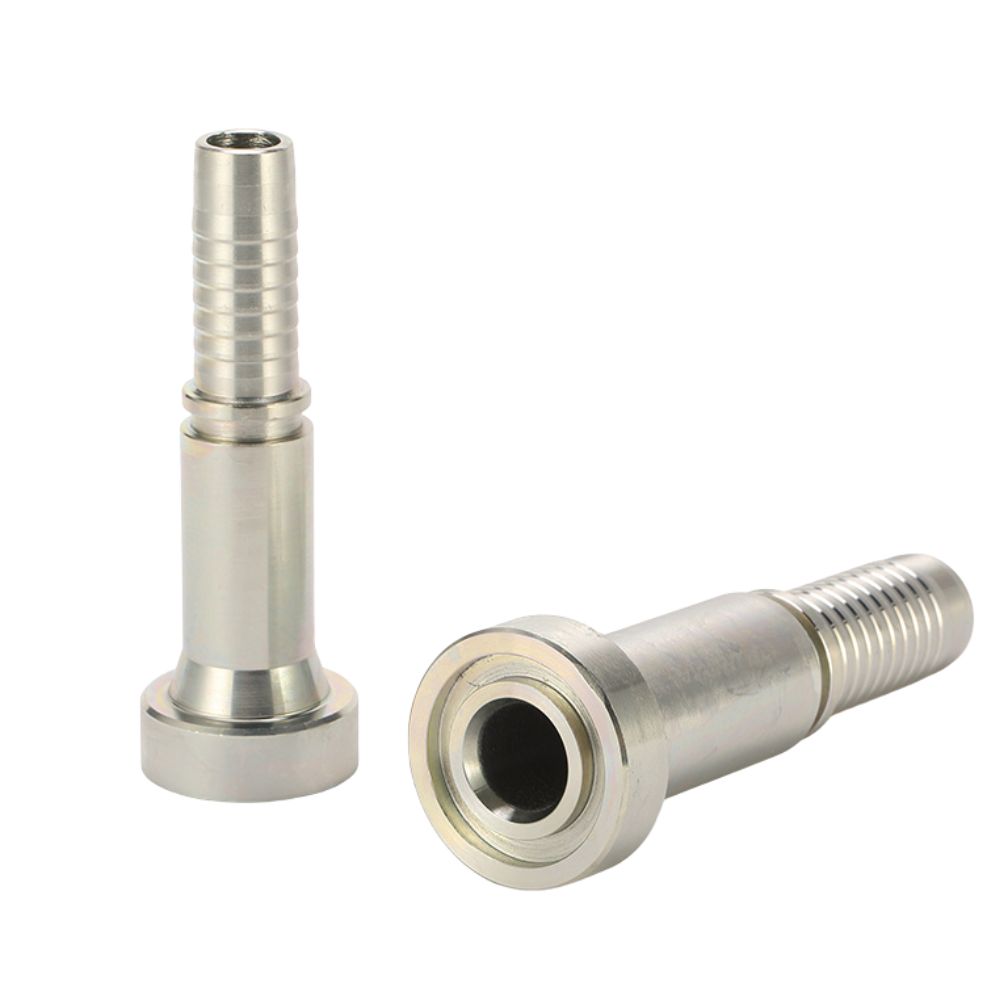

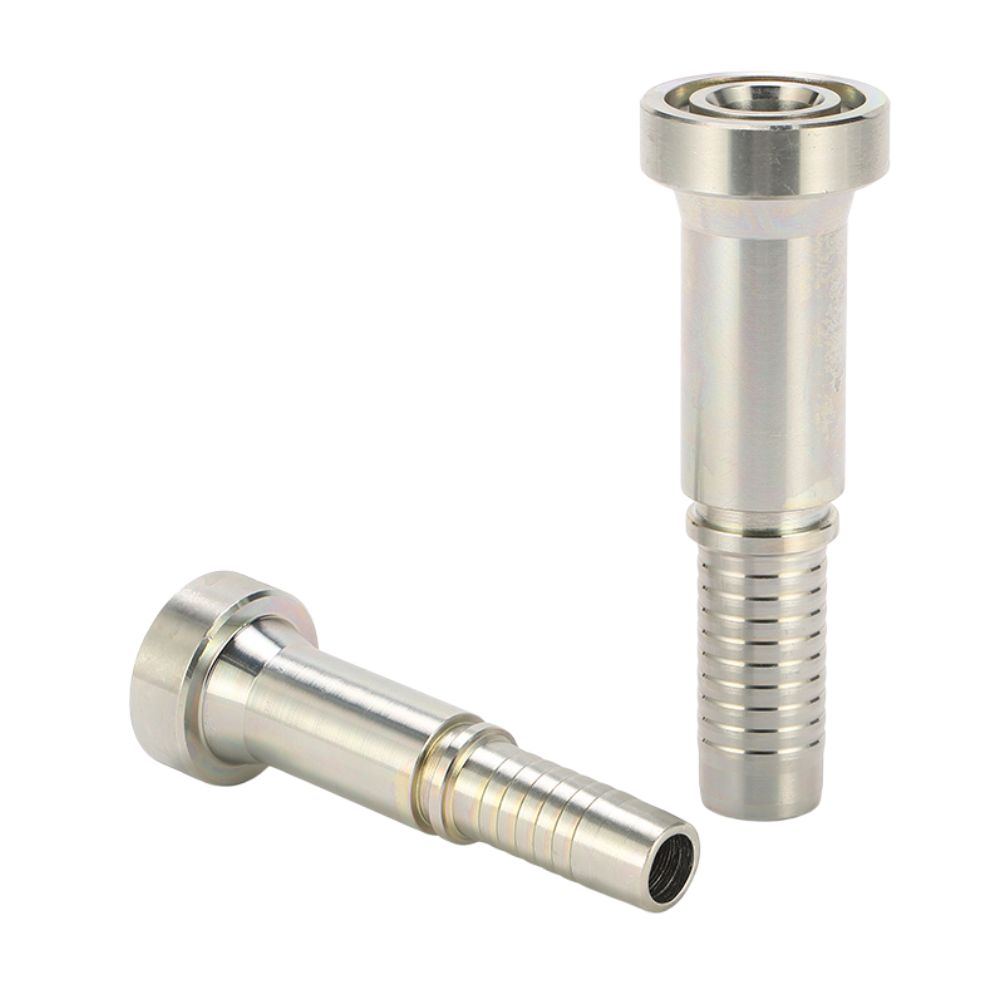

87911 Hydraulic SAE 9000PSI Flange Fitting is a straight flange fitting that is designed by SAE J516 standard. This type of flange can be used with one or two-wire hoses.
It can withstand pressures of up to 9000 psi and comes in union and split models.
Please get in touch with us for free samples or more information about the hydraulic split flange.
Features and Benefits:
• High-pressure resistance
• High heat resistance
• Vibration resistance
• No leaks
Categories: SAE, Straight, Carbon steel, Crimp fitting
PART NO. | FLANGE SIZE | DN | DASH | L | D | L1 |
87911-12-12 | 3/4″ | 19 | 12 | 58.5 | 41.3 | 14.3 |
87911-16-12 | 1″ | 19 | 12 | 62 | 47.6 | 14.3 |
87911-16-16 | 1″ | 25 | 16 | 64 | 47.6 | 14.3 |
87911-20-16 | 1.1/4″ | 25 | 16 | 70 | 54 | 14.3 |
87911-20-20 | 1.1/4 “ | 32 | 20 | 70.5 | 54 | 14.3 |
87911-24-20 | 1.1/2″ | 32 | 20 | 77 | 63.5 | 14.3 |
87911-24-24 | 1.1/2″ | 38 | 24 | 77 | 63.5 | 14.3 |
87911-32-24 | 2″ | 38 | 24 | 88 | 79.4 | 14.3 |
87911-32-32 | 2″ | 51 | 32 | 88 | 79.4 | 14.3 |
87911 Hydraulic SAE 9000PSI Flange Fitting Video
This video is about the details of the 87911 hydraulic 9000PSI flange fitting.
Furthermore, 87911 hydraulic flange fittings are available in a wide range of applications, sizes, and dimensions, making them suitable for use in a wide range of hydraulic fluid systems.
And if you want more information about hydraulic pump flange fittings, please contact us.
