Description:

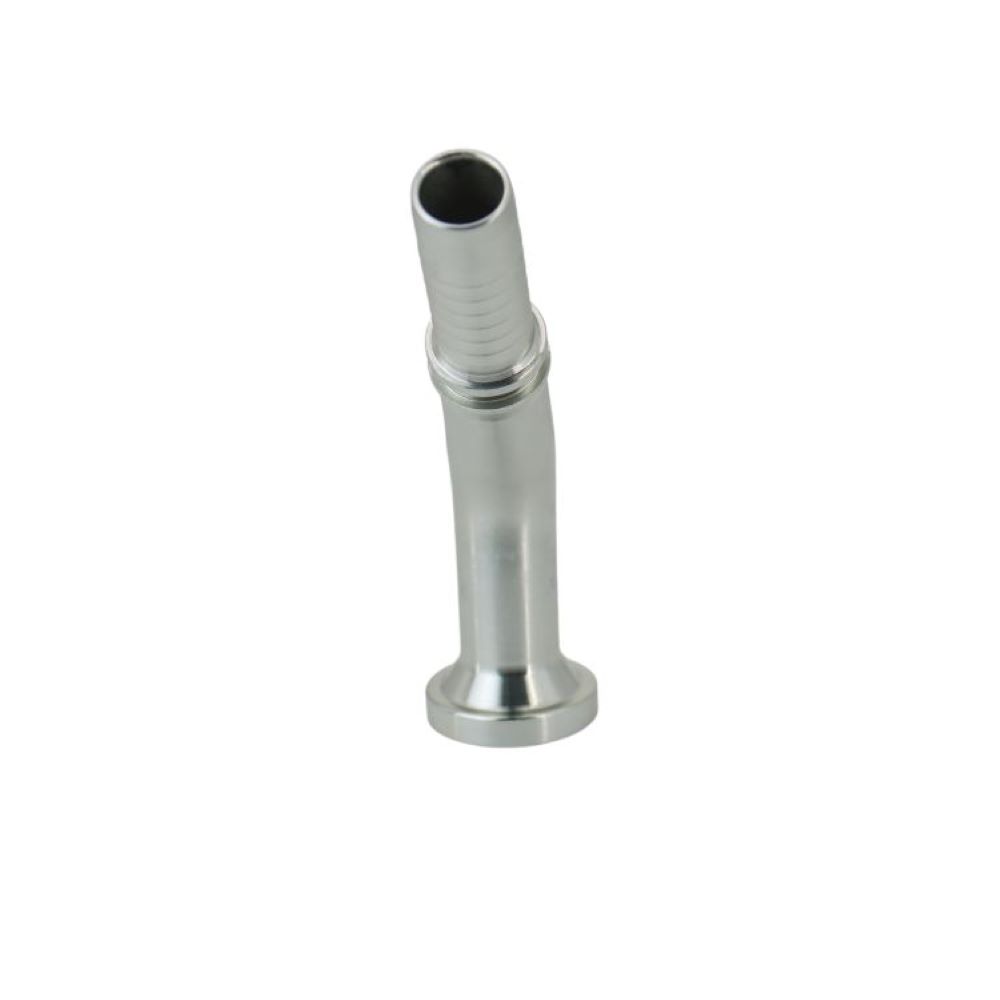

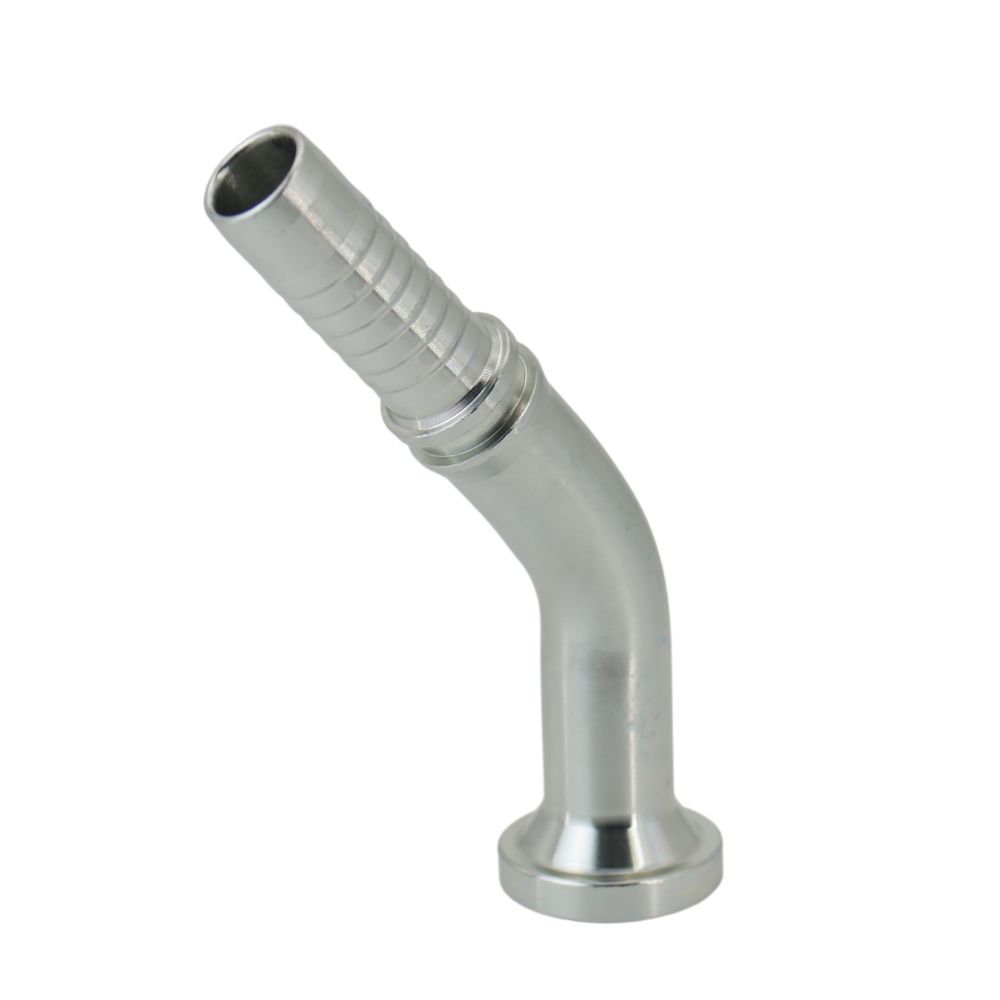

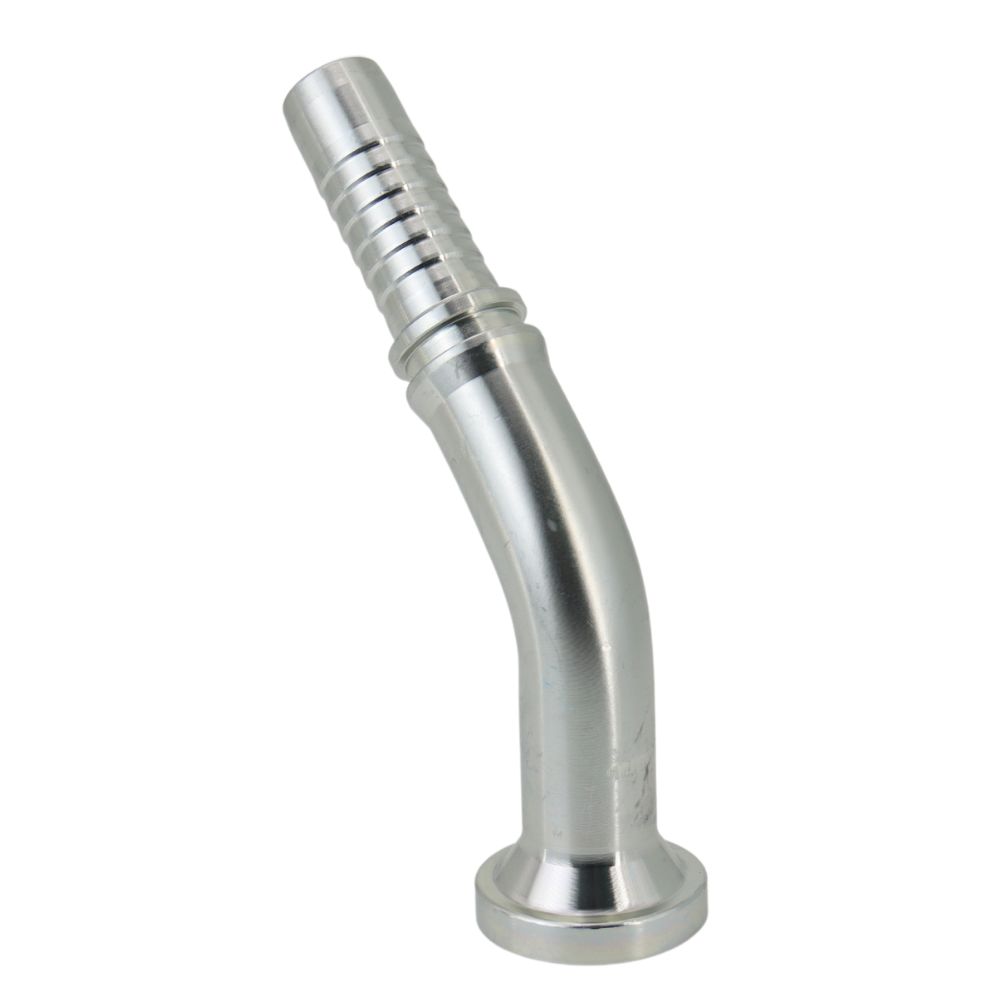

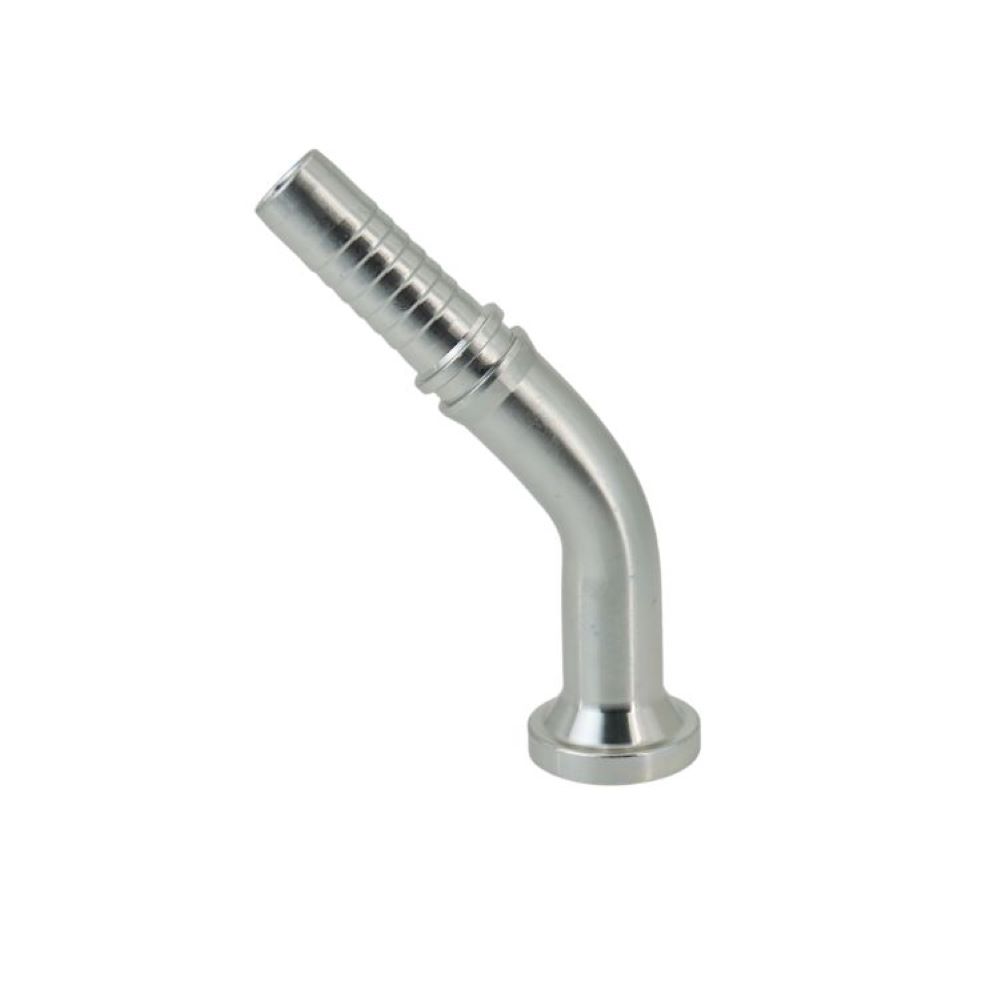

87341 hydraulic Code61 SAE 3000PSI flange is a 45-degree elbow flange fitting that is designed by SAE J516 standard. This type of flange can be used with one or two-wire hoses.
Hydraulic flange fitting can be applied in many demanding applications because it can withstand high pressures, shocks, and vibrations, particularly in large sizes.
Please get in touch with us for free samples or more information about hydraulic hose flange.
Features and Benefits:
• Vibration resistance
• High temperature resistance
• High-pressure resistance
• Tight seal
Categories: SAE, Code61, Carbon steel, Elbow 45°, Hose fitting
|
| HOSE BORE | DIMENSIONS | |||||
DN | DASH | A | C | D | H | L | ||
87341-08-08 | 1/2″ | 12 | 8 | 58.2 | 30.2 | 24 | 23.3 | 6.73 |
87341-12-08 | 3/4″ | 12 | 8 | 58.9 | 38.1 | 31.7 | 24 | 6.73 |
87341-12-10 | 3/4″ | 16 | 10 | 69.6 | 38.1 | 31.7 | 25.3 | 6.73 |
87341-12-12 | 3/4″ | 20 | 12 | 76.3 | 38.1 | 31.7 | 28.9 | 6.73 |
87341-16-12 | r | 20 | 12 | 76.3 | 44.4 | 38 | 28.9 | 8 |
87341-16-16 | 1” | 25 | 16 | 83.9 | 44.4 | 38 | 29.7 | 8 |
87341-16-20 | r | 32 | 20 | 94.5 | 44.4 | 38 | 33.8 | 8 |
87341-20-16 | 1.1/4″ | 25 | 16 | 85.2 | 50.8 | 43 | 29.7 | 8 |
87341-20-20 | 1.1/4″ | 32 | 20 | 94.5 | 50.8 | 43 | 33.8 | 8 |
87341-24-20 | 1.1/2″ | 32 | 20 | 95.9 | 60.3 | 50 | 35.2 | 8 |
87341-24-24 | 1.1/2″ | 40 | 24 | 109.9 | 60.3 | 50 | 39.1 | 8 |
87341-32-24 | 2n | 40 | 24 | 109.9 | 71.4 | 62 | 39.1 | 9.53 |
87341-32-32 | 2n | 50 | 32 | 129.3 | 71.4 | 62 | 46.3 | 9.53 |
This video is about the details of the 87341 hydraulic code61 flange fitting.
Furthermore, 87341 hydraulic flange fittings are available in a wide range of applications, sizes, and dimensions, making them suitable for use in a wide range of hydraulic fluid systems.
And if you want more information about sae j518 flange connection, please contact us.
Looking for unbeatable prices, top-tier quality, or custom solutions that fit your exact needs? Contact Topa Now！
