Description:

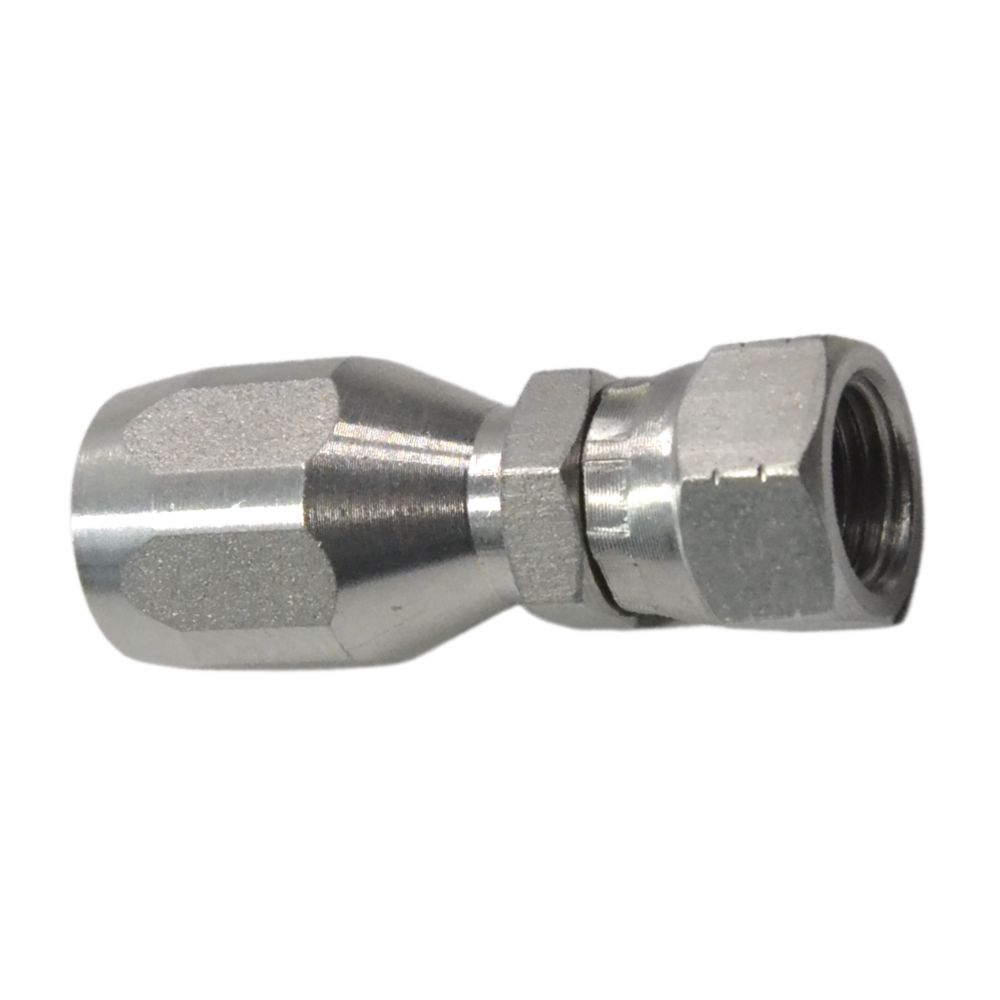

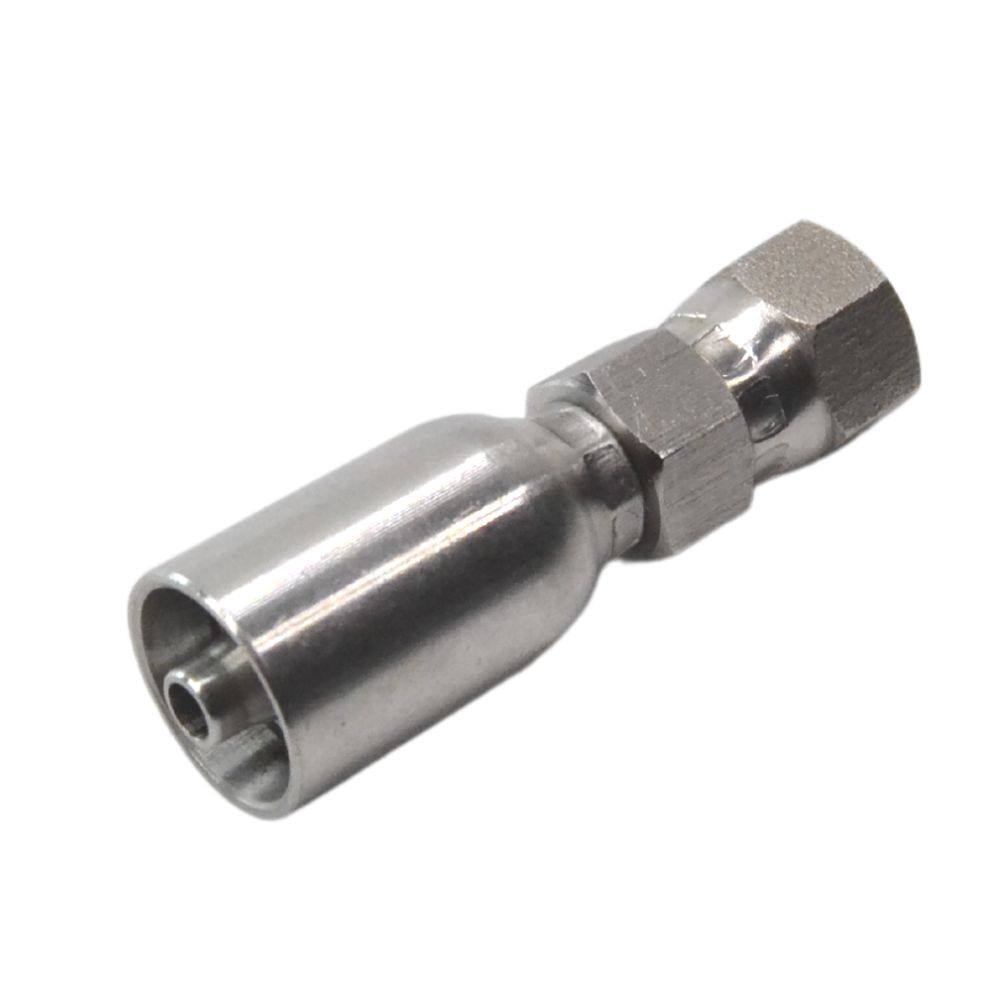

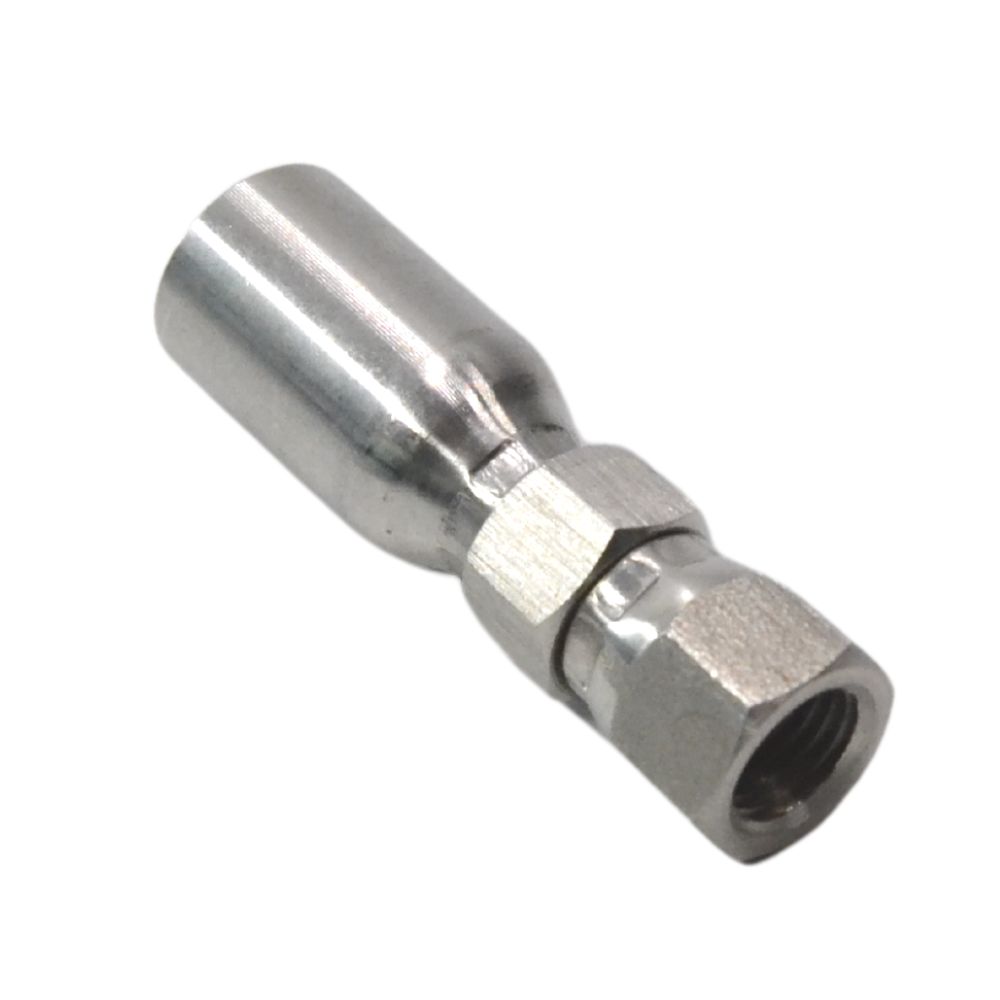

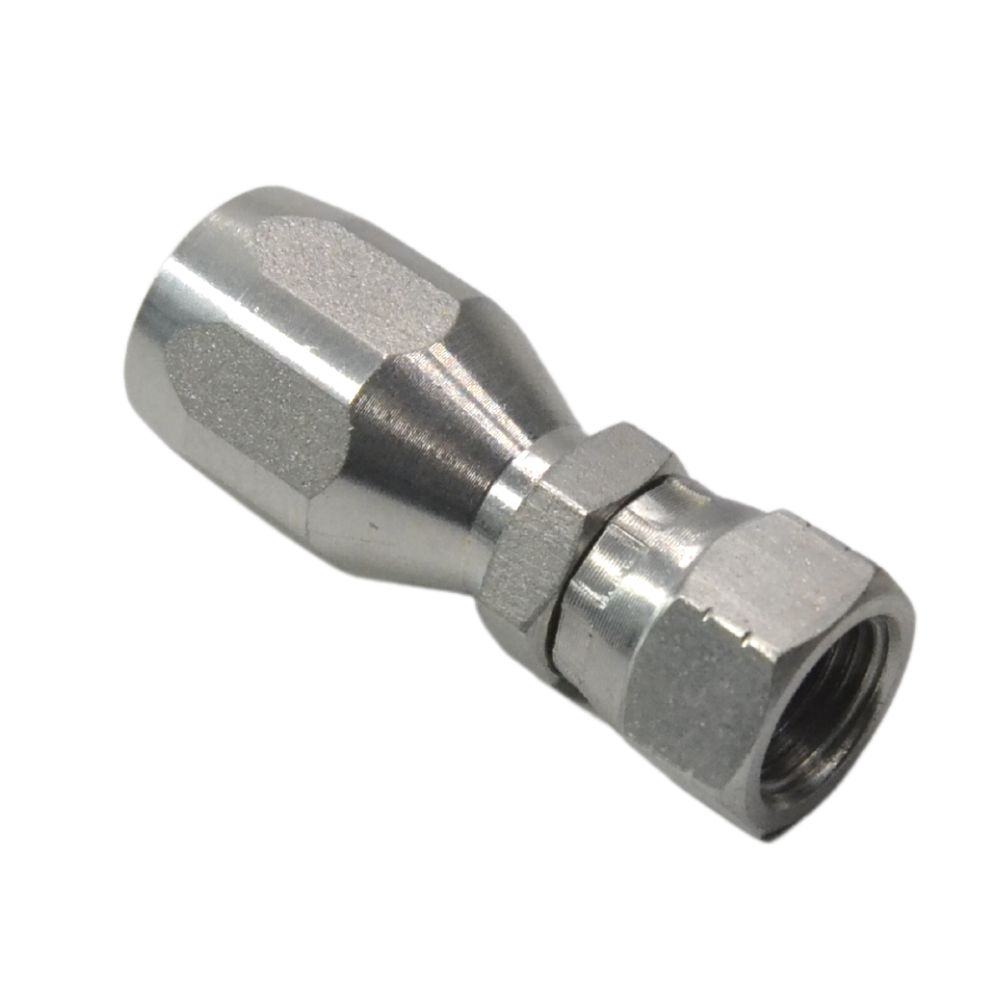

26718D Reusable JIC hydraulic fitting is a straight female hose fitting with a 74-degree cone seat thread.
In addition, reusable JIC hydraulic fitting is an alternative to crimp hose fitting. And it can be used for R5 and R2 hoses. This kind of fitting can be reused and it can play an important role in many applications.
Please contact us for free samples or more information about hydraulic reusable fittings.
Features and Benefits:
• Reusable
• Save money
• No rust
• Tight seal
Categories: Reusable, JIC, Carbon steel, Straight, Hose fitting
PART NO. | TH/READ E | HOSE BORE
| DIMENSIONS
| |||
DN | DASH | L | S1 | S2 | ||
26718D-04-04(R5) | 7/16″X20 | 5 | 04 | 40 | 14 | 17 |
26718D-05-05(R5) | 1/2″X20 | 6 | 05 | 45 | 14 | 17 |
26718D-06-06(R5) | 9/16″X18 | 8 | 06 | 49 | 17 | 19 |
26718D-08-08(R5) | 3/4″X16 | 11 | 08 | 60 | 22 | 24 |
26718D-10-10(R5) | 7/8″X14 | 13 | 10 | 66.5 | 27 | 27 |
26718D-12-12(R5) | 1.1/16″X12 | 16 | 12 | 77 | 32 | 32 |
26718D-16-16(R5) | 1.5/16″X12 | 22 | 16 | 64 | 38 | 41 |
26718D-20-20(R5)W | 1.5/8″X12 | 28 | 20 | 76.5 | 41 | 50 |
26718D-24-24(R5)W | 1.7/8″X12 | 35 | 24 | 79.5 | 46 | 55 |
26718D-32-32(R5)W | 2.1/2″X12 | 46 | 32 | 95 | 65 | 75 |
This video is about the details of the 26718D JIC reusable hydraulic fitting.
Moreover, Reusable JIC hydraulic fittings 26718D are available in a variety of applications, sizes, and dimensions, allowing them to be used in a variety of hydraulic fluid systems.
And if you want more information about reusable hydraulic hose fitting, please contact us.
Looking for unbeatable prices, top-tier quality, or custom solutions that fit your exact needs? Contact Topa Now！
