Description:

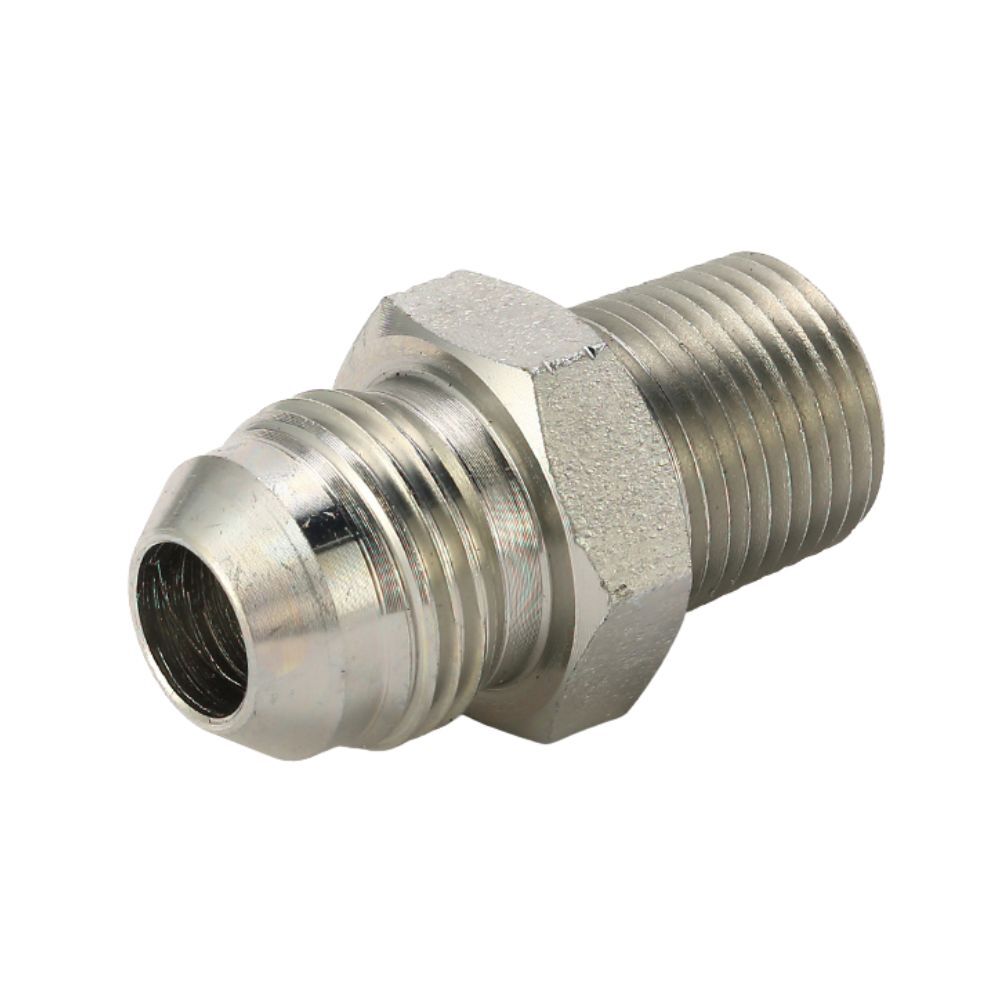

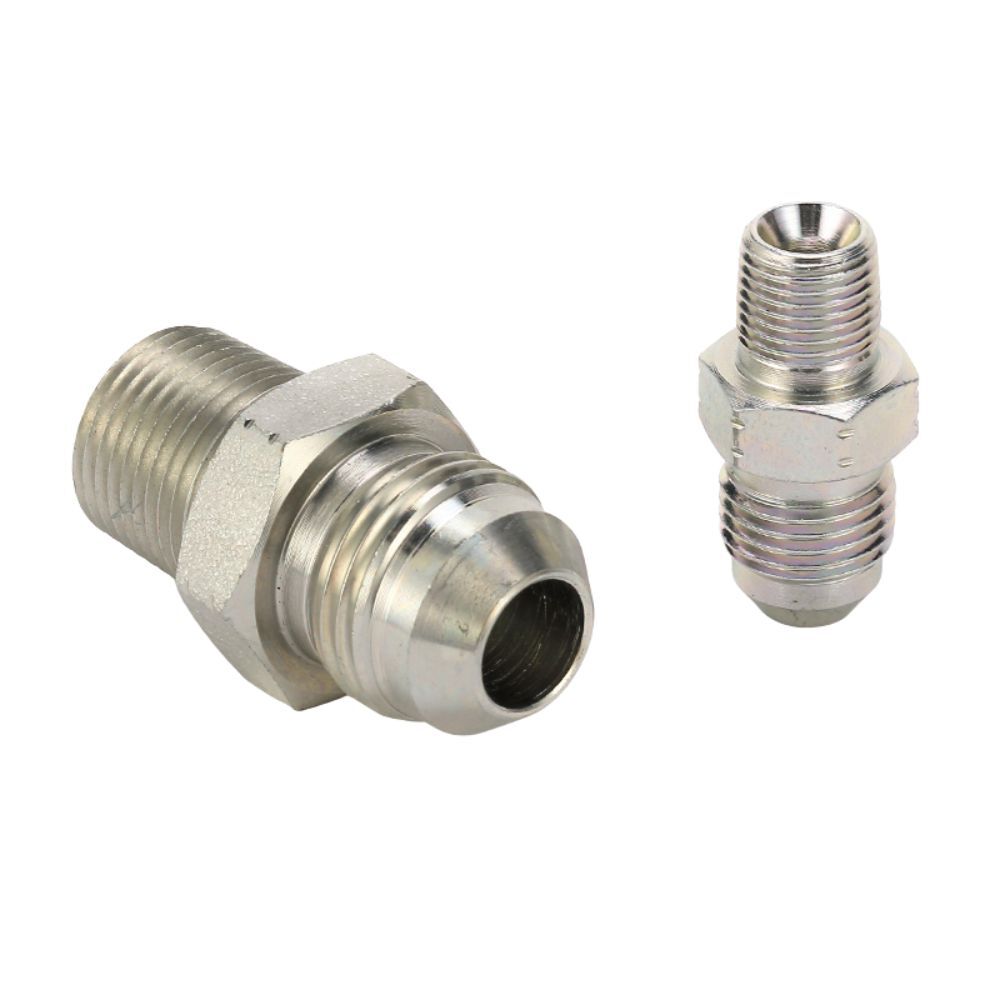

1JN-JIC to NPT hydraulic fittings have an NPT (National Pipe Taper) connection on one end and a JIC (Joint Industry Council) connection on the other end.
This type of fitting is commonly used to connect hoses and pipes in fluid hydraulic systems.
If you want free samples or want to know more information about JIC hydraulic fitting, please contact us.
Features and Benefits:
• Durable
• No leakage
• Useful
• Corrosion resistance
Categories: hydraulic fitting, JIC thread, NPT thread
PART NO. | THREAD | DIMENSIONS | WEIGHT(g) | WORKING PRESSURE(MPa) | ||||
T1 | T2 | L1 | L2 | L | S1 | |||
1JN-04-02 | 7/16＂X20 | Z1/8＂X27 | 14 | 10.5 | 31 | 12 | 18 | 34.5 |
1JN-04 | 7/16＂X20 | Z1/4＂X18 | 14 | 15 | 36 | 17 | 30 | 27.5 |
1JN-04-06 | 7/16＂X20 | Z3/8＂X18 | 14 | 16 | 36 | 19 | 39 | 21 |
1JN-04-08 | 7/16＂X20 | Z1/2＂X14 | 14 | 19.5 | 43 | 24 | 74 | 27.5 |
1JN-05-04 | 1/2＂X20 | Z1/4＂X18 | 14 | 15 | 36 | 17 | 32 | 21 |
1JN-05-06 | 1/2＂X20 | Z3/8＂X18 | 14 | 16 | 37 | 19 | 42 | |
1JN-05-08 | 1/2＂X20 | Z1/2＂X14 | 14 | 19.5 | 43 | 24 | 75 | |
1JN-06-04 | 9/16＂X18 | Z1/4＂X18 | 14.1 | 15 | 36.5 | 17 | 33 | 27.5 |
1JN-06 | 9/16＂X18 | Z3/8＂X18 | 14.1 | 16 | 36.5 | 19 | 41 | 21 |
1JN-06-08 | 9/16＂X18 | Z1/2＂X14 | 14.1 | 19.5 | 42.9 | 24 | 73 | |
1JN-08-04 | 3/4＂X16 | Z1/4＂X18 | 16.7 | 15 | 39 | 22 | 56 | 27.5 |
1JN-08-06 | 3/4＂X16 | Z3/8＂X18 | 16.7 | 16 | 39 | 22 | 60 | 21 |
1JN-08 | 3/4＂X16 | Z1/2＂X14 | 16.7 | 19.5 | 44 | 24 | 80 | |
1JN-08-12 | 3/4＂X16 | Z3/4＂X14 | 16.7 | 19.5 | 47 | 30 | 125 | 17 |
1JN-10-06 | 7/8＂X14 | Z3/8＂X18 | 19.3 | 16 | 43.5 | 24 | 80 | 21 |
1JN-10-08 | 7/8＂X14 | Z1/2＂X14 | 19.3 | 19.5 | 48 | 24 | 93 | |
1JN-10-12 | 7/8＂X14 | Z3/4＂X14 | 19.3 | 19.5 | 49.5 | 30 | 127 | 17 |
1JN-12-08 | 1.1/16＂X12 | Z1/2＂X14 | 21.9 | 19.5 | 52.3 | 30 | 142 | 21 |
1JN-12 | 1.1/16＂X12 | Z3/4＂X14 | 21.9 | 19.5 | 52.3 | 30 | 147 | 17 |
1JN-12-16 | 1.1/16＂X12 | Z1＂X11.5 | 21.9 | 25.5 | 57.1 | 36 | 213 | 14 |
1JN-12-20 | 1.1/16＂X12 | Z1.1/4＂X11.5 | 21.9 | 26.5 | 61.5 | 46 | 358 | 8 |
1JN-14-12 | 1.3/16＂X12 | Z3/4＂X14 | 22.6 | 19.5 | 53 | 32 | 170 | 17 |
1JN-16-12 | 1.5/16＂X12 | Z3/4＂X14 | 23.1 | 19.5 | 53.5 | 36 | 206 | |
1JN-16 | 1.5/16＂X12 | Z1＂X11.5 | 23.1 | 25.5 | 58.5 | 36 | 242 | 14 |
1JN-16-20 | 1.5/16＂X12 | Z1.1/4＂X11.5 | 23.1 | 26.5 | 62.5 | 46 | 370 | 8 |
1JN-16-24 | 1.5/16＂X12 | Z1.1/2＂X11.5 | 23.1 | 27.5 | 65.5 | 50 | 468 | 7 |
1JN-20-16 | 1.5/8＂X12 | Z1＂X11.5 | 24.3 | 25.5 | 61.5 | 46 | 343 | 14 |
1JN-20 | 1.5/8＂X12 | Z1.1/4＂X11.5 | 24.3 | 26.5 | 62.2 | 46 | 385 | 8 |
1JN-20-24 | 1.5/8＂X12 | Z1.1/2＂X11.5 | 24.3 | 27.5 | 67 | 50 | 492 | 7 |
1JN-24-20 | 1.7/8＂X12 | Z1.1/4＂X11.5 | 27.5 | 26.5 | 67.3 | 50 | 475 | 8 |
1JN-24 | 1.7/8＂X12 | Z1.1/2＂X11.5 | 27.5 | 27.5 | 68 | 50 | 501 | 7 |
1JN-24-32 | 1.7/8＂X12 | Z2＂X11.5 | 27.5 | 27.5 | 72 | 65 | 747 | 5 |
1JN-32 | 2.1/2＂X12 | Z2＂X11.5 | 33.9 | 27.5 | 79 | 65 | 903 | 5 |
1JN-32-24 | 2.1/2＂X12 | Z1.1/2＂X11.5 | 33.9 | 27.5 | 78.5 | 65 | 930 | 7 |
This video is about the details of the 1JN-JIC to NPT hydraulic fittings.
They have many usages and have lots of sizes and dimensions, and also can play an important role in many hydraulic systems.
And if you want more information about hydraulic fittings jic or free samples please contact us.
