Description:

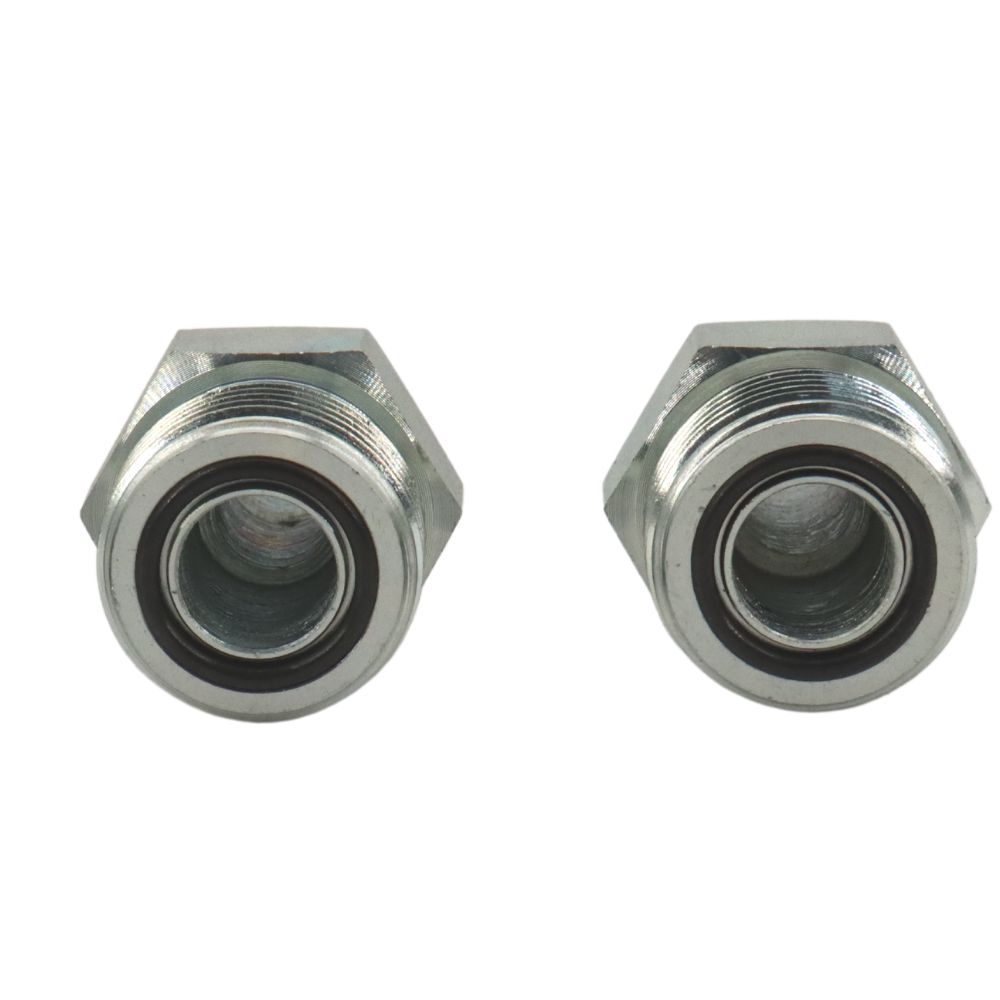

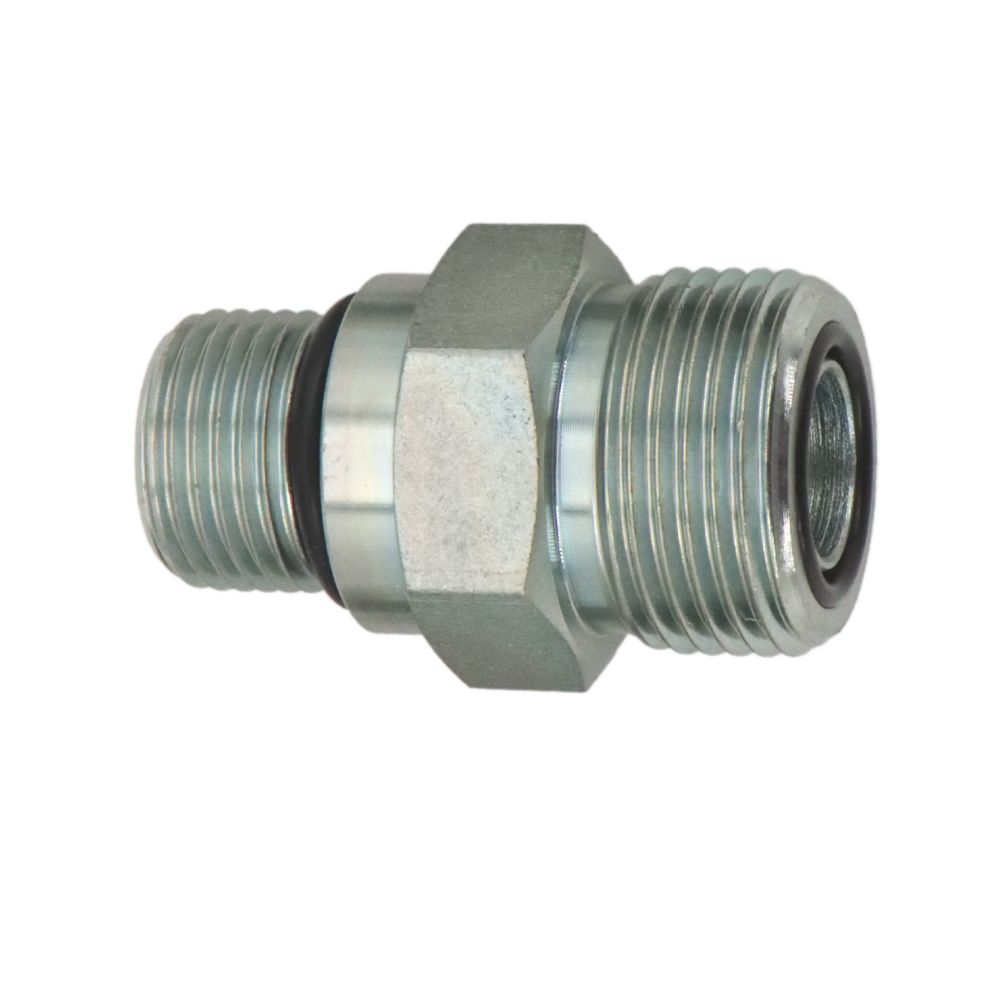

The 1FO ORFS male hydraulic fitting is a male fitting that has the o-ring face seal end and SAE O-ring boss s-series thread.
ORFS hydraulics can be used in many environments. These male fittings are designed to connect two fittings together.
Please get in touch with us if you want free samples or more information about the orfs male hydraulic fittings.
Features and Benefits:
• Useful
• O-ring face seal
• High-pressure resistance
• Tight seal
Categories: ORFS, Adapter, Carbon steel, Straight
PART NO. | THREAD | DIMENSIONS | Weight(g) | Working pressure MPa | ||||
T1 | T2 | L1 | L2 | L | S1 | |||
1FO-04 | 9/16＂X18 | 7/16＂X20 | 9.8 | 10.5 | 28.7 | 17 | 30 | 63 |
1FO-04-05 | 9/16＂X18 | 1/2＂X20 | 9.8 | 11 | 28.7 | 17 | 32 | |
1FO-04-06 | 9/16＂X18 | 9/16＂X18 | 9.8 | 12 | 30.5 | 19 | 41 | |
1FO-04-08 | 9/16＂X18 | 3/4＂X16 | 9.8 | 14 | 33.6 | 22 | 65 | |
1FO-06-04 | 11/16＂X16 | 7/16＂X20 | 11.2 | 11 | 31 | 19 | 40 | |
1FO-06-05 | 11/16＂X16 | 1/2＂X20 | 11.2 | 11 | 30.9 | 19 | 42 | |
1FO-06 | 11/16＂X16 | 9/16＂X18 | 11.2 | 12 | 31.9 | 19 | 45 | |
1FO-06-08 | 11/16＂X16 | 3/4＂X16 | 11.2 | 14 | 35 | 22 | 70 | |
1FO-06-10 | 11/16＂X16 | 7/8＂X14 | 11.2 | 16 | 38.5 | 27 | 105 | |
1FO-08-06 | 13/16＂X16 | 9/16＂X18 | 12.8 | 12 | 34.5 | 22 | 55 | |
1FO-08 | 13/16＂X16 | 3/4＂X16 | 15.2 | 14 | 36.6 | 22 | 68 | |
1FO-08-10 | 13/16＂X16 | 7/8＂X14 | 12.8 | 16 | 40.5 | 27 | 106 | |
1FO-08-12 | 13/16＂X16 | 1.1/16＂ X12 | 12.8 | 18.5 | 44.5 | 32 | 165 | 40 |
1FO-10 | 1＂ X14 | 7/8＂X14 | 15.5 | 16 | 43.1 | 27 | 117 | |
1FO-10-08 | 1＂ X14 | 3/4＂X16 | 15.5 | 14 | 41 | 27 | 102 | |
1FO-10-12 | 1＂ X14 | 1.1/16＂ X12 | 15.5 | 18.5 | 47 | 32 | 175 | |
1FO-12-10 | 1.3/16＂ X12 | 7/8＂X14 | 17 | 16 | 46 | 32 | 153 | |
1FO-12 | 1.3/16＂ X12 | 1.1/16＂ X12 | 17 | 18.5 | 48.6 | 32 | 182 | |
1FO-12-16 | 1.3/16＂ X12 | 1.5/16＂ X12 | 17 | 18.5 | 49.8 | 38 | 264 | |
1FO-16-12 | 1.7/16＂ X12 | 1.1/16＂ X12 | 17.5 | 18.5 | 50 | 38 | 216 | |
1FO-16 | 1.7/16＂ X12 | 1.5/16＂ X12 | 17.5 | 18.5 | 50.3 | 41 | 279 | |
1FO-16-20 | 1.7/16＂ X12 | 1.5/8＂X12 | 17.5 | 18.5 | 52 | 50 | 481 | 25 |
1FO-20-16 | 1.11/16＂ X12 | 1.5/16＂ X12 | 17.5 | 18.5 | 52 | 46 | 305 | |
1FO-20 | 1.11/16＂ X12 | 1.5/8＂X12 | 17.5 | 18.5 | 52.3 | 46 | 368 | |
1FO-24-20 | 2＂ X12 | 1.5/8＂X12 | 17.5 | 18.5 | 54 | 55 | 451 | |
1FO-24 | 2＂ X12 | 1.7/8＂X12 | 17.5 | 18.5 | 54.1 | 55 | 511 | |
This video is about the details of the 1FO ORFS male hydraulic fitting.
Moreover, ORFS male hydraulic fittings 1FO are available in a variety of applications, sizes, and dimensions, allowing them to be used in a variety of hydraulic fluid systems.
And if you want more information about ORFS hydraulic adapters, please contact us.
