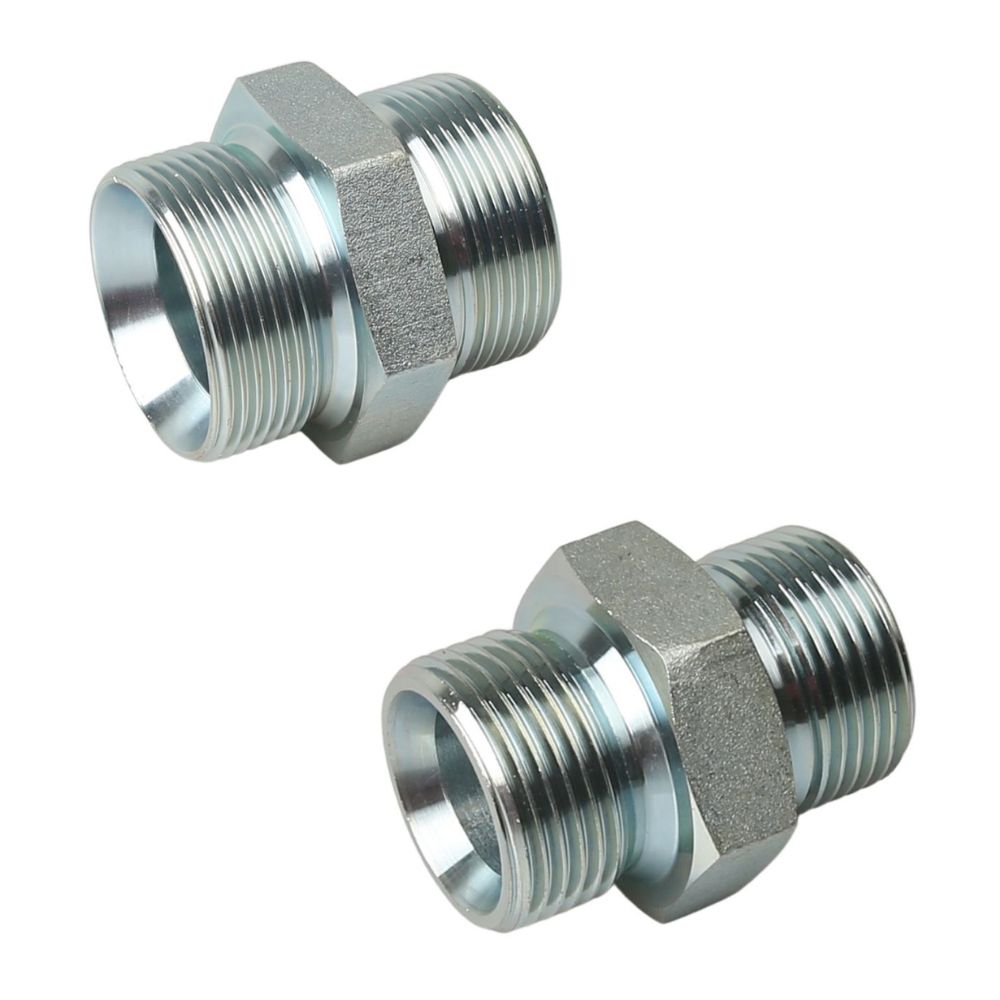

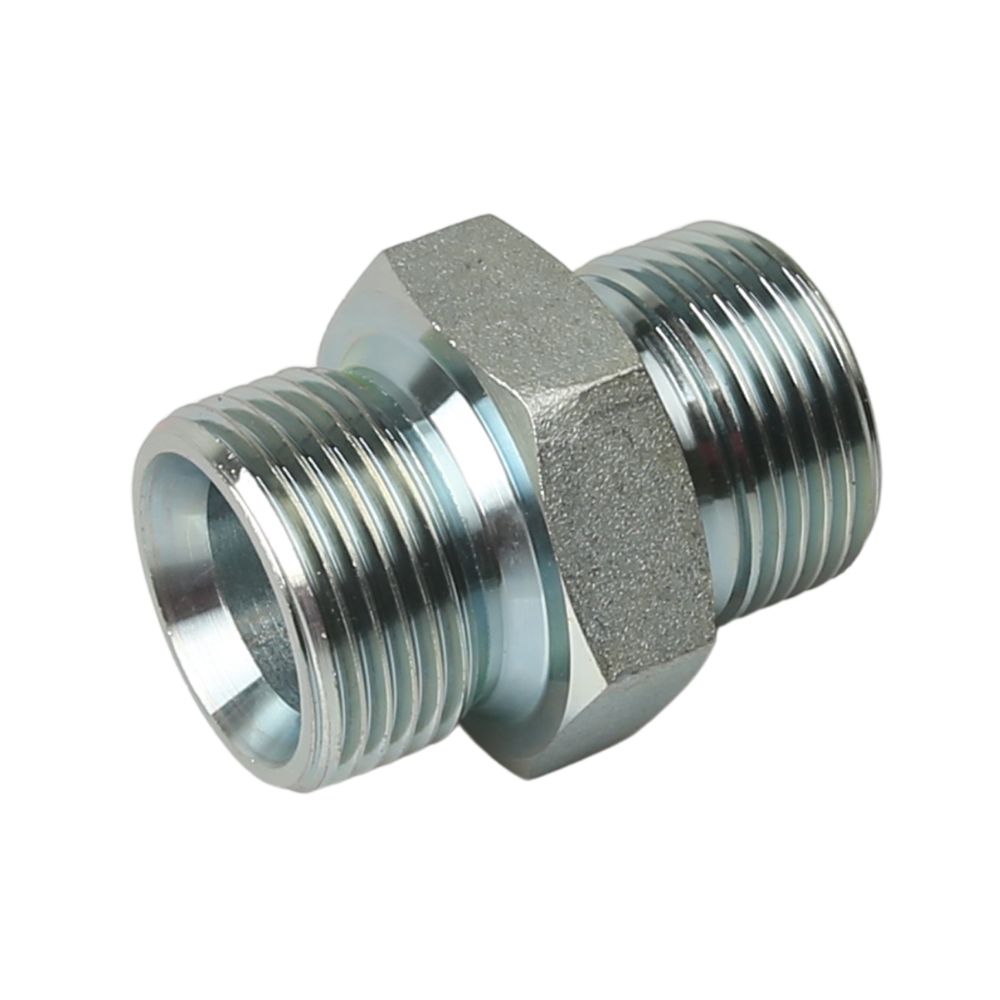

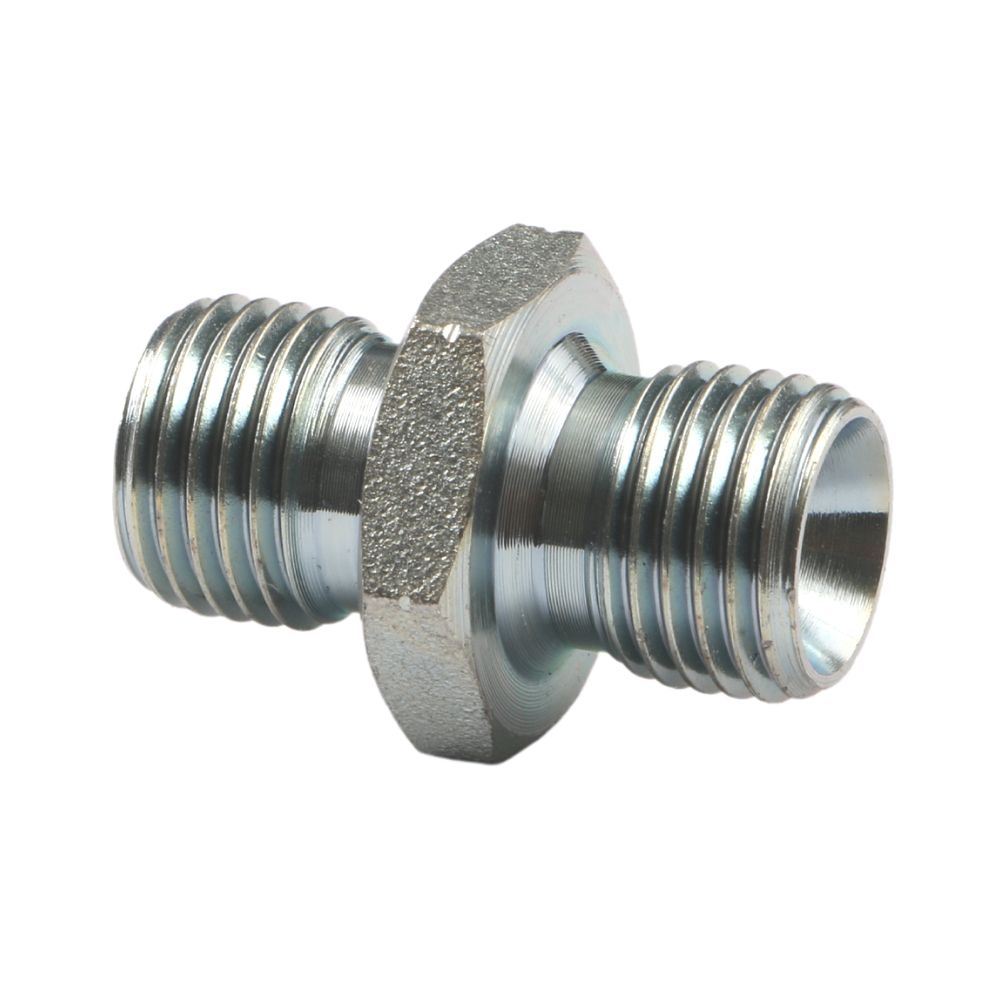

1B BSP male hydraulic fitting

Description:

1B BSP male hydraulic fittings are straight double-use male thread connectors, with two 60-degree cone seat BSP threads.

The 1B BSP male hydraulic fitting is used in a variety of hydraulic fluid systems.

If you want free samples or want to know more information about the bsp male hydraulic fitting, please contact us.

Features and Benefits:

• Useful
• Corrosion resistant
• Tight seal
• Long life

Categorieshydraulic fitting, male thread, BSP thread

RAPT NO.

THREAD

DIMENSIONS

T1

T2

L1

L2

L

S1

1B-02

G1/8"X28

G1/8"X28

10

10

26

14

1B-02-04

G1/8"X28

G1/4"X19

10

12

28

19

1B-04

G1/4"X19

G1/4"X19

12

12

30

19

1B-04-06

G1/4"X19

G3/8"X19

12

13.5

33.5

22

1B-04-08

G1/4"X19

G1/2"X14

12

16

38

27

1B-06

G3/8"X19

G3/8"X19

13.5

13.5

35

22

1B-06-08

G3/8"X19

G1/2"X14

13.5

16

39.5

27

1B-08

G1/2"X14

G1/2"X14

16

16

42

27

1B-08-10

G1/2"X14

G5/8"X14

16

17.5

43.5

30

1B-10

G5/8"X14

G5/8"X14

17.5

17.5

45

30

1B-10-12

G5/8"X14

G3/4"X14

17.5

18.5

47

32

1B-12

G3/4"X14

G3/4"X14

18.5

18.5

48

32

1B-12-16

G3/4"X14

G1"X11

18.5

20.5

52.5

41

1B-12-20

G3/4"X14

G1.1/4"X11

18.5

20.5

53.5

50

1B-16

G1"X11

G1"X11

20.5

20.5

55.5

41

1B-16-20

G1"X11

G1.1/4"X11

20.5

20.5

58

50

1B-16-24

G1"X11

G1.1/2"X11

20.5

23

60.5

55

1B-20

G1.1/4"X11

G1.1/4"X11

20.5

20.5

58

50

1B-20-24

G1.1/4"X11

G1.1/2"X11

20.5

23

60.5

55

1B-24

G1.1/2"X11

G1.1/2"X11

23

23

63

55

1B-24-32

G1.1/2"X11

G2"X11

23

25.5

66.5

70

1B-32

G2"X11

G2"X11

25.5

25.5

69

70
