Description:

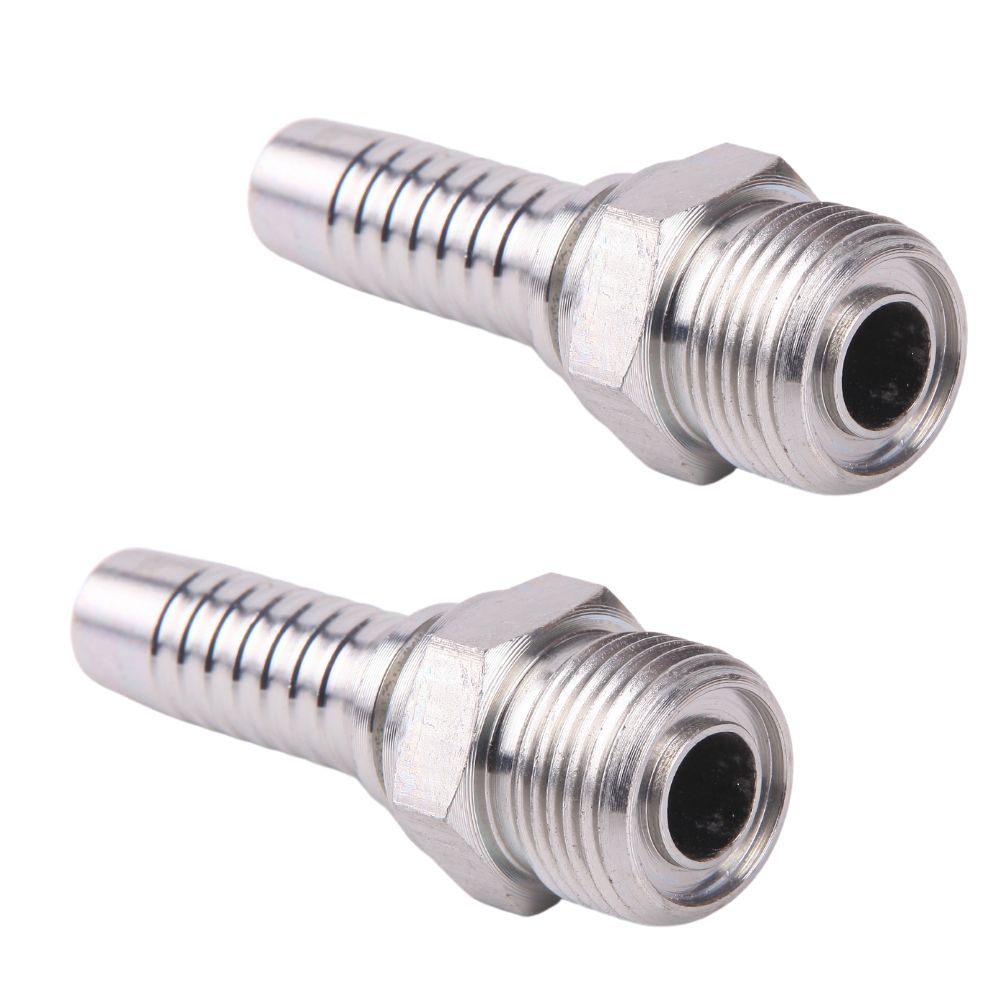

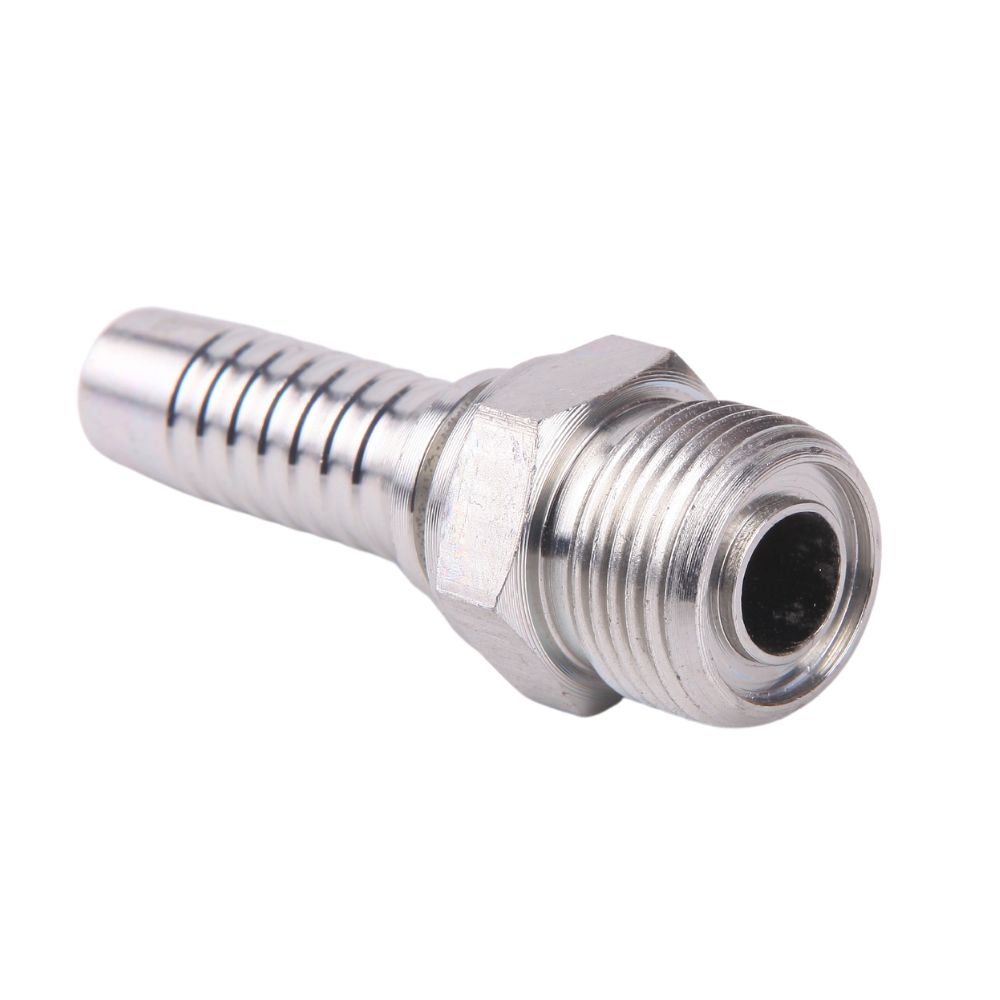

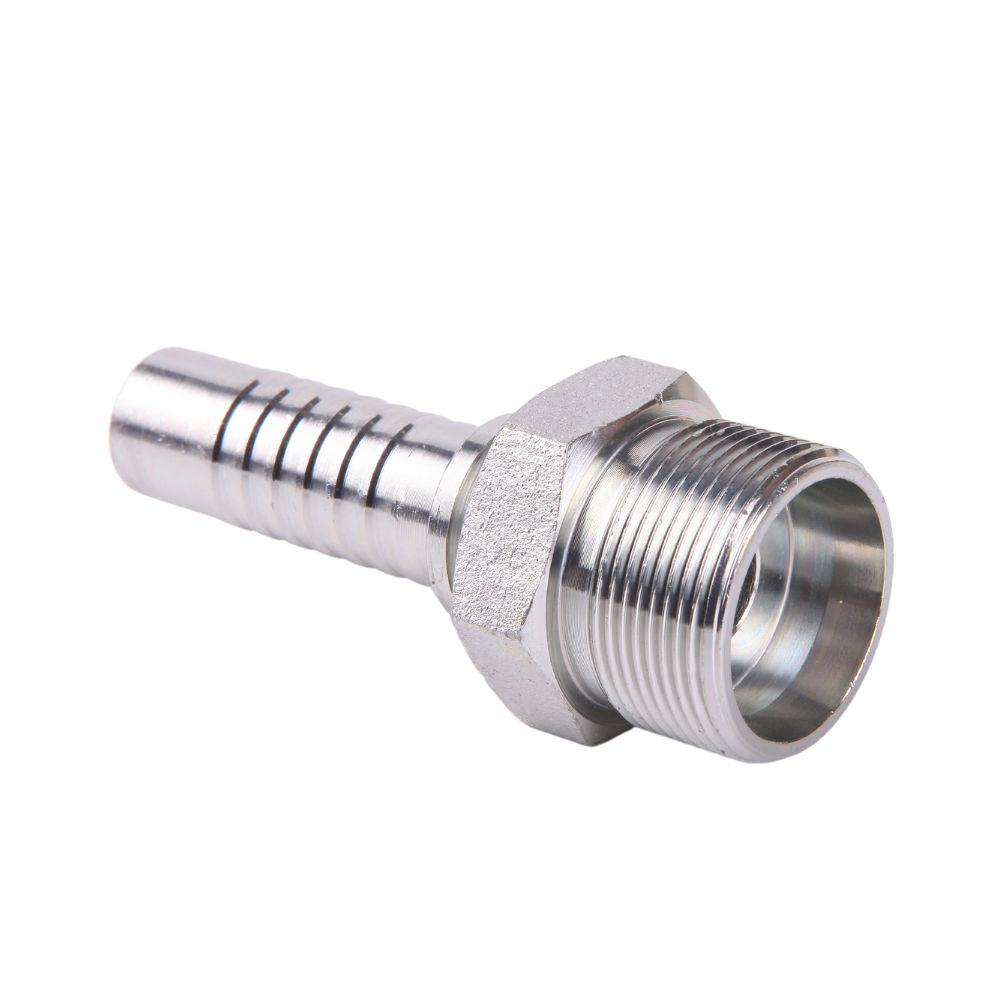

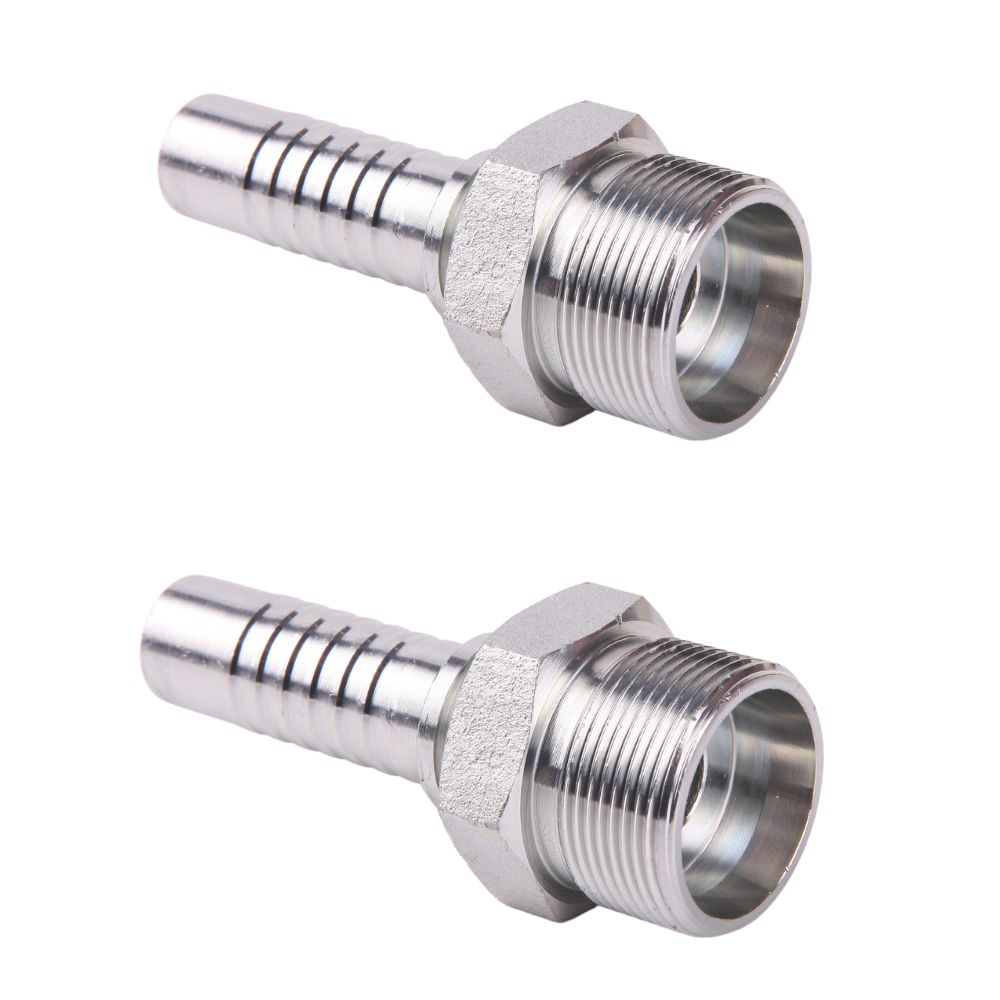

14211 ORFS hydraulic hose fitting is a male hydraulic hose fitting with an o-ring face seal to prevent leakage.
ORFS fittings are extensively utilized in situations with significant vibrations because of their reputation as a top-selling option in high-pressure applications.
Please get in touch with us if you want free samples or more information about the ORFS hydraulic adapters.
Features and Benefits:
• Useful
• O-ring face seal
• Tight seal
• High-quality
Categories: ORFS, Hose fitting, Carbon steel, Straight
PART NO. | THREAD E | HOSE BORE |
| DIMENSIONS | |||
DN | DASH | O-RING | A | C | S1 | ||
14211-04-04 | 9/16″*18 | 6 | 04 | O011 | 22.3 | 9.8 | 17 |
14211-06-04 | 11/16″*16 | 6 | 04 | O012 | 24 | 11.2 | 19 |
14211-06-06 | 11/16″*16 | 10 | 06 | O012 | 24 | 11.2 | 19 |
14211-08-06 | 13/16″*16 | 10 | 06 | O014 | 27.5 | 12.8 | 22 |
14211-08-08 | 13/16″*16 | 12 | 08 | O014 | 28.5 | 12.8 | 22 |
14211-08-10 | 13/16″*16 | 16 | 10 | O014 | 28.5 | 12.8 | 22 |
14211-10-08 | 1*14 | 12 | 08 | O016 | 32.5 | 15.5 | 27 |
14211-10-10 | 1*14 | 16 | 10 | O016 | 34 | 15.5 | 27 |
14211-12-08 | 1.3/16″*12 | 12 | 08 | O018 | 35.5 | 17 | 32 |
14211-12-10 | 1.3/16″*12 | 16 | 10 | O018 | 36.5 | 17 | 32 |
14211-12-12 | 1.3/16″*12 | 20 | 12 | O018 | 36.5 | 17 | 32 |
14211-16-12 | 1.7/16″*12 | 20 | 12 | O021 | 37 | 17.5 | 38 |
14211-16-16 | 1.7/16″*12 | 25 | 16 | O021 | 38.5 | 17.5 | 38 |
14211-20-20 | 1.11/16″*12 | 32 | 20 | O025 | 41.5 | 17.5 | 46 |
14211-24-24 | 2″*13 | 40 | 24 | O029 | 43.5 | 17.5 | 55 |
This video is about the details of the 14211 ORFS hydraulic hose fitting.
Similarly, 14211 ORFS hydraulic hose fittings are available in a wide range of applications, sizes, and dimensions, making them appropriate for use in a wide range of hydraulic fluid systems.
And if you want more information about orfs hydraulic fittings, please contact us.
