How do you Stop a Hydraulic Fitting from Leaking

How do you Stop a Hydraulic Fitting from Leaking?

Hydraulic systems are the lifeblood of many industrial operations, powering everything from construction equipment to manufacturing processes. However, they are not without their challenges, primarily in the form of leaking hydraulic fittings. Not only do these leaks cause loss of hydraulic fluid, they also lead to downtime and potential safety hazards. This comprehensive guide is designed to walk you through the entire process of identifying, repairing, and preventing hydraulic joint leaks, from the initial stages of identifying the problem to the final steps of testing and verification.

Why Leaks Occur in Hydraulic Fittings?

Understanding why leaks happen is the first step in preventing them. Let’s dive into the common reasons behind hydraulic fitting leaks.

Wear and Tear

Nothing lasts forever, and hydraulic fittings are no exception. Over time, the constant pressure and flow of hydraulic fluid can wear down seals and O-rings. This natural wear and tear can lead to small gaps where leaks can occur. Regular maintenance can help catch this issue before it becomes a problem.

Improper installation

Improper installation is one of the leading causes of leaks. Whether it’s an over-tightened pipe fitting or an improperly aligned component, these mistakes can lead to hydraulic fluid leaks. Always follow the manufacturer’s guidelines and consider hiring a qualified technician to perform the installation to avoid this problem.

Wear and Tear

Material Incompatibility

Cracks in hydraulic fittings are often the result of over-tightening or using the wrong tools during installation. These cracks can be tiny but are enough to allow hydraulic fluid to escape. Always use the correct tools and follow torque specifications to avoid this issue.

Cracked Fittings

Another common cause is material incompatibility. Using fittings, seals, or o-rings made from materials that are not compatible with hydraulic fluid can lead to deterioration and, ultimately, leaks. Always double-check material compatibility before making any replacements.

Misalignment of Dimensions

A mismatch in the sizes of your fittings and hoses can lead to leaks. If the dimensions are not aligned correctly, it creates an imperfect seal, allowing fluid to escape. Make sure to double-check the sizes and compatibility of your components before installation.

Corroded Fittings

Corrosion is another silent enemy. Over time, moisture and chemicals can corrode the metal fittings, creating weak spots where leaks can form. Opt for corrosion-resistant materials and coatings to prolong the life of your fittings.

The Domino Effect

One small leak can lead to another. A leak in one part of the system can increase pressure elsewhere, causing additional leaks. It’s crucial to address even minor leaks promptly to prevent a cascade of problems.

Recognizing Leaks in Hydraulic Fittings

In the world of hydraulics, recognizing leaks is half the battle. Let’s break down how to spot them safely and effectively.

Safety precautions

First and foremost, safety comes first. Before checking your system, make sure you are wearing the correct personal protective equipment (PPE). We’re talking gloves, safety goggles, and even a face mask if it’s a high-pressure system. Next, depressurize the hydraulic system. This step is critical to avoid accidental spewing of hydraulic fluid, which can be both dangerous and messy.

Inspection

Now that you’re ready to go, it’s time for an inspection. Begin with a visual inspection. Look for obvious signs, such as wet spots on the hydraulic fluid pool or fittings. For those hard-to-find leaks, you’ll need to use a large diagnostic tool. Ultrasonic leak detectors are your best friend. These gadgets detect the high-frequency sound waves generated by leaks and help you pinpoint the location.

Documentation

You’ve found the leak. That’s great! But don’t rush to fix it just yet. Mark the leak with a non-permanent marker. This step will make it easier for you to start the repair work. Also, take some photos. These photos can serve as a valuable record of future repairs or in case you need to explain the problem to someone else.

Catching leaks early is not just a maintenance task, it’s a safety imperative. A small leak can quickly escalate into a major problem, affecting system performance and even posing a safety risk. In addition, the sooner you catch a leak, the less hydraulic fluid you’ll waste, saving you time and money.

Tools and Materials

When it comes to repairing hydraulic fitting leaks, having the right tools and materials is crucial. Let’s break down the tools and materials needed to get the job done efficiently and safely.

Tool List

Wrenches

You will need a quality set of wrenches to loosen and tighten fittings. Make sure you have a variety of wrench sizes to fit different parts. The right wrench will ensure that you don’t strip threads, which is a common cause of leaks.

Sealing Picks

These specialized tools are essential for removing old seals and o-rings without damaging the surrounding metal. A good seal pick will allow you to complete repairs quickly.

Leak Detection Fluid

This fluid is applied to fittings to help identify leaks. It reacts with the hydraulic fluid and makes leaks visible even to the naked eye. This is a must-have for a thorough inspection.

Materials List

Replacement O-Rings

Always keep some replacement o-rings on hand. They are usually the first to wear out and are often the culprit of minor leaks.

Thread Sealant

This material is applied to the threads of a fitting to create a leak-proof seal. It is an extra layer of protection that will save you time and money in the long run.

Cleaning Solvent

The service area must be cleaned before starting repairs. Specialized cleaning solvents for hydraulic systems remove dirt and hydraulic oil, ensuring clean work surfaces.

Having the right tools and materials not only makes the repair process go smoother, it also ensures the longevity and efficiency of your hydraulic system. An investment in quality tools and materials is an investment in the reliability of the entire hydraulic system.

Repair Preparation

Proper preparation is the cornerstone of any successful repair job, especially when it comes to hydraulic systems. Let’s take an in-depth look at the key steps you need to take before applying a wrench.

System Shutdown

First, you need to safely shut down the hydraulic system. Turn off the power and stop the system from running. Then, depressurize the system by releasing the built-up pressure through the appropriate valves. This step is critical because working on a pressurized system can easily lead to disaster. It can lead to an accidental burst of fluid or even cause the machine to move unexpectedly. Always double-check to ensure that the system is fully depressurized before proceeding.

Drain Fluid

Once the system is shut down and depressurized, it’s time to drain the hydraulic fluid. Place a drain pan or container under the system to collect the fluid. Use the system’s pressure relief valve to safely release the hydraulic fluid. Make sure you wear personal protective equipment to avoid contact with the hydraulic fluid during this process. Proper fluid draining is important because it not only makes the repair process easier, but also minimizes the risk of fluid contamination. Dispose of drained fluids in accordance with local environmental regulations. Neglecting this step could result in contamination that could affect the entire repair.

Cleaning the area

After draining the fluid, the next step is to clean the work area. Use a specialized cleaning solvent designed for hydraulic systems to remove any dirt, dust, or residual hydraulic fluid. A clean work area is not just for aesthetics, it is essential to prevent contamination during maintenance. Contaminants can damage new seals and joints, leading to future leaks and system inefficiencies.

You may skip some of these steps to save time, but cutting corners in the preparation phase can cost you dearly. For example, failing to shut down a system properly can create a safety hazard. Similarly, neglecting to clean your work area can introduce contaminants that can compromise the integrity of your repair. In essence, each preparation step is the cornerstone of a successful, lasting repair.

Maintenance Procedure

Once you’ve prepared your workspace and secured your system, it’s time to roll up your sleeves and start the actual repair. Here’s a comprehensive guide to the repair procedures you’ll need to follow.

Removing Fittings

Begin by identifying the leaking accessory you marked earlier. Using an appropriately sized wrench, carefully loosen and remove the fittings. Be sure to place them in a tray or container so that you do not lose any small parts. Always remember “righty-tighty, lefty-loosey”.

Replacing Seals and O-Rings

After removing the fitting, it is time to replace the seals and o-rings. Without damaging the fitting, use a seal pick to remove the old seal. Then, lubricate the new seals with hydraulic fluid and carefully place them into position. Make sure they are flush with the fitting to create a perfect seal.

Using Thread Sealant

Apply thread sealant to the threads before reassembling the fitting. This will add an extra layer of protection against future leaks. Use a brush or applicator to spread the sealant evenly, avoiding any globs that could interfere with tightening.

Reassembling the fitting

Now, it’s time to put everything back together. Reassemble the fitting and tighten it securely with a wrench. Be careful not to over-tighten, however, as this can lead to cracks and, ironically, more leaks. A torque wrench is a valuable tool to make sure you use just the right amount of force.

In short, repairing hydraulic fitting leaks is a meticulous process that requires attention to detail at every step. From disassembling a leaking fitting to replacing seals and applying thread sealant, every step you take can set the stage for a successful repair or trouble down the road. By following these maintenance procedures, you’ll not only fix the leak, you’ll ensure the long-term reliability and safety of your hydraulic system.

Testing and Verification

The final step in any repair job is testing and verification. You need to carefully check the details of the hydraulic couplings to make sure everything is correct.

Pressure Testing

Once everything has been reassembled, it’s time to perform a pressure test. This will confirm that the new fittings and seals are able to withstand the operating pressure of the system. To perform this test safely, you should gradually increase the pressure in the system while monitoring for any signs of leaks or bursts. Stay away from the machine at all times during the test to avoid any safety hazards. If the system is able to maintain its pressure without any problems, you have successfully repaired the leak.

Leak Check

After the pressure test, it’s a good idea to double-check for leaks using a leak detection fluid. Apply the fluid to the repaired fitting and observe. If the fluid reacts or bubbles, there is still a leak and the repair procedure needs to be rechecked. If not, there is no problem.

Documentation

The final point is to document everything. Update the maintenance log with the details of the repair, including items replaced, types of materials used, and any observations made during the testing phase. This is not only for compliance reasons but also provides a valuable reference for future maintenance or repairs.

Testing and verification is the final and critical step in hydraulic fitting leak repair. From pressure testing to leak detection and documentation, each step ensures that your repair is not just a temporary, but a long-term solution. By following these guidelines, you will not only confirm the success of your repair, but also contribute to the continued reliability and safety of your hydraulic system.

The Importance of Repairing Hydraulic Fitting Leaks

When it comes to hydraulic systems, time is of the essence, especially when it comes to leaks. Turning a blind eye to even a minor leak can lead to a host of problems that can affect the efficiency and safety of your system. Here’s why it’s important to take immediate action.

● System Failure

First and foremost, leaks are a sign that a system is not operating at its optimal level. Over time, the loss of hydraulic fluid causes the system to work harder to maintain pressure, ultimately leading to system failure.

● Increased Operating Costs

Leaks mean money is being lost. Hydraulic fluid isn’t cheap, and neither is the energy used to keep a damaged system running. The longer you wait, the more you’ll spend on replenishing hydraulic fluid and replacing potential components.

● Safety Hazards

A leaking hydraulic system is not only inefficient, it’s also very dangerous. Hydraulic fluid is slippery and can easily cause accidents. Additionally, hydraulic system failures can lead to catastrophic events such as equipment failure, putting operators at risk.

Conclusion

In industry, time is money, and hydraulic fitting leaks can cost you both money and time. However, with the right knowledge and tools, these leaks are completely controllable. If you’re still in doubt, contact us, Topa has a professional staff that can help you!

Aug, 2023

choose 2023 hose fitting Manufacturer Topa

How to Choose Hydraulic Fittings Manufacturer

If you’re involved in the industrial world, hydraulic fittings are likely a familiar term. But what exactly are they? Hydraulic fittings are essential connectors used in hydraulic systems to link various components like hoses, pipes, and valves. They enable precise control over the flow of hydraulic fluid, ensuring smooth operation and efficiency. These fittings come in various types and sizes, each designed to meet specific needs and standards. Whether it’s preventing leaks or maintaining pressure, hydraulic fittings play a crucial role in your machinery’s performance. Understanding their function and importance can lead to better decision-making in your business, enhancing both productivity and cost-effectiveness.

Famous International Manufacturer

When it comes to hydraulic systems, identifying key suppliers is critical to ensuring quality and performance. Reputable suppliers of hydraulic components are the backbone of many industries, providing the necessary components for a variety of applications.

Among international manufacturers, companies such as Gates, Eaton, Parker Hannifin and Kawasaki Heavy Industries stand out.Gates is known for its innovative solutions and global presence. Eaton offers a wide variety of hydraulic products and is known for its reliability. Parker Hannifin is a leader in motion and control technology, while Kawasaki Heavy Industries specializes in hydraulic machinery for construction and industry. Choosing a supplier with a strong international reputation ensures that you invest in quality, reliability and cutting-edge technology, all of which are vital to the success of your hydraulic system.

Analyze Hydraulic Fittings

By evaluating the key aspects of various hydraulic fittings, you can make informed decisions based on specific applications and industry requirements. Let’s take an in-depth look at the key areas you need to evaluate:

Evaluate Different Materials

Carbon Steel: Widely used for hydraulic fittings, carbon steel offers excellent strength and durability. It is suitable for high-pressure applications but may require a protective coating to prevent corrosion.
Stainless Steel: Stainless steel is known for its corrosion resistance and is ideal for applications exposed to harsh environments. It combines strength and wear resistance.
Brass: Brass fittings are known for their corrosion resistance and are commonly used in low and medium-pressure applications. They have good electrical conductivity and are commonly used in pneumatic systems.

Understanding Surface Treatment

Galvanized: Galvanizing is the process of coating steel with zinc to provide corrosion resistance. It is a popular choice for outdoor applications where the product is exposed to the natural environment.
Nickel zinc plated: Nickel zinc plating provides greater corrosion resistance and a shiny appearance. It is commonly used in automotive and industrial applications where aesthetics and durability are important.

Understanding Surface Treatment

High pressure: Materials such as carbon steel are suitable for high-pressure applications where strength and durability are critical.
Medium Pressure: Stainless steel and brass can be used in the medium pressure range where strength and corrosion resistance are important.
Low Pressure: In low-pressure applications, materials such as brass are preferred for their ease of use and cost-effectiveness.

Consider Corrosion Resistance Time

Corrosion resistance is critical to the service life of hydraulic fittings. Salt spray testing is a common method of evaluating how well a material or finish resists corrosion. Knowing the salt spray test hours will help you select a material that meets your specific needs.

Hydraulic Fittings Standard

In addition to knowing what hydraulic products are made of and what pressure ranges they are available in, it’s vital to understand standards and specifications. Whether you are a manufacturer, distributor or user of hydraulic accessories, understanding hydraulic standards will also help you identify the more correct suppliers.

Common Standards

● SAE (Society of Automotive Engineers): SAE standards are widely recognized in the automotive and aerospace industries. They define specifications for various hydraulic components, ensuring consistency and interoperability.

● ISO (International Organization for Standardization): ISO standards provide international guidelines for hydraulic systems, covering dimensions, performance, and quality. Adherence to ISO standards ensures global compatibility and acceptance.

● Other standards: Depending on the industry and region, other standards such as DIN (German Institute for Standardization) or JIS (Japanese Industrial Standards) may also apply. Familiarity with relevant standards ensures compliance with local regulations and industry best practices.

Understanding National Preferences

When dealing with international markets, it is critical to understand country preferences. Different countries may have specific preferences or requirements for hydraulic fittings:

● USA: SAE and ANSI (American National Standards Institute) standards are commonly used in the US market. Understanding these guidelines will ensure compliance with domestic regulations.

● European Union: Standards such as EN (European Standard) and ISO are commonly used in the European Union. Adherence to these standards ensures compliance with European regulations and market preferences.

● Asia: Asian markets may have specific preferences, such as JIS in Japan or GB in China. Understanding these nuances ensures successful market penetration and customer satisfaction.

In the ever-evolving world of hydraulics, mastering standards and specifications is not just a compliance issue, but a strategic advantage. By familiarizing yourself with common standards such as SAE and ISO and understanding national preferences, you can meet the needs of a global marketplace.

Analyze Hydraulic Fittings Manufacturer

In the highly competitive world of hydraulics, choosing the right supplier is a critical decision that can affect the success or failure of your business. Whether you are sourcing hydraulic parts for manufacturing, distribution or end-use, it is critical to assess the capabilities of your supplier before making a formal selection.

Factory

Having its own factory is usually a sign of a supplier’s commitment to quality and control.

Direct supervision: Suppliers with their own factories can closely monitor the production process to ensure that standards and specifications are adhered to.

Flexibility: In-house manufacturing provides production flexibility, allowing for adjustments and customization as needed.

Cost Effectiveness: Controlling the entire production process often results in cost savings.

Production Quality and Delivery Times

In the hydraulics industry, quality and timely delivery are critical. Here are some things to keep in mind:

● Quality Control Programs: Understand the supplier’s quality control measures, certifications, and adherence to industry standards. This ensures that the product meets your specific requirements.

● Lead times: Evaluate the supplier’s lead time and ability to meet deadlines. Timely delivery is critical for you to maintain your program and avoid delays.

Customized Services

Customized services are often a differentiating factor in the hydraulic parts market. You need to know:

● Custom Design: Can the supplier design and manufacture fittings to meet your specific needs? This capability can provide a customized solution to fit a unique application.

● Personalized Support: Assess the supplier’s willingness to provide personalized support and collaboration. This helps build a partnership that ensures alignment with your goals.

Inspection of Certification

● ISO Certifications: ISO certifications (e.g., ISO 9001) indicate a supplier’s adherence to international quality management standards.

● Industry-specific certifications: Depending on your industry, there may be specific certifications that apply, such as the CE marking in Europe or SAE standards for the automotive industry.

● Environmental and safety certifications: Assess the supplier’s commitment to environmental sustainability and safety, such as ISO 14001 environmental management certification.

Verifying Qualification and Compliance

Qualification and compliance are more than just certification. They are more stringent on supplier capabilities:

● Technical expertise: Evaluate the supplier’s technical expertise and experience in hydraulic fittings. Look for evidence of expertise, such as patents or proprietary technology.

● Compliance: Verify that the supplier complies with all relevant regulations, such as REACH in Europe or OSHA in the US. Compliance ensures that products meet legal requirements and minimize potential liability.

● Quality Control Program: Evaluate the supplier’s quality control program, including testing, inspection, and continuous improvement processes. This ensures that products meet your specific quality requirements.

After-sale Service

In the highly competitive world of hydraulic fittings, the relationship with the supplier does not end with the purchase. After-sales service is an important component that can have a significant impact on customer satisfaction and long-term success. You can continue to analyze suppliers through these factors:

Assessing Supplier Responsiveness

Responsiveness is a key element of after-sales service. It reflects how much the supplier values the customer:

● Communication Channels: Evaluate how well the supplier provides service through various communication channels such as phone, email or chat. Multiple channels ensure accessibility and timely support.

● Response Time: Assesses how quickly the vendor responds to inquiries, complaints or support requests. Prompt response enhances trust and fosters a positive relationship.

● Dedicated support team: Look for a vendor with a dedicated after-sales team that understands your specific needs and can provide specialized assistance.

Understanding Post-sales Support

Post-sales support includes a variety of services that can enhance your experience with a supplier:

● Warranties and Guarantees: Understand your supplier’s warranty and guarantee policies. These policies provide assurance and support in the event of a defect or problem.

● Maintenance and Repair Services: Evaluate a supplier’s ability to provide maintenance and repair services. Ongoing support ensures the longevity and optimal performance of hydraulic components.

● Training and Education: Evaluate the supplier’s ability to provide product training. This will enhance your team’s ability to effectively utilize hydraulic fittings.

Hydraulic Fittings Supplier in China

In recent years, China’s hydraulic industry has made great development and innovation. China stands out from the rest of the world with its unique advantages.

Analyzing Cost Advantages

China’s manufacturing prowess extends to the hydraulic hose industry, providing a clear cost advantage:

♦ Economies of scale: China has a large manufacturing base that can be utilized to produce hydraulic hoses at competitive prices.

♦ Efficient production: Advanced manufacturing technology and automation can help improve production efficiency and further reduce costs.

♦ Global sourcing: China’s access to global raw material markets ensures cost-effective sourcing, resulting in cost savings for end users.

Complete Supply Chain

China’s hydraulic hose industry benefits from a strong and integrated supply chain system:

♦ End-to-end solutions: From raw material sourcing to final product delivery, China offers comprehensive end-to-end solutions to ensure quality and efficiency.

♦ Logistic Advantage: China has a well-established logistic network that ensures timely delivery and distribution to meet the needs of domestic and international markets.

♦ Quality Control: Integrated supply chain management allows for strict quality control at every stage, ensuring that hydraulic hoses meet global standards.

Explore Customization Services

Customization is a growing trend in the hydraulics industry, and China is at the forefront of providing customized solutions:

♦ Customized design: Chinese manufacturers offer customized design services to enable hydraulic hoses to meet specific application and industry requirements.

♦ Flexible Manufacturing: With flexible manufacturing capabilities, China is able to accommodate both mass production and small customized orders.

♦ Personalized Support: Many Chinese suppliers offer personalized support and cooperation, ensuring alignment with customer needs and fostering long-term relationships.

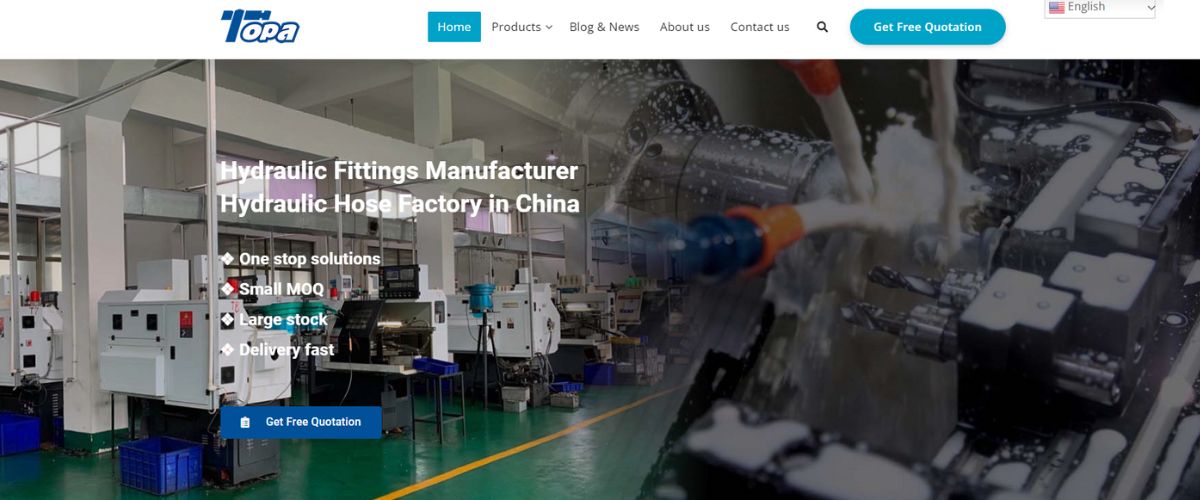

Topa: China Best Hydraulic Fitting Factory

In the rapidly evolving world of hydraulic systems, Chinese manufacturers are making significant strides. Among them, Topa Hydraulic stands out as a leading example. This case study explores the company’s profile, capabilities, customer relationships, and services offered.

Company Profile

Topa Hydraulic is a prominent B2B company in China, specializing in the manufacturing of hydraulic cylinders, hydraulic components, and cutting machines. Here’s an insight into their capabilities:

Manufacturing Excellence: With a direct factory setup, Topa offers competitive prices and high-quality products made in China. Their state-of-the-art manufacturing facilities enable the production of a wide range of hydraulic products.

Skilled Professionals: A team of 20 skilled professionals ensures that Topa maintains the highest standards of quality and innovation.

Global Reach: Catering to clients across the United States, Canada, Australia, Europe, and Asia, Topa has established itself as a global player in the hydraulic industry.

Customer Services

Topa’s success is not just about products; it’s about building lasting customer relationships and offering value-added services:

Target Audience: Topa’s main target audience consists of users of hydraulic products, hydraulic component users, and maintenance professionals. They cater to individuals, distributors, and salespeople in the hydraulic industry.

One-Stop Services: Topa offers one-stop services to help clients with all their hydraulic product and component needs. From product selection to after-sales support, they provide comprehensive solutions.

Customized Solutions: Understanding the pain points of their clients, such as affordability and quality, Topa offers customized solutions that align with specific needs and industry requirements.

Global Marketing: Utilizing B2B platforms, Alibaba, domestic and international exhibitions, and trade shows, Topa reaches its target audience effectively, ensuring a strong market presence.

Whether you’re a manufacturer, distributor, or end-user in the hydraulic industry, understanding Topa’s approach provides inspiration and guidance for achieving success in a competitive and demanding market.

Embracing the principles that have driven Topa’s success can pave the way for strategic alignment and growth in the hydraulic industry, fostering innovation, customer satisfaction, and long-term success.

Jul, 2023

Hydraulic Fittings Manufacturers

Top 10 Hydraulic Fittings Manufacturers

Hydraulic fittings are the backbone of a hydraulic system, connecting various components and facilitating the flow of hydraulic fluid. Currently, the hydraulic fittings industry has a market value of around USD 10 billion and is expected to grow by nearly 70% by 2025. Developments in industries such as automotive, petrochemical, and energy are driving the growth trajectory of the hydraulics market, especially in emerging markets.

The key to the efficiency and longevity of hydraulic fittings lies in the material. Common materials used for hydraulic fittings are carbon steel and stainless steel. In addition, carbon steel is galvanized or Cr3+ electroplated to enhance the corrosion resistance of the product. Moreover, to choose the right manufacturer, one needs to observe the company’s service awareness, shipping services, product standards, and customization services.

In this article, we will take an in-depth look at the leading manufacturers of hydraulic fittings and talk about their product range and unique attributes.

Parker Hannifin

Overview:

Parker Hannifin has a rich history spanning more than a century. They are a global leader in motion and hydraulic technology. Parker provides precision-engineered solutions for a wide range of mobile, industrial, and aerospace markets. Dedicated to promoting innovation and ensuring customer satisfaction, Parker Hannifin has become synonymous with quality and reliability in the hydraulics industry.

Products:

Parker Hannifin’s product portfolio covers a wide range of cutting-edge products. From hydraulic components that power heavy machinery to integrated fluid power systems that optimize efficiency, Parker Hannifin meets the needs of a wide range of industries. Their aerospace solutions enhance aviation safety and performance through hydraulics and flight control systems. Each product reflects its dedication to excellence and precision engineering.

Features:

Innovation is Parker Hannifin’s pursuit. Their unwavering focus on research and development continues to push the boundaries of hydraulic technology. Parker Hannifin operates globally, but with a localized focus, ensuring that its solutions meet the needs of its multinational customers. Its tradition of quality and reputation for reliability has made it a stalwart of the hydraulics industry, synonymous with excellence.

Website: https://www.parker.com/

Eaton

Overview:

Eaton is a global leader in power management, and they blend innovation and sustainability in the hydraulics industry. In addition to their core expertise in power solutions, they have broadened their horizons to master the complexities of hydraulic systems.

Products:

Eaton is committed to delivering unrivaled quality. They can offer a wide range of hydraulic hoses, from single-braid to multi-braid. These products are available for different pressure requirements and are suitable for standard hydraulic systems as well as high-pressure mobile applications.

Unique Features:

Eaton has created a unique hose condition monitoring system. This system alerts operators to potential hose vulnerabilities in real-time. This proactive measure not only reduces risk but also extends hose life. And Eaton created a standard hydraulic coupling type standard that has become a reference for many companies.

Website: https://www.eaton.com/

Gates

Overview:

Gates Corporation is located in downtown Denver, Colorado. From 1911 to the present day, Gates created a standard of expertise and leadership in hydraulics for fluid power products. Whether for automobiles or industrial machinery, Gates products make a big difference.

Products:

Gates doesn’t just make products, they can craft hydraulic solutions for you. Their wide range of hydraulic products extends from low-pressure to high-pressure products. So whether you need everyday hydraulics or specialized hydraulic tools, Gates has your back.

Unique features:

Gates is always staying innovative. And they use the finest metals and adhere to a variety of international standards to ensure that they provide you with the highest quality hydraulic products. Does your industry require customized products? Gates can provide it for you. And with their original hose condition monitoring system, Gates ensures that every hose works safely and without fail every time.

Website：https://www.gates.com/

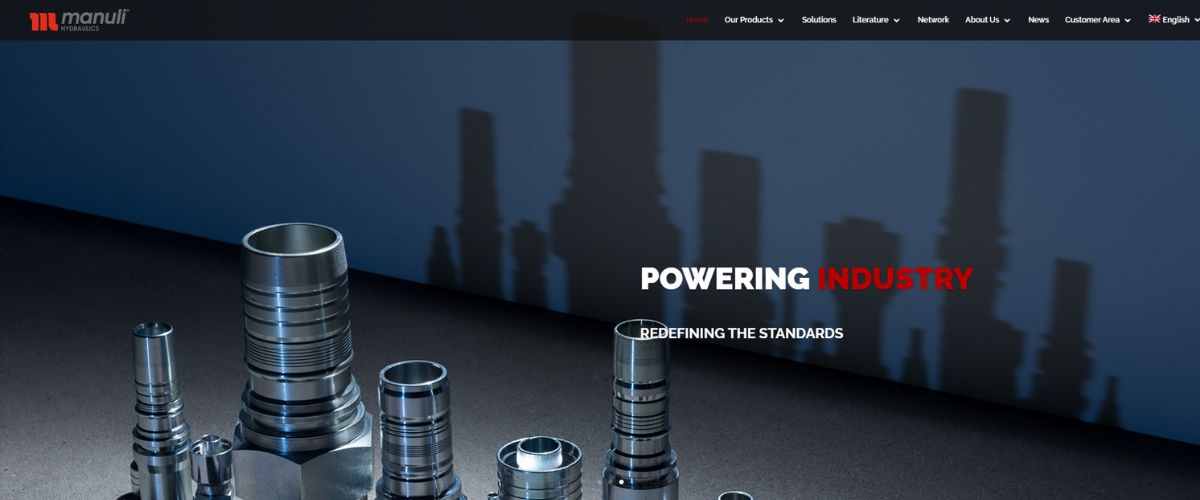

Manuli Hydraulics

Overview:

Manuli Hydraulics is located in Germany and has been in existence for over forty years. With continuous growth and learning, Manuli Hydraulics has evolved into a global leader in the hydraulics industry. It is very popular in the European and Asian hydraulic markets. Manuli is not just a hydraulic equipment manufacturer (OEM), but a company that provides you with the highest quality hydraulic solutions.

Products:

Manuli is always striving for development and progress, it strives to improve the quality and variety of its products, and constantly expands its production areas.They can offer all ranges of hydraulic products, including different threads of fittings, all types of hoses, and hydraulic valves. Manuli’s products are durable and efficient for a variety of applications.

Unique Features:

Manuli is constantly pushing the boundaries of hydraulics, striving to innovate and develop new hydraulic products. It is constantly exploring new metal materials and technologies. With excellent product quality and good service, Manuli has become the best hydraulic products supplier.

Website：https://www.manuli-hydraulics.com/

Topa

Overview:

Established in 1997, TOPA is a renowned manufacturer of hydraulic components in the field of construction machinery accessories and hydraulic line connections in China.

Products

Topa’s product range includes more than 8000 hydraulic components. They not only offer standard hydraulic products, but also customized hydraulic components according to customers’ needs. Their hydraulic hoses and fittings are compatible with well-known brands such as Parker, Manulife, Eaton and Gates, ensuring versatility and adaptability.

Unique Features:

Topa strives for superior product quality. They conduct meticulous inspections at every stage, from material surface inspection to final packaging evaluation. This conscientiousness ensures that every hydraulic coupling meets the highest standards of use. In addition, Topa has state-of-the-art CNC machines that ensure fast delivery and optimal product quality.With an experienced workforce and over 20 years of industry expertise, Topa is your trusted partner for hydraulic solutions.

Website: https://www.cntopa.com/

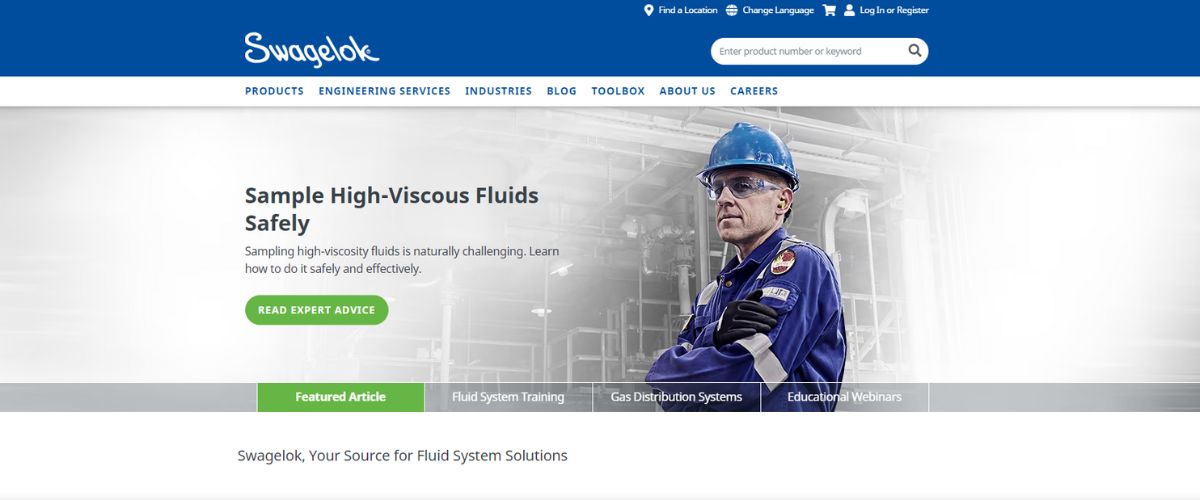

Swagelok

Overview:

Swagelok is a hydraulic industry giant. They are the top leader in hydraulic fluid systems. Swagelok has a very rigorous from material sourcing to aftermarket products and is committed to providing high-quality products for all.

Products:

Swagelok’s line of hydraulic products meets the needs of applications in a wide variety of industries. They offer a wide range of hydraulic fluid system solutions. Every Swagelok product guarantees optimal performance in the most challenging environments.

Unique Features:

Swagelok’s position in the industry is based not only on its products but also on its company philosophy. They have always adhered to the concept of sustainability, so they also prefer to use renewable energy sources. And the Swagelok advantage goes beyond their products; they are happy to offer a comprehensive training program for every novice. Swagelok quality products have made them highly respected in the fluid systems industry.

Website: https://www.swagelok.com/

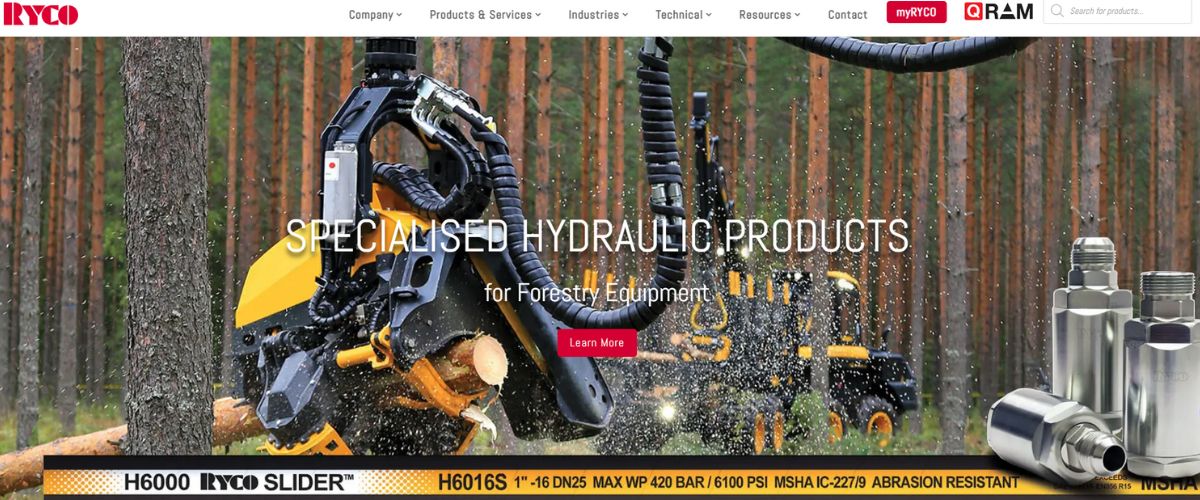

RYCO

Overview:

RYCO was established 75 years ago in Melbourne, Australia. Since its establishment, RYCO Hydraulics has earned a strong reputation. Nowadays, RYCO is one of the world’s top hydraulic suppliers. They are committed to providing superior design, best service, and high-quality products.

Products：

RYCO Hydraulics is a global leader in hydraulic-solving solutions. They are committed to providing superior, innovative hydraulic products， including hydraulic hoses, hose fittings， and hydraulic valves in all styles and sizes. Whether it’s hoses, couplings, or other products, RYCO takes the utmost care to provide each customer with the highest quality merchandise.

Unique Features:

RYCO is known for innovative developments and rigor. They are constantly improving hydraulic problems solving solutions and hydraulic technology. RYCO’s hydraulic products can be used in many applications, such as mining, forestry, construction, and agriculture. In addition to supplying products, RYCO offers on-time delivery, after-sales service, transportation, and cost reduction.

Website: https://www.ryco.com.au/

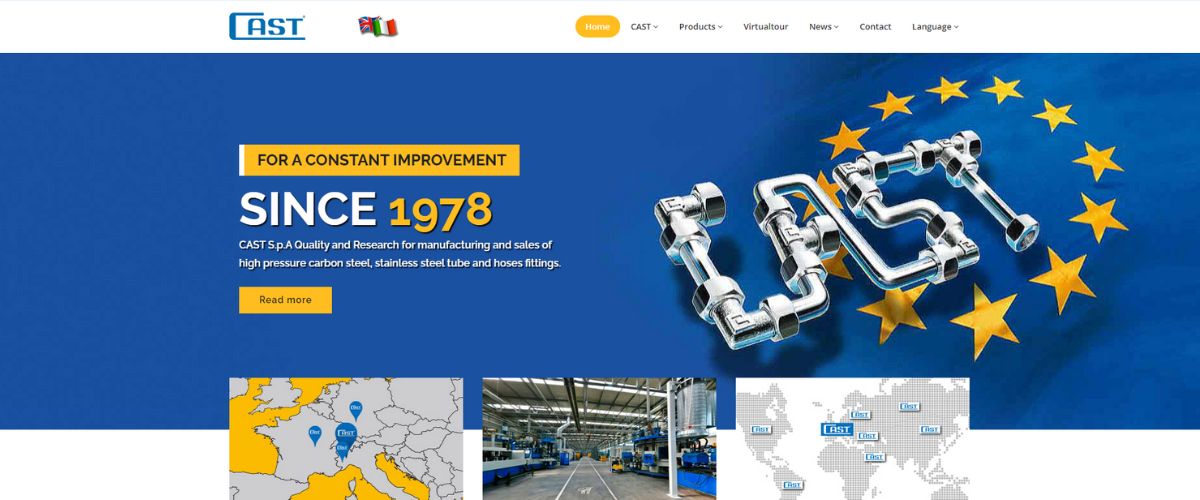

Cast S.P.A

Overview：

Cast S.P.A, located in Italy, is a manufacturer and supplier in the hydraulic fittings industry. Cast is constantly expanding its markets and increasing its sales, and is working to improve the range and quality of its products and consolidate its position in the global market.

Main Products:

Cast has a comprehensive range of products to meet the various hydraulic needs of its customers. Their products include adapters, valves, hose couplings, and high-pressure hoses. Each product is carefully designed for high performance and durability to meet the varied requirements of its customers.

Unique Features:

The hallmark of Cast’s success is its unwavering commitment to quality. This commitment is not just empty words, but international standards that validate the excellence of Cast hydraulic fittings. Their dedication ensures that each product meets the specific needs of their customers, providing reliability and efficiency.

Website: https://www.cast.it/

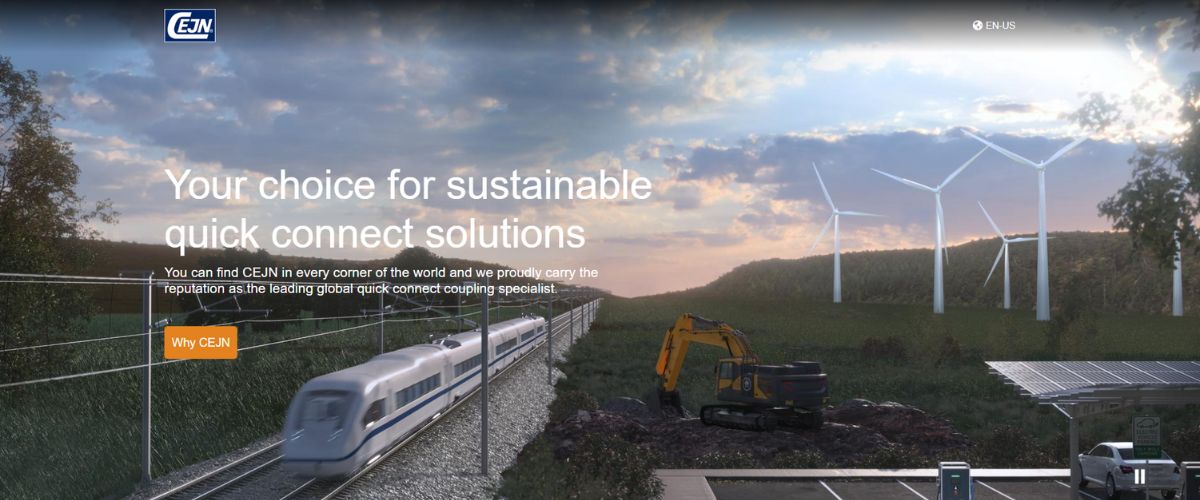

CEJN

Overview:

CEJN is a globally recognized company known for its sustainable quick-connect solutions. With a presence in every corner of the world, CEJN proudly holds the reputation of being the leading global quick-connect coupling specialist. Their commitment to innovation, performance, safety, and sustainability has made them a preferred choice for various industries.

Products

CEJN, a global leader in quick connect solutions, offers an extensive product range that caters to diverse applications. Their offerings include efficient quick-connect couplings, reliable hoses, and hose kits for fluid and air transfer, precise air and fluid guns, innovative hose, and cable reels for organized storage, advanced multi and auto couplings for seamless connections, high-performance hydraulic pumps, comprehensive pressure testing equipment to ensure system safety, and air treatment solutions to optimize air quality.

Unique Features:

CEJN’s dedication to sustainability and responsibility is evident in its approach to product development and business operations. As a third-generation family-owned company, CEJN emphasizes the importance of laying a foundation for future generations. Their commitment to using sustainable raw materials, producing long-lasting quality products, and continuously optimizing their offerings showcases their dedication to both their customers and the planet. Furthermore, CEJN’s solutions are backed by a global network of distributors and OEMs, ensuring that their products not only meet but exceed industry standards.

Main products: Quick-release fittings, Hoses.

Website: https://www.cejn.com/

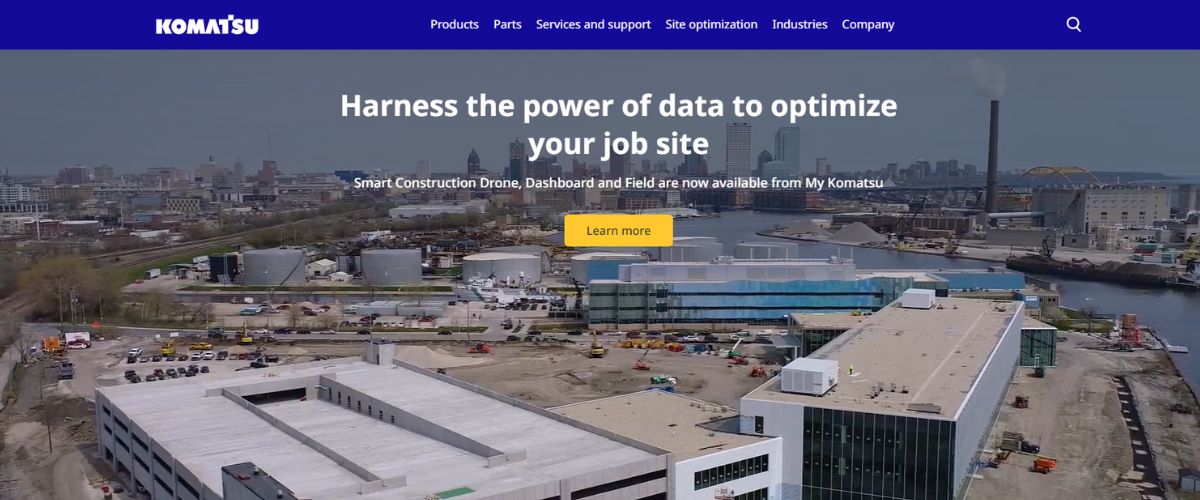

Komastu

Overview:

Komatsu is a leading global entity, renowned for its expertise in the realm of construction, mining, forestry, and industrial heavy equipment. With its origins tracing back to Japan, Komatsu has expanded its footprint across the world, ensuring that industries benefit from its state-of-the-art machinery and technology solutions.

Main Products:

Komatsu’s product spectrum is vast and tailored to meet the rigorous demands of various sectors. Their offerings encompass construction machinery such as excavators and haul trucks, mining equipment that includes underground hard rock bolters, drills, haulage systems, and forestry equipment. Each product is designed with precision, ensuring durability, efficiency, and safety.

Unique Features:

What sets Komatsu apart is its unwavering commitment to innovation and sustainability. The company continually invests in R&D, ensuring that its machinery is equipped with the latest technology and features. Moreover, their dedication to sustainability is evident in their products and operations, emphasizing eco-friendly solutions and practices.

Website: https://www.komatsu.com/en/

Conclusion

Knowing the top hydraulic fittings manufacturers can greatly improve operational efficiency, and this is especially true for businesses that require hydraulic hoses and fittings on a regular basis. The main advantage of sourcing from these top manufacturers is the assurance of high-quality products, standardized inspections, and ongoing support. You need to stay up-to-date with the industry’s evolving developments if you are to make informed decisions and ensure the best results for your hydraulic system needs. And buying hydraulic products from Chinese companies can fulfill all your needs.

As a major center of global manufacturing, China has made impressive achievements in the field of hydraulic products. Chinese hydraulic manufacturers continuously invest in research and development, adopting advanced technologies and manufacturing processes to ensure the efficiency and reliability of their products. Thanks to large-scale production and optimized supply chains, Chinese hydraulic products are more affordable while maintaining high quality, bringing great economic benefits to customers. Chinese manufacturers are able to provide customized services to meet specific customer needs, ensuring that products are perfectly suited to their application scenarios. Chinese hydraulic product suppliers value customer relationships and provide comprehensive after-sales support to ensure that customers receive timely assistance and solutions when using their products.

We invite our global partners and customers to come to China to experience and learn about our hydraulic products. We believe that by partnering with a hydraulic manufacturer in China, you will not only receive high-quality products but also unparalleled service and support!

Jul, 2023

BSP VS NPT

BSP VS NPT Threads：What are the Differences？

Introduction

In the field of hydraulic fittings and piping, two threads are international standards: the British Standard Pipe Thread (BSP) and the National Tapered Pipe Thread (NPT). These two thread systems have become the cornerstone of modern hydraulic applications and each has unique characteristics and areas of application. This article details all about BSP threads as well as NPT threads, so if you want to know more, please continue reading!

A Brief Historical Background

The evolution of BSP and NPT threads dates back to the Industrial Revolution when standardization became essential. The 55-degree angle of the BSP thread and the 60-degree angle characteristic of the NPT thread were developed by British engineer Joseph Whitworth and American engineer William Sellers, respectively.

The design developed by Sir Joseph Whitworth in the mid-19th century laid the foundation for the English line, known as the Whitworth line, which became the standard line in England and later spread to other European countries and Australia. The shape of the Whitworth line was revolutionary at the time, providing a uniform method of cutting and measuring lines. This innovation marked a major advance in engineering, making threaded connections more precise and consistent. The Whitworth system introduced the concept of standardized thread angles (specifically 55 degrees) and standardized thread pitches. This standardization facilitated the mass production of threaded parts and contributed to the rapid industrialization of the 19th century.

On the opposite shores of the Atlantic, William Sellers pioneered the introduction of the 60-degree thread angle, forming the foundation for the NPT (National Pipe Thread) standard. Recognized for its efficiency and ease of manufacture, Sellers’ design was swiftly adopted as the American standard. This innovation was more than a technical achievement; it marked a turning point in American engineering. By setting a precedent for threaded connections across diverse industries, Sellers’ 60-degree thread angle became synonymous with quality and precision. It facilitated standardization and mass production, driving industrial growth and technological advancement in the United States, and continues to be a vital part of modern hydraulic systems.

Threaded connections serve as the vital backbone of hydraulic systems. From the energy pulsing through power plants to the intricate workings of manufacturing facilities, the selection between inch (BSP) or American (NPT) threads significantly influences efficiency, safety, and performance. The choice is not merely technical; it embodies engineering philosophies. The metal-to-metal contact of an NPT fitting offers a robust seal, while the rounded contours of a BSP thread provide unique sealing properties. For professionals across various industries, understanding the nuances of these systems is more than essential; it’s a critical skill that underpins the integrity and functionality of countless hydraulic applications.

BSP Pipe Threads

British Standard Pipe (BSP) threads are a hallmark of quality and precision in the hydraulic industry. Based on ISO 228 and Whitworth standard threads, BSP threads are the go-to choice in European countries and Australia. Their unique design, characterized by a 55-degree thread angle, sets them apart from other thread types, reflecting a commitment to quality, reliability, and innovation.

Types of BSP Threads

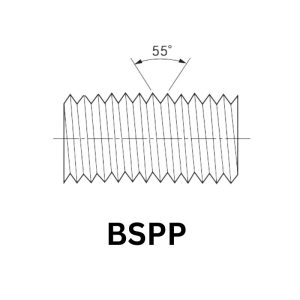

BSPP

BSPP (British Standard Pipe Parallel): With parallel threads, BSPP offers a reliable and versatile option for various applications. It’s commonly used in low-pressure applications where a tight seal is required.

Parallel threads can be called BSPP or GAS threads, abbreviated as “G“. They are threads designed for gases. The internal and external threads of a parallel thread are sealed with the help of an O-ring to prevent fluid leakage.

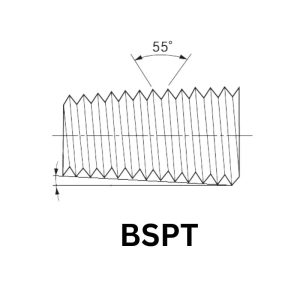

BSPT

BSPT (British Standard Pipe Taper): Similar to NPT but with a 55-degree angle, BSPT threads provide a unique solution for specific needs. The tapered design allows for a more secure fit, making it suitable for high-pressure applications.

BSPT male threads are R series threads, while the female threads are called Rc series threads. They form a metal-to-metal seal when sealing and do not require the use of O-rings, although sealants are sometimes required.

Characteristics

●Pitch: BSP threads are known for their distinct thread pitch, setting them apart from NPT threads. The specific pitch ensures a consistent fit across various fittings and applications.

●Angle: The 55-degree angle of BSP threads is a defining feature, contributing to their unique sealing properties. This angle provides a more gradual engagement between male and female threads, reducing the risk of over-tightening.

●Shape: Unlike the pointed peaks and valleys of NPT threads, BSP threads are rounded, offering a different sealing mechanism. This rounded design minimizes wear and tear, prolonging the lifespan of the connection.

Advantages

●Adaptability: BSP threads are celebrated for their adaptability, suitable for a wide range of applications, from plumbing to industrial machinery.

●Efficiency: The unique design of BSP threads ensures a secure and leak-proof connection, enhancing the overall efficiency of the system.

●Compatibility: Understanding their compatibility is crucial, as mismatches with NPT threads can lead to leakage or failure under pressure. Careful selection and alignment are essential to prevent potential issues.

Disadvantages

British Standard Pipe (BSP) threads are renowned for their precision and dependability, yet they come with certain limitations that might be relevant in particular scenarios:

●Potential Leakage: The characteristic rounded peaks and valleys of BSP threads can be both a strength and a weakness. While they offer unique sealing properties, if not correctly sealed, they might not provide a robust metal-to-metal contact. This could lead to potential leakage, a concern, especially in applications involving high pressure.

●Limited Availability in Certain Regions: While BSP threads are standard in many parts of the world, they may be less common in areas where NPT threads prevail, such as the United States and Canada. This limited availability might lead to delays in procurement or an increase in costs, affecting project timelines and budgets.

Applications

●Manufacturing: In manufacturing facilities, BSP threads are a preferred choice for professionals seeking precision and reliability. Their adaptability makes them suitable for various machinery and equipment.

●Oil and Gas: BSP threads are widely used in the oil and gas industry, where high-pressure applications demand secure and reliable connections.

●Automotive: In the automotive sector, BSP threads are used in fuel lines, hydraulic systems, and other critical components, ensuring optimal performance and safety.

●Construction: In construction equipment, BSP threads provide robust connections that can withstand the rigors of heavy-duty use.

NPT Pipe Threads

National Pipe Threads (NPT) are synonymous with quality and precision in the U.S. and Canada, and with a 60-degree angular taper, NPT threads have become the preferred choice for pressure calibration systems in North America. The standard has been a cornerstone of the hydraulic industry, reflecting a commitment to innovation and excellence.

Types of NPT Threads

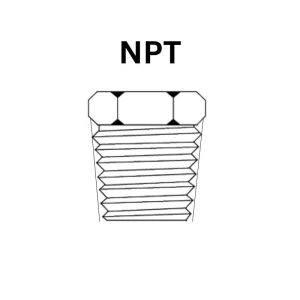

NPT

NPT (National Pipe Taper Thread)threads have a 60-degree thread angle and are tapered threads designed to form a tight seal for a variety of applications. The taper of the threads provides a stronger fit and is suitable for high-pressure applications. However, NPT threads typically require sealing compound or PTFE tape to ensure a leak-proof connection. They are commonly used in plumbing, industrial manufacturing, and oil and gas exploration.

NPT threads also have a derivative thread, NPTF threads. NPTF threads improve the thread standard and sealing than NPT threads. Therefore, NPTF provides a stronger seal and a more secure connection.

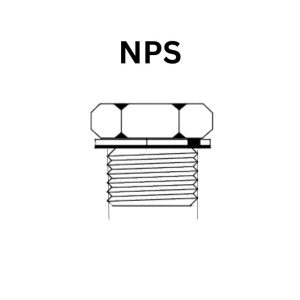

NPS

Unlike NPT, NPS(National Pipe Straight Thread)threads are straight rather than tapered. This design is not as self-sealing as NPT threads, so a gasket or washer is usually required for sealing. nps threads are typically used in applications that do not require a leak-proof seal, such as some low-pressure applications or where a jam nut is used to secure the connection. The straight thread design makes them more suitable for connections that require frequent disassembly and reassembly with less risk of thread wear.

Characteristics

Pitch: NPT threads are known for their specific thread pitch, distinct from BSP threads. This unique pitch ensures a consistent and secure fit across various applications.
Angle: The 60-degree angle of NPT threads is a defining feature, contributing to their unique sealing properties. This angle allows for a more gradual engagement, reducing the risk of over-tightening.
Shape: Unlike the rounded peaks and valleys of BSP threads, NPT threads are pointed, offering a metal-to-metal contact that ensures an excellent seal. This design enhances the connection’s durability and longevity.

Advantages

●Readily available: NPT threads are readily available in a wide range of sizes and materials and are easily found in supplier inventories, making them a convenient choice for a variety of industries.

●Versatile: Suitable for a wide range of applications at different pressures, NPT threads are flexible and adaptable to meet a wide range of needs.

●Easy assembly: Metal-to-metal contact provides an excellent seal, making assembly simple and efficient, saving time and resources.

Disadvantages

●Deformation: Relying on thread deformation for sealing limits its use in applications that require frequent disassembly, which may shorten its life.

●Potential Leakage: Improper alignment, over-tightening, or miss-sizing can lead to cracks and leaks, making NPT threads unsuitable for use in very high-pressure applications. Proper installation and maintenance are essential to minimize these risks.

Applications

●Industrial Manufacturing: NPT threads are widely used in manufacturing equipment where precision and reliability are critical. They are adaptable to a wide range of machinery and equipment.

●Oil and Gas Exploration: In the demanding environment of oil and gas exploration, NPT threads provide a robust connection that can withstand high pressures and harsh conditions.

●Automotive: NPT threads are vital in automotive manufacturing for fuel lines, hydraulic systems, and other critical components to ensure safety and performance.

●Construction: In construction equipment and large infrastructure projects, NPT threads provide a robust connection that can withstand heavy-duty use.

BSP vs NPT

BSP and NPT threads differ in geographical usage, thread forms, angles, and pitches. While NPT threads are prevalent in North America, BSP threads are the standard across other regions. Their incompatibility emphasizes the importance of precise selection, as mismatches can lead to leakage or failure.

Regional Usage

BSP and NPT threads are more than just technical specifications; they represent regional preferences. NPT threads are common in the United States and Canada, while BSP threads are the dominant standard in the United Kingdom, Europe, Asia, Australia, and many other countries. This geographical difference emphasizes the importance of selecting the correct thread type for a particular market and application.

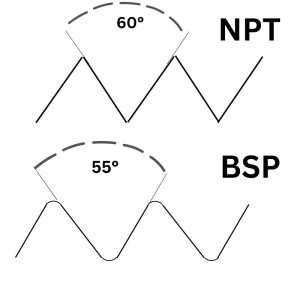

Thread forms and angles

The physical differences between inch and hexagonal threads are subtle and significant; NPT threads have pointed crests and valleys, whereas inch threads are rounded. In addition, NPT threads are angled at 60 degrees while BSP threads are angled at 55 degrees. These differences in shape and angle contribute to their unique sealing properties and applications. They also affect the compatibility and interchangeability of these threads and require careful consideration during design and assembly.

Thread Pitch Comparison

Another important difference between inch and American threads is the thread pitch. For many fractional pipe sizes, the thread pitch is different from NPT. The difference in pitch can lead to thread misalignment, fluid leaks, and even catastrophic failure under pressure. Understanding these nuances is critical for professionals in the hydraulics industry, as it helps in selecting the correct thread type for a particular application.

BSP thread size chart

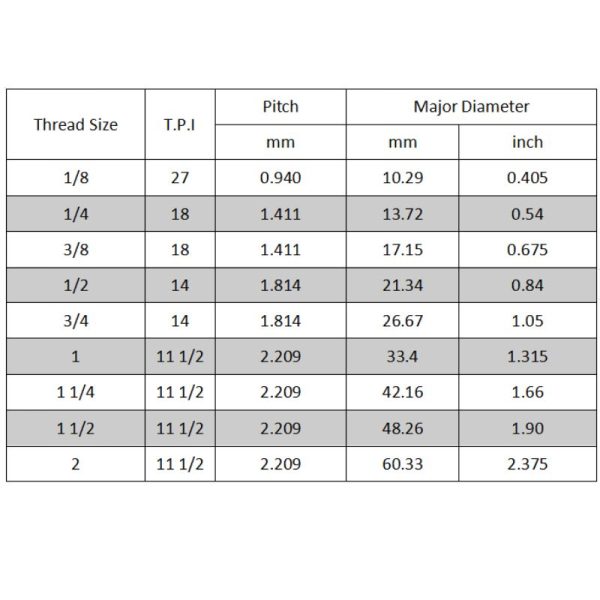

NPT thread size chart

Incompatibilities and Implications

BSP and NPT threads are not interchangeable due to their different shapes, angles, and pitches. Attempting to screw NPT male threads into BSPP female threads can lead to problems such as leakage and failure. This incompatibility highlights the importance of expertise and precision in selecting and using the correct thread type. It also highlights the need for standardized practices and guidelines to ensure safety and performance.

Impact on industry practices

Comparisons between British and American threads are not limited to technical aspects; they also influence industry practices and standards. From manufacturing to maintenance, the choice between BSP and NPT threads affects the design, function and efficiency of hydraulic systems. It also affects component availability, supplier relationships and overall cost considerations.

Conclusion

For professionals in the hydraulics industry, it is critical to understand the uniqueness, compatibility and applications of NPT and BSP threads. Whether it’s the adaptability of the BSP thread or the efficiency of the NPT thread, these systems play a vital role in a variety of industries, from manufacturing to oil and gas exploration. They must be selected and utilized with expertise and precision to ensure optimal performance, safety, and reliability.

For more detailed information on BSP and NPT hydraulic fittings and adapters or to make an inquiry, you are welcome to contact Topa and we will address your concerns.

The processing steps of brass fittings

Material preparation: Choose suitable brass material, and cut and prepare according to the shape and size of the fittings.
Preprocessing: cleaning, rust removal, surface treatment, etc.
Hot processing: usually using forging, cold extrusion, hot extrusion, stretching, and other processes, to press the heated brass material into the shape of the fitting.
Cold processing: further refine the shape and size of the fitting through processes such as cold drawing and cold extrusion.
Surface treatment: including polishing, grinding, sandblasting, and other processes, to treat the surface of the fitting and improve its surface quality and aesthetics.
Inspection and testing: Check the size, hardness, density, corrosion resistance, and other aspects of the fitting to ensure its quality.

7.Packaging and storage: Pack and store the fittings to prevent damage and corrosion during transportation and storage.

It should be noted that the processing steps of brass fittings may vary depending on the specific process and product type.

Aug, 2023

How do you Stop a Hydraulic Fitting from Leaking?

Table of Contents

Why Leaks Occur in Hydraulic Fittings?

Wear and Tear

Improper installation

Wear and Tear

Material Incompatibility

Cracked Fittings

Misalignment of Dimensions

Corroded Fittings

The Domino Effect

Recognizing Leaks in Hydraulic Fittings

Safety precautions

Inspection

Documentation

Tools and Materials

Tool List

Wrenches

Sealing Picks

Leak Detection Fluid

Materials List

Replacement O-Rings

Thread Sealant

Cleaning Solvent

Repair Preparation

System Shutdown

Drain Fluid

Cleaning the area

Maintenance Procedure

Removing Fittings

Replacing Seals and O-Rings

Using Thread Sealant

Reassembling the fitting

Testing and Verification

Pressure Testing

Leak Check

Documentation

The Importance of Repairing Hydraulic Fitting Leaks

Conclusion

Aug, 2023

How to Choose Hydraulic Fittings Manufacturer

Table of Contents

Famous International Manufacturer

Analyze Hydraulic Fittings

Evaluate Different Materials

Understanding Surface Treatment

Understanding Surface Treatment

Consider Corrosion Resistance Time

Hydraulic Fittings Standard

Common Standards

Understanding National Preferences

Analyze Hydraulic Fittings Manufacturer

Factory

Production Quality and Delivery Times

Customized Services

Inspection of Certification

Verifying Qualification and Compliance

After-sale Service

Assessing Supplier Responsiveness

Understanding Post-sales Support

Hydraulic Fittings Supplier in China

Analyzing Cost Advantages

Complete Supply Chain

Explore Customization Services

Topa: China Best Hydraulic Fitting Factory

Company Profile

Customer Services

Jul, 2023

Top 10 Hydraulic Fittings Manufacturers

Parker Hannifin

Eaton

Gates

Manuli Hydraulics

Topa

Swagelok

RYCO

Cast S.P.A

CEJN

Komastu
