Misaligned fittings can lead to a host of problems, including leaks, pressure loss, and even catastrophic failure of the system. The alignment of hydraulic hose fittings is essential for maintaining the integrity of the system, reducing wear and tear, and avoiding costly breakdowns. Even minor misalignments can cause significant issues over time, affecting the overall performance and safety of the system. Proper alignment not only ensures optimal pressure distribution but also extends the lifespan of hoses, fittings, and other connected components.

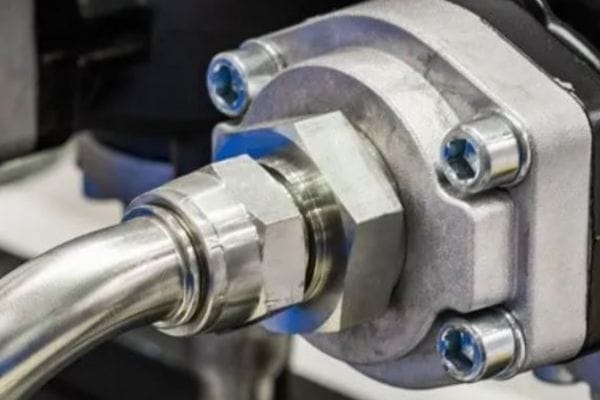

Understanding Hydraulic Hose Fitting Alignment

What is Hydraulic Hose Fitting Alignment?

Hydraulic hose fitting alignment refers to the proper positioning and orientation of hoses and their respective fittings within a hydraulic system. In simple terms, it is ensuring that the hoses are connected to their fittings without excessive twists, bends, or strain and that they are routed correctly to allow the smooth flow of hydraulic fluid. Proper alignment means that hoses are installed in a way that minimizes unnecessary tension and allows for movement without compromising the integrity of the connection.

Alignment involves both the physical positioning of the hose and its fitting, as well as ensuring the correct angles and spacing between components. It is not just about fitting hoses securely; it’s about doing so in a manner that enhances the system’s overall efficiency and durability.

The Role of Hose Fitting Alignment in System Function

The alignment of hydraulic hoses and fittings plays a fundamental role in the overall functionality and reliability of hydraulic systems. These systems rely on high-pressure fluid circulation to generate power and movement, and even slight misalignments can disrupt the flow of fluid, leading to inefficiencies or malfunctions. Proper hose alignment ensures that hydraulic fluid moves through the system without restriction, maintaining optimal pressure and preventing fluid leakage.

Moreover, correct alignment minimizes wear and tear on the hoses and fittings, as they are not subjected to undue stress from being twisted or stretched. This not only reduces the risk of damage to the components but also contributes to a safer, more reliable hydraulic system. Whether in industrial machinery, agricultural equipment, or construction vehicles, ensuring proper hose alignment is essential to avoid unnecessary downtime and expensive repairs.

Why Alignment is Crucial

Preventing Leaks, Wear, and Potential System Failures

When hoses are misaligned, there is an increased risk of fluid leaks at the connection points. Leaks can lead to significant fluid loss, reduced pressure, and contamination of the system, all of which can result in decreased performance or even system failure. Misalignment can also cause friction between the hose and other components, leading to premature wear or abrasion. Over time, this increases the likelihood of hoses cracking, kinking, or bursting under pressure.

Maintaining Optimal Pressure and Performance

A well-aligned hydraulic system ensures that fluid flows smoothly without bottlenecks or restrictions. Poor alignment can introduce excessive bends or twists in hoses, which can restrict fluid flow and lead to pressure drops. This can cause the system to operate less efficiently, reducing power output and slowing down operations. Proper alignment, on the other hand, ensures that the system maintains consistent pressure, allowing machinery to operate at peak performance.

Reducing Stress on Hoses and Fittings

Misaligned hoses experience more stress and strain, which weakens their structure over time. Excessive stretching or twisting of hoses can place unnecessary pressure on the fittings, leading to thread damage or fitting failure. By ensuring proper alignment, you reduce the physical stress on hoses and fittings, prolonging their life and reducing the need for frequent repairs or replacements.

Common Mistakes in Hose Fitting Alignment

Proper hose fitting alignment is essential for ensuring the longevity and efficiency of a hydraulic system. However, several common mistakes can lead to misalignment, ultimately causing system failure, increased wear, and costly repairs.

Misjudging Hose Length

One of the most common mistakes in hose fitting alignment is selecting a hose that is either too short or too long for the application.

Effects of Hoses Being Too Short

A hose that is too short can place undue stress on both the hose and the fittings. This can lead to tension in the hose, making it more likely to crack or break under pressure. Additionally, a short hose limits flexibility, especially when the machinery is in motion. If the hose is stretched too tightly between fittings, it may pull at the connections, potentially causing leaks or fitting failure over time.

Effects of Hoses Being Too Long

Conversely, a hose that is too long can result in sagging or looping, which may cause kinks or unwanted friction against other components. These loops can lead to unnecessary wear and tear, as well as create tripping hazards in the workspace. Excessive length can also disrupt the fluid flow, reducing system efficiency and potentially causing pressure drops. Additionally, hoses that are too long may inadvertently rub against other machinery parts, causing damage to both the hose and surrounding components.

Impact on System Flexibility and Potential for Damage

Proper hose length is critical for maintaining system flexibility. An overly tight or loose hose can reduce the system’s ability to accommodate movement, increasing the likelihood of hose failure and reducing the system’s overall lifespan.

Over-tightening or Under-tightening of Fittings

The torque applied to hydraulic fittings is another crucial factor in hose fitting alignment, and mistakes in this area can have significant consequences.

Importance of Proper Torque

Hydraulic fittings are designed to be tightened to specific torque values to create a secure, leak-proof connection. Applying too much or too little torque can compromise the integrity of the fitting.

Effects of Over-tightening

Over-tightening a fitting can damage the threads or crush the fitting, reducing its ability to form a proper seal. This can result in fluid leaks, which not only reduce the efficiency of the system but also pose safety risks. Excessive torque can also cause the fitting to weaken over time, increasing the risk of sudden fitting failure under pressure.

Effects of Under-tightening

Under-tightening a fitting, on the other hand, can leave gaps in the connection, leading to fluid leaks at the fitting joint. Insufficient torque can result in fittings loosening over time due to vibration and system movement, further increasing the risk of leaks and system failures.

Improper Routing of Hydraulic Hoses

Routing is one of the most critical aspects of hose fitting alignment, and improper routing can significantly reduce the performance and lifespan of hydraulic hoses.

The Role of Routing in Avoiding Hose Bends and Kinks

Incorrect routing can lead to hose bending or kinking, which restricts fluid flow and increases internal pressure on the hose. Sharp bends can compromise the structural integrity of the hose, leading to early failure or rupture under high pressure. Proper routing is essential to maintain the natural curve and flexibility of the hose, allowing fluid to flow freely without obstruction.

Importance of Following Manufacturer-Recommended Hose Routing Paths

Hydraulic hose manufacturers often provide specific routing guidelines to ensure that hoses are installed in a way that minimizes stress and wear. Ignoring these recommendations can lead to unnecessary stress on the hose and its fittings, particularly at the bend points. Following proper routing paths helps maintain the hose’s integrity, reduces the likelihood of bends, and ensures that the system operates efficiently.

Ignoring Environmental Factors

The external environment in which a hydraulic system operates can have a profound impact on hose alignment and longevity. Overlooking these factors is a common mistake.

Heat

Excessive heat can cause hoses to degrade more quickly, leading to cracks, leaks, and overall system failure. Hydraulic hoses are often made of rubber or other synthetic materials, which can break down when exposed to high temperatures. Misaligned hoses may be positioned too close to heat sources such as engines or exhaust systems, accelerating the aging process and causing premature failure.

Vibration

Vibration is another environmental factor that can cause hoses to become misaligned over time. Repeated vibration can loosen fittings or cause hoses to rub against other surfaces, leading to wear and abrasion. Installing hoses with proper alignment and securing them with clamps or supports can help mitigate the effects of vibration.

Chemical Exposure

Hydraulic systems are often exposed to various chemicals, including oils, solvents, and cleaning agents. These chemicals can degrade the materials used in hoses if they are not rated for such exposure. Misalignment can exacerbate this issue by allowing hoses to come into contact with chemicals they are not designed to withstand. Over time, this can weaken the hose and cause it to fail.

How Environmental Factors Impact Hose Alignment and Lifespan

Environmental factors such as heat, vibration, and chemical exposure can accelerate the wear and tear of hoses and fittings. Ignoring these factors during installation and maintenance can lead to misalignment, increased downtime, and costly repairs.

Steps to Properly Align Hydraulic Hose Fittings

Achieving proper alignment in hydraulic hose fittings requires careful planning and execution. Below are the key steps to ensure hoses and fittings are aligned correctly, reducing stress on components and improving system performance.

Plan the Routing Path

Proper routing is the foundation of a well-aligned hydraulic system. A carefully thought-out routing plan can prevent many common issues such as kinks, excessive bends, or improper hose length.

Evaluate the System Layout

Before installation, take the time to evaluate the entire system layout. Identify where each hose will be routed and ensure there is a clear path that avoids potential obstacles such as sharp edges, heat sources, or moving parts. The layout should allow hoses enough slack to account for system movement without creating excessive tension that could damage the hoses.

Ensuring Sufficient Slack

It’s essential to leave enough slack in the hoses to accommodate movement within the system, such as the shifting or vibrations of machinery. However, hoses should not be so long that they sag or loop unnecessarily, which can cause kinks, friction, and wear over time.

Avoiding Sharp Bends

Sharp bends can restrict the flow of hydraulic fluid, leading to pressure drops, wear, and potential hose failure. A good rule of thumb is to follow the minimum bend radius recommended by the hose manufacturer. Keeping hoses routed with gradual curves helps maintain their integrity and ensures efficient fluid flow.

Ensuring Sufficient Clearance

Always ensure that hoses have enough clearance to move freely, avoiding contact with other components or surfaces. This prevents abrasion and reduces the risk of damage to both the hose and the surrounding equipment.

Use of Hose Clamps and Supports

Once the routing path is established, it’s crucial to secure the hoses properly using clamps and supports. These tools play a vital role in maintaining alignment and minimizing stress.

Best Practices for Securing Hoses

Hose clamps and supports should be placed at strategic points along the hose path to keep the hose firmly in place and prevent sagging or misalignment. It’s important to avoid clamping hoses too tightly, as this can crush the hose and restrict fluid flow. Clamps should provide secure support while still allowing some flexibility for the hose to move with the system’s operation.

How Clamps Can Prevent Unnecessary Stress

By supporting hoses at appropriate intervals, clamps prevent hoses from being pulled or dragged by system movements, reducing the risk of kinks, chafing, or wear due to friction. They also ensure that hoses stay in their intended positions, preserving the alignment established during installation. Additionally, clamps can help distribute the mechanical load evenly, preventing concentrated stress points that could lead to failure.

Applying Proper Torque

Correct torque application is essential for creating leak-proof seals and preventing damage to hydraulic fittings. Applying too much or too little torque can have detrimental effects, so it’s important to get it right.

Tools and Methods for Proper Torque Application

Use a calibrated torque wrench to tighten hydraulic fittings to the manufacturer’s specifications. A torque wrench ensures that the correct amount of force is applied, avoiding the common issues of over-tightening (which can strip threads or crush the fitting) or under-tightening (which can cause leaks). Follow the manufacturer’s guidelines for each fitting size and material to ensure a proper fit.

Checking Torque as Part of Regular Maintenance

Over time, system vibration and movement can cause fittings to loosen. It’s important to include regular torque checks as part of the system’s maintenance schedule. Periodically rechecking the torque on key fittings can prevent leaks and ensure the system remains sealed and aligned correctly.

Double-Checking for Twisting and Kinks

Even with careful planning and installation, hoses can become twisted or kinked during the assembly process. These issues can restrict fluid flow, increase pressure, and lead to premature wear or failure.

Visual Inspections

After installation, perform a thorough visual inspection of all hoses and fittings to ensure there are no twists or kinks. Hoses should remain straight along their entire length and follow a smooth, unimpeded path. Twists in the hose can cause internal stress, reducing the hose’s flexibility and strength.

Using Marking Methods to Prevent Twisting

One helpful technique is to mark the hoses before installation. By placing a straight line or stripe along the length of the hose, you can easily detect if any twisting has occurred during assembly. If the line remains straight after the hose is installed, it’s correctly aligned. If the line appears twisted or spiraled, the hose has been rotated during fitting and needs to be adjusted.

Conclusion

Conduct regular inspections to identify and address any misalignments, and implement the best practices discussed in this guide. By doing so, you’ll not only protect your system but also improve its overall performance and reliability.
