Steel heat treatment refers to a set of processes used to alter the physical and sometimes chemical properties of steel to achieve the desired characteristics. Heat treatment aims to change the microstructure of steel through controlled heating and cooling processes, allowing manufacturers to fine-tune the material’s properties to meet specific requirements.

Overview Types of Steel Heat Treatment Technology

Steel heat treatment is a critical process in metallurgy that allows manufacturers to modify the properties of steel to meet specific requirements. By heating the steel to a precise temperature, holding it for an appropriate duration, and then cooling it in a controlled manner, it’s possible to alter the steel’s internal microstructure. This process is highly effective in enhancing the material’s mechanical properties, including hardness, strength, toughness, and resistance to wear.

What Does Heat Treatment of Steel Involve?

The heat treatment of steel primarily involves three key stages: heating, holding, and cooling. During the heating phase, steel is brought to a specific temperature, often above its critical point, where its microstructure begins to change. This could mean transforming the crystal structure from ferrite to austenite, a phase in which steel becomes more malleable.

Once the desired temperature is reached, the steel is held at that temperature for a set period. This allows the material to undergo uniform transformation throughout its mass, ensuring consistent properties. For example, during the heating stage, steel may undergo processes like hardening, austenitizing, or stress-relieving, depending on the heat treatment method chosen.

Finally, the steel is cooled at a controlled rate, which can be fast or slow depending on the method used. The cooling phase plays a significant role in determining the final properties of the steel. Rapid cooling may produce a hardened microstructure, whereas slower cooling rates might result in a more ductile or stable structure.

The Role of Temperature and Cooling Rate

Temperature and cooling rate are two of the most influential factors in determining the final properties of steel fitting after heat treatment.

Temperature: The temperature at which the steel is heated plays a vital role in the phase transformations that occur within the material. When steel is heated to its critical temperature, it undergoes a transformation from ferrite (a relatively soft phase) to austenite (a more malleable, high-temperature phase). Higher temperatures tend to soften the material, making it more ductile, while lower temperatures might produce a more refined, durable structure suitable for specific applications.

Cooling Rate: The rate at which steel cools after heating determines the final grain structure and, consequently, the steel’s mechanical properties. Fast cooling, as seen in quenching, leads to the formation of martensite, a very hard but brittle phase. On the other hand, slower cooling rates, such as those used in annealing and normalizing, allow the formation of pearlite or bainite, which offer improved ductility and toughness. The cooling rate is particularly critical when working with specific grades of steel, as it can significantly impact the material’s final strength, hardness, and resistance to fatigue.

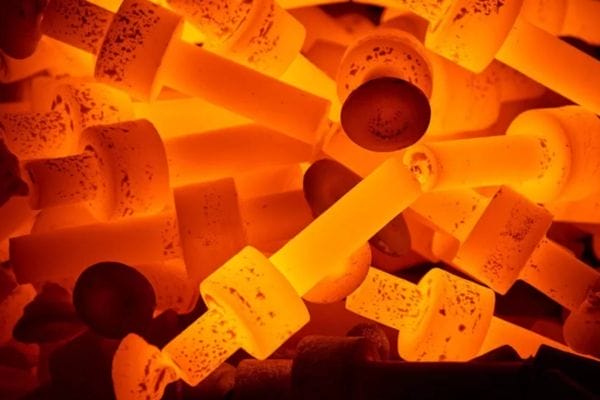

Annealing

What is Annealing?

Annealing is a heat treatment process in which steel is heated to a high temperature and then slowly cooled, typically in a furnace. The primary objective of annealing is to soften the steel, making it more ductile and easier to work with. During this process, the steel undergoes a series of transformations in its microstructure that relieve internal stresses and refine its grain structure. The result is a material that is more uniform, with improved workability, reduced hardness, and enhanced toughness.

In addition to softening the steel, annealing can also reduce the risk of cracking or warping in steel that has undergone cold working, such as forging, casting, or welding. The slow cooling process ensures that the steel doesn’t become too brittle, making it better suited for further processing, like machining, shaping, or forming.

Types of Annealing

Annealing can be performed in several different ways, depending on the desired outcome and the type of steel being treated. The main types of annealing include:

Recrystallization Annealing

This type of annealing is primarily used to eliminate the effects of cold working. When steel is cold-rolled or drawn, it experiences strain hardening, which increases its hardness and reduces ductility. Recrystallization annealing involves heating the steel to a temperature high enough to allow new grain structures to form, effectively “resetting” the steel’s microstructure and restoring its original ductility. This type of annealing is most commonly used for cold-worked steel products, such as sheet metal or wire, to improve machinability and prepare them for further processing.

Stress-Relief Annealing

Stress-relief annealing is a low-temperature annealing process that helps relieve internal stresses that may have developed in the material during previous manufacturing processes like welding, casting, or machining. The steel is heated to a temperature that is typically below the critical temperature range for phase transformation, and then slowly cooled. This process reduces the risk of deformation, cracking, or warping during further processing, ensuring the steel maintains dimensional stability and performance.

Spheroidizing Annealing

Spheroidizing annealing is a process designed to optimize the machining and forming capabilities of tool steels and high-carbon steels. During this process, steel is heated to a temperature slightly below its eutectoid temperature, where the carbon content in the steel forms spheroidized cementite particles (Fe₃C) within the microstructure. These spherical particles reduce the hardness of the steel and make it easier to cut or machine. Spheroidizing is often used for steel that will undergo further processing, such as turning, grinding, or other cutting operations.

Full Annealing

Full annealing is the most common form of annealing and is typically used to improve the workability of medium- and low-carbon steels. In this process, steel is heated to a temperature just above its critical range (usually around 800°C to 900°C, depending on the type of steel) and then cooled slowly in the furnace. This results in the formation of a fine-grained pearlitic microstructure that improves the steel’s ductility reduces hardness, and increases its toughness. Full annealing is commonly used in applications where the steel needs to be readily shaped or processed, such as in the automotive or machinery industries.

Isothermal Annealing

Isothermal annealing involves heating the steel to a specific temperature and then holding it there for a period before cooling it in a controlled manner. Unlike full annealing, which typically involves slow cooling, isothermal annealing cools the steel at a constant temperature, ensuring that a specific microstructure is achieved. This type of annealing is used to produce a consistent grain structure and is beneficial for achieving uniform mechanical properties across large steel sections. It is commonly used for materials that require precision and uniformity, such as gears, shafts, or machine components.

Graphitization Annealing

Graphitization annealing is a process used primarily for cast iron or certain steels with high carbon content. During this process, steel is heated to a temperature high enough to allow carbon to form graphite flakes within the structure. This process reduces the brittleness of the material and helps to transform it into a more ductile form. Graphitization is used when converting high-carbon steels or cast irons into materials that can be easily machined or have improved wear resistance. This process is also used in the production of certain types of castings and in the automotive industry, where cast iron is often used for engine components.

Quenching

What is Quenching and How Does It Work?

Quenching is a heat treatment process used to rapidly cool steel after it has been heated to a specific temperature, typically above its critical temperature range. The cooling is performed by immersing the hot steel in a cooling medium such as water, oil, or brine. This sudden drop in temperature causes the steel’s microstructure to change dramatically, particularly by transforming austenite (a high-temperature phase of steel) into martensite, a much harder and more brittle phase.

The rapid cooling process alters the steel’s crystal structure, making the material much harder but also more brittle. This hardness is crucial for applications where wear resistance, strength, and durability are essential. However, this increased hardness often comes at the cost of reduced toughness and potential internal stresses, which can make the steel prone to cracking or distortion. To counterbalance these drawbacks, a subsequent tempering process is typically used.

Types of Quenching

There are several different methods for quenching steel, each with its specific cooling medium and applications. The method chosen depends on the desired characteristics of the steel and the complexity of the parts being treated. The most common types of quenching are:

Single Liquid Quenching

In single liquid quenching, the steel is heated to the quenching temperature, held there for a specific time, and then rapidly cooled in a single quenching medium, such as water, oil, or brine. This method is generally used for parts with simple shapes and lower technical requirements, typically carbon steels or alloy steels.

Applications: Single liquid quenching is often used for simple carbon steel and alloy steel parts, especially those that do not require extremely high performance or complex geometries.

Cooling medium: For carbon steel parts with a diameter or thickness greater than 5-8 mm, water or brine may be used as the cooling medium. For alloy steels, oil is typically preferred to reduce the risk of cracking due to the slower cooling rate of oil.

Double Liquid Quenching

Double liquid quenching involves an initial rapid cooling in water or brine until the steel reaches 300–400°C, followed by further cooling in oil. This method ensures that the steel cools quickly at the outset to promote the formation of martensite, but the slower cooling rate in the oil helps reduce the risk of cracking and warping.

Applications: This method is suitable for parts that require a combination of hardening and reduced risk of distortion, and is commonly used for medium to large parts made of carbon or alloy steel that have more complex shapes.

Flame Hardening

Flame hardening uses a mixture of acetylene and oxygen to create a flame that is directed at the surface of the steel. The steel is rapidly heated to a quenching temperature, and then immediately cooled by spraying water or another cooling medium onto the heated surface.

Applications: Flame hardening is ideal for parts that require surface hardness and wear resistance while maintaining toughness in the core. It is commonly used for large, medium-carbon steels, and medium-alloy steels, especially for parts like crankshafts, gears, and guide rails that are subject to high-impact loads.

Induction Hardening

Induction hardening uses an alternating magnetic field generated by an induction coil to induce an electric current (eddy current) in the steel. This current causes the surface of the steel to heat up rapidly to quenching temperatures. Once the steel reaches the required temperature, water is sprayed on the surface to rapidly cool it.

Applications: Induction hardening is primarily used to treat the surface of steel parts while maintaining the core’s toughness and strength. This method is suitable for parts with complex shapes that require surface hardness, such as shafts, gears, and roller bearings. The rapid heating allows for precise control over the hardening depth, making it ideal for parts that need selective hardening.

The Effect of Quenching on the Hardness and Strength of Steel

The primary effect of quenching on steel is a significant increase in hardness and wear resistance. The rapid cooling during quenching converts the austenitic microstructure into martensite, which is harder but also more brittle. Martensite has a much finer crystal structure, which contributes to its increased strength, but this also makes the steel more susceptible to cracking and fracture under stress.

The resulting hardness and strength make quenched steel ideal for applications that require durability, such as cutting tools, gears, and shafts. However, the brittleness introduced by quenching is often undesirable for parts that will experience heavy or cyclic loading.

To counteract the brittleness and enhance the toughness of quenched steel, tempering is usually performed as a follow-up process. Tempering involves reheating the quenched steel to a lower temperature and then slowly cooling it to remove some of the internal stresses and reduce brittleness, while still maintaining much of the hardness and strength gained from quenching.

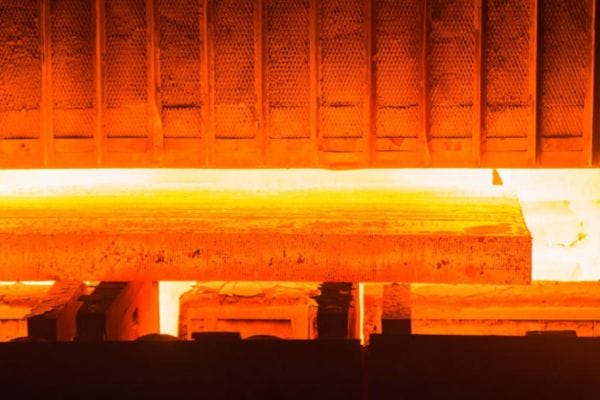

Tempering

Purpose of Tempering

Tempering is a heat treatment process that occurs after quenching. While quenching increases the hardness of steel, it also makes the material brittle and prone to cracking due to the rapid cooling. Tempering aims to relieve the internal stresses introduced by quenching and reduce brittleness, making the steel more usable for a wide range of applications. The primary goal of tempering is to strike a balance between hardness and toughness, ensuring that the steel retains its strength while becoming more resistant to impacts and deformation.

During tempering, the hardened steel is reheated to a specific temperature below its critical point (typically between 150°C to 650°C) and then cooled slowly. This process causes the martensitic structure formed during quenching to undergo a transformation, which softens the material while maintaining sufficient hardness for various applications.

Tempering Process

The tempering process involves several key factors that must be carefully controlled to achieve the desired properties of steel:

Temperature: The steel is reheated to a specific temperature, which determines the final hardness, toughness, and ductility. The temperature chosen during tempering depends on the type of steel and its intended use. Higher tempering temperatures will produce softer and tougher steel, while lower temperatures retain more hardness but reduce toughness.

Time: The amount of time the steel is held at the tempering temperature is crucial. Too little time can lead to insufficient tempering, while too much time can result in excessive softening. Typically, tempering times range from 30 minutes to several hours, depending on the material and the desired properties.

Cooling Rate: After reaching the tempering temperature, the steel is allowed to cool slowly, either in air or in a controlled atmosphere. The cooling rate influences the final microstructure and the distribution of residual stresses in the material.

Types of Tempering

Low-Temperature Tempering

Low-temperature tempering is typically performed at temperatures around 200-300°C. This results in steel that is harder than higher-temperature tempered steel, but still retains some degree of toughness. The hardness of the material is reduced slightly, but it remains suitable for parts that require high wear resistance.

Applications: This is commonly used for high-carbon steel, tool steels, and parts that need high hardness but must still be resistant to cracking under impact, such as cutting tools, knives, and springs.

Medium-Temperature Tempering

Medium-temperature tempering typically occurs in the range of 350-500°C. This treatment produces steel with a balanced combination of hardness and toughness, making it ideal for general-purpose applications. It enhances the material’s ductility and toughness while still maintaining a moderate level of hardness.

Applications: This tempering range is often used for structural components, automotive parts, and other medium-strength steels that need a good balance of toughness and wear resistance.

High-Temperature Tempering

High-temperature tempering is performed at temperatures above 500°C and can extend up to 650°C or higher. At these temperatures, the steel becomes much tougher and less brittle, but its hardness decreases. The result is a material that is highly resistant to impact and fatigue but may not be as wear-resistant as lower-temperature tempered steels.

Applications: High-temperature tempering is ideal for parts that are subjected to high shock loading or those that require improved impact resistance. It is used for structural components like large shafts, pressure vessels, and heavy-duty machinery parts.

Double Tempering

Double tempering involves performing the tempering process twice to ensure even distribution of residual stresses and uniform hardness throughout the steel. The steel is quenched and then tempered once, followed by a second tempering cycle at the same or a different temperature to refine the properties.

Applications: Double tempering is used for high-performance steels, especially those that require a uniform microstructure and consistent mechanical properties throughout the material. This is common for parts like springs, gears, and heavy-duty machinery components where both toughness and fatigue resistance are crucial.

Normalizing

What is Involved in Steel Normalizing?

Normalizing is a heat treatment process used to improve the mechanical properties of steel, particularly its strength, toughness, and grain structure. During normalizing, steel is heated to a temperature slightly above its critical point (usually between 800°C and 900°C, depending on the type of steel), which is the temperature at which the steel’s microstructure transforms. The steel is then held at this elevated temperature for a specific period to ensure uniform heating throughout the material.

Once the steel has been heated sufficiently, it is allowed to cool in ambient air, a process that is faster than annealing but slower than quenching. The cooling rate during normalizing is crucial, as it helps refine the grain structure of the steel, making it more uniform. This uniform grain structure leads to better mechanical properties, including improved strength and toughness.

Normalizing is typically used for carbon steels and low-alloy steels to restore a more uniform microstructure after processes like casting, welding, or forging, which can create inconsistent grain sizes. By normalizing the steel, manufacturers ensure that the material exhibits consistent properties throughout its structure, enhancing its overall performance.

Difference Between Normalizing and Annealing

While both normalizing and annealing are heat treatment processes that involve heating the steel to a specific temperature, there are key differences between them that affect the final properties of the steel.

Cooling Rate: The most significant difference between normalizing and annealing is the cooling rate. In annealing, steel is heated and then cooled very slowly, often in a furnace or in an insulating medium to reduce internal stresses and soften the material. This slow cooling allows for the formation of a coarse, uniform microstructure, which results in softer and more ductile steel.

In contrast, normalizing involves cooling the steel in air, which is faster than the cooling rate used in annealing but slower than quenching. This faster cooling rate promotes the formation of a finer, more uniform grain structure, which leads to higher strength and hardness compared to annealed steel.

Microstructure and Properties: The slower cooling of annealing promotes the formation of a more ductile and softer steel, which is ideal for applications requiring good formability and machinability. On the other hand, normalizing produces a steel that is stronger and harder due to the finer grain structure, making it more suitable for structural components that require increased mechanical properties.

Purpose and Application: Annealing is often used when the goal is to soften the steel for further processing, such as machining or shaping, or to relieve internal stresses. Normalizing is typically employed when steel needs to be strengthened, refined, or homogenized after processes like casting, welding, or forging. It’s especially beneficial for larger sections of steel where a more uniform mechanical property distribution is required.

Final Properties: After normalizing, the steel typically has a higher strength and hardness than annealed steel. However, it is not as soft or ductile as annealed steel. The choice between normalizing and annealing depends on the specific requirements of the application and the desired balance between strength, ductility, and toughness.

Conclusion

Steel heat treatment is a vital process for enhancing the mechanical properties of steel, whether it’s for improving hardness, strength, ductility, or toughness. Proper heat treatment technology is crucial in ensuring the steel used in various industries meets the required performance standards, increasing the lifespan and reliability of products.
