DIN 3852 vs ISO 1179 Threads: A Comprehensive Guide

DIN 3852 and ISO 1179 are two standards that govern the design and implementation of threaded ports and stud ends in hydraulic systems, specifically focusing on BSPP (British Standard Pipe Parallel) threads. Both standards outline detailed specifications for various sealing methods, including elastomeric seals and metal-to-metal connections, thereby enabling manufacturers and engineers to select the appropriate fittings for their applications.

Understanding DIN 3852

A. Definition and Scope

DIN 3852 is a standard established by the Deutsches Institut für Normung (DIN) that outlines specifications for threaded ports and sealing methods used in hydraulic systems. This standard is crucial for ensuring compatibility and reliability in hydraulic connections, which are essential for maintaining the integrity and efficiency of hydraulic circuits. DIN 3852 encompasses various types of threaded connections and sealing techniques, providing guidelines that help manufacturers and engineers design systems that meet specific performance criteria.

B. Historical Background

The development of DIN 3852 can be traced back to the growing need for standardized components in hydraulic technology during the late 20th century. As hydraulic systems became increasingly complex and widespread across various industries, it became evident that inconsistencies in fitting designs could lead to performance issues, leaks, and system failures. In response, the DIN committee worked to create a comprehensive set of standards, culminating in the establishment of DIN 3852. This standard has since evolved to incorporate advancements in technology and materials, ensuring it remains relevant in contemporary hydraulic applications.

DIN 3852 Threads

C. Parts of DIN 3852

DIN 3852 is divided into several parts, each addressing different aspects of hydraulic connections:

DIN 3852-1: Threaded Ports

This part specifies the dimensions, tolerances, and performance requirements for threaded ports in hydraulic systems. It primarily focuses on the compatibility of different thread types, ensuring that components can be easily assembled without the risk of leaks or mechanical failure. DIN 3852-1 promotes uniformity in design, which is essential for manufacturers and users alike.

DIN 3852-2: Captive Seal Stud Ends

DIN 3852-2 outlines the specifications for captive seal stud ends. These connections utilize a seal that is held in place to prevent movement during assembly. This design enhances reliability by minimizing the chances of misalignment or leakage. The standard provides detailed guidelines on dimensions and materials, ensuring that captive seal stud ends can withstand the pressures and conditions typical of hydraulic systems.

DIN 3852-3: O-ring Seal Stud Ends

This part addresses the design and performance requirements for O-ring seal stud ends, which are commonly used in hydraulic applications. O-ring seals provide an effective means of preventing fluid leakage by compressing against the mating surface. DIN 3852-3 specifies the dimensions, tolerances, and materials suitable for O-ring seals, emphasizing their role in enhancing the reliability and longevity of hydraulic systems.

DIN 3852-4: Metal-to-Metal Sealing

DIN 3852-4 focuses on metal-to-metal sealing techniques, which are critical in high-pressure applications where conventional sealing methods may not suffice. This part outlines the requirements for the design and construction of metal-to-metal seals, ensuring they can provide a reliable barrier against fluid leakage even under extreme conditions. By defining these standards, DIN 3852-4 helps manufacturers create components that are robust and capable of maintaining performance in demanding environments.

Understanding ISO 1179

A. Definition and Scope

ISO 1179 is an international standard developed by the International Organization for Standardization (ISO) that specifies requirements for threaded ports and sealing methods used in hydraulic systems. This standard aims to ensure compatibility and interoperability between components manufactured by different companies, facilitating the assembly and maintenance of hydraulic circuits. ISO 1179 encompasses various connection types, emphasizing the importance of reliable sealing solutions to prevent leaks and maintain system integrity.

B. Historical Background

The creation of ISO 1179 arose from the need for a unified standard in the hydraulic industry as global trade expanded. As hydraulic technologies advanced and systems became more complex, discrepancies between component designs posed significant risks, including potential failures and inefficiencies. Recognizing this challenge, ISO initiated the development of ISO 1179 to establish a common framework for manufacturers and users. The standard has undergone revisions over the years to reflect technological advancements, improving its relevance and applicability across diverse hydraulic applications.

ISO 1179

C. Parts of ISO 1179

ISO 1179 is divided into four main parts, each addressing specific aspects of hydraulic connections:

ISO 1179-1: Threaded Ports

ISO 1179-1 specifies the dimensions, tolerances, and performance requirements for threaded ports in hydraulic systems. This section is critical for ensuring that various components, such as hoses, pipes, and fittings, can connect seamlessly. The standard provides guidelines on thread types, including those that promote maximum sealing effectiveness, ensuring that hydraulic systems can operate under high pressure without risk of leakage.

ISO 1179-2: Captive Seal Stud Ends

ISO 1179-2 focuses on captive seal stud ends, which feature seals designed to remain in place during assembly. This design minimizes the potential for misalignment, which can lead to leaks. The standard outlines the necessary dimensions and sealing requirements, promoting uniformity across different manufacturers. Captive seals are especially beneficial in high-vibration environments, where traditional seals may fail due to movement.

ISO 1179-3: O-ring Seal Stud Ends

ISO 1179-3 specifies the requirements for O-ring seal stud ends, which utilize O-rings to create a reliable seal between components. This part of the standard details the dimensions and materials suitable for O-rings, ensuring that they can withstand the pressures and temperatures typical in hydraulic applications. O-ring seals are favored for their flexibility and ability to maintain a tight seal even when subjected to thermal expansion or contraction.

ISO 1179-4: Metal-to-Metal Sealing

ISO 1179-4 addresses metal-to-metal sealing methods, which are often employed in high-pressure applications where traditional sealing methods may not suffice. This part of the standard specifies the design and testing requirements for metal-to-metal seals, emphasizing their ability to create a leak-proof connection under extreme conditions. By providing guidelines for this robust sealing method, ISO 1179-4 enhances the reliability of hydraulic systems in demanding environments.

Key Differences Between DIN 3852 vs ISO 1179

A. Compatibility and Interchangeability

One of the primary differences between DIN 3852 and ISO 1179 is their approach to compatibility and interchangeability. DIN 3852 emphasizes strict adherence to specified dimensions and tolerances, ensuring that components designed under this standard work seamlessly together. This focus helps maintain consistent performance within hydraulic systems, minimizing the risk of leaks and failures.

In contrast, ISO 1179 promotes a broader compatibility framework among international manufacturers. This standard is designed to facilitate the integration of components from different regions, allowing for greater flexibility in sourcing parts. While both standards aim to improve system performance and reduce leakage, ISO 1179’s flexible approach can be particularly beneficial in global supply chains, where components may come from various manufacturers with differing specifications. This interchangeability allows for easier maintenance and repair, making it a preferred choice in many international applications.

B. Thread Standards (BSPP Focus)

Both DIN 3852 and ISO 1179 employ different thread standards that can significantly affect the compatibility of fittings. DIN 3852 primarily utilizes the British Standard Parallel Pipe (BSPP) thread, known for its specific characteristics in terms of pitch and diameter. This standardization ensures that connections are reliable and leak-free in high-pressure applications.

ISO 1179 also supports BSPP but provides additional options to accommodate various thread types, enhancing design flexibility. This distinction is particularly important in applications where specific thread compatibility is crucial for optimal sealing and performance. For example, ISO 1179 may include threads that are more commonly used in certain regions or industries, making it easier for manufacturers to select components that meet regional standards. Consequently, the choice of thread standard can influence the overall efficiency and reliability of hydraulic systems.

C. Sealing Methods Comparison

When comparing sealing methods, both DIN 3852 and ISO 1179 offer various options, but they differ in applications and effectiveness. DIN 3852 includes several robust sealing solutions: metal-to-metal sealing, O-ring seal stud ends, and captive seal stud ends. These options are designed to provide effective sealing in high-pressure environments, ensuring that hydraulic systems operate without leaks.

ISO 1179 also features these sealing methods but introduces variations that enhance compatibility with different fluid types and temperatures. For instance, ISO 1179’s designs may incorporate materials or geometries that allow them to withstand a wider range of fluids, making them more versatile in diverse applications. This adaptability can be crucial for industries with specific sealing requirements, such as those dealing with hydraulic fluids that are corrosive or require high thermal resistance. As a result, the choice of sealing method can greatly impact the overall performance and longevity of hydraulic systems.

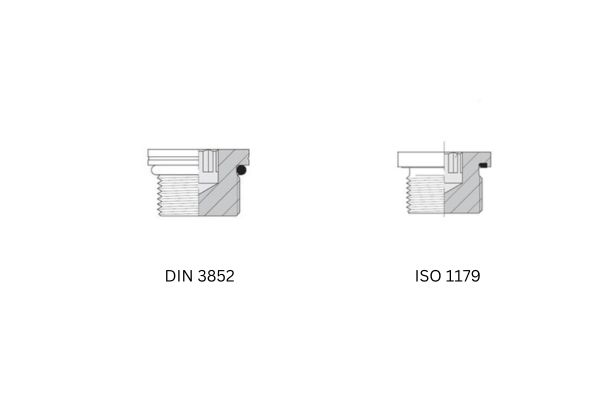

DIN 3852 vs ISO 1179 Threads

D. Applications in Hydraulic Systems

The applications of DIN 3852 and ISO 1179 standards in hydraulic systems are influenced by their design philosophies and specifications. DIN 3852 is often favored in industries where strict adherence to dimensional tolerances is critical, such as in automotive and industrial machinery. The focus on high-pressure capabilities makes it suitable for applications where safety and reliability are paramount.

ISO 1179, on the other hand, finds extensive use in global markets, particularly in situations where flexibility and interchangeability are essential. Industries such as agriculture, construction, and manufacturing frequently adopt ISO 1179 due to its ability to integrate components from various manufacturers seamlessly. This flexibility allows for easier maintenance and repair, as operators can source compatible parts without being tied to a single manufacturer.

Dimensions and Specifications

A. Detailed Dimensions for Each Standard

Understanding the precise dimensions specified by DIN 3852 and ISO 1179 is crucial for ensuring compatibility in hydraulic systems. DIN 3852 outlines detailed specifications for various components:

DIN 3852-1: Threaded Ports

Thread diameters: Typically ranges from M10 to M42.

Pitch variations: Fine and coarse threads are specified based on application requirements.

DIN 3852-2: Captive Seal Stud Ends

Dimensions include the diameter and length of the stud, which must adhere to the standard’s tolerance ranges for optimal performance.

DIN 3852-3: O-ring Seal Stud Ends

O-ring groove dimensions are specified, ensuring compatibility with standard O-ring sizes to prevent leaks.

DIN 3852-4: Metal-to-Metal Sealing

Specifies the contact surface finish and geometry to achieve effective sealing.

ISO 1179 also provides comprehensive dimensional specifications:

ISO 1179-1: Threaded Ports

Similar thread diameters are noted, but the standard also accommodates variations in pitch that may be more common in international applications.

ISO 1179-2: Captive Seal Stud Ends

Detailed specifications for stud dimensions and tolerances are provided to ensure sealing reliability.

ISO 1179-3: O-ring Seal Stud Ends

This part emphasizes groove dimensions to ensure O-rings fit securely without deformation.

ISO 1179-4: Metal-to-Metal Sealing

Similar to DIN, it outlines the critical surface finishes and sealing geometries necessary for effective sealing.

B. Impact of Dimensions on Performance

The precise dimensions defined by DIN 3852 and ISO 1179 play a pivotal role in the performance of hydraulic systems.

Sealing Effectiveness: Accurate dimensions ensure that seals fit correctly, minimizing the risk of leaks under pressure. Variations in thread size or O-ring groove dimensions can lead to improper seating, resulting in compromised sealing.

Pressure Ratings: Both standards specify dimensions that correlate with pressure ratings. Components designed according to these standards are capable of handling specified pressures without failure, directly impacting system reliability.

Interchangeability: Adherence to dimensional specifications allows for the interchangeability of components across different manufacturers. This flexibility is crucial in maintenance and repairs, as it enables the use of various brands without compatibility issues.

Installation Ease: Consistent dimensions simplify installation processes, reducing the time and labor required for assembly. This efficiency is particularly important in complex hydraulic systems, where installation precision is vital for performance.

Conclusion

Understanding and complying with these standards is critical to maintaining the integrity and performance of hydraulic systems. We encourage you to delve into DIN 3852 and ISO 1179 compliance. Familiarity with these standards not only improves the performance of hydraulic components but also contributes to the safety and operational efficiency of your application. If you have any hydraulic needs, feel free to contact Topa and we will do our best to help you!


FAQ

What is DIN 3852?

DIN 3852 is a standard that specifies requirements for threaded ports and sealing methods in hydraulic systems, ensuring compatibility and reliability.

What is ISO 1179?

ISO 1179 is an international standard that outlines specifications for threaded connections and sealing techniques in hydraulic applications, promoting global compatibility.

What are the main differences between DIN 3852 and ISO 1179?

The main differences lie in their compatibility frameworks, thread standards, and sealing methods. DIN 3852 emphasizes strict dimensions, while ISO 1179 offers broader compatibility.

Which thread standard does DIN 3852 use?

DIN 3852 primarily uses the British Standard Parallel Pipe (BSPP) thread for its specifications.

Can components from DIN 3852 and ISO 1179 be used interchangeably?

While some components may be compatible, it’s essential to verify specific dimensions and tolerances, as they may not always fit perfectly.

Why is it important to follow these standards?

Adhering to these standards ensures reliable, leak-free performance in hydraulic systems, reducing the risk of failures and improving overall efficiency.
