Industrial fluid systems rely on hoses to transport liquids and gases under varying conditions. Without proper reinforcement, hoses are vulnerable to failure, leading to safety risks. Reinforcement adds strength, ensuring hoses can withstand high pressure, flexing, and environmental stresses. Whether used in hydraulic, pneumatic, or chemical systems, reinforced hoses are essential for safety and operational efficiency.

Understanding Industrial Hose Reinforcement: The Basics

What is Industrial Hose Reinforcement?

Industrial hose reinforcement refers to the process of adding extra layers or materials to a hose to enhance its strength, flexibility, and durability. This reinforcement helps the hose withstand high-pressure conditions, environmental wear, and potential damage from chemicals or physical stress. Essentially, reinforcement is the backbone of a hose’s ability to handle the demanding requirements of industrial fluid systems without compromising safety or performance.

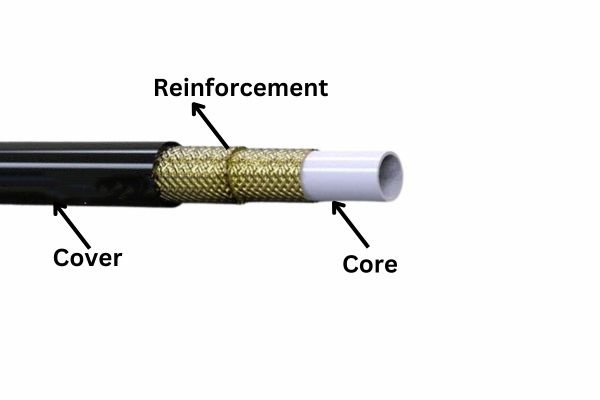

Reinforced hoses are typically constructed with multiple layers:

Inner liner: The inner layer that comes into direct contact with the fluid being transported, often made from materials that resist the specific fluid.

Reinforcement layer: The middle layer that provides the hose’s strength, typically made from braided steel, spiral-wound wire, or synthetic fibers.

Outer cover: The outermost layer designed to protect the hose from external damage like abrasion, UV exposure, or environmental chemicals.

This combination of layers ensures that the hose can withstand the stresses placed on it in various industrial environments.

Key Benefits of Hose Reinforcement for Safety and Durability

Increased Pressure Resistance: Reinforced hoses are capable of handling high-pressure fluids without bursting or rupturing. This is crucial in hydraulic and pneumatic systems, where pressure spikes are common. Reinforcement ensures the hose remains intact, minimizing the risk of system failures or accidents.

Extended Lifespan: By adding an additional layer of protection, reinforced hoses last longer than non-reinforced hoses. They are less susceptible to physical damage, chemical corrosion, and wear and tear, which reduces the need for frequent replacements and maintenance, and lowers overall operational costs.

Improved Flexibility and Handling: Reinforced hoses are designed to maintain flexibility without compromising strength. This is essential in systems where hoses need to bend or flex around tight corners, such as in machinery or equipment with limited space. Reinforcement ensures the hose can handle these movements without cracking or kinking.

Enhanced Safety: The risk of hose failure can lead to serious safety hazards, such as fluid spills, burns, or chemical exposure. Reinforced hoses prevent these issues by providing extra durability, reducing the likelihood of leaks or ruptures. This protection helps avoid accidents in high-risk environments, ensuring worker safety.

Resistance to Environmental Factors: Whether it’s extreme temperatures, UV rays, or exposure to chemicals, reinforced hoses are built to handle the toughest conditions. The added layers protect the hose from external damage, reducing the chances of hose degradation and ensuring that the system runs smoothly.

Common Materials Used in Hose Reinforcement

Steel Wire: Steel wire is one of the most common materials used for hose reinforcement, offering excellent strength and pressure resistance. Steel wire is typically used in braided or spiral-reinforced hoses and is particularly effective for high-pressure applications in hydraulic systems.

Synthetic Fibers: Materials like polyester, aramid, and nylon are frequently used for hose reinforcement. These fibers are lightweight, flexible, and resistant to abrasion, making them ideal for applications where flexibility is important, such as in the automotive or aerospace industries. They also offer good chemical resistance.

Spiral-Wound Wire: This type of reinforcement involves winding steel wire around the hose in a spiral pattern. It provides high-pressure resistance and is more flexible than braided wire. Spiral reinforcement is often used in hoses that need to handle aggressive pressure variations or abrasive environments.

Rubber and Thermoplastics: While rubber hoses are often used for their flexibility, they can be reinforced with synthetic fibers or steel to increase their strength and durability. Thermoplastic hoses offer similar benefits and are often used when chemical resistance is a priority.

Polyamide and Polypropylene: These materials are commonly used for hoses that need to resist extreme temperatures and chemicals. They offer excellent abrasion resistance, making them ideal for industrial applications where external damage is a concern.

Key Factors to Consider When Choosing Hose Reinforcement

Hose Material and Its Impact on Reinforcement

The material of the hose itself plays a crucial role in determining the type of reinforcement needed. Different hose materials are suited for different applications, and selecting the right one is essential for ensuring optimal performance and safety.

Rubber Hoses: Rubber is a flexible material commonly used for hoses in low to medium-pressure applications. Reinforcement is typically required for rubber hoses to enhance their strength and prevent rupture under high pressure.

Thermoplastic Hoses: Thermoplastics offer flexibility, chemical resistance, and excellent pressure ratings, making them suitable for a wide range of industries. The type of reinforcement needed for thermoplastic hoses depends on the system’s pressure and environmental conditions.

Metal Hoses: Often used in high-pressure and high-temperature environments, metal hoses are reinforced by stainless steel or other metal wires. These hoses require less reinforcement for durability but still need support against abrasion and flexibility issues.

The compatibility of the reinforcement material with the hose material will ensure optimal performance. For example, synthetic fibers may be used for thermoplastic hoses, while braided steel wire is a better match for rubber hoses in high-pressure applications.

The Role of Temperature and Chemical Resistance in Reinforcement Choices

Temperature and chemical resistance are two of the most important factors in choosing hose reinforcement, particularly in industries such as oil and gas, chemicals, and food processing.

Temperature Resistance:

High-Temperature Environments: Hoses exposed to extreme temperatures—either very hot or cold—require reinforcement materials that can withstand thermal expansion, contraction, and degradation. Steel wire reinforcement offers superior heat resistance, while thermoplastic materials can provide a balance of flexibility and heat resistance in moderate-temperature applications.

Low-Temperature Environments: Reinforced hoses used in cold environments must retain flexibility and prevent cracking or brittleness. Materials like braided stainless steel or certain synthetic fibers can maintain hose integrity even at low temperatures.

Chemical Resistance: Hoses in industries that transport aggressive chemicals or fluids need reinforcement materials that resist chemical corrosion. Steel wire and certain thermoplastic reinforcements are excellent for preventing degradation caused by exposure to oils, acids, and other chemicals. Rubber-based reinforcements, however, might be more prone to chemical breakdown, making them unsuitable for some high-risk environments.

Choosing the right combination of hose material and reinforcement based on temperature and chemical exposure can significantly extend hose life and ensure safety in demanding applications.

Environmental Conditions: Abrasion, UV, and Weather Resistance

The environmental factors surrounding industrial hose applications—such as abrasion, UV exposure, and weather conditions—also play a critical role in selecting the appropriate hose reinforcement.

Abrasion Resistance: Hoses used in environments with rough surfaces, sharp objects, or heavy movement require robust reinforcement that can resist external wear. Steel wire or braided synthetic fiber reinforcements are ideal for situations where abrasion is a concern, as they can withstand physical damage over long periods.

UV Resistance: Hoses exposed to prolonged sunlight or UV radiation require reinforcement materials that won’t degrade or become brittle over time. UV-resistant coatings or materials such as PVC or certain synthetic fibers are commonly used to prevent UV degradation. Steel wire reinforcement is also UV-resistant to a degree but can be susceptible to rust if exposed to moisture.

Weather Resistance: Reinforced hoses used outdoors must be able to withstand varying weather conditions, including rain, snow, and extreme temperatures. Reinforcement materials like steel wire and synthetic fibers are often chosen for their ability to maintain strength and flexibility in unpredictable weather. Rubber hoses, while durable, may need additional protection against environmental wear, especially in outdoor settings.

Hose Strength and Durability: Reinforcement for Long-Term Safety

The Relationship Between Hose Strength and Reinforcement Type

The strength and durability of an industrial hose are heavily influenced by the type and amount of reinforcement used. Reinforcement is primarily designed to enhance a hose’s ability to withstand pressure, environmental stress, and physical wear. The key relationship between hose strength and reinforcement type lies in how the materials used contribute to its structural integrity.

Braided Steel Wire: For high-strength applications, braided steel wire reinforcement offers exceptional tensile strength, making it ideal for hoses subjected to high-pressure conditions. The more layers of wire, the higher the pressure rating and strength.

Spiral Reinforcement: This reinforcement method involves layers of wire wound in a spiral fashion around the hose. It offers improved flexibility compared to braided steel, while still providing high pressure resistance, making it ideal for dynamic applications like hydraulics.

Synthetic Fiber Reinforcement: Synthetic fibers, such as nylon or polyester, are lightweight yet strong and add flexibility to the hose. While not as strong as steel reinforcement, fiber-reinforced hoses provide adequate pressure resistance and are suitable for medium to low-pressure applications.

The correct combination of material, reinforcement type, and application determines how well the hose performs under pressure and in demanding conditions.

How Reinforced Hoses Extend Lifespan and Prevent Failure

One of the primary benefits of hose reinforcement is its ability to extend the hose’s lifespan and reduce the likelihood of failure. Unreinforced hoses are more likely to degrade quickly due to external factors like abrasion, exposure to UV rays, temperature fluctuations, and chemical exposure. Proper reinforcement addresses these issues by:

Improving Pressure Resistance: Reinforced hoses are designed to handle the internal pressure generated by fluids, reducing the risk of bursts and leaks. This is critical for maintaining system safety, as sudden hose failures can cause serious accidents, equipment damage, and production downtime.

Increasing Fatigue Resistance: Industrial hoses often experience repeated flexing or bending, leading to fatigue over time. Reinforced hoses, particularly those with spiral wire or synthetic fiber reinforcement, are designed to flex without losing their integrity. This flexibility helps prevent cracks or breaks that can result from repeated movement or vibration.

Reducing Abrasion and Wear: The added reinforcement layer creates a protective barrier that helps the hose resist external wear and tear. For instance, steel wire and synthetic fibers provide abrasion resistance, ensuring the hose maintains its structural integrity even in rugged environments or where hoses are exposed to harsh surfaces.

By preventing common causes of failure, reinforced hoses perform longer, saving businesses on costly repairs and downtime.

The Impact of Reinforcement on Wear Resistance and Fatigue

Reinforcement plays a crucial role in a hose’s ability to withstand both wear resistance and fatigue — two of the most common factors contributing to hose failure.

Wear Resistance: The outer layers of reinforcement, such as steel wire or abrasion-resistant synthetic fibers, protect the hose from external damage like abrasion, cuts, and scrapes. In applications where hoses are exposed to rough surfaces, frequent bending, or contact with harsh materials, reinforcement reduces the risk of damage, ensuring that the hose can withstand wear over time.

Fatigue Resistance: Over time, hoses experience repetitive bending and flexing, which can weaken their material structure and lead to fatigue failure. Reinforced hoses are specifically designed to endure repeated flexing without cracking or losing their strength. This makes them ideal for dynamic systems where hoses are subject to constant movement, such as in robotic arms, mobile machinery, or equipment with moving parts.

Preventing Hose Failures: How Reinforcement Plays a Role

Common Causes of Hose Failures in Industrial Systems

Hose failures in industrial systems can result in costly downtime, safety hazards, and environmental damage. Understanding the root causes of these failures is crucial for selecting the right reinforcement and minimizing risks. Common causes include:

Excessive Pressure: Hoses subjected to pressures beyond their rated limits are at risk of bursting or splitting, especially if they lack sufficient reinforcement.

Abrasion: Continuous movement or contact with rough surfaces can wear down the outer layer of the hose, leading to leaks or ruptures, particularly in unreinforced or poorly reinforced hoses.

Chemical Degradation: Exposure to harsh chemicals can degrade hose material, weakening its structural integrity. Without the proper reinforcement, this can lead to leaks or failures in chemical transfer systems.

Temperature Extremes: Extreme heat or cold can cause hoses to become brittle, crack, or warp. Reinforced hoses with materials designed for high or low temperatures are better equipped to withstand these conditions.

Flex Fatigue: Frequent bending and flexing of hoses can cause them to weaken or crack, especially when they are not properly reinforced. This is common in dynamic systems like hydraulics or pneumatic controls.

By addressing these common causes with the appropriate reinforcement materials, many hose failures can be prevented.

How Reinforcement Minimizes the Risk of Burst and Leaks

The primary role of hose reinforcement is to increase a hose’s ability to withstand internal pressure, environmental factors, and physical stress. Here’s how different reinforcement methods help prevent hose failures:

Pressure Resistance: Reinforcement, particularly with steel wire or braided materials, enhances a hose’s resistance to high-pressure environments, preventing it from bursting under sudden pressure spikes or extreme fluid flow.

Abrasion Resistance: Reinforced hoses, especially those with steel or synthetic fiber layers, are more resistant to wear from abrasion. The added layers protect the inner lining of the hose, preventing leaks that might occur due to external damage.

Chemical Resistance: Hoses with appropriate reinforcement materials can handle exposure to chemicals without degrading. Fiber-reinforced and metal-reinforced hoses can be treated or coated for additional chemical resistance, reducing the risk of leaks in corrosive environments.

By providing added strength and flexibility, reinforced hoses minimize the risk of both bursting and leaks, ensuring that the fluid system operates safely and efficiently.

The Importance of Regular Maintenance and Inspection for Reinforced Hoses

While reinforcement significantly improves industrial hose durability, it’s essential to regularly inspect and maintain reinforced hoses to ensure they continue to perform at their best. Regular maintenance helps identify early signs of wear, damage, or weakness before they lead to failure. Key steps include:

Visual Inspections: Check for signs of abrasion, cracks, bulges, or any visible damage to the hose. Even reinforced hoses can degrade over time, and early detection can prevent accidents.

Pressure Testing: Periodically testing hoses under operational conditions helps verify that they can still handle the required pressure. This is especially important for high-pressure hoses, where even small damage can lead to catastrophic failure.

Chemical Compatibility Checks: Ensure that the hose material and reinforcement are still compatible with the chemicals being transported. Chemical exposure can degrade reinforcement materials over time, making regular checks essential.

Flex and Bend Testing: Inspect hoses for signs of flex fatigue, especially in dynamic applications. Reinforced hoses can still fail if they are repeatedly bent or twisted beyond their limits.

Conclusion

Hose reinforcement plays a critical role in ensuring the safety and longevity of industrial fluid systems. By selecting the right reinforcement materials based on the unique demands of the application industries can prevent failures and enhance performance.
