What are Hydraulic Bulkhead Fittings?

What are Hydraulic Bulkhead Fittings?

Introduction

Hydraulic systems play a pivotal role in many industries, including manufacturing, construction and automotive, because they efficiently transfer power through a controlled circulation of pressurized fluid. In these systems, hydraulic bulkhead fittings are important components that help hydraulic lines pass through panels or walls for a seamless connection, ensuring leak-proof and safe passage of hydraulic fluids.

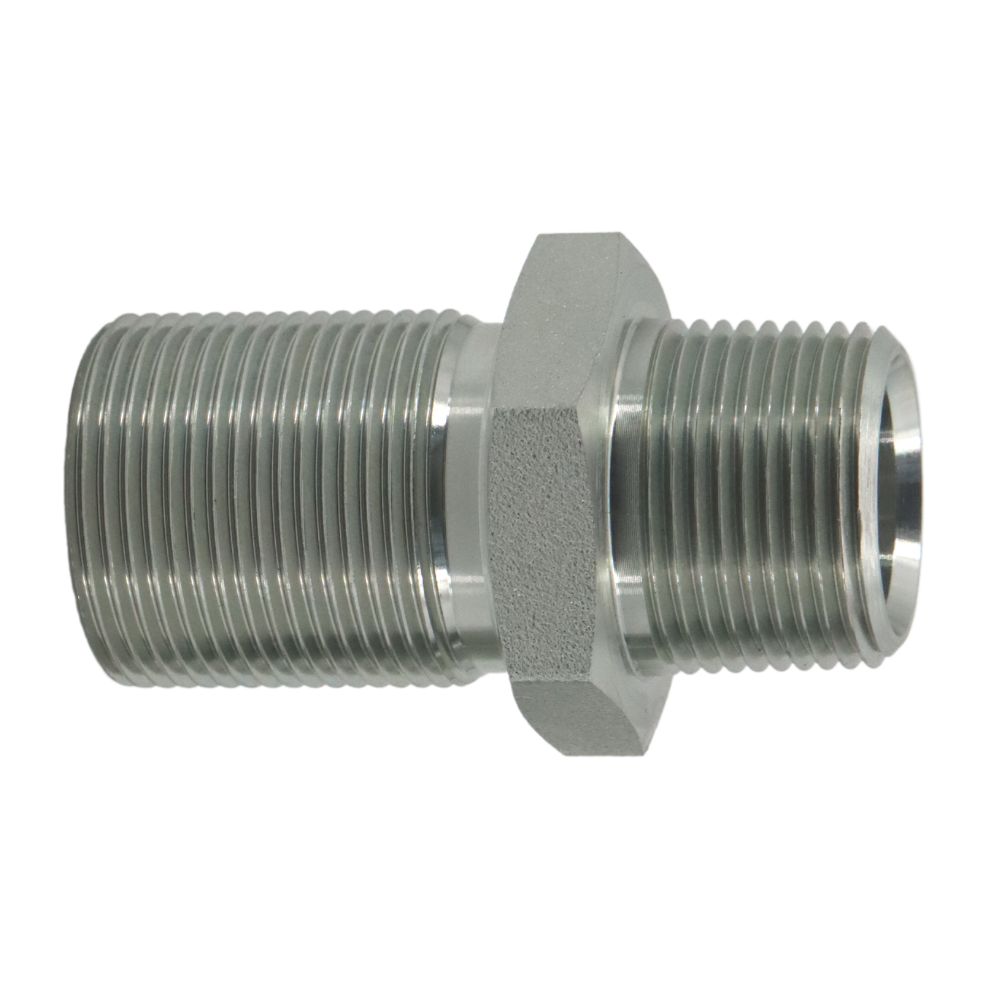

Understanding Hydraulic Bulkhead Fittings

Origins in Naval Engineering

Historical Context: The inception of hydraulic bulkhead fittings can be traced back to naval engineering, where the challenge was to maintain the integrity of a ship’s hull while still accommodating the necessary passage of hydraulic lines. This critical requirement led to the development of fittings that could ensure a watertight seal, preventing water ingress that could jeopardize the vessel’s buoyancy and safety.

Evolution: Over time, the principles behind these naval fittings were adapted and refined for use in various applications beyond the marine environment. This evolution was driven by the universal need for secure fluid transfer in controlled environments, leading to the widespread adoption of these fittings in numerous industries.

Design and Features

Locking Mechanism: A distinctive feature of hydraulic bulkhead fittings is their locking mechanism. This design ensures that once the fitting is in place, it remains securely fastened, preventing accidental dislodgement that could lead to leaks or system failure.

Seals: Integral to the design are the seals that accompany these fittings. Made from materials compatible with a wide range of hydraulic fluids, these seals ensure a tight connection, preventing fluid leakage that could compromise the system’s efficiency or safety.

Material Construction: The materials used in the construction of hydraulic bulkhead fittings are chosen for their durability and resistance to corrosion. Stainless steel is commonly used for its strength and resistance to environmental factors, making it suitable for applications in harsh or corrosive environments.

Types of Hydraulic Bulkhead Fittings

Hydraulic bulkhead fittings, essential for the efficient operation of hydraulic systems, come in various types. These types can be broadly classified by thread and by appearance, each with its unique characteristics and applications.

Classification by Thread

NPT (National Pipe Tapered) Thread: NPT threads are one of the most commonly used types in the United States. The taper on the threads creates a seal as they are tightened, making them ideal for applications requiring a secure connection without the need for additional sealing methods. NPT threads are widely used in various hydraulic systems due to their reliability and ease of installation.

BSPP (British Standard Pipe Parallel) Thread: Unlike NPT threads, BSPP threads are parallel and require a bonded seal or washer to ensure a leak-free connection. They are commonly used in applications where a straight thread is needed for the connection of hydraulic components. BSPP threads are prevalent in European and Asian markets and are recognized for their effectiveness in high-pressure systems.

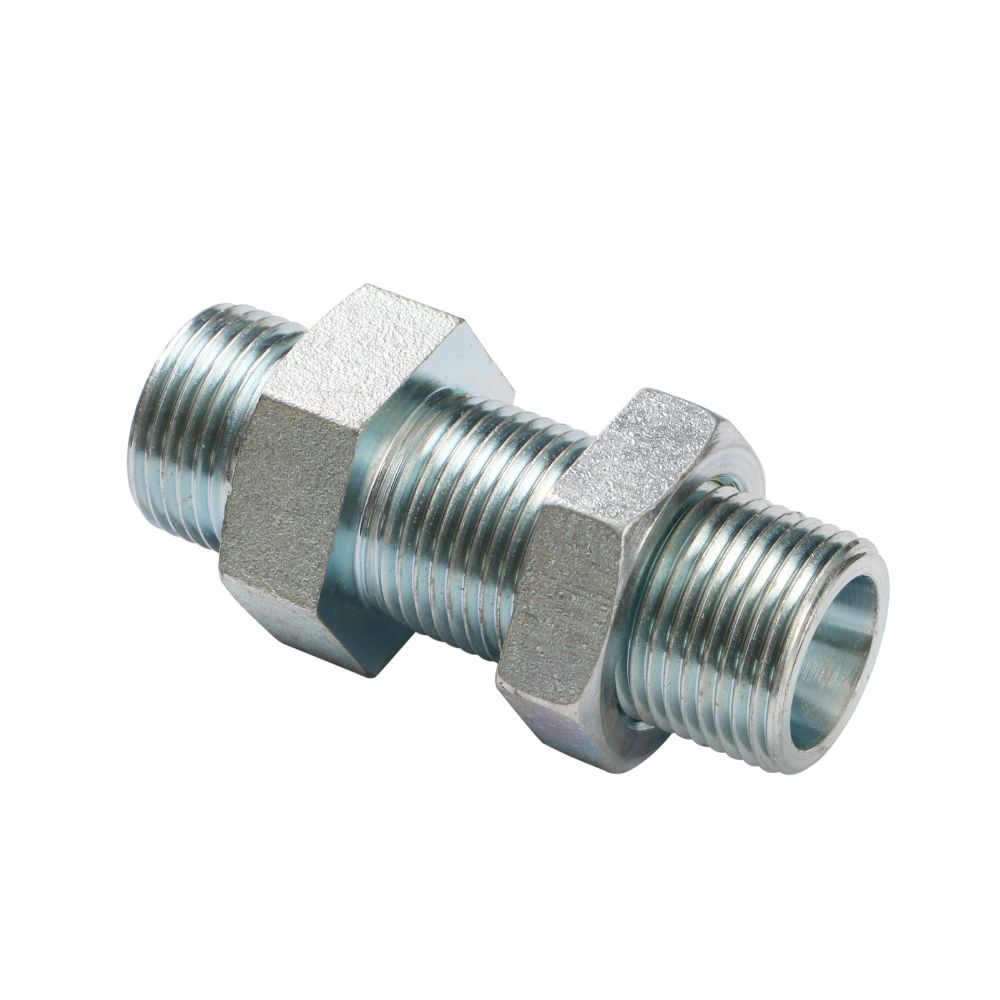

Metric Threads: Metric threads are designed based on international standards and are used extensively in hydraulic systems worldwide. These threads are specified by their diameter and pitch in millimeters, making them easily adaptable to various applications. Metric threads are known for their precision and are often used in applications requiring exacting standards.

Classification by Appearance

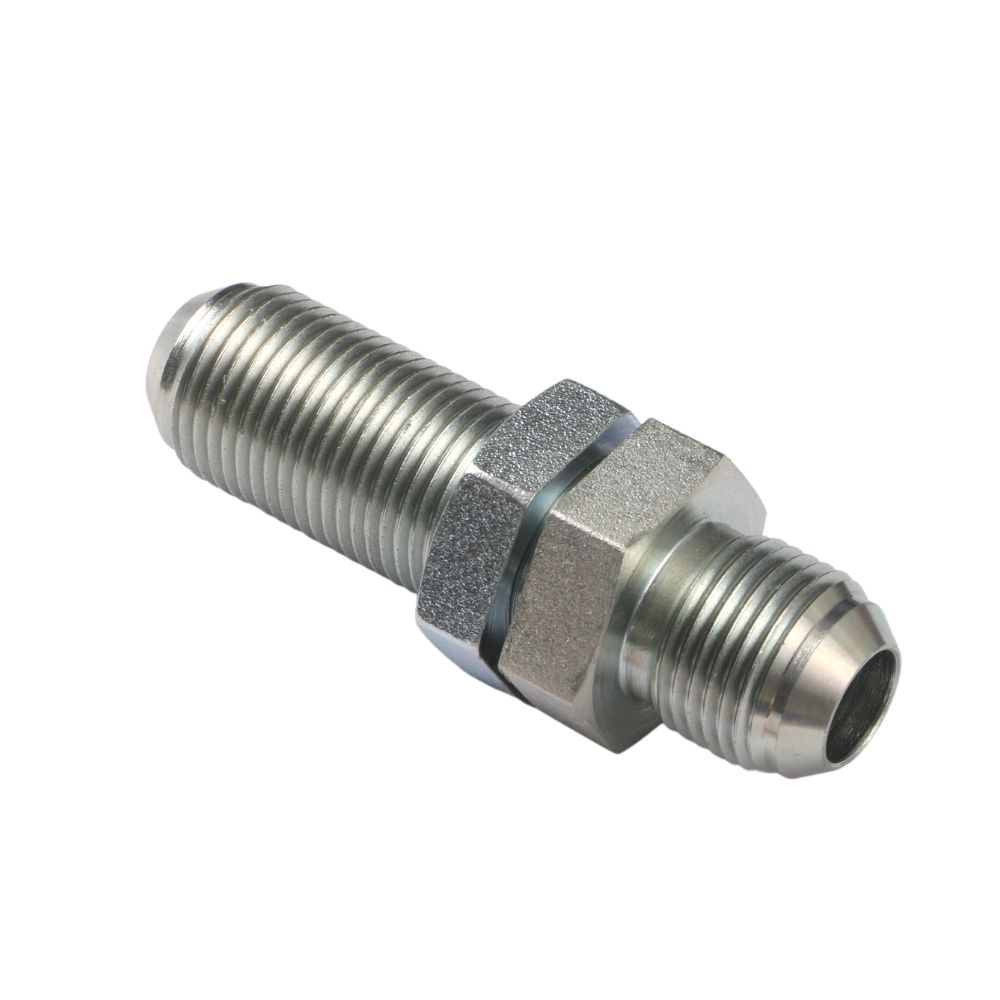

Straight Bulkhead Fittings: These fittings provide a direct, straight-through connection and are used when the hydraulic line passes straight through a panel or wall. Their simple design facilitates easy installation and maintenance, making them a popular choice for various applications.

Elbow Bulkhead Fittings: Designed to change the direction of the hydraulic line, elbow bulkhead fittings are essential in applications where space constraints require the line to bend at a specific angle. Available in different degrees of bend, they offer flexibility in system design and layout.

Tee Bulkhead Fittings: Tee bulkhead fittings are used to split a hydraulic line into two directions, allowing for the branching of fluid flow within the system. This type of fitting is crucial in applications where a single fluid source needs to be distributed to multiple points.

Cross Bulkhead Fittings: Similar to tee fittings but with an additional fourth port, cross bulkhead fittings are used to connect four separate lines within a hydraulic system. They are ideal for applications requiring complex routing and distribution of hydraulic fluid.

Applications of Hydraulic Bulkhead Fittings

Hydraulic bulkhead fittings are versatile components used across a wide array of industries, reflecting their importance in modern engineering and manufacturing. Their applications span various fields, from aerospace to construction and manufacturing, highlighting their role in enhancing system efficiency and safety.

Aerospace

In aerospace, hydraulic bulkhead fittings are integral to flight control systems. They ensure the reliable transmission of hydraulic fluids under high-pressure conditions, essential for the operation of landing gear, flaps, and other critical control surfaces. Their ability to maintain integrity under severe conditions contributes to flight safety and performance.

Construction Equipment

The construction industry relies heavily on hydraulic systems for the operation of equipment such as excavators, bulldozers, and cranes. Hydraulic bulkhead fittings in these applications provide the robust connections needed for the hydraulic lines that power these machines, enabling precise control and movement. The durability and reliability of these fittings are crucial in construction environments, where equipment is subject to heavy loads and constant wear.

Manufacturing Machinery

In manufacturing, hydraulic bulkhead fittings are used in machinery involved in processes such as injection molding, metal forming, and assembly. These fittings ensure the efficient and uninterrupted flow of hydraulic fluids, necessary for the precision and speed required in manufacturing operations. Their application in manufacturing machinery contributes to productivity and the quality of finished products.

Installation and Maintenance

Installation Process

install Hydraulic Bulkhead Fittings
  • Preparation: Before installing a hydraulic bulkhead fitting, it’s essential to determine the precise location where the fitting will be installed. This involves selecting a spot on the bulkhead (or panel) that allows for optimal routing of hydraulic lines while avoiding any interference with other components.
  • Drilling a Hole: Once the location is marked, the next step is to drill a hole in the bulkhead. The diameter of the hole must match the size of the bulkhead fitting to ensure a snug fit. It’s crucial to use the appropriate drill bit size and to drill the hole perpendicular to the surface to avoid misalignment.
  • Inserting the Fitting: After drilling the hole, clean any debris from the area and insert the bulkhead fitting through the hole. On the side where the hydraulic line exits, ensure that the fitting’s O-ring or seal is properly seated to prevent leaks.
  • Securing the Fitting: On the opposite side of the bulkhead, place the locknut onto the threaded portion of the fitting and tighten it. It’s important to secure the locknut firmly to ensure the fitting is securely anchored, but avoid over-tightening, which could damage the bulkhead or the fitting’s threads.
  • Connecting Hydraulic Lines: Finally, connect the hydraulic lines to the fitting, ensuring that all connections are tight and secure. Use the appropriate tools to tighten the connections and prevent leaks.

Maintenance Guidelines

  • Regular Inspections: Perform regular inspections of hydraulic bulkhead fittings for signs of wear, corrosion, or damage. Look for leaks, which could indicate that a seal is failing or that the fitting needs tightening.
  • Proper Tightening: Check the tightness of the fittings periodically. Over time, vibrations and temperature changes can cause fittings to loosen, leading to leaks. However, be cautious not to over-tighten, as this can strip threads or damage the fittings.
  • Seal Replacements: Inspect the seals or O-rings for any signs of deterioration, such as cracks or brittleness. Replace the seals as needed to maintain a leak-proof connection. Always use seals that are compatible with the hydraulic fluid used in your system.

Choosing the Right Hydraulic Bulkhead Fitting

Selecting the correct hydraulic bulkhead fitting is a critical decision that significantly impacts the efficiency, safety, and reliability of hydraulic systems. Here are essential factors to consider:

Understanding Application Requirements

Pressure Requirements: Assess the maximum pressure the hydraulic system will operate under. This will determine the required strength and durability of the bulkhead fitting to prevent failure under pressure.

Fluid Type: The type of hydraulic fluid used can affect the compatibility with the fitting materials. Certain fluids may require fittings made from specific materials to prevent chemical degradation.

Environmental Conditions: Consider the environment in which the system will operate. Conditions such as temperature, exposure to corrosive substances, or the presence of UV light can influence the choice of fitting material.

Material Selection

Steel Fittings: Ideal for most industrial applications due to their strength and durability. Steel fittings are suitable for high-pressure environments but may require protective coatings to resist corrosion.

Stainless Steel Fittings: Best for corrosive environments, such as marine applications or chemical processing. Stainless steel offers excellent corrosion resistance and is suitable for use with a wide range of fluids.

Brass Fittings: Commonly used in applications where corrosion resistance is needed but not to the extent required for stainless steel. Brass fittings are suitable for lower pressure systems and are often used in water and air systems.

Plastic Fittings: Appropriate for lightweight, low-pressure applications, or when corrosion is a concern. Plastic fittings are compatible with a wide variety of fluids and offer excellent resistance to corrosion.

Manufacturer Reputation

Quality Assurance: Choose fittings from reputable manufacturers known for their quality control and product reliability. High-quality fittings reduce the risk of system failures and downtime.

Certifications: Look for products that meet industry standards and certifications, such as ISO standards, which can serve as a benchmark for quality and reliability.

Do I need to use sealant on the bulkhead fittings?

The necessity of using a sealant on hydraulic bulkhead fittings depends on the type of fitting, its application, and the system’s design. Many hydraulic bulkhead fittings are designed to form a tight seal without the need for additional sealants, especially those that incorporate O-rings or other types of seals. These built-in seals are often sufficient to prevent leaks and ensure the integrity of the hydraulic system.

Bulkhead Fittings vs Boss Fittings

Bulkhead fittings are designed to facilitate the passage of fluids through a barrier, such as a tank wall or enclosure panel. These fittings are essential for creating a secure and leak-proof connection that allows tubes or hoses to pass through while maintaining the integrity of the barrier. Bulkhead fittings typically consist of a body that spans through the barrier, with a locknut on one side to secure the fitting in place, and a connector (such as a hose barb, threaded port, or tube fitting) on either side to connect the hydraulic lines.

Key Features:

Designed to pass through barriers while maintaining a leak-proof seal.

Equipped with securing mechanisms like locknuts to ensure stability.

Often used in applications requiring fluid transport between separate chambers.

Boss fittings, on the other hand, refer to a type of connection where a protruding part of one component is designed to fit into a recessed part of another component, creating a secure connection. In the context of hydraulics, a boss fitting might refer to threaded connections where a male-threaded part (the boss) screws into a female-threaded part to form a sealed connection. These fittings are used in various applications, including where hydraulic lines connect to hydraulic cylinders, pumps, valves, or other components.

Key Features:

Utilize male or female threaded connections for assembly.

Provide a strong and secure connection between hydraulic components.

Suitable for applications involving direct connections without the need for passing through a barrier.

Comparison

Application: Bulkhead fittings are specifically designed for passing through barriers and securing hydraulic lines in such scenarios, while boss fittings are used for direct connections between components within the hydraulic system.

Design: Bulkhead fittings are characterized by their ability to secure to a panel or wall and include features for sealing against leaks through barriers. Boss fittings, however, are more about the threaded connection between components and may include various designs for different pressure ratings and applications.

Usage: The choice between bulkhead and boss fittings depends on the specific requirements of the hydraulic system, including whether the connection needs to pass through a barrier or is simply between components.

Conclusion

In conclusion, hydraulic bulkhead fittings are more than just components; they are the lifeline of hydraulic systems, ensuring that operations run smoothly and efficiently. By giving due attention to their selection, installation, and maintenance, industries can ensure the long-term success and reliability of their hydraulic systems, securing the numerous benefits these systems have to offer.
