In industries like oil and gas, chemicals, and power generation, ball valves serve as a lifeline to prevent potentially disastrous accidents. So, why exactly are these valves irreplaceable in hazardous locations?

What Makes a Location Hazardous?

Defining Hazardous Locations: Explosion, Fire, and Chemical Risks

Explosion Hazards: Locations, where flammable gases, vapors, or dust are present in high concentrations, pose a serious risk of explosion. These locations are classified based on the likelihood of an explosive atmosphere occurring. Key examples include oil and gas refineries, chemical manufacturing plants, and grain elevators.

Fire Hazards: Areas where combustible materials, high temperatures, or open flames could cause ignition also fall under hazardous locations. Industries such as petrochemical processing or pharmaceutical production often face these risks.

Chemical Hazards: Hazardous locations may also involve environments with harmful or corrosive chemicals, where the use of specific valve materials and designs is necessary to avoid leaks or contamination. These locations often require valves made from materials resistant to both the chemicals they handle and any external ignition sources.

The Importance of Compliance with Safety Standards

ATEX Certification: The ATEX directive (European Union) ensures that equipment used in explosive atmospheres is safe to prevent ignition. ATEX-compliant ball valves are specifically designed to meet stringent safety regulations, making them indispensable in industries where explosive gases or dust are present.

NFPA Standards: The National Fire Protection Association (NFPA) sets safety standards for hazardous locations in the U.S. NFPA-rated valves are designed to minimize fire risks by preventing heat buildup, leakage, and spark generation.

UL Listings: Underwriters Laboratories (UL) certifies equipment used in hazardous locations for its safety performance. UL-rated ball valves assure that the valves meet or exceed specific safety criteria, such as preventing electrical sparks or isolating dangerous gases in industrial applications.

Environmental Factors That Influence Valve Design

Temperature Extremes: In hazardous locations, ball valves must operate in environments with extreme heat or cold. Materials such as stainless steel, carbon steel, or specialized alloys are used to ensure that the valve can handle temperature fluctuations without degrading or malfunctioning.

Pressure Fluctuations: High-pressure environments, such as deep-sea oil drilling or high-pressure gas pipelines, require valves that can withstand significant pressure without risking failure. Valve bodies and seals must be reinforced to handle the added stress.

Corrosive Environments: Exposure to harsh chemicals or corrosive substances can compromise the integrity of standard ball valves. In these settings, corrosion-resistant materials like brass, bronze, or plastic-lined valves are often used to ensure the valve’s longevity and safe operation.

Dust and Particle Risks: In certain hazardous locations, such as grain storage or mining sites, fine particles or dust in the air can increase the risk of ignition. Valve designs in these environments often include additional sealing and dust-proof features to prevent particles from coming into contact with ignition sources.

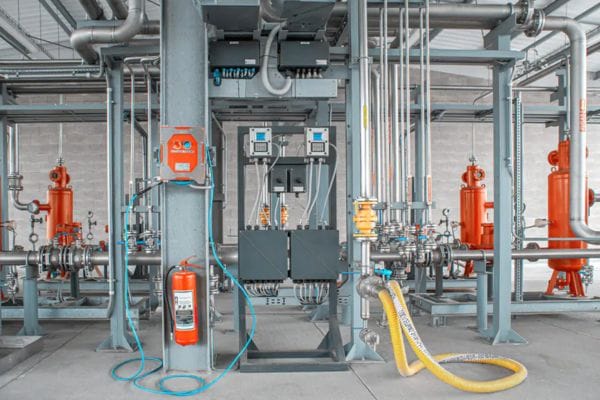

Explosion-Proof Ball Valves: How They Keep You Safe

What Makes a Ball Valve Explosion-Proof?

Design Features: Explosion-proof ball valves are engineered to prevent the ignition of flammable gases, vapors, or dust that may come into contact with the valve. Key features include:

Sealed Construction: These valves are constructed with tight seals to avoid leaks of potentially explosive materials.

No Sparks: Materials used in explosion-proof valves are chosen for their ability to resist spark formation, even under high pressure or when undergoing mechanical stress.

Specialized Actuators: Actuators used in explosion-proof valves are designed to prevent sparks and reduce the risk of ignition when the valve is operated.

Pressure and Temperature Resistance: Explosion-proof ball valves are built to withstand high-pressure and high-temperature environments, making them more robust in hazardous locations.

The Role of Flameproof and Explosion-Safe Valve Designs

Flameproof Designs: Flameproof valves are built with robust enclosures that contain any potential explosion and prevent the flame from escaping. This is critical in environments where flammable substances are handled, as the valve must ensure that a potential ignition source doesn’t lead to a disaster.

Explosion-Safe Valve Designs: These valves are designed to prevent internal explosions from causing external hazards. If an explosion occurs within the valve, the design ensures that it doesn’t spread to the surrounding environment, preventing further damage or ignition of nearby gases or vapors.

Gas-tight Seals: Explosion-safe valves feature seals that ensure the internal pressure doesn’t escape, reducing the risk of an explosion triggering further hazards in the surrounding area.

ATEX Certification and Its Significance for Hazardous Location Valves

ATEX Certification Overview: ATEX (Atmosphères Explosibles) is a European Union directive that sets the requirements for equipment used in explosive atmospheres. Ball valves for hazardous locations must be ATEX-certified to ensure they meet safety standards for preventing ignition in explosive environments.

Category 1 vs. Category 2: ATEX classifies equipment into different categories based on the risk of exposure to explosive atmospheres. Category 1 equipment is designed for use in zones with a constant risk of explosion, while Category 2 is for areas where explosive atmospheres may occur occasionally. Explosion-proof ball valves must meet these specific classifications.

Risk Assessment and Compliance: ATEX certification involves rigorous testing, including spark testing, temperature control, and the evaluation of the material’s durability under harsh environmental conditions. Only valves that pass these tests are approved for use in hazardous zones.

Fire-Resistant and Flameproof Ball Valves: Key Adaptations Explained

Fire-Resistant Valve Materials and Design Features

Materials for Fire-Resistant Valves: Fire-resistant ball valves are made from materials that can withstand high temperatures without degrading or losing functionality. Common materials include:

Stainless Steel: Known for its durability and heat resistance, stainless steel is commonly used for fire-resistant valve bodies and components.

Special Alloys: Alloys like Inconel or Hastelloy, which offer superior performance at elevated temperatures, are often used for valve components exposed to extreme heat.

Fireproof Coatings: Many fire-resistant valves are coated with materials that further enhance their ability to resist high temperatures and reduce the risk of ignition.

Design Features:

Thermal Insulation: Some fire-resistant valves are equipped with thermal insulation that helps reduce the transfer of heat to sensitive components, preventing damage during a fire.

High-Temperature Seals: Seals made from fire-resistant elastomers or PTFE (Polytetrafluoroethylene) ensure tight closures and prevent leakage under high-temperature conditions.

Fireproof Actuators: The actuator mechanism of a fire-resistant ball valve is built to withstand heat, ensuring the valve remains operational during and after a fire.

The Difference Between Fire-Resistant and Flameproof Valves

Fire-Resistant Valves: These valves are designed to resist the effects of fire by maintaining their integrity and function during a fire. They are engineered to withstand exposure to high temperatures for a specified duration, typically to prevent failure in the event of a localized fire in a hazardous area. However, they may not necessarily contain an explosion if one occurs.

Applications: Fire-resistant valves are often used in environments where high temperatures are expected, but the risk of explosion is minimal.

Flameproof Valves: Flameproof valves, on the other hand, are specifically built to contain and prevent the spread of flames in explosive environments. These valves are constructed in such a way that any internal ignition or spark is contained within the valve casing, thus preventing the ignition of flammable gases or vapors in the surrounding environment.

Applications: Flameproof valves are commonly used in areas with higher risks of explosion, such as oil refineries, gas stations, and chemical processing plants.

How Flameproof Valves Meet Safety Standards in Hazardous Environments

Compliance with ATEX and NFPA Standards: Flameproof ball valves are designed to meet international safety standards like ATEX (for Europe) and NFPA (for the U.S.). These standards dictate the specific requirements for equipment used in explosive atmospheres, ensuring that flameproof valves can contain any potential explosions without igniting surrounding hazardous materials.

ATEX Certification: The ATEX certification ensures that the valve is safe for use in explosive atmospheres by specifying requirements for electrical components, surface temperatures, and mechanical integrity.

NFPA Ratings: The NFPA provides guidelines for fire protection and prevention in industrial settings, including the installation and maintenance of flameproof valves.

Ingress Protection (IP) Ratings: Flameproof valves are often assigned IP ratings, which indicate the level of protection against both dust and water. This ensures that the valve is sealed tightly to prevent external contaminants from causing failures.

Testing and Quality Control: Flameproof valves undergo rigorous testing, including fire exposure tests, high-pressure endurance, and spark generation tests, to ensure they meet the necessary safety standards and perform reliably in hazardous locations.

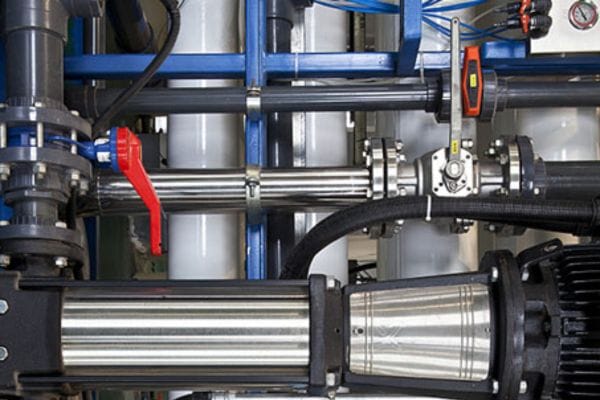

Chemical-Resistant Ball Valves for Harsh Environments

The Need for Chemical-Resistant Valves in Hazardous Locations

Handling Hazardous Chemicals Safely: Many industrial settings involve the transport or containment of aggressive chemicals that can corrode or degrade standard valve materials. In hazardous locations, the risk of chemical leaks or failures can lead to catastrophic results, including explosions, fires, or toxic spills.

Protecting Human Health and the Environment: Chemical-resistant ball valves are essential for safeguarding workers and the environment from the dangers of chemical exposure. They help prevent leaks that could contaminate the air, soil, or water, reducing health risks and regulatory violations.

Maintaining Operational Integrity: Valves that resist chemical corrosion and degradation are critical in ensuring the continuous and safe operation of machinery and systems, even in the harshest environments like chemical plants, refineries, or pharmaceutical factories.

Materials Like PTFE, PVDF, and Stainless Steel in Valve Construction

PTFE (Polytetrafluoroethylene): PTFE is one of the most common materials used in chemical-resistant valves. Known for its excellent chemical resistance and low friction properties, PTFE ensures smooth valve operation even when exposed to aggressive chemicals. It’s also non-reactive, making it ideal for handling corrosive substances.

PVDF (Polyvinylidene Fluoride): PVDF is another high-performance polymer often used in chemical-resistant valve designs. It offers superior resistance to acids, solvents, and other aggressive chemicals, making it a go-to material for industries such as chemical processing and water treatment.

Stainless Steel: Stainless steel valves are commonly used in hazardous locations where chemical resistance and strength are both necessary. While not completely impervious to corrosion, alloys like 316L stainless steel offer exceptional resistance to many corrosive chemicals and extreme environmental conditions.

Special Coatings and Linings: In addition to the materials themselves, chemical-resistant valves may also feature protective coatings or linings, such as epoxy, that further enhance their resistance to chemical attack.

Emergency Shutdown Valves: A Critical Safety Feature in Hazardous Areas

The Role of Emergency Shutdown (ESD) Valves in Preventing Accidents

Rapid Response in Critical Situations: Emergency shutdown (ESD) valves are vital safety components designed to stop the flow of hazardous materials or gases quickly during an emergency. In the event of a fire, explosion, or chemical leak, ESD valves are activated to prevent further damage, reduce the risk of catastrophic events, and protect both personnel and equipment.

Accident Prevention: These valves play a critical role in mitigating the impact of equipment failure or unforeseen events. By rapidly isolating system sections, ESD valves help limit the spread of hazardous substances, providing precious time for containment, firefighting, or evacuation efforts.

Industry Applications: Commonly used in oil & gas pipelines, chemical manufacturing plants, and power stations, ESD valves are indispensable in areas where failure could lead to devastating consequences, such as explosions, fires, or toxic chemical spills.

How Ball Valves Are Adapted for Emergency Shutdown Situations

Actuation and Fail-Safe Mechanisms: Ball valves used for emergency shutdown are equipped with actuators that can respond to automated or manual shutdown signals. These valves are often designed with fail-safe mechanisms that ensure they close quickly and reliably, even in the event of power loss or equipment malfunction.

Spring-Return Actuators: Many ESD ball valves use spring-return actuators that automatically close the valve in case of power failure, ensuring immediate isolation of hazardous materials.

Pneumatic or Hydraulic Actuation: Pneumatic or hydraulic actuators are commonly used for ESD valves, offering faster and more reliable valve closing in high-pressure environments.

Fast Closure Features: ESD ball valves are engineered to close swiftly when activated. Their design includes features like quick-closing ball mechanisms or optimized actuator response time to minimize the risk of spills, leaks, or other hazards in emergency situations.

Explosion-Proof and Fire-Resistant Properties: These valves must be explosion-proof and fire-resistant in hazardous areas. Ball valves used for ESD purposes are often built with flameproof enclosures and fire-resistant materials, ensuring they continue functioning even in extreme conditions.

Best Practices for Implementing ESD Valves in Hazardous Locations

Regular Testing and Maintenance: It is essential to regularly test ESD valves to ensure they are fully functional when needed. Testing should include verifying actuator response times, inspecting valve seals for wear, and ensuring that no obstruction in the valve mechanism could impede its operation.

System Integration: ESD valves should be integrated into the overall safety system of the facility, including fire and gas detection systems, emergency alarms, and shutdown protocols. This integration ensures that ESD valves are activated as part of a coordinated response to hazardous events.

Compliance with Safety Standards: Ensure that ESD valves are in compliance with industry standards such as NFPA, IECEx, and ATEX. These certifications guarantee that the valves meet the stringent requirements for performance and safety in hazardous locations.

Conclusion

Choosing the right ball valve for hazardous locations is crucial to ensuring both safety and operational efficiency. By thoroughly understanding these factors and keeping up with technological advancements, you can make informed decisions that enhance safety, ensure regulatory compliance, and improve the overall performance of your systems.
