When it comes to choosing the right valve for your system, understanding the differences between ball valves and shut off valves is crucial. Both are used to control the flow of fluid, but their designs, applications, and performance vary significantly. Depending on the requirements of your system—whether it’s related to durability, precision, or ease of operation—choosing the right valve can make all the difference.

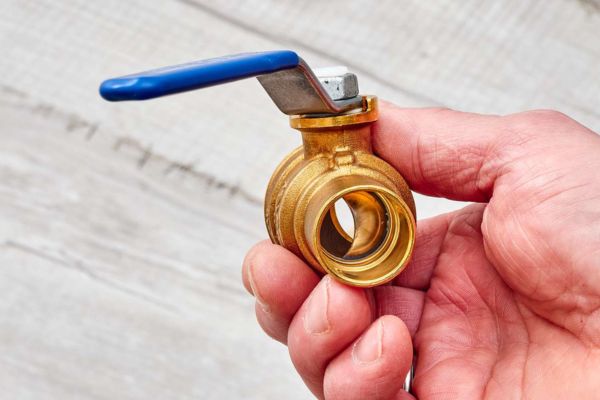

What is a Shut Off Valve?

Definition and Function of a Shut Off Valve

A shut off valve is a type of valve used to completely stop the flow of fluid (liquid, gas, or steam) within a pipeline or system. It’s typically used to isolate parts of a system for maintenance, repairs, or emergencies. The primary function of a shut off valve is to provide a reliable mechanism to start or stop the flow with minimal effort, ensuring system safety and efficiency. These valves are designed to close off a pipeline to prevent fluid from passing through, often providing a 100% seal when fully closed.

Differences Between Shut Off Valves and Other Valve Types

While there are various types of valves designed to control flow in different ways, shut off valves differ in their primary role of complete fluid blockage. Here’s how they stand out:

Shut Off Valve vs Ball Valve: While both can control flow, shut off valves are often designed for larger, more robust applications where a quick stop is necessary. Ball valves, on the other hand, provide precise control of flow in systems where partial or variable regulation is required.

Shut Off Valve vs Gate Valve: Shut off valves typically offer a quicker response and tighter seal than gate valves, which are more suited for gradual flow control and tend to have a slower operation.

Shut Off Valve vs Globe Valve: Globe valves are more suited for regulating flow rather than completely stopping it, while shut off valves are designed to stop flow completely, ensuring a shut-off position when needed.

Advantages of Shut Off Valves in Controlling Flow

Quick and Easy Operation: Shut off valves are generally designed for quick operation, providing users with a fast and effective way to stop or start the flow of fluids with minimal effort.

Reliability and Safety: Shut off valves are critical in emergency situations where you need to immediately halt the flow of potentially hazardous substances, such as gas or chemicals.

Leak Prevention: A well-functioning shut off valve ensures that no fluid or gas escapes from a closed system, preventing leaks and potential damage to the environment or equipment.

Low Maintenance: Many shut off valves are designed to require little maintenance once installed, making them a cost-effective option for long-term use.

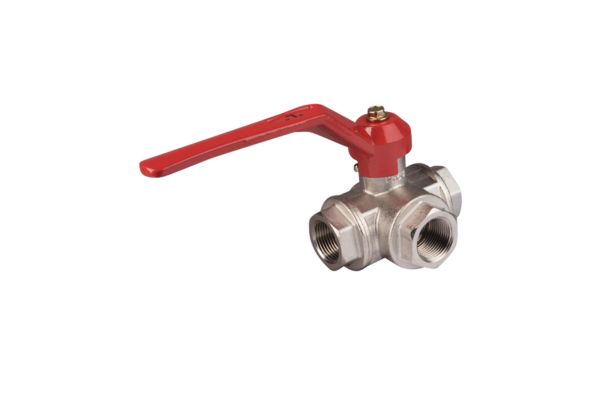

Common Uses of Shut Off Valves for Water, Gas, and More

Shut off valves are versatile and found in many different industries and applications:

Water Supply: Shut off valves are commonly used in residential, commercial, and industrial plumbing to control water flow to specific areas or appliances.

Gas Lines: In residential and industrial settings, shut off valves are essential for controlling the flow of natural gas or propane, ensuring safety in the event of a leak or when repairs are needed.

Oil and Chemical Systems: Shut off valves are used in pipelines that carry oil, chemicals, or other hazardous materials to stop flow in case of system maintenance or emergencies.

Ball Valve vs Shut Off Valve: Key Differences Explained

Design Comparison

The design of a ball valve and a shut off valve plays a critical role in how each operates within a system:

Ball Valve Design: A ball valve uses a hollow, perforated ball to control the flow of fluid. The ball rotates 90 degrees to either allow or block the flow. The mechanism is simple, with a quarter-turn operation that provides rapid and reliable on/off control. The sealing is done around the ball, offering a tight shut-off.

Shut Off Valve Design: Shut off valves can come in various forms, such as gate, globe, or butterfly valves. These valves operate by sliding or rotating a disc or plate into the flow path to block the fluid. While some shut off valves offer a quarter-turn mechanism, others are multi-turn, requiring more rotations to open or close fully. Shut off valves tend to be larger and heavier compared to ball valves.

How Each Valve Operates in Different Applications

Ball Valve Applications: Due to its simple, quick action and tight sealing, ball valves are commonly used in systems where rapid on/off control is required, such as in plumbing, gas lines, and industrial fluid systems. They are ideal for applications that need fast cycling and minimal leakage.

Shut Off Valve Applications: Shut off valves are often employed in more heavy-duty applications, including large pipelines, water treatment plants, and high-pressure systems. They are essential for isolating sections of a system when maintenance or repairs are required. Shut off valves are also frequently used in emergency situations where a system needs to be quickly isolated.

Performance

Ball Valve Performance: Ball valves are known for their exceptional durability and ability to provide a leak-proof seal. With fewer moving parts and a self-cleaning action, ball valves generally have a longer lifespan and require less maintenance. They also provide excellent flow control by allowing smooth regulation.

Shut Off Valve Performance: Shut off valves, particularly those designed for high pressure, excel in providing a firm seal, ensuring no leakage. However, they may not offer the same level of flow control precision as ball valves. Shut off valves tend to perform better in scenarios where complete closure is critical, but may suffer from wear over time, especially in high-frequency use.

Pressure and Temperature Handling

Ball Valve Pressure and Temperature Handling: Ball valves are incredibly versatile, capable of handling both high and low pressure, as well as extreme temperatures, depending on the material of the valve. They are particularly effective in high-pressure systems like oil and gas pipelines due to their solid seal and minimal pressure drop.

Shut Off Valve Pressure and Temperature Handling: Shut off valves, especially globe or gate types, are also capable of handling high pressures and temperatures. However, they may require more frequent maintenance in extreme conditions, particularly if the valve type isn’t designed for consistent high-pressure applications. Multi-turn shut off valves are better suited for regulating pressure but may struggle in systems that demand quick action.

Valve Materials: Which Works Best for Your Needs?

Ball Valve Materials: Ball valves are commonly made from stainless steel, brass, or plastic, with the choice depending on the system’s pressure, temperature, and fluid type. Stainless steel is often preferred for its corrosion resistance, making it ideal for harsh environments like marine or chemical systems.

Shut Off Valve Materials: Shut off valves come in a wide range of materials such as cast iron, bronze, stainless steel, and PVC. Cast iron shut off valves are typically used in water and gas systems, while stainless steel versions are preferred for high-pressure or high-temperature applications. PVC shut off valves are ideal for low-pressure, chemical systems. The material selection will heavily influence the valve’s longevity and performance in specific environments.

Valve Selection: Choosing the Right Valve for Your Application

Choosing the right valve is critical to ensuring the efficiency, safety, and longevity of your system, whether you’re dealing with water, gas, oil, or any other fluid medium. The performance of a valve greatly impacts how well your system operates, so understanding the needs of your system is the first step toward making the right decision.

Understanding Your System Requirements

Before you even think about which valve to use, it’s essential to understand the core requirements of your system. The flow rate, pressure, and medium (fluid type) will dictate the type of valve that will work best for you. Each valve type has its own limitations and capabilities, so knowing your system’s demands is key.

Flow Rate and Pressure Needs: Different valves are suited to different flow rates and pressure levels. Ball valves, for instance, are often chosen for high-pressure systems due to their durability and ability to handle high flow rates. If your system requires precise control over flow, the valve selection may lean toward multi-turn valves, like globe or gate valves. A shut off valve, on the other hand, is commonly used for quick isolation or turning off fluid flow completely, so it’s crucial to match the valve’s specifications to the pressure your system requires.

Medium and Temperature Considerations: Ball valves are ideal for systems with gases, liquids, or viscous fluids and can be tailored for specific temperature ranges. If your application involves corrosive or abrasive fluids, materials like stainless steel or brass might be necessary for your valve. Shut off valves, which often handle water and gas systems, need to be chosen based on the type of medium flowing through them to ensure they remain functional and resistant to damage over time.

Corrosive or Abrasive Materials: If your system deals with harsh chemicals or high abrasion, the materials and seals used in your valves become even more critical. Choosing a valve with the right material will help prevent leaks, corrosion, and failure.

Ball Valve vs Shut Off Valve: Which One Fits Your Needs?

Now that you understand your system’s requirements, the next step is to decide which valve type is best suited for your needs. Ball valves and shut off valves are both widely used in various systems, but they each serve different purposes. Understanding when and why to choose each type is essential for optimal system performance.

When to Choose a Ball Valve:

High-Pressure Systems: Ball valves are ideal for high-pressure systems because of their rugged construction and ability to handle demanding applications. Their quick-opening mechanism makes them highly efficient for fast flow control, and they are also less prone to leakage due to their robust design.

Precision Flow Control: In some cases, ball valves provide superior performance for controlling fluid flow with precision, especially in systems that require on/off control without restricting the flow in between.

When to Choose a Shut Off Valve:

Quick Isolation: Shut off valves are best for isolating or turning off fluid flow completely. They are often used in plumbing systems to stop water or gas flow when necessary. These valves are typically simple to operate and offer reliable sealing properties.

Stop-Start Applications: If your application requires the ability to stop and start fluid flow quickly and safely, a shut off valve is your go-to choice. Its straightforward design allows for immediate sealing without causing system downtime.

Ball Valve vs Shut Off Valve: When One Wins Over the Other

Ball valves are often the preferred choice for large-scale industrial applications due to their robustness and performance under high pressure. However, shut off valves are better for applications requiring quick and easy on/off functions, such as plumbing or gas lines where total isolation of fluid flow is necessary.

Considering Valve Size and Material for Optimal Performance

Choosing the correct valve size and material is a vital step in ensuring your system performs well over the long term. A valve that’s too small or made from the wrong material can lead to operational inefficiencies, safety concerns, and unnecessary maintenance costs.

Valve Size Considerations: Selecting the correct size of the valve is crucial for ensuring optimal flow. A valve that’s too small can cause a significant pressure drop or restrict flow, while one that’s too large may not effectively control the flow or could be more expensive than necessary. Ball valves generally come in a variety of sizes suitable for small to large industrial applications, while shut off valves typically require more precise sizing depending on whether the system needs to handle low or high flow rates.

Valve Materials for Durability: The material of the valve will directly affect its performance, lifespan, and ability to withstand harsh conditions. Stainless steel and brass are common materials used for both ball and shut off valves because they offer excellent resistance to corrosion, especially in water and gas systems. However, if the system involves acidic or highly corrosive fluids, materials like carbon steel, nickel alloys, or plastic (e.g., PVC or CPVC) may be required.

Choosing Materials Based on Media and Temperature: Each medium and temperature condition in your system will influence your choice of valve material. For instance, water systems often use bronze or brass shut off valves, while high-temperature or high-pressure systems could require heat-resistant metals like stainless steel. Similarly, for systems handling aggressive chemicals or gases, valves made from special alloys like Hastelloy or titanium may be required.

Conclusion

In conclusion, making an informed valve selection based on your system’s requirements is crucial for achieving long-term success. Whether you opt for a ball valve or a shut off valve, choosing the right one will save you time, money, and trouble in the long run.
