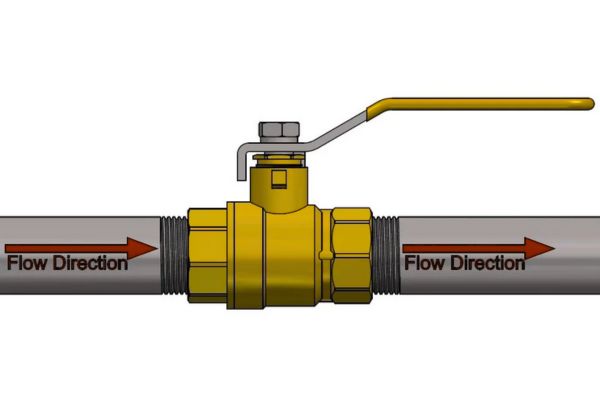

Ball valve direction refers to the orientation of the flow path in the valve, dictating the direction in which fluid travels through the valve body. The ball inside the valve has a hole or port through its center that controls the flow when the valve is rotated. This hole aligns with the inlet and outlet ports, allowing fluid to pass through or blocking the flow entirely when the ball is rotated 90 degrees.
The Basics of Ball Valve Function
How Ball Valves Work: A Simple Breakdown
Ball valves are simple yet effective components used to control the flow of fluid through a system. Here’s a breakdown of their core functionality:
The Ball: At the heart of every ball valve is a spherical ball with a hole (or port) through the center. This ball is what controls the flow. When the valve is open, the hole aligns with the pipeline, allowing fluid to pass through. When the valve is closed, the ball rotates 90 degrees, and the port is perpendicular to the flow path, stopping the fluid.
The Handle or Actuator: The ball valve’s operation is typically controlled by a handle or actuator that rotates the ball inside the valve. In manual valves, turning the handle rotates the ball, while in automated valves, the actuator performs this action. A quarter-turn of the valve typically opens or closes it.
Sealing Mechanism: Ball valves feature seals around the ball to ensure that when the valve is closed, there is no leakage. These seals help prevent fluid from escaping or entering when it’s not supposed to, making them highly reliable for on/off control.
Ball valves are favored for their straightforward, durable design and ability to quickly start or stop fluid flow. Their reliability makes them suitable for both simple and high-pressure applications.
The Role of Ball Valves in Fluid Flow Regulation
Ball valves play a pivotal role in regulating fluid flow in a wide variety of industries, from water and wastewater treatment to oil and gas pipelines. Their primary function is to control the flow of liquids or gases through pipelines, machinery, or equipment, and they can be used for both on/off and flow regulation control.
On/Off Control: Ball valves are commonly used in applications where quick, reliable shut-off is needed. A simple quarter-turn operation allows for immediate closure, cutting off fluid flow completely.
Flow Regulation: While typically known for their on/off function, ball valves can also provide limited flow regulation. Some ball valves come with specially designed flow-control balls that allow for a modulated flow, adjusting the volume of fluid passing through. This makes them versatile for both isolation and flow control applications.
Precision and Efficiency: The design of the ball valve ensures minimal pressure drop and precise control over fluid flow. Their tight sealing characteristics also prevent leaks, ensuring that the system operates efficiently and safely.
Types of Ball Valves: Unidirectional vs. Bidirectional
Ball valves can be designed to handle different flow directions, and understanding the distinction between unidirectional and bidirectional ball valves is crucial when selecting the right valve for an application.
Unidirectional Ball Valves
Definition: Unidirectional ball valves are designed to allow fluid flow in one direction only. These valves are often used in systems where flow direction is critical, such as in chemical processing or gas lines, to prevent backflow and maintain system integrity.
Application: A unidirectional valve is particularly useful in applications where the flow should only occur in a specified direction, such as controlling the intake of gas into a combustion chamber or in systems that require a check valve feature.
Features:
Clear flow direction markings on the valve body to guide proper installation.
Helps prevent backflow or reverse flow that could damage equipment or compromise safety.
Bidirectional Ball Valves
Definition: Bidirectional ball valves allow fluid to flow in both directions. These valves are commonly used in systems where the direction of flow can change, such as in heating, ventilation, and air conditioning (HVAC) systems or in fluid circulation loops.
Application: Ideal for systems that need the flexibility to reverse flow without compromising valve integrity, such as in cooling systems, irrigation systems, or process control systems where the flow direction might vary.
Features:
Both inlet and outlet ports are designed to handle flow in either direction.
Often used where fluid can flow in multiple directions within the system, ensuring that the valve can be rotated without affecting performance.
Choosing Between Unidirectional and Bidirectional Valves
The choice between unidirectional and bidirectional valves depends on the specific needs of the system. For instance, unidirectional valves provide more control and safety in systems where backflow is a concern, while bidirectional valves offer flexibility for systems with changing flow directions.
For ball valve installation, it is important to check the valve’s flow direction markings and understand the design requirements of your piping system to ensure you choose the appropriate valve type.
Understanding Valve Flow Direction
Defining Flow Direction in Ball Valves
Flow direction in ball valves refers to the way the fluid travels through the valve, from the inlet port to the outlet port. The ball valve design typically includes an inlet and outlet that align with a spherical ball featuring a port (hole) in its center. When the valve is open, the flow path is aligned with the port, allowing fluid to pass through smoothly.
Flow Path: The flow direction is the path the fluid follows from the inlet side (where the fluid enters the valve) to the outlet side (where the fluid exits the valve). The ball inside the valve controls this flow by either aligning the port with the inlet and outlet or rotating it to close the passage completely.
Markings for Flow Direction: Ball valves usually have directional markings on the valve body that indicate the recommended flow direction. These markings help installers ensure that the valve is positioned correctly in the pipeline to maintain optimal performance. Incorrect valve direction can lead to operational problems like leaks, reduced flow efficiency, and even system failure.
Unidirectional vs. Bidirectional Flow: As mentioned earlier, unidirectional ball valves restrict flow to a single direction, while bidirectional ball valves allow for flow in either direction. It’s essential to select the appropriate type based on the specific application and flow requirements of your system.
How Valve Flow Direction Impacts Performance
The direction in which a ball valve is installed and the fluid flows through it can significantly impact the performance of both the valve and the entire fluid handling system. Here are some key ways valve flow direction influences performance:
Pressure Regulation: Incorrect flow direction can disrupt the pressure regulation in the system. Ball valves are designed to function optimally with fluid flowing in a specified direction. When flow is reversed, it may lead to pressure drops, erratic pressure regulation, and potentially cause system damage.
Seal Integrity: Ball valves rely on tight seals between the ball and valve seat to prevent leakage. When the valve is installed incorrectly or flow direction is reversed, these seals may not make proper contact, leading to leaks. This can not only reduce the efficiency of the system but also pose a safety hazard in high-pressure or hazardous fluid systems.
Flow Efficiency: In the correct orientation, ball valves allow for minimal resistance to flow. This ensures that the fluid passes through the valve with minimal pressure drop and optimal flow rate. If installed incorrectly, the flow path may become obstructed, leading to turbulence, increased friction, and reduced system efficiency.
Longevity of Valve Components: A ball valve installed in the wrong direction may lead to uneven wear on the valve components, such as the seals or the ball itself. Over time, this can cause premature valve failure, resulting in higher maintenance costs and more frequent replacements.
The Relationship Between Valve Orientation and Fluid Dynamics
The orientation of the ball valve plays a crucial role in the dynamics of fluid flow through the system. Fluid dynamics refers to the behavior of the fluid as it moves through pipes, valves, and other system components. Here’s how valve orientation affects fluid flow:
Laminar vs. Turbulent Flow: In an ideal system, fluid moves in a laminar (smooth and steady) fashion. However, when the valve is misaligned, it can create turbulent flow, increasing friction and resistance in the system. This disruption can cause a range of issues, from energy loss to potential damage to downstream equipment.
Flow Distribution: The way a valve is oriented affects how the fluid is distributed within the system. For instance, if the valve is not installed correctly, the flow might become uneven, leading to areas of low or high pressure that can cause flow restrictions, affect mixing, or create unwanted pockets of gas or liquid.
Flow Velocity and Pressure Drop: Valve orientation influences both flow velocity and pressure drop within the system. If the ball valve is oriented incorrectly, it could cause an increase in pressure drop, reducing the overall system efficiency. This can result in slower fluid movement, increased energy consumption, or even the failure of pumps and other equipment.
Swirl and Vortex Formation: In some systems, particularly those involving high-velocity fluids, improper valve orientation can cause swirling or vortex formation within the valve body. These flow disturbances can cause damage to the valve and downstream components, as well as increase the likelihood of cavitation (when vapor bubbles form and collapse in the flow).
Ball Valve Installation and Correct Valve Orientation
How to Determine the Correct Valve Installation Direction
Proper installation of a ball valve is critical to ensure that it functions as intended, especially regarding the direction of fluid flow. Here’s how to determine the correct valve installation direction:
Identify the Flow Direction: Most ball valves feature clearly marked flow direction indicators on the valve body. These markings show the recommended direction in which fluid should travel through the valve. Look for arrows or labels that indicate the inlet and outlet ports.
Ensure Valve Orientation Matches the System’s Flow Requirements: In some cases, especially with unidirectional ball valves, the installation direction is crucial to prevent backflow or to maintain proper system pressure. Ensure that the valve’s inlet and outlet align with the flow direction required by your system.
Pressure Considerations: If the valve is designed for high-pressure systems, ensure that it is installed with the correct pressure orientation. Many high-pressure ball valves have directional markings to ensure that the inlet and outlet handle the pressure safely. Installing the valve incorrectly could result in damage to seals or the valve body itself.
Proper Alignment for Optimal Flow Control
Correct alignment is essential for ensuring that the ball valve operates efficiently and that fluid flows smoothly through the system. Improper alignment can lead to various issues, including poor sealing, pressure drops, and leaks. Here’s how to align the valve correctly:
Align the Ports: Ensure that the inlet and outlet ports of the valve are aligned with the pipeline. This alignment minimizes the risk of creating any flow restrictions or turbulent flow that could affect system performance.
Check the Valve Body Position: The ball valve body should be positioned in a way that allows the ball’s port to align with the pipeline’s flow path when the valve is in the open position. If the valve is positioned incorrectly, it could cause an uneven flow path or disrupt the smooth movement of the fluid.
Use Proper Tools for Alignment: During installation, use appropriate pipe alignment tools (such as alignment bars or supports) to ensure that the valve is positioned accurately within the pipeline. Avoid over-tightening the valve connections, as this can cause misalignment and lead to long-term damage.
Ensure Valve Actuator Alignment: If your valve uses an actuator (manual, electric, or pneumatic), make sure the actuator is aligned properly with the valve stem. This ensures smooth operation of the valve, as misalignment can cause difficulty in turning the valve or prevent it from functioning correctly.
Consider Fluid Flow Characteristics: When aligning the valve, take into account the type of fluid being handled and how it behaves under pressure. For instance, a fluid with high viscosity may need a valve aligned in a way that reduces friction, while a gas flow system may require a more straightforward alignment to prevent backpressure.
Valve Direction Markings
Valve direction markings are essential for proper installation, ensuring that the ball valve functions as intended. Here’s what to look for when identifying these markings:
Arrows Indicating Flow Direction: Most ball valves will have arrows stamped or etched onto the valve body to indicate the recommended flow direction. These arrows are typically located near the valve’s inlet or outlet ports, pointing in the direction that fluid should travel. It’s critical to align these arrows with the pipeline to ensure proper function.
Inlet and Outlet Labels: Some valves will feature labels marked “inlet” and “outlet” directly on the valve body. These markings clearly distinguish the flow entry and exit points. Properly aligning the inlet and outlet with your system’s pipeline ensures the fluid flows in the correct direction.
Pressure Direction Markings: In high-pressure applications, you may also find pressure-related markings on the valve. These markings indicate which side of the valve is designed to handle higher pressure and which side is designed for lower pressure. Installing the valve in the wrong direction can cause seal failure or excessive wear.
Orientation Symbols for Unidirectional Valves: For unidirectional valves, there may be additional markings to indicate that the valve should only allow fluid to flow in one direction. This is particularly important for preventing backflow and ensuring safe and efficient operation in systems like steam, chemical, or gas lines.
Flow Control Markings: In certain applications where the ball valve is used for modulating or controlling flow (not just on/off), you may find markings indicating the valve’s “throttling” position. These markings can help installers ensure that the valve is properly aligned for flow regulation.
Valve Stem Position: Some valves include a marking that indicates the stem’s position relative to the ball. This ensures that the valve is in the correct open or closed position during installation and helps with future maintenance or troubleshooting.
How Ball Valve Body Design Affects Flow Control
The Impact of Valve Body Design on Flow Direction
The body design of a ball valve plays a pivotal role in controlling the direction and flow characteristics of fluids within a system. The design determines how effectively the valve directs flow, the ease of fluid passage, and whether any restrictions or disruptions in flow will occur. Here’s how different aspects of valve body design impact flow direction:
Port Type and Size: The size and configuration of the ports (the openings through which fluid flows) inside the valve body directly affect the flow rate and direction. A valve body with larger ports allows for higher flow rates, while smaller ports can restrict flow. The orientation of these ports within the valve body also determines whether the valve is suitable for unidirectional or bidirectional flow.
Flow Path Design: The valve body houses the ball, which has a hole or port that aligns with the pipeline’s flow path when the valve is open. The design of the ball’s port, as well as the body cavity in which it sits, affects how smoothly the fluid passes through. A more streamlined body design reduces turbulence and minimizes pressure drop.
Body Configuration for Multi-Port Valves: Ball valves may be designed with multiple ports to allow flow to more than one outlet or to redirect flow between different parts of a system. These multi-port valves are often used in complex systems where flow direction needs to be controlled across different pathways.
Flow Direction Control: The ball valve body must be oriented so that the fluid flows in the desired direction. Misalignment of the valve body or improper installation could result in flow direction issues, potentially causing backflow, increased friction, and inefficient system operation.
Different Valve Configurations for Different Applications
The design and configuration of ball valves vary depending on the specific needs of the application. Different valve configurations can provide flexibility for a variety of fluid control needs. Here are some common configurations:
Two-Way Ball Valves: The most common type, with a single inlet and outlet port. These valves are used for simple on/off control or to direct flow in one direction. They’re ideal for applications where fluid should only flow in one direction and need a simple shut-off mechanism.
Three-Way Ball Valves: These valves have three ports and can redirect fluid flow between different outlets. A common application is in mixing or diverting systems, where two inlets need to be connected to a common outlet, or vice versa. The design of these valves allows for greater flexibility in controlling flow within systems with multiple pathways.
Four-Way Ball Valves: These valves have four ports and can control the flow of fluid to multiple destinations, allowing for more complex flow regulation. They’re commonly used in hydraulic circuits, where fluid needs to be directed to various parts of a system for power or control.
V-Port Ball Valves: These ball valves feature a “V-shaped” port instead of the standard round port. This design allows for more precise flow control, which is important in systems that require regulated flow rates or where the pressure drop needs to be finely tuned.
Multi-Position Ball Valves: These valves can handle several different flow positions (e.g., fully open, partially open, or closed), offering enhanced flexibility in controlling the flow to specific areas of a system. They’re often used in systems where flow needs to be adjusted incrementally rather than just on or off.
The design and configuration of the ball valve must match the application’s requirements, whether for simple isolation or for complex flow regulation across multiple paths.
How Valve Body Design Contributes to Pressure Regulation
The valve body design also significantly impacts pressure regulation and overall system efficiency. Here’s how:
Pressure Drop and Flow Resistance: A key consideration in valve body design is the minimization of pressure drop. Pressure drop occurs when the fluid passes through an obstruction or restriction, causing the fluid to lose energy. A well-designed valve body with smooth internal surfaces and properly sized ports reduces the pressure drop, leading to more efficient fluid flow and better overall system performance. The design of the ball and its alignment within the body is critical in ensuring minimal resistance to fluid flow.
Pressure Rating Compatibility: Ball valve bodies are constructed to handle specific pressure ranges. The body design, including material selection and thickness, ensures the valve can withstand the internal pressure of the system without failing or causing leaks. Valve bodies with reinforced construction are used for high-pressure systems, where proper pressure regulation is essential to prevent valve rupture or failure.
Body Materials and Pressure Resistance: The choice of materials used in the valve body (e.g., stainless steel, brass, or carbon steel) impacts the valve’s ability to handle varying pressure levels. Stronger materials are required for high-pressure systems, ensuring that the valve maintains its structural integrity and provides stable pressure control.
Flow Resistance and Backpressure Control: The body design can also help mitigate backpressure in the system. A poorly designed body may cause the fluid to accumulate or flow in unintended directions, creating unwanted pressure in certain sections of the pipeline. An optimized valve body ensures that pressure is managed effectively, with minimal risk of system failure or fluid leakage.
Controlling Fluid Flow with Ball Valves
Fluid Flow Basics: Understanding Flow Regulation
Understanding the basics of fluid flow regulation is essential for controlling how fluids behave within a system. Flow regulation involves managing the volume and pressure of fluid moving through pipes, valves, and other system components. Here’s a look at the fundamentals of fluid flow and how it can be controlled:
Laminar vs. Turbulent Flow: Fluid flow can either be laminar (smooth and steady) or turbulent (chaotic and erratic). In laminar flow, fluid moves in parallel layers, with little mixing or disturbance. In turbulent flow, irregular fluctuations and eddies occur, which can increase friction and resistance. Ball valves typically aim to create smooth, laminar flow when fully open, minimizing energy loss and pressure drop.
Flow Rate: The flow rate is the volume of fluid that passes through a valve or pipeline per unit of time. It is usually measured in liters per minute (LPM), gallons per minute (GPM), or cubic meters per second (CMS). Ball valves can be used to regulate flow by either fully opening or closing the valve, as well as by utilizing certain valve designs that allow for partial opening to control flow.
Flow Control Principles: The primary principles of flow control are based on balancing the volume and pressure of fluid in the system. As the fluid enters a system, it experiences pressure, which is balanced by flow restrictions in the valves and pipes. Ball valves are highly efficient at regulating this pressure and controlling flow by adjusting the size of the opening between the inlet and outlet.
Friction and Pressure Drop: In any fluid system, friction between the fluid and the pipe or valve walls can create resistance, leading to a pressure drop. Understanding how fluid flows through the system and where resistance occurs allows for better flow regulation. Proper valve selection and installation, including the correct orientation, can minimize pressure drop and enhance flow efficiency.
Using Ball Valves for Effective Flow Control
Ball valves are one of the most common types of valves used in fluid systems to control the flow of liquids or gases. Here’s how ball valves are used for effective flow control:
On/Off Control: The simplest application of a ball valve is for on/off control. A quarter-turn of the valve handle or actuator rotates the ball inside the valve, either opening or closing the port. When open, the fluid flows freely; when closed, the flow is completely stopped. This quick and reliable operation makes ball valves ideal for isolation applications.
Flow Regulation: Although typically used for on/off control, some ball valves, such as those with a V-port design, can also regulate flow. By partially opening the valve, the flow rate can be adjusted to meet system requirements. V-port ball valves provide more precise control over flow by reducing the amount of fluid passing through the valve, allowing for incremental adjustments in flow rates.
Minimizing Pressure Loss: A significant advantage of ball valves is their ability to minimize pressure loss when fully open. The design of the valve body and the ball’s spherical shape results in a smooth flow path with minimal resistance, ensuring that pressure is maintained throughout the system.
Factors Affecting Flow Control
Several factors can impact the effectiveness of flow control when using ball valves. Understanding these factors is key to optimizing valve performance in your fluid handling system:
Pressure: Pressure is one of the most significant factors in flow regulation. Ball valves are designed to withstand specific pressure ranges. When pressure is too high or too low, the performance of the valve may be compromised. For example, excessively high pressure could damage the valve seals or cause leakage, while too low pressure might lead to insufficient flow or system instability. Ball valves are commonly used in high-pressure systems because of their ability to provide tight shutoff and minimal leakage.
Temperature: Temperature fluctuations can also affect the performance of ball valves. Extreme heat or cold can cause the valve materials (e.g., seals, ball) to expand or contract, potentially affecting sealing performance. In high-temperature applications, such as in steam systems or high-heat chemical processing, special materials such as high-temperature alloys or ceramic coatings may be required for the valve’s body and seals to prevent failure.
Valve Orientation: As discussed earlier, the orientation of the ball valve is crucial to ensuring proper flow control. When installed in the correct orientation, the valve operates efficiently with minimal friction and pressure drop. Improper valve orientation may cause flow restrictions, backflow, or leakage. Additionally, for systems dealing with fluids at varying pressures, ensuring proper valve installation direction can help prevent reverse flow or potential damage to system components.
Flow Characteristics of the Fluid: Different fluids have varying flow characteristics. For instance, liquids like water tend to have a more consistent flow rate, while gases may experience fluctuations depending on pressure changes. The design and material of the ball valve should match the specific needs of the fluid type, ensuring smooth flow control and minimal impact on system pressure.
Valve Size: The size of the ball valve should be compatible with the pipeline size and expected flow rate. A valve that is too large for the system can lead to unnecessary turbulence and inefficiencies, while a valve that is too small may cause flow restrictions and excessive pressure drops.
Conclusion
Regular maintenance, including inspection, lubrication, and replacement of worn parts, is critical to prevent costly failures. Mastering flow control helps ensure system efficiency, and safety and reduces the risk of failure. Following installation guidelines, routine maintenance, and troubleshooting tips can extend valve life and improve system performance.
FAQ
What is the correct flow direction for a ball valve?
The correct flow direction is typically indicated on the valve body with an arrow or label. It’s essential to install the valve so that fluid flows in the direction indicated to ensure proper functionality and prevent issues like backflow.
Can ball valves regulate fluid flow?
Yes, ball valves can regulate fluid flow. While commonly used for on/off control, certain ball valves (like V-port valves) are designed to provide more precise flow regulation by adjusting the valve opening incrementally.
Why does ball valve orientation matter?
Proper valve orientation ensures that the valve operates as intended, preventing issues like backpressure or leaks. Incorrect orientation can lead to inefficient flow, valve failure, or system damage.
How do I know if my ball valve is installed correctly?
Check the manufacturer’s guidelines for installation instructions. Ensure the valve’s flow direction markings are aligned with the system’s flow, and verify that the valve’s inlet and outlet ports match the design specifications for the fluid handling system.
What causes a ball valve to leak?
Leaks can occur for several reasons, including worn seals, valve body damage, or improper installation. Regular inspection and maintenance can help prevent leaks, and replacing worn-out components can restore the valve’s performance.
How often should I maintain my ball valve?
Ball valves should be regularly inspected for wear, leaks, and smooth operation, typically as part of routine system maintenance. In high-pressure or high-usage systems, more frequent checks and lubrication may be necessary to ensure long-term performance.
