A ball check valve and a swing check valve are both types of one-way valves used to prevent backflow in piping systems, but they function differently and are suited to different applications. Ball check valves are better for compact installations and smaller systems, while swing check valves are more suitable for larger, high-flow systems but may require more space and are typically installed horizontally.

What is a Ball Check Valve?

A Ball Check Valve is a type of check valve that utilizes a ball mechanism to control the flow of fluid. The ball, typically made of rubber, plastic, or metal, sits within the valve body and is designed to move freely when fluid flows in the correct direction. As fluid flows in the intended direction, the ball is pushed away from the valve seat, allowing the fluid to pass through. However, if the flow reverses, the ball is pushed against the valve seat, sealing the valve and preventing backflow.

Ball check valves are known for their simplicity and efficiency in preventing fluid from flowing backward in pipes or systems. The smooth ball design helps minimize the wear and tear often seen in other valve types and ensures a tight seal when needed.

How Ball Check Valves Work

Flow Direction Control: When fluid flows in the correct direction, the ball is lifted from the valve seat, allowing the fluid to pass through.

Backflow Prevention: If the fluid attempts to flow backward, the ball is forced back against the valve seat, creating a tight seal and preventing any fluid from reversing direction.

Automatic Operation: Ball check valves are self-regulating, meaning they do not require any external control or manual intervention to function. The ball simply responds to changes in pressure and flow direction.

Common Applications of Ball Check Valves

Pumping Systems: Ball check valves are commonly used in pumping systems to prevent backflow that could damage the pump or cause cavitation.

Water and Wastewater Treatment: In water treatment plants, these valves help maintain one-way flow of water, preventing contamination and ensuring clean water distribution.

Oil and Gas Pipelines: Ball check valves are often used in pipelines to ensure the correct flow of oil and gas and to prevent backflow, which could cause operational problems.

HVAC Systems: In heating, ventilation, and air conditioning systems, ball check valves help maintain proper fluid flow and prevent reverse flow that could affect the system’s efficiency.

Agricultural Irrigation Systems: In irrigation systems, ball check valves prevent the backflow of water that could lead to contamination of clean water supplies.

Benefits of Using a Ball Check Valve

Reliable Backflow Prevention: The ball mechanism creates a strong seal, effectively preventing reverse flow and protecting the system from damage or contamination.

Durable and Long-Lasting: The ball check valve’s simple design reduces wear and tear, ensuring a long service life with minimal maintenance requirements.

Compact Design: Ball check valves are typically smaller and more compact than other types of check valves, making them ideal for systems with limited space.

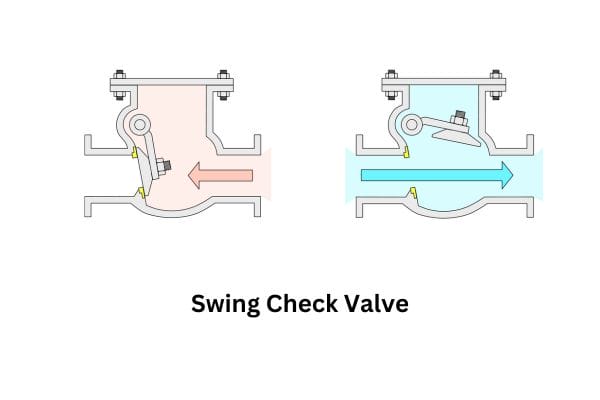

What is a Swing Check Valve?

A Swing Check Valve is another type of check valve designed to allow fluid to flow in only one direction. Unlike the ball check valve, a swing check valve features a hinged disc or flapper that swings open when fluid flows in the correct direction and swings closed when the flow reverses. The valve’s design consists of a body, disc, and a hinge mechanism, making it highly effective in preventing backflow while offering minimal resistance to the forward flow of fluid.

Swing check valves are commonly used in larger pipelines and industrial systems, particularly where a low-pressure drop is essential. The mechanism is simple but effective, making swing check valves reliable for maintaining directional flow.

How Swing Check Valves Operate

Flow Direction Control: When the fluid moves in the correct direction, it pushes the hinged disc or flap open, allowing the fluid to pass through with minimal obstruction.

Backflow Prevention: If the flow reverses, the disc swings back to close the valve, effectively sealing the passage and preventing backflow.

Gravity-Assisted Closure: The swinging motion of the disc is usually assisted by gravity, ensuring that it returns to the closed position when the fluid tries to flow in the wrong direction.

Swing check valves are generally best suited for horizontal pipelines, where the gravity-assisted disc can close efficiently. However, they can also be used in vertical pipelines depending on the specific application.

Common Applications of Swing Check Valves

Swing check valves are commonly used in industries where backflow prevention is critical, and pressure is relatively low. Some typical applications include:

Water Treatment Plants: To ensure that water flows in the right direction through treatment systems, preventing contamination or reverse flow.

Pumping Stations: Preventing backflow from pump systems that could cause damage or operational issues.

Industrial Process Systems: Used in various manufacturing and chemical processing systems to maintain correct fluid flow and prevent contamination.

HVAC Systems: Preventing water or refrigerant from flowing back into pumps or compressors, ensuring system efficiency.

Oil and Gas Pipelines: Preventing reverse flow that could damage expensive pumps and compressors.

Key Differences Between Ball Check Valves and Swing Check Valves

While both ball check valves and swing check valves serve the same primary function of preventing backflow, their designs, mechanics, and optimal use cases differ significantly. Understanding these differences can help you choose the best valve type for your system based on factors such as flow characteristics, pressure, and system configuration.

Ball Check Valve vs Swing Check Valve: Design and Mechanics

Ball Check Valve Design: A ball check valve features a ball that sits in a valve body, which is pushed open when fluid flows in the correct direction. The ball automatically seals the valve when the flow reverses, preventing backflow. The design is compact and can be used in both horizontal and vertical pipelines. It is often more suitable for smaller, more confined spaces due to its smaller profile.

Swing Check Valve Design: A swing check valve has a hinged disc or flap that swings open when fluid flows in the correct direction. The disc is gravity-assisted, meaning that once the fluid pressure decreases or reverses, the disc swings back to its closed position, preventing backflow. Swing check valves are typically larger and more suited for horizontal installations, as gravity plays a role in closing the valve.

Size and Complexity: Ball check valves are generally more compact and easier to install in tight spaces, while swing check valves are typically larger and require more installation space. The swing mechanism in the swing check valve can also be more complex, requiring a hinge and a disc that could be more prone to wear and mechanical failure over time.

Valve Function: Backflow Prevention and Fluid Control

Ball Check Valve Function: Ball check valves provide highly effective backflow prevention by relying on the pressure difference between the flow direction and the reverse direction. The ball responds quickly to changes in flow direction, making this type of valve highly reliable in systems where rapid backflow prevention is essential. Ball check valves can handle higher flow velocities without sacrificing performance.

Swing Check Valve Function: Swing check valves also prevent backflow, but the valve closure is slower compared to the instantaneous action of the ball check valve. The swinging disc is more affected by the velocity of the flow and pressure changes, and the valve typically requires a slower or more gradual change in flow direction to seal properly. While swing check valves are reliable, they may not be as quick to respond to rapid flow reversals.

Flow Control: Ball check valves generally offer less resistance to the flow of fluid, which can make them better suited for systems that require smooth, uninterrupted flow. Swing check valves, due to their larger design and hinged mechanism, can create slightly more resistance, particularly when the fluid velocity changes or fluctuates.

Flow Characteristics: When to Choose One Over the Other

Ball Check Valve: Best for High-Flow and Compact Spaces Ball check valves excel in high-flow systems where the backflow must be prevented without causing significant pressure drop or flow resistance. They are ideal for smaller, more compact pipelines and systems where space is at a premium. Additionally, they work well in applications with higher velocities or in systems that demand quick sealing to avoid backflow.

Swing Check Valve: Best for Larger Systems with Low Flow Resistance Swing check valves are ideal for larger systems, particularly when installed in horizontal pipelines, where the gravity-assisted mechanism ensures efficient closing of the valve. These valves are often preferred in situations where flow rates are more consistent, and the backflow risk is minimal or slower. They are commonly found in large industrial pipelines, drainage systems, and water treatment plants.

Comparing Installation for Both Valves

Choosing the right valve is just the first step. Understanding the installation requirements and maintenance needs of both ball check valves and swing check valves is crucial to ensuring their longevity, optimal performance, and minimal downtime in your system. Below is a guide that compares installation processes and offers tips for maintaining both types of valves.

Installation Guide for Ball Check Valves

Orientation: Ball check valves are versatile in terms of orientation. They can be installed in both vertical and horizontal pipelines. However, it is essential to ensure that the flow direction is aligned with the valve’s design. Some ball check valves may have specific installation instructions to ensure the ball moves freely.

Space Requirements: Ball check valves are typically more compact than swing check valves, making them easier to install in tight spaces or smaller systems. Ensure there is enough space for the valve to open and close without obstruction.

Fitting Size: It’s important to match the valve size with your pipeline diameter to prevent flow restrictions. Proper fitting and sealing are key to avoiding leaks.

Sealing and Tightness: Ball check valves require a tight seal to function properly. Ensure that the valve body and the ball seat are free of debris or buildup that could impair the valve’s sealing capacity.

Flow Direction Indicator: Most ball check valves have a clear flow direction indicator (such as an arrow) to ensure proper installation. Following these indicators will ensure the valve operates as intended.

Installation Guide for Swing Check Valves

Orientation: Swing check valves are best installed in horizontal pipelines. The swinging disc relies on gravity to return to the closed position, so vertical or inclined installations are not recommended. Installing a swing check valve incorrectly may lead to operational issues or improper valve closure.

Space and Clearance: Swing check valves require more space around them to accommodate the swinging motion of the disc. When installing these valves, ensure that the disc has enough clearance to swing freely without obstruction.

Fitting Size and Pressure Ratings: Similar to ball check valves, it’s important to match the valve’s size with the pipe diameter. Make sure that the swing check valve is rated for the pressure and temperature conditions of your system. Improper pressure ratings can affect valve performance and cause premature wear.

Direction of Flow: Ensure that the valve is installed in the correct direction, as indicated by flow arrows or markings. Swing check valves are typically directional and will not function properly if installed backward.

Valve Selection Guide: Choosing the Right Valve for Your System

Choosing the right check valve for your system requires a thorough understanding of the flow characteristics, operating conditions, and specific needs of your application.

Factors to Consider When Choosing Between Ball and Swing Check Valves

System Size and Configuration: Ball check valves are often preferred for smaller systems due to their compact size and flexible installation. They work well in both horizontal and vertical pipelines, making them ideal for tight or confined spaces. In contrast, swing check valves are larger and more suited to horizontal installations. The gravity-assisted closure mechanism works best when installed in a horizontal pipeline, which helps with the proper closure of the valve.

Valve Operation and Maintenance Needs: Ball check valves are easier to maintain in many cases since they have fewer moving parts compared to swing check valves. The ball mechanism can be checked or replaced without needing to remove the entire valve from the pipeline. Swing check valves, on the other hand, may require more intricate maintenance due to the moving disc and hinge system, particularly when dealing with wear and corrosion.

Sealing and Efficiency: Ball check valves generally provide a tighter seal, making them more effective at preventing backflow in systems where precise flow control is necessary. Swing check valves, while efficient, may have a slower closing action due to their larger moving parts. If the system requires fast backflow prevention, a ball check valve may be more efficient. However, swing check valves are often chosen for their ability to handle larger flow rates and higher pressures.

Flow Rate, Pressure, and Application Considerations

Flow Rate Requirements: Ball check valves excel in systems with lower to moderate flow rates, where they can quickly open and close to maintain fluid direction. For higher flow rates, swing check valves are often preferred because their larger design allows them to handle greater volumes of fluid with minimal resistance.

Pressure Conditions: Ball check valves can withstand higher pressures and are generally better suited for systems where high-pressure resistance is a concern. The simple mechanism makes them effective in preventing backflow without compromising the integrity of the system. Swing check valves, while effective in a range of pressures, may struggle with higher pressure scenarios, especially if the valve is too large or the disc is not securely closed.

Application Type:

Ball Check Valves: Ideal for systems like small water pumps, residential plumbing, or low-pressure pipelines where compactness and quick response times are crucial.

Swing Check Valves: Better suited for larger-scale industrial applications such as HVAC systems, pipelines, and systems handling high-flow liquids or gases.

How to Match the Right Valve to Your Hydraulic System

Consider the Direction of Flow: Both valve types are designed to allow flow in one direction, but it’s essential to determine how the fluid moves within your system. In applications where there is potential for flow reversal, either valve could be used, but the choice depends on the complexity of the system. For instance, a ball check valve might be better in more complex systems, while a Swing Check Valve would be ideal for simpler, gravity-assisted systems.

Pipeline Size and Layout: The size of the pipeline and its layout play an important role in valve selection. Ball check valves work well in smaller pipes and spaces where easy access and minimal obstruction are needed. Swing check valves are typically used in larger pipelines where fluid dynamics allow the disc to swing freely without hindrance.

Conclusion

When selecting the right valve, consider factors like flow rate, pressure, installation space, and long-term maintenance. To maximize valve efficiency and performance, ensure proper installation, regular maintenance, and selecting the correct valve size for your system to avoid unnecessary wear and ensure a reliable, leak-free operation.
